Product Overview: Bently Nevada 330102-10-45-10-02-05

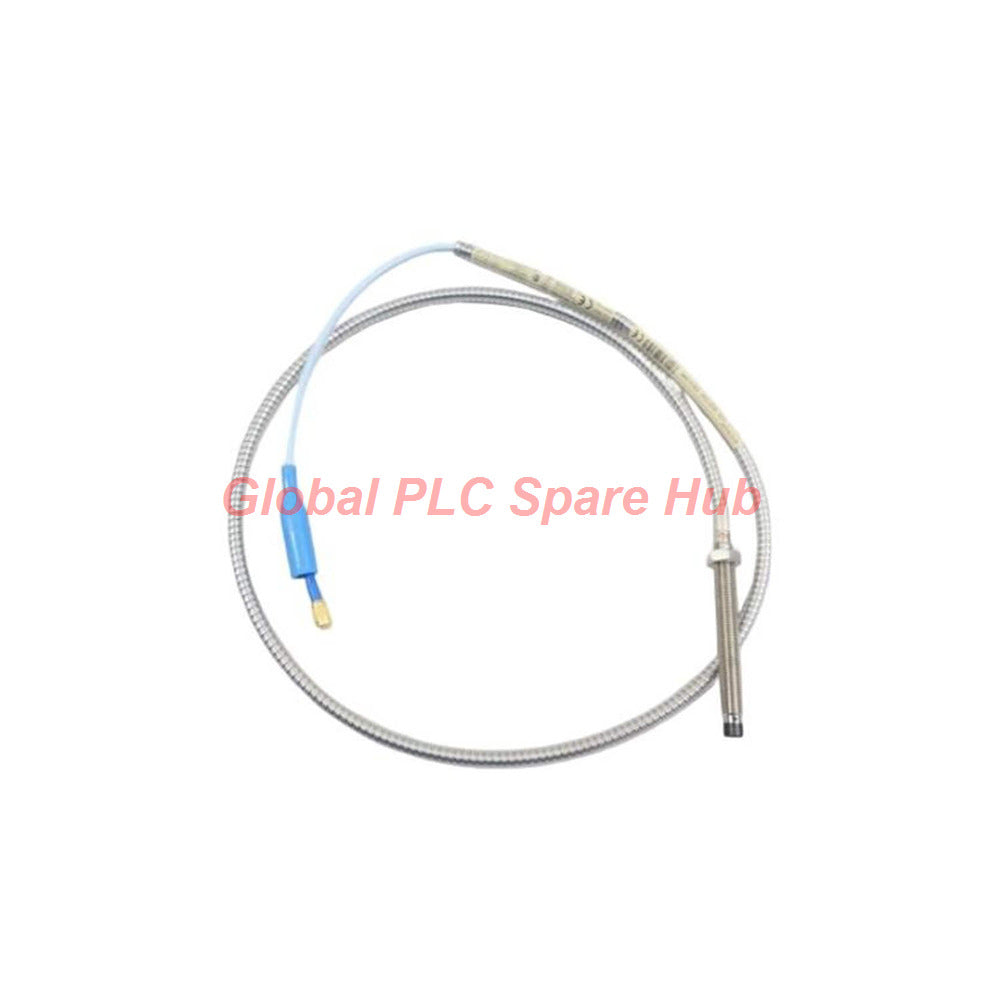

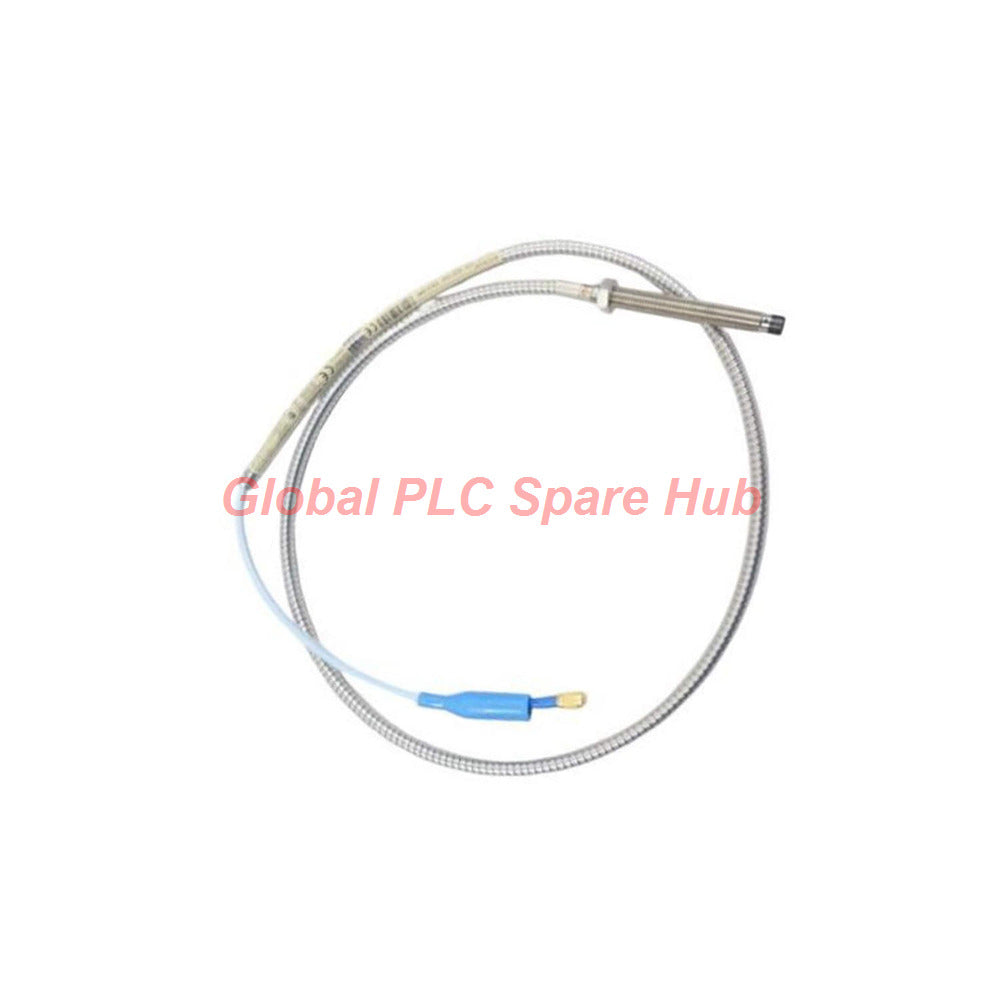

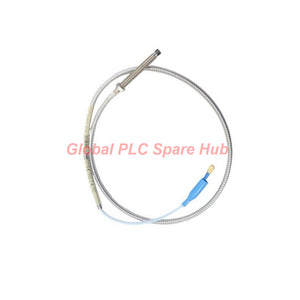

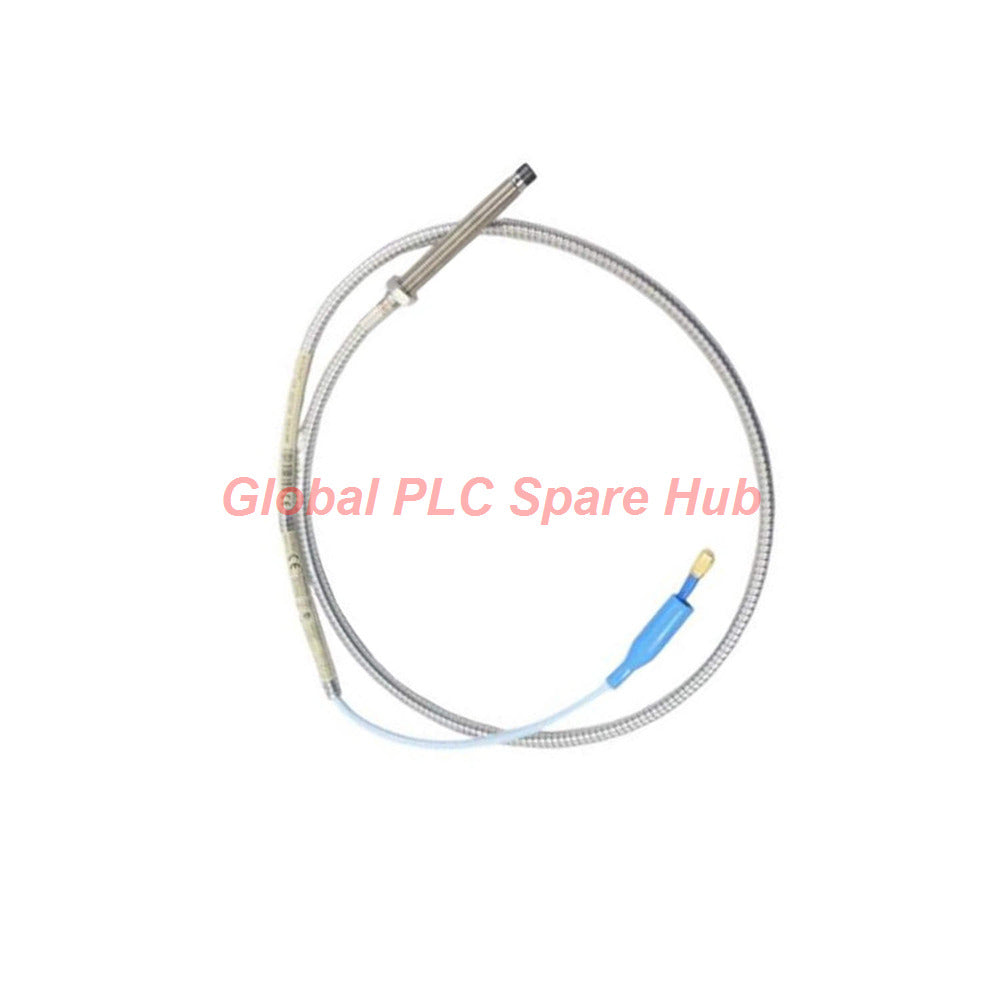

The Bently Nevada 330102-10-45-10-02-05 is an armored 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft displacement in rotating machinery. It uses a 3/8-24 UNF threaded case, a 1-inch unthreaded length, and a 4.5-inch overall case length for installation in compatible probe mounting arrangements.

This configuration has a 1.0-meter probe cable with a miniature coaxial ClickLoc connector and standard cable construction. The probe works as part of a compatible 3300 XL proximity measurement system, where the probe and matching Proximitor sensor convert the gap between the probe tip and conductive target into a displacement-related signal.

For maintenance engineers, the key selection points are the 1-meter cable length, matching Proximitor sensor, mounting dimensions, gap setting, and hazardous-area installation requirements. Confirm these details before replacing an installed probe.

Configuration Breakdown: Decode Each Suffix

Use the configuration tree below to verify the mechanical dimensions, cable arrangement, and approval option before ordering.

• 330102 — 3300 XL 8 mm proximity probe, 3/8-24 UNF thread, armored construction
  • -10 — Unthreaded length: 1 inch
  • -45 — Overall case length: 4.5 inches
  • -10 — Total probe cable length: 1.0 meter (3.3 feet)
  • -02 — Miniature coaxial ClickLoc connector with standard cable
  • -05 — CSA, ATEX, and IECEx approval option

Ordering check: The complete part number is 330102-10-45-10-02-05. Do not select a replacement using only the 3300 XL 8 mm series name; verify the suffixes against the installed probe and project documentation.

Technical Specifications

Important: The supplied temperature data also describes an extended-temperature configuration, but it does not establish that this specific part number uses that option. Confirm the exact temperature rating from the applicable product documentation before using the probe outside the standard range.

Measurement Role and System Compatibility

The probe measures the gap between its tip and a conductive shaft target. A compatible Proximitor sensor conditions this measurement into a signal that the machinery monitor can use for vibration and position monitoring.

• Shaft vibration monitoring: Supplies a displacement measurement to a compatible monitoring channel.
• Shaft position assessment: Supports gap-related measurements when used with the correct sensor and monitor configuration.
• Rotating equipment protection: Can be used in suitable compressor, turbine, pump, and motor monitoring arrangements.
• Condition monitoring: Helps maintenance teams investigate changes in shaft vibration or probe gap trends when interpreted alongside machine operating conditions.

The probe alone does not provide a complete monitoring output. Verify the connected Proximitor sensor, monitor input, extension cable arrangement, and system calibration as a complete measurement chain.

Installation and Commissioning Considerations

• Check the mounting geometry: Confirm the 3/8-24 UNF thread, 1-inch unthreaded length, 4.5-inch case length, and available mounting depth.
• Verify the target gap: Set the probe gap according to the applicable system procedure. For radial vibration applications, the supplied reference is -9 Vdc, approximately 1.27 mm (50 mils).
• Confirm sensor matching: The 1-meter probe configuration must be used with a compatible Proximitor sensor and system components. Do not assume that all cable lengths are interchangeable.
• Protect the connector: Keep the ClickLoc connector clean and properly secured. Avoid excessive cable bending, pulling, or torsion during installation.
• Check the cable route: Separate signal wiring from high-current switching conductors where practical, and follow the installation requirements for shielding and grounding.
• Review hazardous-area conditions: Confirm the actual installation method, barrier or isolator arrangement, and applicable approval documentation for the site.

The supplied documentation states that the probe uses a Viton® O-ring to seal differential pressure between the probe tip and case. Probes are not pressure-tested before shipment. If pressure-seal verification is required, arrange an appropriate test before installation.

Diagnostic Guidance for Field Engineers

Diagnostic note: A gap-voltage or vibration anomaly does not by itself prove that the probe has failed. Confirm the probe, Proximitor sensor, wiring, target surface, and monitor channel before replacing components.

Selection Comparison: 330102-10-45-10-02-05 vs. 330102-00-40-10-01-05

Technical recommendation: Do not treat these two probes as direct replacements based only on their shared 330102 prefix. The first configuration explicitly specifies a 1-inch unthreaded length, 4.5-inch overall case length, and miniature coaxial ClickLoc connector. The alternative uses different mechanical and connector suffixes. Compare the approved configuration drawing, installed mounting dimensions, connector interface, cable arrangement, sensor compatibility, and hazardous-area requirements before purchase.

If you are replacing an existing probe, send the complete installed part number and the matching Proximitor sensor model to the supplier. This helps prevent avoidable commissioning issues caused by dimensional or electrical mismatches.

Global PLC Spare HUB's Insight

For field replacements, the most common selection mistake is matching only the probe family while overlooking mounting dimensions and connector suffixes. These differences can affect installation clearance, connection integrity, and the ability to reproduce the original measurement setup.

For the 330102-10-45-10-02-05, confirm the 1-meter cable arrangement and miniature coaxial ClickLoc connector first. Next, verify the -9 Vdc radial vibration gap reference against the approved system procedure, then check the probe signal with the connected Proximitor sensor. Record the as-found gap voltage and the as-left reading to support maintenance traceability.

Package Contents and Purchasing Support

• 1 × Bently Nevada 330102-10-45-10-02-05 proximity probe, subject to order confirmation.
• Additional accessories, sensors, extension cables, or mounting hardware are not included unless explicitly listed in the order.

Warranty: 12-month warranty, subject to the supplier's written terms and conditions. Contact the sales team to confirm warranty coverage for your order.

Shipping: FedEx, UPS, and DHL options are available, subject to destination, order processing, and carrier service availability. Confirm the dispatch schedule with the supplier before placing an urgent maintenance order.

Request a quote: Provide the complete part number, required quantity, delivery destination, and connected Proximitor sensor model. For a replacement order, include the existing probe configuration or mounting drawing so the team can help verify compatibility.

Frequently Asked Questions

Q1: Can this probe be installed with any 3300 XL Proximitor sensor?

No. Confirm the sensor's supported probe and cable configuration before installation. The supplied specifications distinguish 1-meter, 5-meter, and 9-meter system arrangements, so matching by series name alone is not sufficient.

Q2: What should I record before removing a probe during a planned shutdown?

Record the complete part number, installed gap voltage, monitor channel readings, connector condition, mounting dimensions, and the connected Proximitor sensor model. These records help distinguish a configuration mismatch from a new installation fault.

Q3: Does a correct gap voltage guarantee accurate vibration measurements?

No. A gap reading within the expected range does not rule out target-surface problems, wiring interference, connector faults, or monitor configuration issues. Validate the full measurement chain and compare readings with the machine's operating condition.

Q4: Can I use this probe in a hazardous area because it has CSA, ATEX, and IECEx approvals?

Not without checking the complete installation. Confirm the approval marking, applicable protection concept, barriers or galvanic isolators, wiring drawing, and site requirements. Approval suitability depends on the installed system and its conditions, not only the probe suffix.

Q5: How should I choose between this probe and the 330102-00-40-10-01-05 alternative?

Start with the mounting drawing and the existing connector interface. Then compare unthreaded length, overall case length, cable configuration, sensor compatibility, and required approvals. If any suffix meaning remains unclear, obtain the official configuration drawing before ordering rather than assuming the probes are interchangeable.
