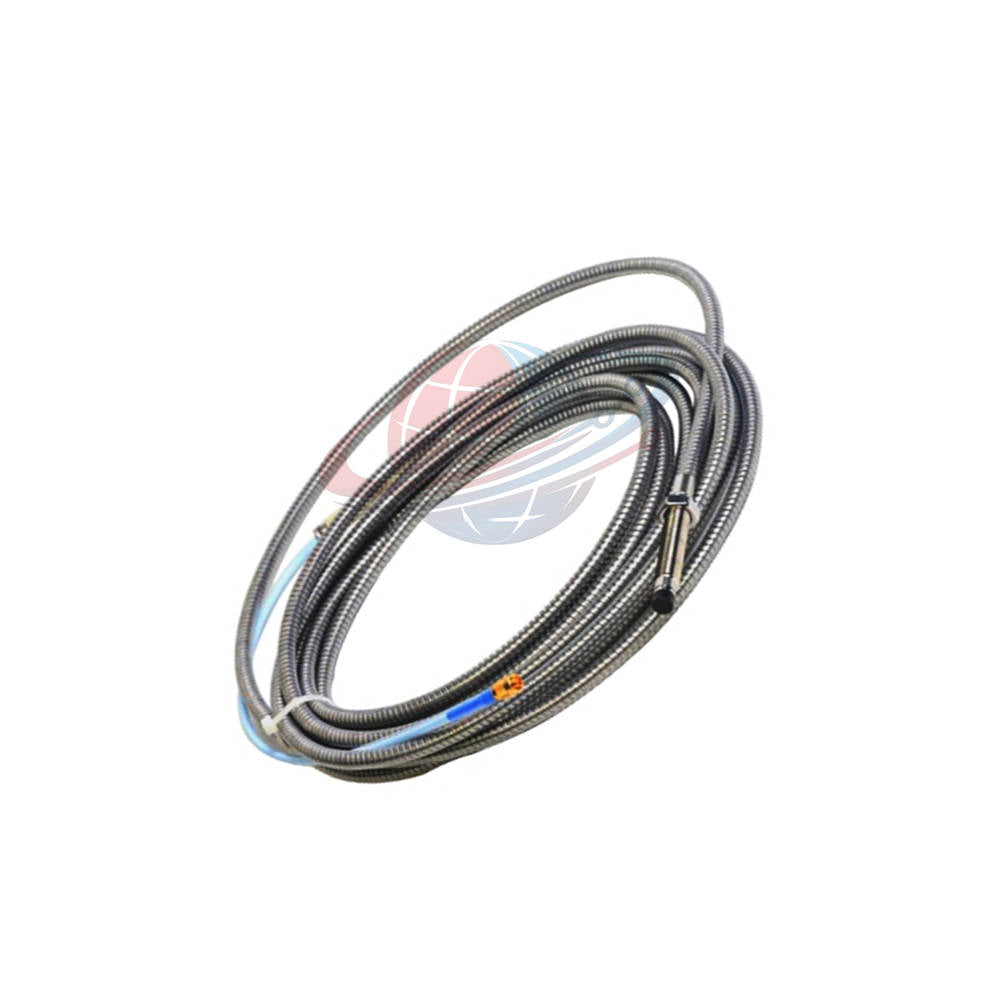

27490-0340-01 Bently Nevada 0.300 inch Proximitor Extension Cable

Engineering Overview

The 27490-0340-01 Bently Nevada Radiation Resistant Extension Cable is engineered for high-radiation and harsh industrial vibration environments. Designed with a 0.300-inch profile, this 27490-0340-01 cable securely bridges Proximitor sensors and monitoring systems while maintaining signal integrity.

Configuration Breakdown (Model 27490 - AAAA-BB)

• Base Part Number: 27490 (Radiation Resistant Series)
• Option A (Cable Length - 0340): 34.0 feet (10.36 meters) total length
• Option B (Armor Option - 01): Flexible stainless steel armor with Tefzel outer jacket

Core Technical Specifications

Installation & Cabling Guidelines

• Route extension cables away from high-power motor lines to prevent electromagnetic coupling.
• Ensure total system loop length between Proximitor sensor and monitor does not exceed 305 meters (1,000 feet).
• Hand-tighten gold-plated brass connectors to maintain proper grounding and prevent signal attenuation.
• Secure armored sections using appropriate cable clamps to withstand continuous plant vibration.
• Maintain bend radii above manufacturer limits to prevent internal conductor stress.

Commissioning & Calibration

• Verify zero-gap DC voltage output using a high-impedance digital multimeter during initial startup.
• Check system frequency response curves if extending total wiring length toward maximum limits.
• Inspect connector threads for particulate contamination prior to mating.

Built-In Diagnostic Capabilities

• Shield continuity monitoring detects grounding faults or broken outer conductor layers.
• DC resistance verification helps isolate short circuits or high-resistance joint connections.

Commercial Terms, Fulfillment & Warranty

• Expedited global fulfillment processed within 24 to 48 hours.
• Trusted courier networks: FedEx, UPS, and DHL.
• Backed by a reliable 12-month operational warranty.

Model Selection Comparison & Technical Recommendations

When selecting radiation-resistant extension cables for turbine vibration monitoring, matching the correct length option to your machinery layout is critical. For shorter drop distances inside containment structures, compare this unit with the alternative 27490-0090-01 model, which provides a compact 9.0-foot length configuration.

Global PLC Spare HUB's Insight

In nuclear power generation and high-radiation turbine enclosures, standard PVC-jacketed cables degrade rapidly under gamma exposure. Field engineers rely on the Tefzel-jacketed and armored 27490-0340-01 because it resists radiation embrittlement and mechanical chafing, ensuring long-term shaft vibration signal stability.

Frequently Asked Questions

What factors should guide my selection between 9-foot and 34-foot extension cable variants?

Choose the 34-foot variant when your Proximitor housing is located at a considerable distance from the sensor penetration point, and select shorter variants like the 27490-0090-01 to minimize excess cable coiling in tight junction boxes.

How does total cable length affect high-frequency vibration signal roll-off?

Capacitive loading increases with length (63 pF/m), which attenuates high-frequency response components; consult system frequency response graphs when approaching 305-meter total loops.

What is the purpose of the stainless steel armor on this cable?

It provides mechanical protection against sharp edges, heavy foot traffic, and crushing forces in harsh industrial turbine environments.

How should I clean contaminated gold-plated brass connector pins?

Use an electronic-grade contact cleaner and a lint-free swab to remove oxidation or oil without scratching the gold plating.

Why is a 3-conductor shielded triaxial cable recommended for field wiring?

It provides complete electromagnetic isolation for the power, signal, and common return lines, preventing common-mode noise from corrupting proximity probe readings.
