25A-D017N114 PowerFlex 523 Allen-Bradley 17A Motor Control VFD

25A-D017N114 | Allen-Bradley PowerFlex 523 Motor Control Drive

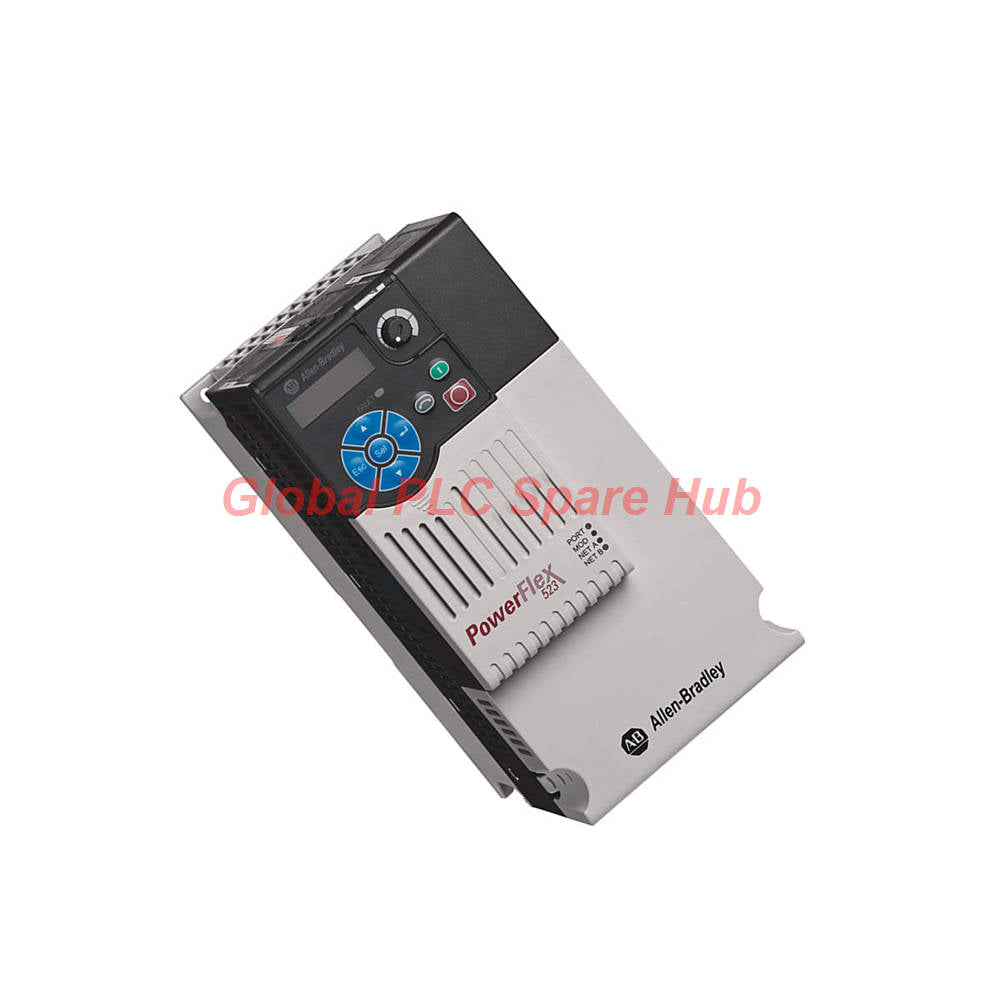

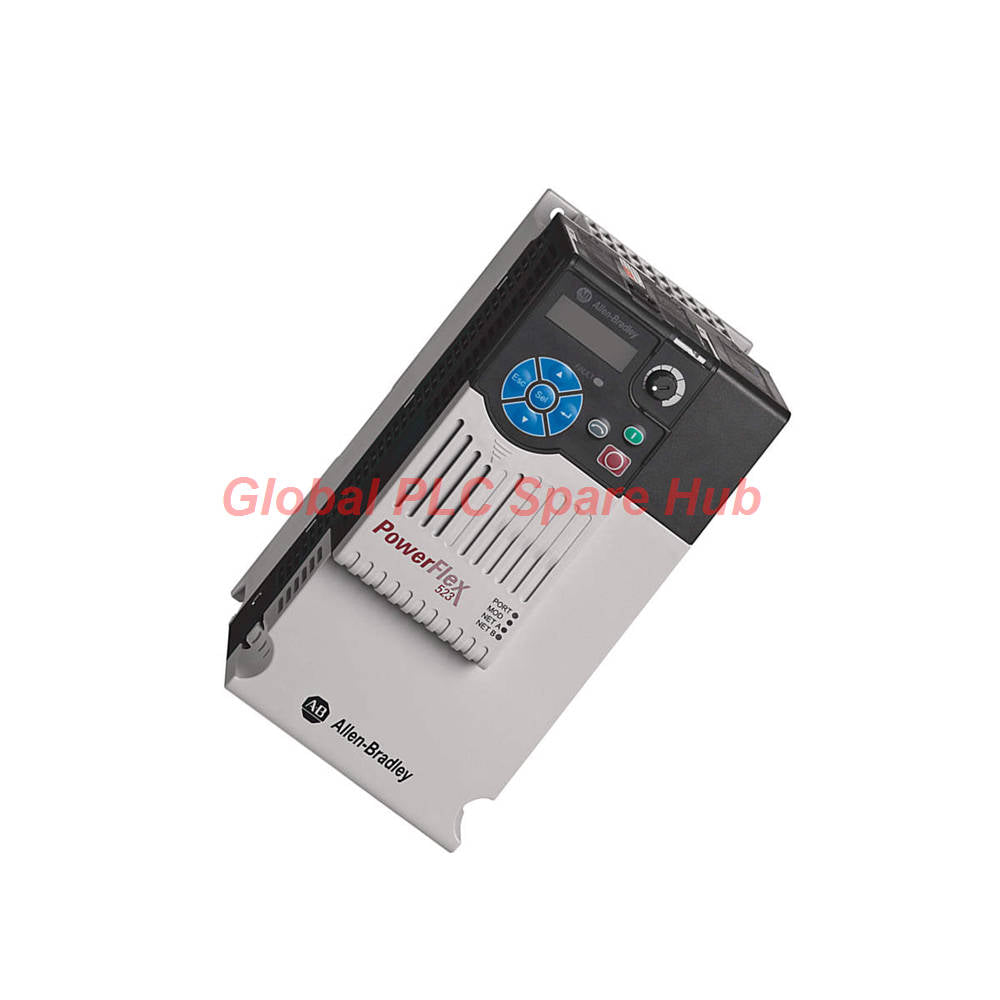

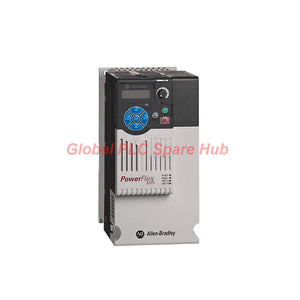

The 25A-D017N114 is an Allen-Bradley PowerFlex 523 variable frequency drive.

It provides adjustable speed control for compatible three-phase motors in industrial machinery.

The drive accepts 380–480V AC input and provides up to 17A output current.

Its rated motor capacity reaches 7.5kW or 10HP under the specified duty conditions.

V/Hz and sensorless vector control provide flexible options for different mechanical loads.

Engineering Snapshot

Item	Engineering Data
Brand	Allen-Bradley
Manufacturer	Rockwell Automation
Model	25A-D017N114
Series	PowerFlex 523
Product Type	Variable Frequency Drive / AC Drive
Input Voltage	380–480V AC
Input Phase	Three-phase
Input Frequency	50/60Hz
Maximum Output Current	17A
Motor Rating	7.5kW / 10HP
Maximum Output Frequency	500Hz
Control Methods	V/Hz and Sensorless Vector
Enclosure	IP20 Open Type
Approximate Weight	2.72kg / 6lb

Why Engineers Choose This Configuration

The value of the PowerFlex 523 lies in its combination of motor control and integrated interfaces.

• 17A output capability supports suitable motors within the applicable electrical rating.
• 7.5kW / 10HP capacity fits many compact three-phase machine drives.
• Sensorless vector control provides an option for applications requiring stronger dynamic response.
• V/Hz control supports straightforward variable-speed applications.
• 500Hz maximum frequency provides extended speed-reference capability when the motor permits it.
• Integrated I/O supports direct connection of common machine-control signals.
• RS-485 DSI provides a serial communication path for compatible automation systems.
• USB connectivity assists service and configuration activities.

Control Architecture at the Machine Level

Signal Group	Available Hardware	Typical Engineering Role
Digital Command	5 Digital Inputs	Start, stop, enable, direction, or interlock signals
Status Output	2 Digital Outputs	Drive status or machine feedback
Analog Reference	1 Analog Input	Speed or process reference
Analog Feedback	1 Analog Output	Operating value or drive feedback
Serial Communication	1 RS-485 DSI Port	Compatible drive communication
Service Connection	1 USB Port	Parameter access and maintenance work

This interface mix suits machines that need local control without a large number of external signal modules.

Engineers should confirm terminal assignments against the applicable installation documentation before wiring.

Application Fit: Where 25A-D017N114 Makes Sense

Machine Type	Control Objective	Engineering Consideration
Conveyors	Adjustable transport speed	Review acceleration and load inertia
Pumps	Variable process flow	Match control method with pump characteristics
Fans	Adjustable airflow	Verify motor and application speed limits
Packaging Machines	Repeatable motor movement	Check I/O timing and command architecture
Material Handling	Controlled starting and stopping	Evaluate load inertia and braking requirements
General Machinery	Variable motor speed	Confirm voltage, current, and duty requirements

Selection Logic Before You Place an Order

A correct drive selection starts with the motor and load rather than the catalog number.

• Supply: Confirm the machine uses compatible 380–480V AC three-phase power.
• Current: Compare the motor full-load current with the applicable drive rating.
• Power: Confirm the motor rating does not exceed the intended drive capacity.
• Duty: Determine whether normal-duty or heavy-duty operation applies.
• Control: Select V/Hz or sensorless vector according to machine behavior.
• Reference: Identify whether speed commands use analog, digital, or serial control.
• Environment: Provide suitable cabinet protection for the IP20 enclosure.
• Communication: Confirm compatibility with the existing RS-485 control architecture.

Field experience: A 10HP motor does not automatically require every 10HP-rated drive.

Motor voltage, full-load current, overload demand, acceleration, and load type can change the correct selection.

Installation: A Practical Commissioning Route

1. Isolate the incoming electrical supply before beginning installation.
2. Confirm the drive catalog number and electrical rating.
3. Record the motor nameplate information before parameter entry.
4. Inspect power and motor cables for correct sizing and termination.
5. Connect protective grounding according to the approved electrical design.
6. Wire digital and analog signals according to the control philosophy.
7. Configure the intended command source and speed-reference source.
8. Enter accurate motor voltage, current, frequency, and speed data.
9. Perform an initial low-speed rotation test.
10. Increase the operating range only after confirming stable machine behavior.

Maintain suitable cabinet ventilation because the IP20 construction requires additional enclosure protection.

Field Diagnostics: Start With the Signal Chain

Experienced technicians often isolate the problem by checking the command path before replacing hardware.

Observed Condition	Recommended Diagnostic Direction
Drive remains idle	Check enable logic, command source, input assignment, and active fault status.
Motor starts unexpectedly	Review command ownership, digital inputs, and configured start sources.
Speed reference looks wrong	Check analog scaling, signal wiring, and reference selection.
High current during acceleration	Review ramp time, motor data, load inertia, and mechanical resistance.
Motor speed falls under load	Compare current demand and control settings with the machine load.
Serial control fails	Check RS-485 wiring, communication settings, and controller configuration.

On-site example: A loaded conveyor repeatedly faults during acceleration while unloaded operation remains stable.

An engineer should first compare acceleration demand and operating current under both conditions.

This test separates a drive-control issue from excessive mechanical load or unsuitable ramp settings.

Commissioning Notes for Sensorless Vector Operation

Sensorless vector control requires accurate motor information for predictable control behavior.

• Enter the motor nameplate voltage correctly.
• Enter the rated motor current accurately.
• Verify the motor frequency setting.
• Confirm the rated motor speed.
• Check the direction command before increasing speed.
• Evaluate low-speed behavior under the actual mechanical load.

Incorrect motor data can create unstable operation even when the drive has sufficient electrical capacity.

Maintenance and Service Advantages

The integrated service interfaces provide useful access during commissioning and troubleshooting.

• Record operating parameters before making major configuration changes.
• Keep documented I/O assignments for future service technicians.
• Inspect cabinet ventilation during scheduled maintenance.
• Check terminals for signs of overheating or loose connections.
• Review communication wiring when remote commands behave unexpectedly.
• Compare operating current against the expected machine load.

A parameter record can significantly reduce restoration time after drive replacement.

Global PLC Spare HUB's Insight

The 25A-D017N114 fits applications where compact motor control and flexible integration matter.

Its 17A output rating provides a clear electrical reference for selection.

However, experienced engineers should treat current as more important than horsepower alone.

For example, two motors with identical horsepower can have different full-load currents.

The correct replacement therefore requires comparison of the complete motor and machine requirements.

The integrated I/O also matters when replacing an existing drive within a production machine.

Preserving existing command and reference architecture can simplify commissioning and reduce control-system changes.

Technical Buying Checklist

Before Ordering	Information to Confirm
Drive Identification	Complete catalog number: 25A-D017N114
Power System	380–480V AC, three-phase
Motor	Voltage, current, frequency, speed, and power
Load	Conveyor, pump, fan, packaging, or other machinery
Duty	Normal Duty or Heavy Duty requirement
Control	V/Hz or sensorless vector requirement
Signals	Digital, analog, and serial control requirements
Installation	Cabinet space, ventilation, and IP20 protection

Send the existing drive model and motor nameplate data when you need help checking application compatibility.

Warranty and Global Shipping Support

• Product: Allen-Bradley 25A-D017N114
• Series: PowerFlex 523
• Type: Variable Frequency Drive / AC Drive
• Warranty: 12-month warranty under applicable Global PLC Spare HUB sales terms.
• Shipping: FedEx, UPS, and DHL available according to destination.
• Dispatch: Target shipment within 24–48 hours after order and stock confirmation.
• Technical Support: Compatibility and application guidance available before ordering.

Request a quotation for 25A-D017N114 and provide your motor details for selection assistance.

Professional FAQ

Q1: Can I use the 25A-D017N114 with a motor that has the same horsepower but a different voltage?

No. The motor voltage must match the applicable drive output requirements and the machine power system.

Q2: Does the integrated USB port replace the RS-485 communication connection?

No. They serve different purposes. The USB interface supports service activities, while RS-485 supports compatible serial communication.

Q3: What should I check if the drive works correctly without a mechanical load?

Check acceleration demand, motor current, mechanical resistance, and load inertia under actual operating conditions.

Q4: How should I select a drive for a conveyor with frequent starts and stops?

Review motor current, acceleration frequency, load inertia, stopping method, and duty requirements before selecting the drive.

Q5: Is matching the existing Allen-Bradley series enough for a replacement?

No. Confirm the complete catalog number, electrical ratings, I/O needs, control method, communication requirements, and application duty.
