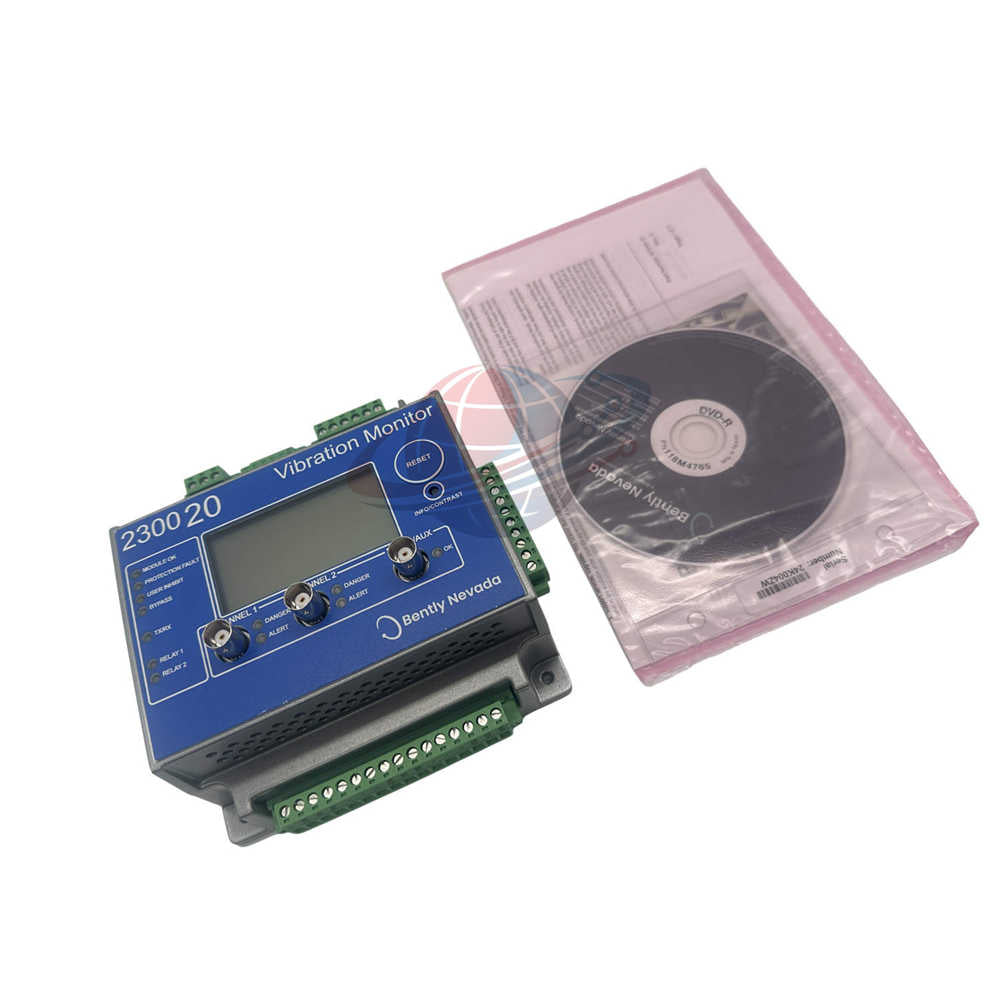

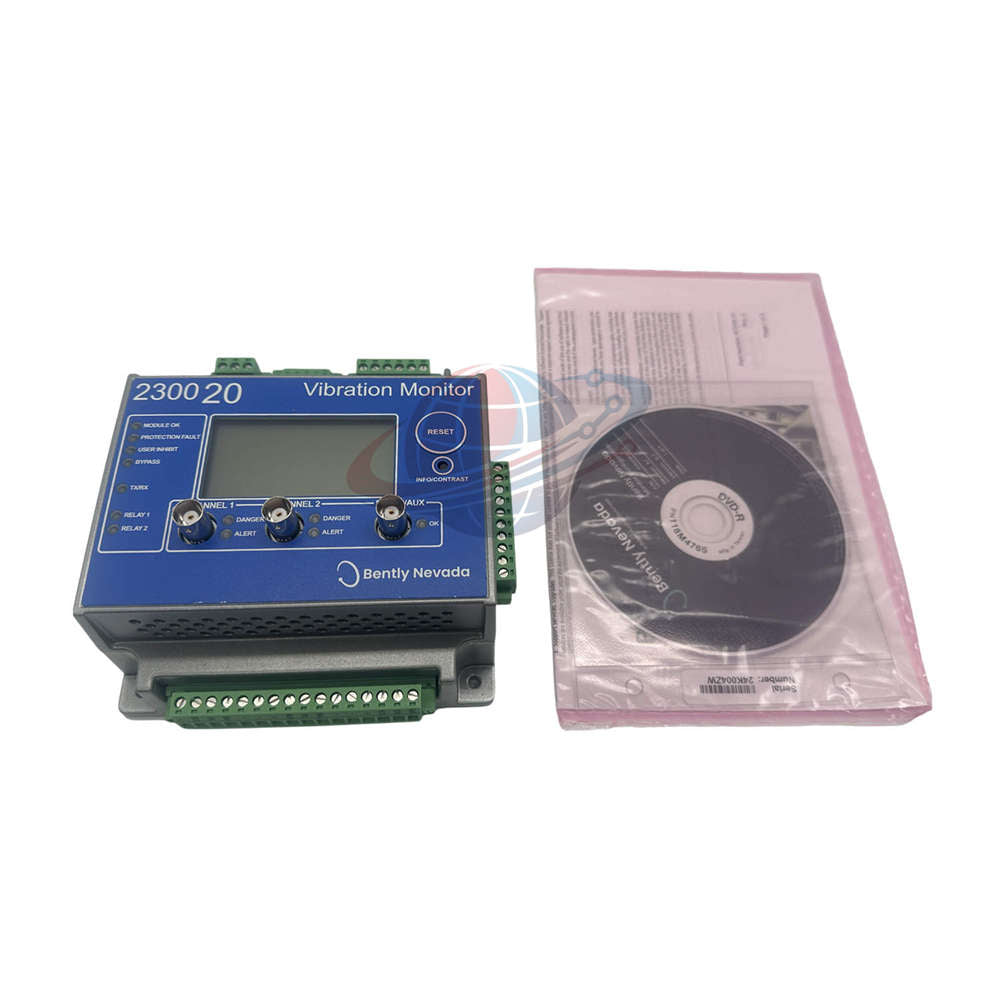

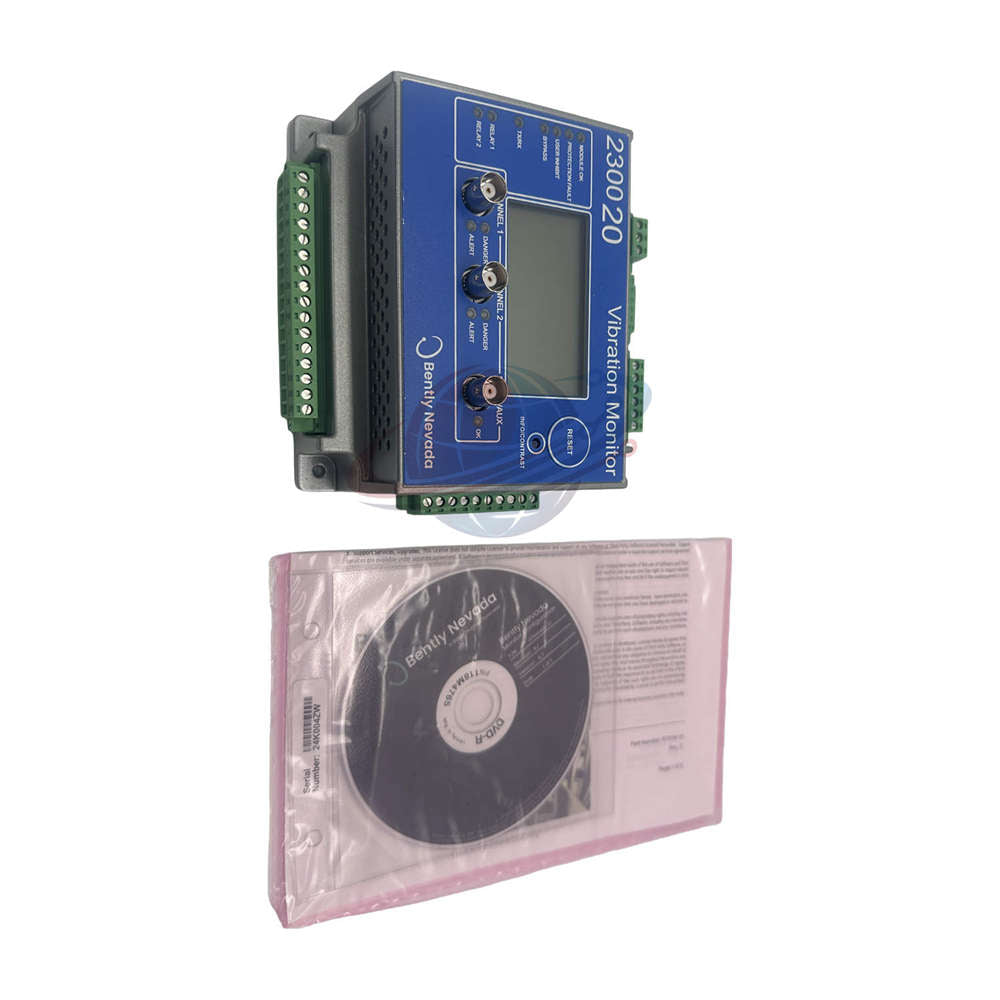

2300/20-00 Bently Nevada 2300 Series Vibration Monitor

Bently Nevada 2300/20-00 System Architecture

The 2300/20-00 from Bently Nevada is an advanced digital vibration monitor engineered within the 2300 Series. Designed specifically for continuous machinery protection on medium-to-low criticality assets, this compact unit monitors two seismic or proximity transducer channels alongside a dedicated speed input. It integrates seamlessly into distributed control architectures via configurable 4-20 mA current loops and Ethernet communications.

Configuration & Suffix Breakdown

Technical Specifications Matrix

Target Equipment & Industrial Application Scenarios

• Medium-to-low criticality balance-of-plant rotating machinery.
• Water treatment facility high-capacity centrifugal pumps and booster skids.
• Power generation plant auxiliary cooling water fans and boiler feedwater pumps.
• Oil and gas upstream pipeline compressor stations and secondary mud pumps.
• Mining and cement plant heavy-duty crushers, mills, and conveyor drives.

Advanced Diagnostic Capabilities

• Time-Synchronous Sampling: Correlates vibration waveforms directly with rotational speed for precise phase analysis.
• Alarm Data Capture: Automatically records pre- and post-alarm historical buffers for root-cause fault investigation.
• Multi-Bandpass Filtering: Assigns independent overall, bandpass, and nX frequency filters per channel to isolate bearing and gear meshing defects.

Commercial Terms & Global Logistics

• Condition & Warranty: 100% factory original equipment backed by a comprehensive 12-month warranty.
• Order Processing: Rapid fulfillment and dispatch within 24 to 48 hours of order confirmation.
• Express Freight Carriers: Expedited international shipping serviced via FedEx, UPS, and DHL.

Global PLC Spare HUB's Insight

When monitoring spared or balance-of-plant machinery, plant operators often struggle to justify the high cost of rack-based monitoring systems while needing more than basic switch protection. Our engineering analysis shows that deploying the 2300/20-00 bridges this performance gap perfectly. During a recent upgrade at a municipal water treatment plant, replacing obsolete meters with this standalone monitor allowed technicians to feed real-time vibration velocity and acceleration metrics directly into the plant DCS via 4-20 mA loops while retaining buffered BNC outputs for portable diagnostic data collection during routine walkarounds.

Engineering Selection & Purchasing Guidelines

• DCS Integration Check: Verify your control system accepts standard 4-20 mA analog inputs for real-time trending of overall vibration values.
• Power Supply Sourcing: Ensure your panel DC supply can deliver at least 7.5 W per monitor module at 18 to 36 Vdc.
• Transducer Compatibility: Confirm field sensors match supported accelerometer, velocity, or proximity input impedance specifications.

Frequently Asked Questions (FAQ)

Q1: How does the 2300/20-00 monitor transmit vibration data to a Distributed Control System?

A1: It utilizes two configurable 4-20 mA analog output channels powered by an internal current loop power supply alongside Modbus over Ethernet.

Q2: What specific sensor types can connect to the two vibration input channels?

A2: The input channels support ICP accelerometers, Velomitor velocity sensors, and 3300-series proximity probe transducers.

Q3: How are alarm conditions and configuration parameters managed in the field?

A3: Configuration is handled via the included Bently Nevada Monitor Configuration software over an encrypted 10/100 Base-T Ethernet connection.

Q4: What is the primary function of the three BNC connectors on the enclosure front?

A4: They provide short-circuit and EMI-protected buffered transducer outputs for two vibration signals and one speed signal for portable analyzers.

Q5: What shipping carriers and delivery timelines are available for urgent replacements?

A5: We dispatch all in-stock orders within 24 to 48 hours using reliable global express couriers including FedEx, UPS, and DHL.
