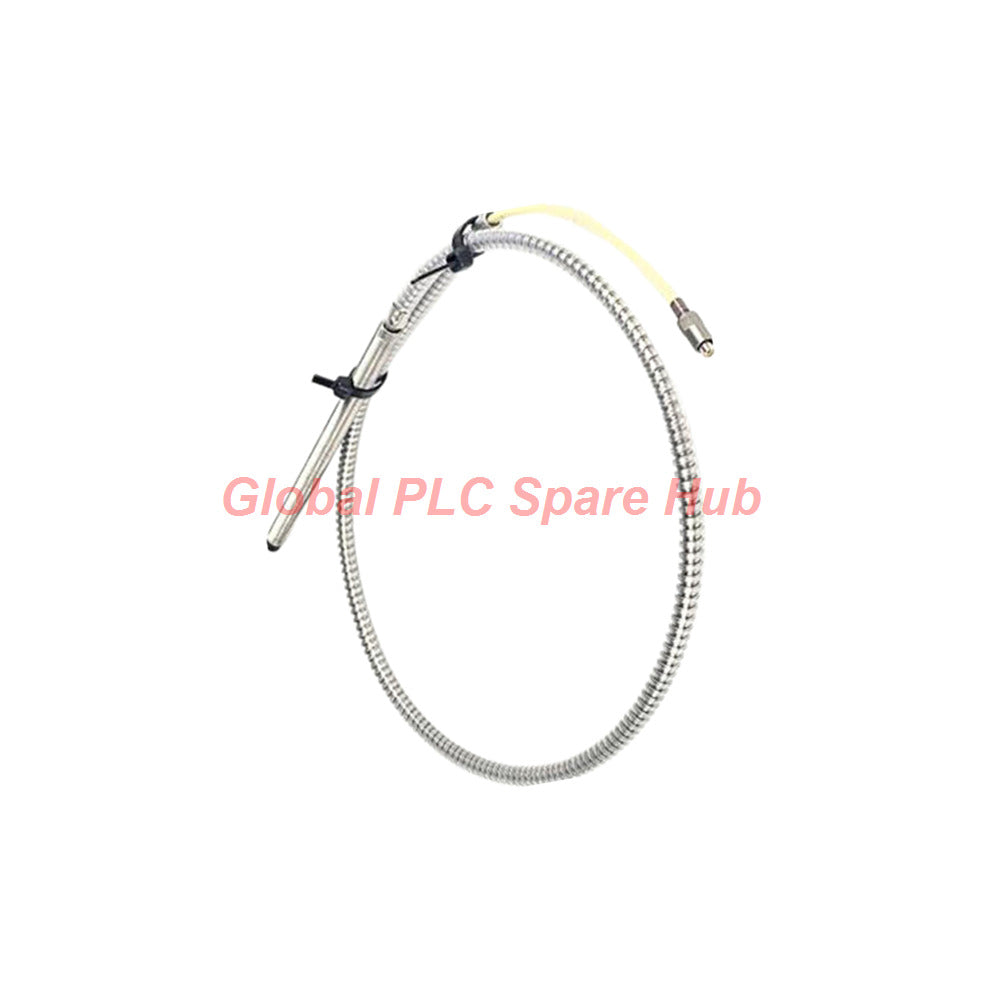

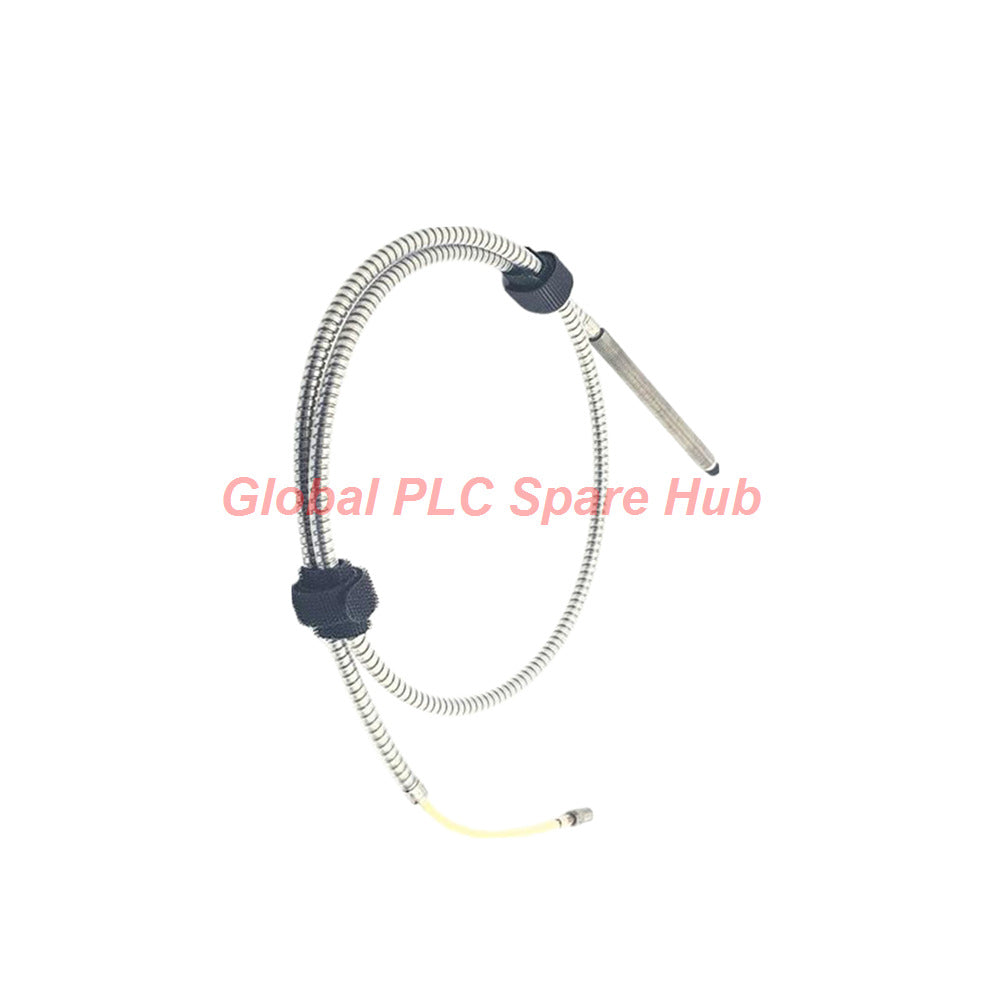

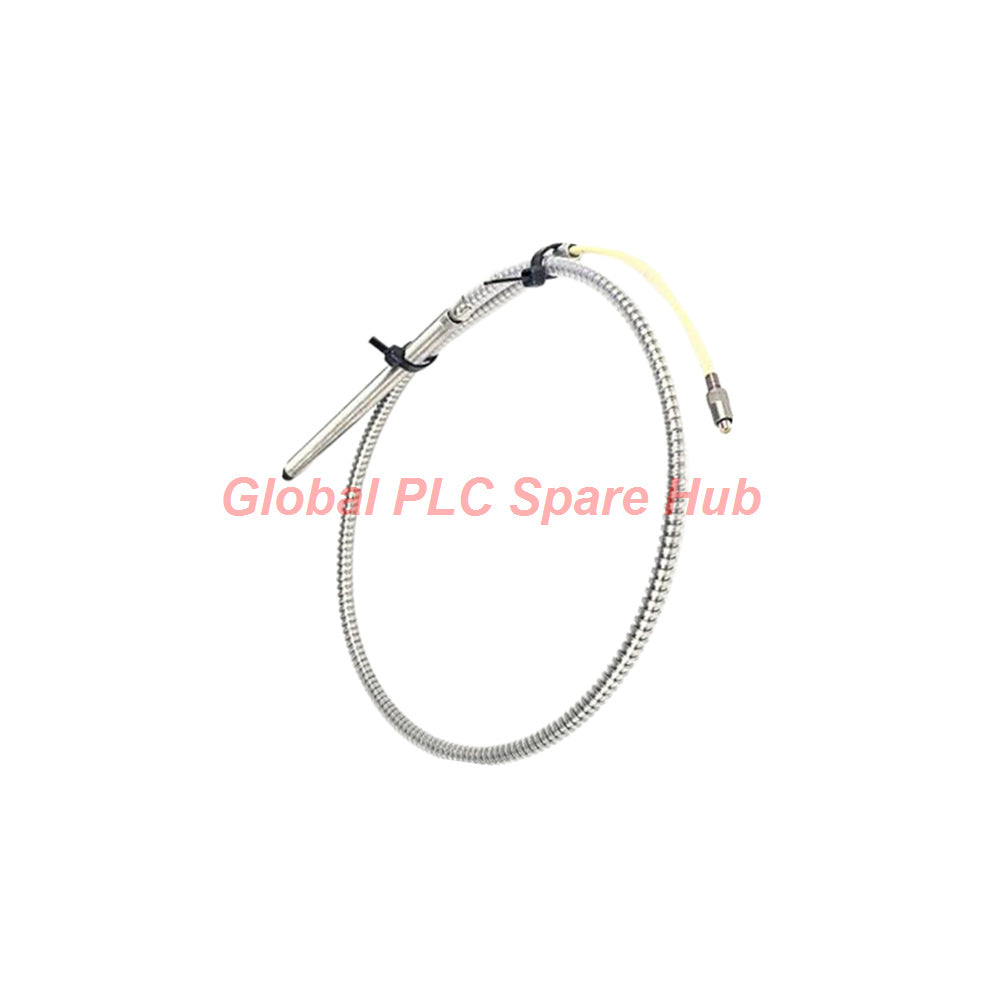

21505-22-55-10-02 Bently Nevada 7200 Series Proximity Vibration Probe

21505-22-55-10-02 Bently Nevada 7200 Series Proximity Vibration Probe Overview

The 21505-22-55-10-02 engineered by Bently Nevada is a high-precision proximity vibration transducer system belonging to the established 7200 series product family. Featuring an 8 mm probe tip diameter, stainless steel lead armor, and a miniature male coaxial connector[cite: 1], the 21505-22-55-10-02 delivers exact dynamic displacement and radial vibration measurements for high-speed rotating machinery.

Global PLC Spare HUB's Insight

Global PLC Spare HUB vibration monitoring engineers frequently deploy the 21505-22-55-10-02 on heavy industrial gas turbines and multi-stage centrifugal compressors where precise shaft gap voltage tracking prevents catastrophic journal bearing failures. During a recent machinery protection overhaul at a high-load petrochemical plant, our technical team evaluated signal linearity across varying fluid-film temperatures. We verified that maintaining stable -17.5 Vdc to -26 Vdc power supply inputs completely eliminates thermal scale factor drift, ensuring true 200 mV/mil output scaling through extended operational lifecycles.

Configuration Breakdown & Suffix Coding Hierarchy

• Base Model Family: 7200 Series - Proximity Transducer Systems (21505-22-55-10-02)
• Detailed Suffix Code Breakdowns
  • Unthreaded Length Option (22): 2.2 inches unthreaded probe body section
  • Overall Case Length Option (55): 5.5 inches total physical case length
  • Total Length Option (10): 1.0 metre (39 inches) cable length with standard manufacturing tolerances
  • Connector Option (02): Equipped with a miniature male coaxial connector
• Tip Construction & Armor: 8 mm probe diameter, 3/8-24 thread configuration, and stainless steel armored lead

Technical Specifications

Suitable Equipment and Application Scenarios

• Industrial steam turbines, heavy gas expanders, and boiler feed water pumps.
• High-speed centrifugal compressors and multi-axis industrial gearboxes.
• Machinery locations requiring chemical corrosion resistance against lube oil, ammonium hydroxide, and sulfuric acid (10%).
• Vibration monitoring racks tracking shaft relative radial displacement and axial thrust position.

Diagnostics and Signal Accuracy Capabilities

• Maintains strict system linearity within 0.8 mils (0.02 mm) of a 200 mV/mil straight line when calibrated as a complete loop.
• Stainless steel lead armor protects coaxial signal paths against mechanical wear and electromagnetic interference in dense machinery bays.
• Withstands operating temperatures up to +350°F (+177°C) on probe and extension cable assemblies.
• Proximitor unit operates reliably across extended thermal ranges from -60°F to +212°F (-51°C to +100°C).

Logistics, Fulfillment, and Warranty Terms

• Condition & Packaging: Brand new and original in factory packaging.
• Dispatch Lead Time: Rapid 24 to 48-hour order processing and global dispatch execution.
• Shipping Carriers: Express international transit via FedEx, UPS, and DHL.
• Warranty Assurance: Comprehensive 12-month factory defect protection clause.

Frequently Asked Questions (FAQ)

Q: What specific physical installation factors must instrument technicians account for when managing the 1.0-metre cable length on the 21505-22-55-10-02?

A: Technicians must account for manufacturing length tolerances ranging from +0.25 metre to -0.10 metre (+10 inches, -4 inches) when routing stainless steel armored leads through tight machine conduit trays.

Q: How does chemical exposure impact the operational integrity of the 8 mm tip on the 21505-22-55-10-02?

A: Probe operation remains completely unaffected by direct contact with air, water, lube oil, ammonium hydroxide, 10% sulfuric acid, MEK, or DMF.

Q: What causes temperature-induced scale factor variations when operating the 21505-22-55-10-02 in high-heat turbine enclosures?

A: Thermal sensitivity typically introduces a -3% change in scale factor at +150°F (+65°C) with a 50 mils gap, which must be factored into high-accuracy baseline calibrations.

Q: How can maintenance personnel verify that interchangeability errors remain within acceptable limits on the 21505-22-55-10-02 system?

A: Interchangeability errors should be verified using static bench calibration to ensure linearity stays within 2.3 mils (0.06 mm) of the nominal 200 mV/mil straight line.

Q: What selection guidance should engineers follow when evaluating the 2.2-inch unthreaded length versus the 5.5-inch case length on the 21505-22-55-10-02?

A: Engineers must measure the exact machine mounting port depth and thread engagement requirements to ensure the probe tip sits precisely within the linear 80 mil calibrated range from the target shaft
