21000-28-10-15-018-04-02 Bently Nevada Proximity Housing Assembly

Engineering Overview: 21000 Series Housing

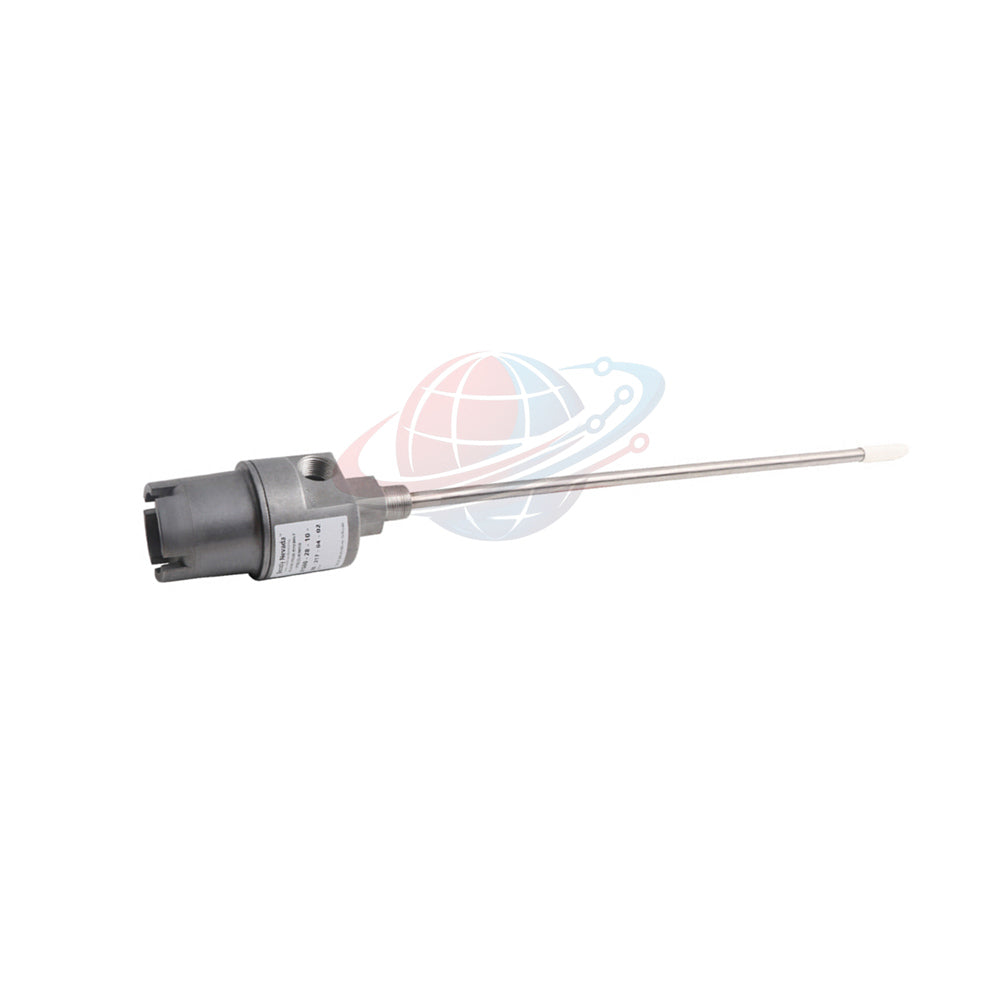

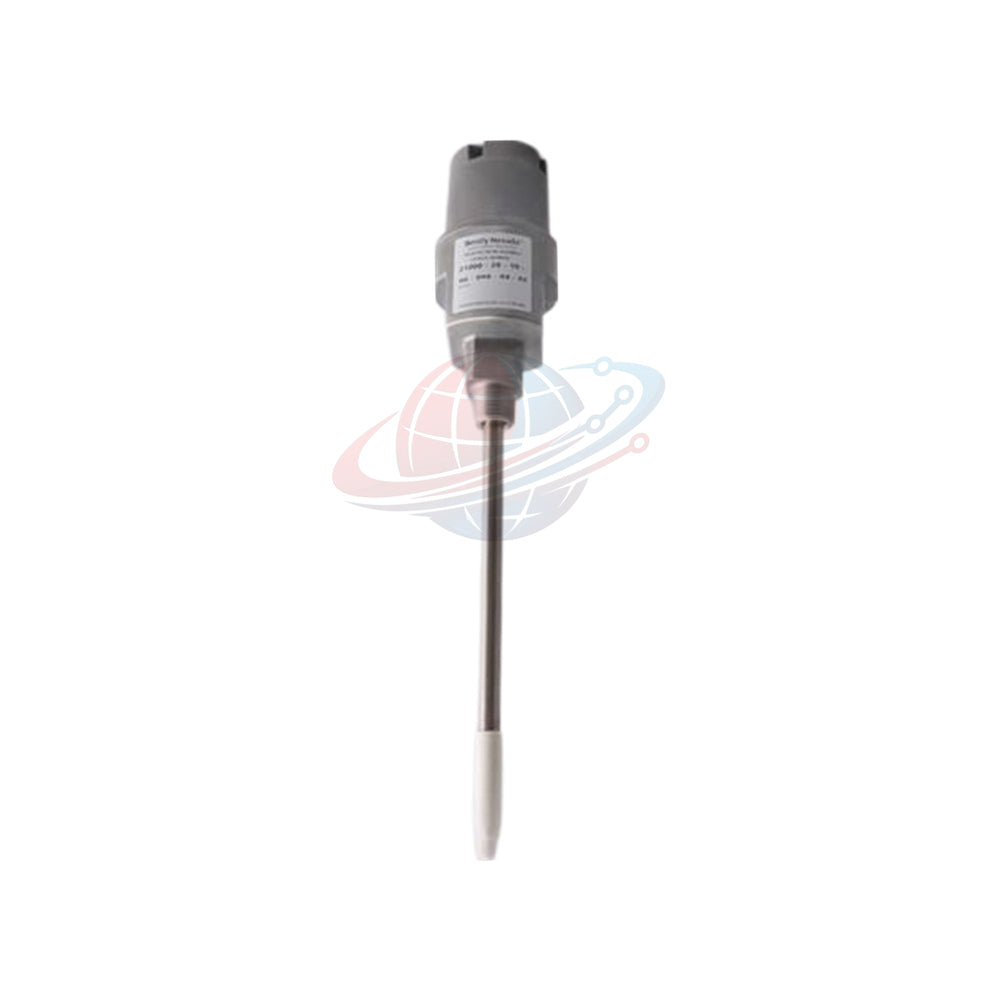

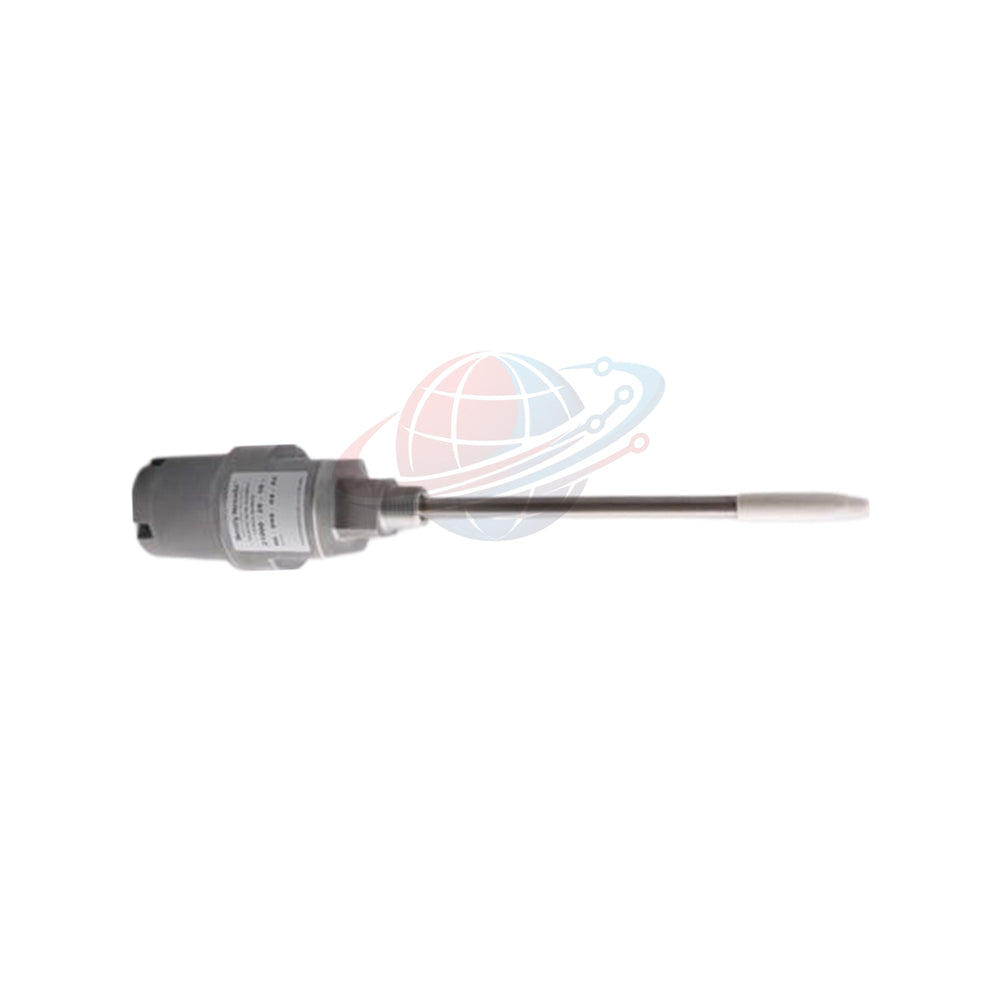

The 21000-28-10-15-018-04-02 is a robust Proximity Probe Housing Assembly by Bently Nevada. Built to meet API 670 standards, this assembly provides a secure, explosion-proof environment for 3300 XL 8 mm proximity probes. Featuring a high-grade aluminum body with a 304 stainless steel sleeve, it ensures long-term operational integrity in volatile industrial settings.

Configuration Breakdown

• Base Model: 21000 (Proximity Probe Housing Assembly)
  • Probe Option (-28): 3300 XL 8 mm (Hazardous Area Approved)
  • Cable Length (-10): 1.0 Meter (39 inches)
  • Standoff Adapter (-15): 1.5 in (38 mm)
  • Probe Penetration (-018): 3 inches
  • Fitting Option (-04): One 3/4-14 NPT plug
  • Mounting Thread (-02): 3/4-14 NPT

Technical Performance Specs

• Material: Aluminum body with 304 Stainless Steel sleeve
• Safety Ratings: CSA Explosion-proof; Class I, Div 1 & 2 (Groups C, D)
• Weight: 1.1 kg (2.4 lb) typical
• Protection: CSA Type 4 Enclosure
• Standard Compliance: API 670 for external proximity mounting

Global PLC Spare HUB's Insight

Our team at Global PLC Spare HUB verifies the 21000-28-10-15-018-04-02 as the industry benchmark for externally mounted vibration monitoring. Its modular design allows for rapid probe replacement without breaking the pressure boundary, which is vital for maintenance cycles on centrifugal equipment. The combination of aluminum and stainless steel components offers the ideal balance between weight reduction and corrosion resistance.

Selection & Compatibility Comparison

When selecting your housing assembly, ensure the penetration depth matches your machine's clearance requirements. If you require a different standoff or penetration depth, consider comparing this unit with the alternative model below:

• 21000-28-10-20-039-04-02

Technical Suggestion: The -15 adapter (38mm) on your current unit is optimized for shorter reach applications. If your machine clearance demands a wider standoff for improved probe adjustment, the -20 (50.8mm) variant linked above offers the necessary mechanical flexibility without requiring a total system redesign.

Application Scenarios & Diagnostics

• Scenarios: Gas/Steam turbines, process compressors, and large industrial gearboxes.
• Diagnostic Ability: The assembly protects sensitive probe electronics from physical impact and environmental ingress, ensuring signal stability for shaft-vibration and position-tracking analytics.

Logistics & Quality Assurance

• Global Transit: Secure delivery via FedEx, UPS, and DHL.
• Turnaround: Expedited 24-48 hour processing for all factory-sealed units.
• Quality: 12-month factory warranty included.

Professional Frequently Asked Questions

What is the difference between the 21000 and 24701 housing series?
The 21000 series utilizes an aluminum body with a stainless steel sleeve, whereas the 24701 series is constructed entirely from stainless steel for enhanced chemical resilience.

Does this assembly include the required internal O-rings?
Yes, all 21000 series housings come complete with factory-installed O-rings to ensure a compliant environmental seal.

Can these housings be used in North American hazardous zones?
Yes, the CA-designated versions are specifically certified for North American Class I, Div 1 & 2 locations; ensure your specific part number matches local safety regulations.

How do I handle the conduit connections for this assembly?
The unit features 3/4-14 NPT threaded ports; ensure you utilize explosion-proof rated conduit fittings if your application site falls under Class I hazardous zone requirements.

Experience Tip: Is the probe penetration adjustable after installation?
The probe penetration is determined by the internal sleeve length; we recommend verifying your machine's target gap before final thread engagement to avoid damaging the probe tip.
