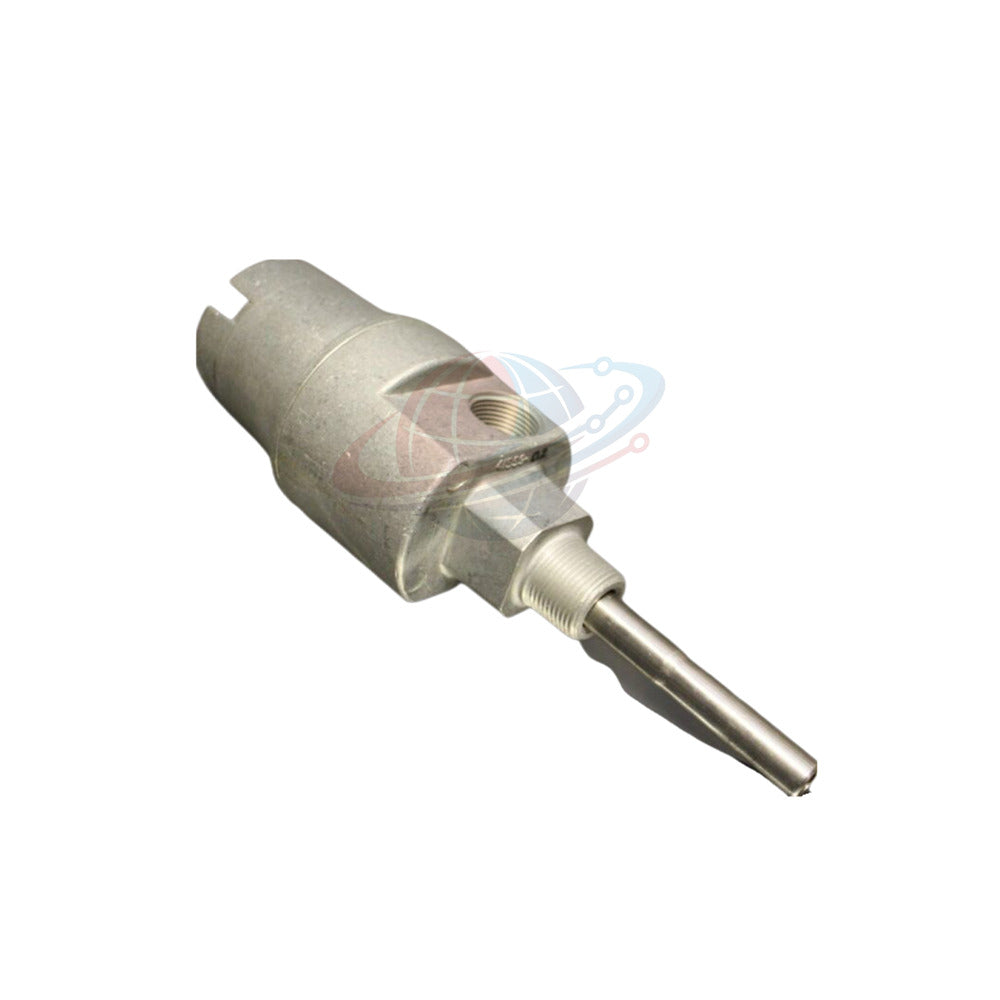

21000-28-05-00-096-03-02 Bently Nevada Proximity Probe Housing Assembly

Product Overview

• The 21000-28-05-00-096-03-02 is an API 670 compliant proximity probe housing.
• Constructed with a lightweight Aluminum body and a 304 Stainless Steel sleeve.
• This 21000-28-05-00-096-03-02 unit includes a 3300 XL 8mm reverse-mount probe.
• Designed for Class I Division 1 hazardous areas with explosion-proof certification.
• Features a 9.6-inch penetration depth for deep-casing machinery applications.

Configuration Breakdown

• Model: 21000 Proximity Probe Housing
• Probe Option (-28): 3300 XL 8 mm probe with connector
• Cable Length (-05): 0.5 m (20 in) internal cable
• Standoff (-00): No standoff adapter included
• Penetration (-096): 9.6-inch sleeve length
• Fittings (-03): 3/4-14 NPT plug and seal grip with multi-size grommets
• Mounting (-02): 3/4-14 NPT threads

Technical Specifications

• Manufacturer: Bently Nevada / Baker Hughes
• Model: 21000-28-05-00-096-03-02
• Housing Material: Aluminum body; 304 SS sleeve
• Hazardous Area Rating: CSA Class I Div 1/2, Groups C & D
• Protection: CSA Type 4 Enclosure (Weatherproof/Dust-tight)
• Temperature Limits: T4/T5 rated for -50°C to +80°C
• Compliances: API 670 Standard, RoHS Directive 2011/65/EU
• Typical Weight: 1.1 kg (2.4 lb)

Global PLC Spare HUB’s Insight

• The 21000-28-05-00-096-03-02 provides essential protection for thrust and vibration monitoring.
• Our review highlights the multi-grommet "03" fitting option, which simplifies field wiring for varying cable sizes.
• Essential for high-reliability machinery protection in oil, gas, and power sectors.
• Supports 12 months of factory warranty for complete operational peace of mind.

Diagnostic & Protection Capabilities

• API 670 Standard: Fully compliant with industry-standard external housing requirements.
• Mechanical Protection: Guards the probe against impact, environmental debris, and moisture.
• Hazardous Area Safety: Rated explosion-proof for North American Class I Div 1 environments.
• Serviceable Design: Dome cover allows for easy internal access for gap verification.

Shipping and Purchase Terms

• Express Logistics: Global shipping via FedEx, UPS, and DHL.
• Processing Speed: Orders for the 21000-28-05-00-096-03-02 ship within 24-48 hours.
• Condition: Brand New & Original in Factory Packing.
• Warranty: 12-month comprehensive factory warranty included.

Frequently Asked Questions (FAQ)

• Can I use this housing for a 5mm probe? This specific assembly (-28) is configured for a 3300 XL 8mm probe. For 5mm probes, a different probe option suffix is required.
• What is the purpose of the 0.5m cable length? The 0.5m cable is optimized for internal routing within the housing to reach the terminal strip without excess bulk.
• Does the "03" fitting option include grommets for all cable types? It includes three grommet sizes ranging from 1/8 inch to 3/8 inch, covering the vast majority of industrial coaxial cables.
• Is this assembly suitable for intrinsically safe loops? Yes, while the housing is explosion-proof, the probes can be ordered for intrinsically safe applications when used with appropriate barriers.
• Selection Guide: Why choose the 9.6-inch penetration (-096)? Choose the 21000-28-05-00-096-03-02 specifically for machines with thick walls or insulation where a standard 4-inch sleeve cannot reach the shaft.
