21000-16-10-15-098-03-02 Bently Nevada 21000 Probe Housing Assembly

Product Overview

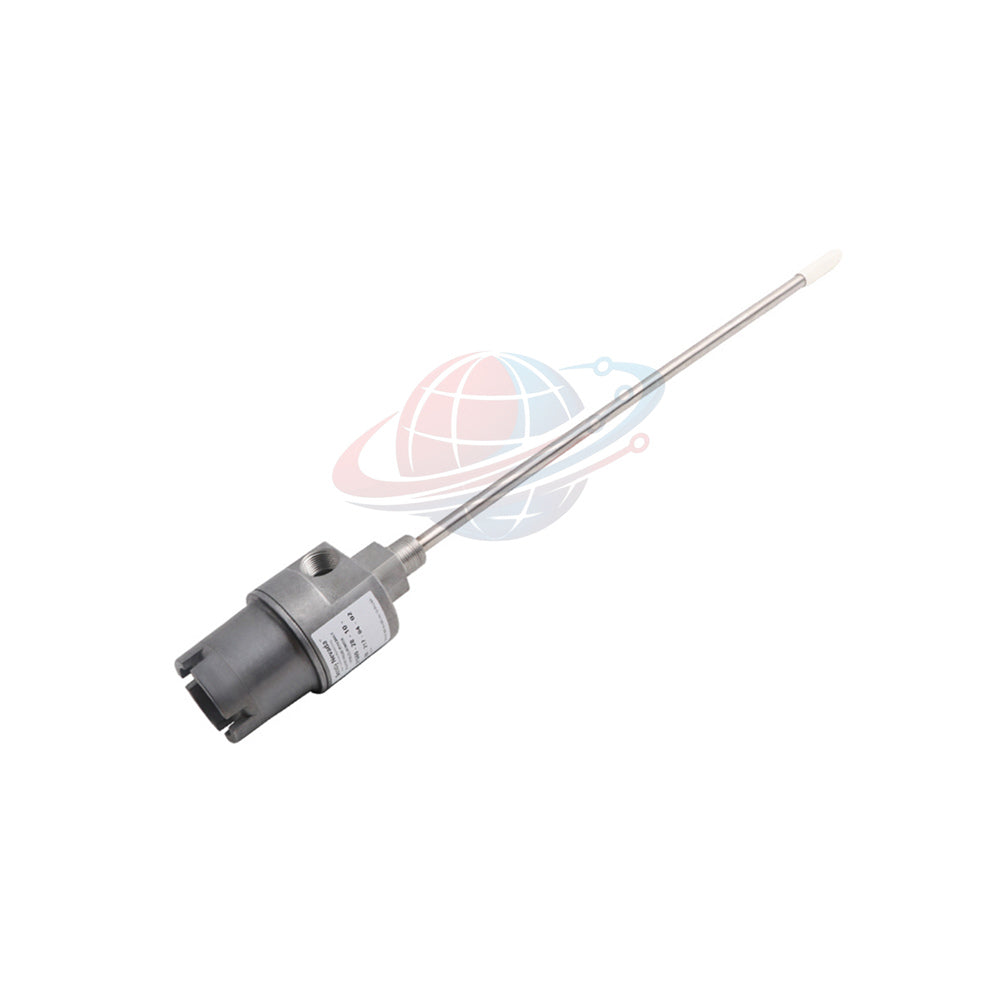

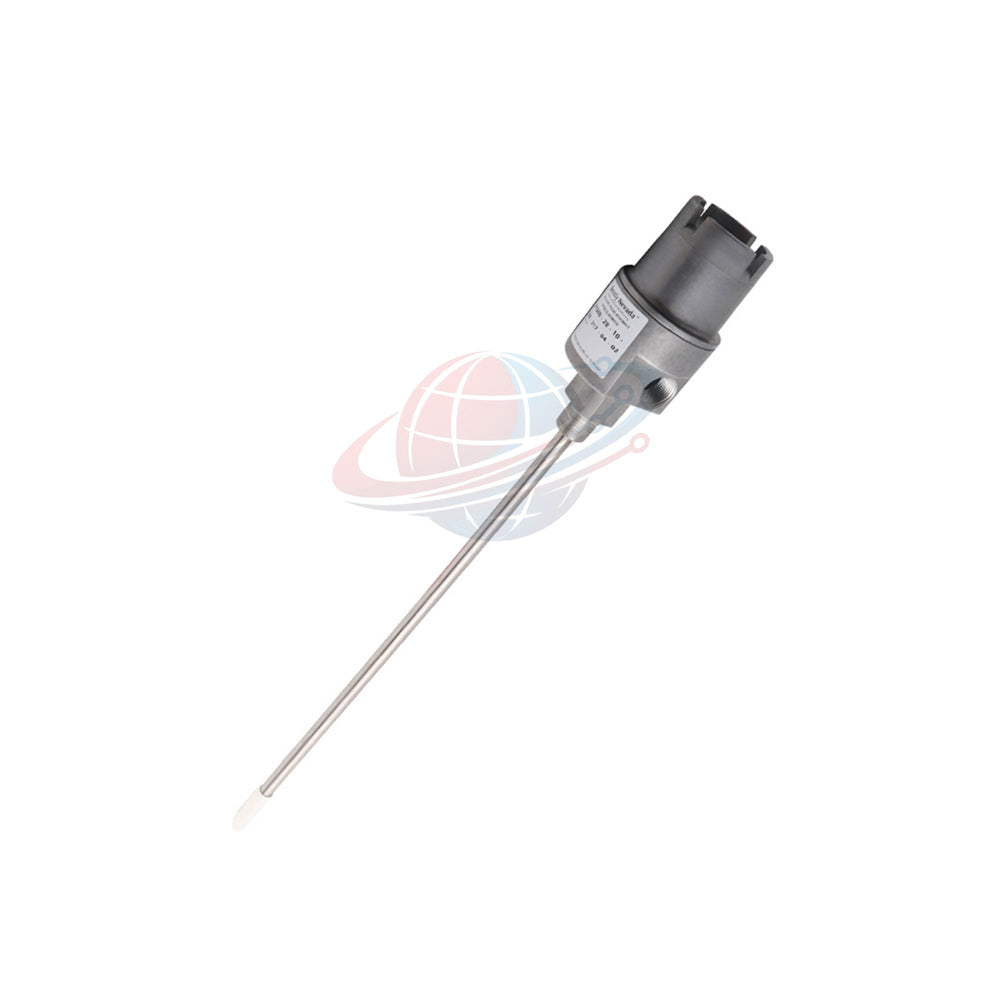

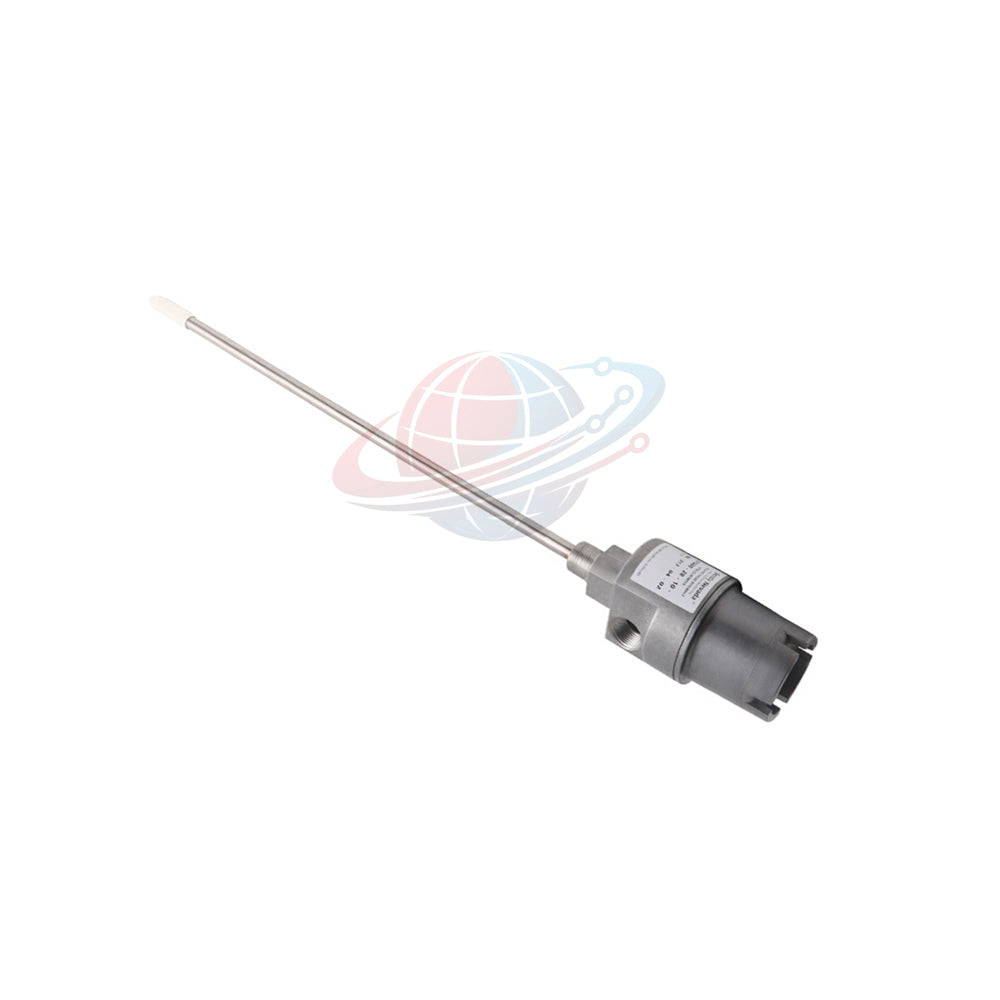

The 21000-16-10-15-098-03-02 is a heavy-duty, externally mounted proximity probe housing assembly. Manufactured by Bently Nevada, this product protects delicate eddy current sensors in demanding industrial environments. The system features a rugged, explosion-proof design that simplifies sensor adjustments during active machinery operation.

This aluminum housing includes a 304 stainless steel sleeve, an integrated reverse-mount 3300 XL 8 mm proximity probe, and a 1.0-meter cable. The housing is designed to meet strict industrial safety and performance standards.

Global PLC Spare HUB's Insight

Our senior instrumentation engineers have evaluated the mechanical design of the Bently Nevada 21000 housing line. In heavy industries, process vibrations and aggressive external atmospheres can easily compromise standard exposed sensors. This custom configuration uses a 1.5-inch standoff adapter paired with a 9.8-inch sleeve penetration depth. This allows precise probe positioning while maintaining a robust, pressure-sealed barrier.

The certified CSA Type 4 housing complies fully with API 670 standards, making it highly reliable for petrochemical, refining, and power generation environments. The aluminum dome cover is easy to thread, allowing field engineers to adjust probe gaps without risking exposure to hazardous atmospheric elements.

Configuration Breakdown (21000 - AA-BB-CC-DDD-EE-FF)

The model code 21000-16-10-15-098-03-02 is built using a precise, modular numbering system:

• Base Model: 21000 (Proximity Probe Housing Assembly with Aluminum Body & 304 Stainless Steel Sleeve)
•   └── Probe Option (AA): 16 (Includes 3300 XL 8 mm probe with ClickLoc connector)
•   └── Probe Cable Length (BB): 10 (1.0 Meter / 39 inches of integrated cable)
•   └── Standoff Adapter (CC): 098 (9.8 inches total sleeve penetration depth)
•   └── Fittings Option (EE): (3/4-14 NPT process mounting thread)

Technical Specifications Table

Target Equipment & Applications

The 21000-16-10-15-098-03-02 is designed for high-protection machinery applications, including:

• Centrifugal compressors and expanders in high-pressure gas service
• Heavy-duty utility steam turbines and combined-cycle gas turbines
• Large process pumps, induction motors, and structural gearboxes
• Wet or corrosive environments requiring sealed, external probe mountings

Housing Selection & Technical Standoff Comparison

The configuration of probe sleeves and standoff adapters significantly alters physical mounting dynamics. Below is a structural comparison between this 1.5-inch standoff model and a direct-mount unthreaded option:

Machinery Diagnostics & Compliance

In petrochemical applications, dynamic measurements must remain clear of external interference. The 21000-16-10-15-098-03-02 protects your signal integrity. This lets monitoring systems perform advanced rotor dynamics diagnostics, such as orbit plot analysis, vibration trend tracking, and shaft centerline tracking under heavy loads.

Logistics, Delivery & Warranty Terms

• Factory Quality Guarantee: Global PLC Spare HUB provides a full 12-month quality warranty on this assembly.
• Quick Processing: Orders are processed and dispatched within 24 to 48 hours of confirmation.
• Express Air Transport: We ship worldwide via FedEx, UPS, and DHL Express.

Frequently Asked Questions (FAQ)

Can I replace the internal proximity probe inside this housing without removing the entire sleeve assembly?
Yes, the reverse-mount design of the 21000 series is designed exactly for this. Simply unscrew the rear dome cover, disconnect the coaxial connector, and back the reverse-mount probe out of the sleeve without disturbing the main sleeve thread or process seals.

What is the purpose of the 1.5-inch standoff adapter on this configuration?
The standoff adapter provides mechanical clearance. This is essential for machine casings with thick external thermal insulation or structural lagging. It extends the main dome housing away from the hot casing surface, keeping the probe electronics cooler.

Does this aluminum housing carry approvals for explosive gas environments?
Yes, this CSA-certified housing is rated explosion-proof for hazardous areas. It is approved for North American Class 1, Divisions 1 & 2, Groups C and D environments when installed with approved conduit seals.

How do the included cable seal grips with different grommets assist during installation?
The -03 fitting option includes a cable seal grip with multiple grommet sizes. This allows you to achieve a tight, weather-proof seal on various field-wiring cable diameters (1/8 to 3/8 inches), protecting the inside of the housing from moisture and dust.

Why is the 304 stainless steel sleeve preferred over aluminum for casing penetration?
While the main body uses lightweight cast aluminum, the sleeve penetrates the machinery casing. This sleeve must withstand hot lube oil, process gases, and mechanical shear stresses. 304 stainless steel provides excellent corrosion resistance and mechanical strength for this demanding role.
