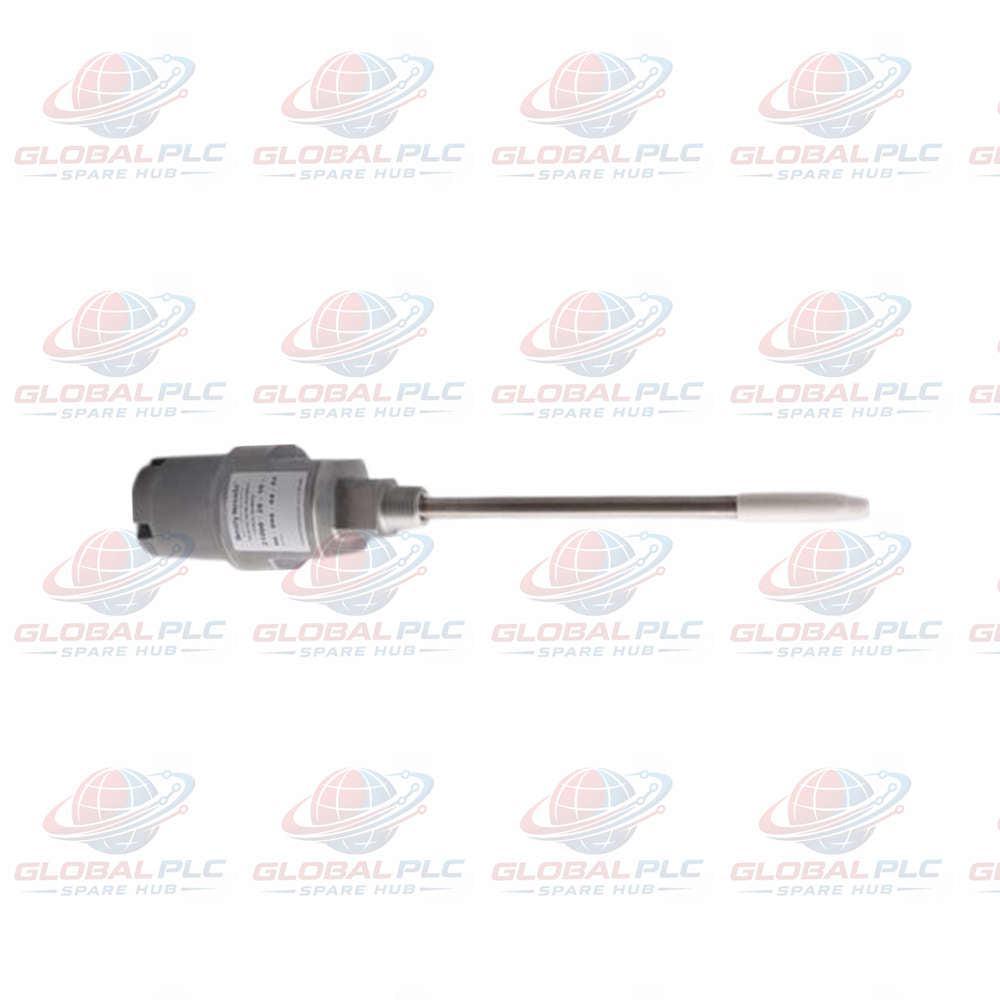

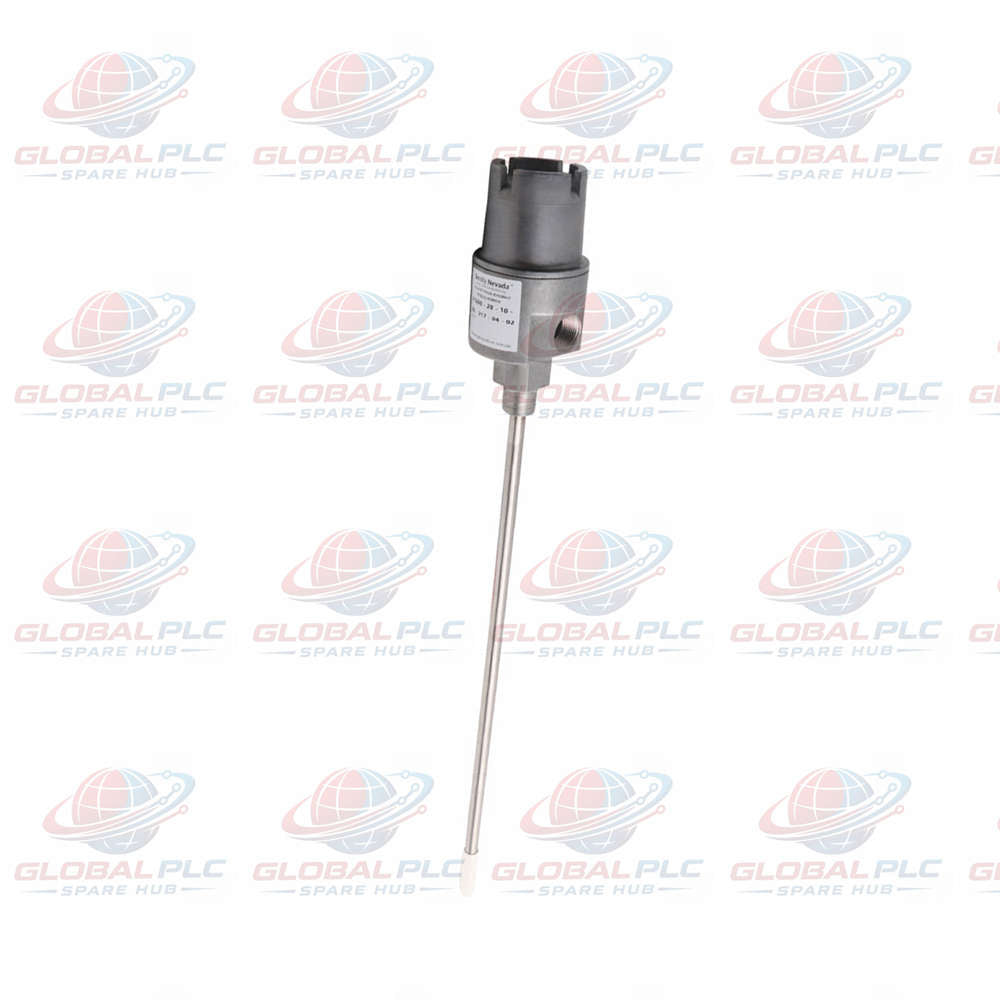

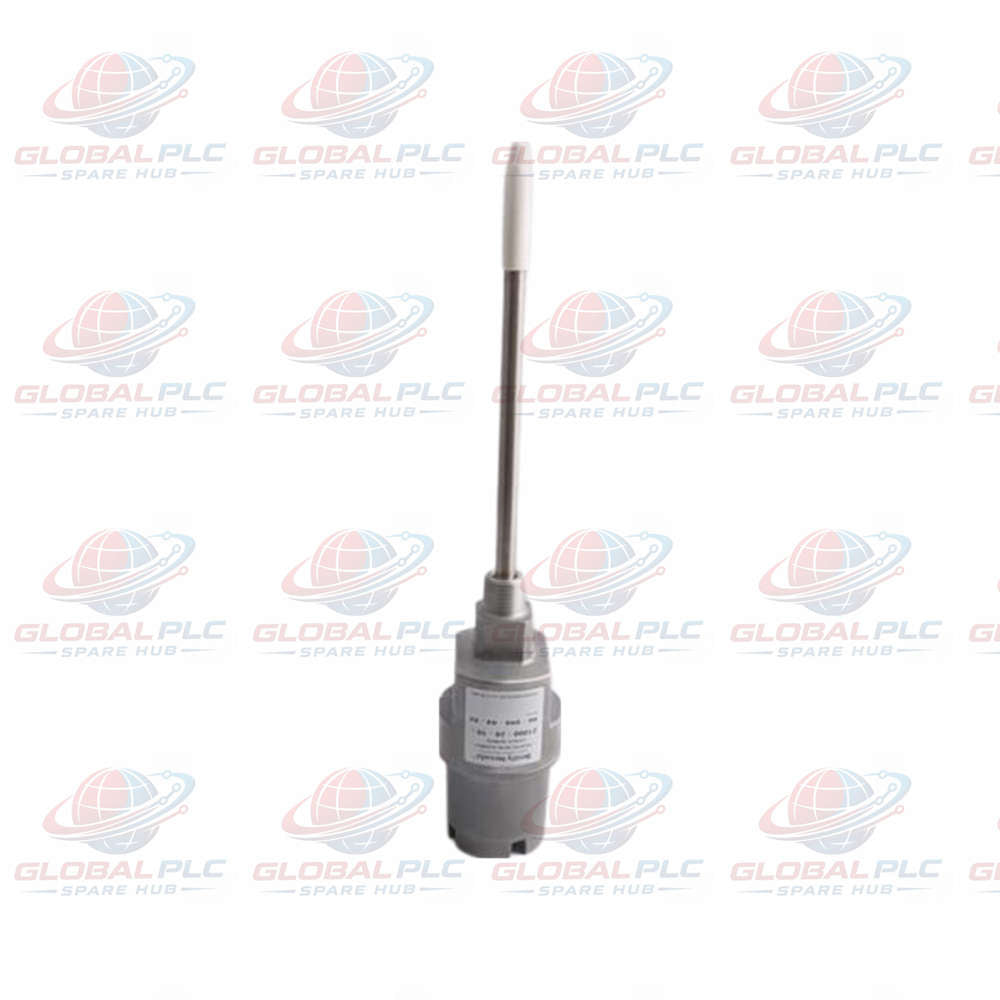

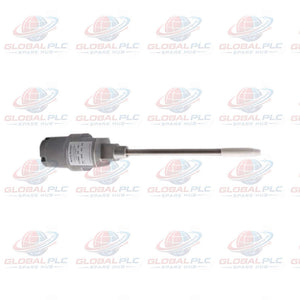

21000-16-10-15-092-03-02 Bently Nevada Proximity Probe Assembly

Overview

The 21000-16-10-15-092-03-02 is an API 670 compliant, explosion-proof proximity probe housing assembly engineered by Bently Nevada for heavy industrial machinery monitoring. Constructed with a chromate-treated die-cast aluminum body and a 304 stainless steel probe sleeve, this housing isolates reverse-mount 3300 XL 8 mm proximity transducers from extreme ambient contaminants, mechanical impacts, and corrosive atmospheres.

Configured with a 1.5-inch standoff adapter and a 9.2-inch sleeve penetration, the 21000-16-10-15-092-03-02 provides adjustable probe positioning for shaft vibration, axial thrust, and speed measurements on critical rotating equipment. It holds CSA Type 4 ratings and intrinsically safe approvals for Class I, Division 1 and 2 hazardous areas.

Configuration Breakdown: 21000-16-10-15-092-03-02

• Base Housing Model: 21000 — Aluminum Body with 304 Stainless Steel Sleeve
  • [16] Probe Option: 3300 XL 8 mm Reverse Mount Proximity Probe
    • [10] Probe Cable Length Option: 1.0 meter (39 inches) Miniature Coaxial Cable
  • [15] Standoff Adapter Option: 1.5 inches (38 mm) Standoff Adapter Installed
    • [092] Probe Penetration Depth (D): 9.2 inches (233.7 mm) Sleeve Length
  • [03] Fittings Option: One 3/4-14 NPT Plug, One 3/4 to 1/2 NPT Reducer & Cable Seal Grip
    • [02] Mounting Thread Option: 3/4-14 NPT Process Connection Thread

Engineering Specifications & Design Limits

Cross-Model Specification Comparison & Selection Analysis

Selection Engineering Guidance:

• Internal Penetration vs External Clearance: Choose based on machine casing depth. The 9.2-inch sleeve (092) reaches deep-set shaft bearing journals, while the 1.5-inch standoff (15) elevates the outer junction box away from extreme casing temperatures. For shallow taps with tight external spatial clearances, opt for direct-mount models like the 21000-16-10-00-037-03-02.
• Internal Cable Routing: The 1.0-meter probe cable (Option 10) provides ample slack inside the housing dome, preventing coaxial tension damage when adjusting probe penetration depths or servicing ClickLoc terminal connectors.

Target Machinery & Industrial Application Environments

• API 617 Centrifugal Compressors: Radial shaft position and relative vibration measurement on multi-stage gas reinjection units.
• Combined Cycle Steam Turbines: Differential expansion and axial thrust rotor monitoring operating in Class I, Div 1 zones.
• Heavy Industrial Gearboxes: High-speed shaft dynamic motion tracking subject to high oil spray and thermal expansion.
• Forced Draft Fans & Blowers: Continuous machinery condition surveillance integrated into 3500 Series racks.

Diagnostic Features & Mechanical Integrity

• Sealed internal sleeve arrangement prevents process gas or lubricating oil migration through the conduit boundary.
• Threaded sleeve lock nut mechanism enables fine mechanical positioning to set precise -9.00 VDC baseline gap settings.
• Integrated cable seal grip kit with interchangeable grommets accommodates 1/8 to 3/8-inch field cable diameters without compromising the CSA Type 4 seal.
• Enables online gap measurement and signal verification using standard digital multimeters connected to target Proximitor terminals.

Global PLC Spare HUB's Insight

In deep sleeve installations involving 9.2-inch penetrations paired with 1.5-inch standoff adapters, thermal expansion along the sleeve length can cause baseline DC voltage drift if installed incorrectly. A common field issue occurs when technicians tighten the sleeve lock nut before the machine reaches thermal equilibrium, causing false thrust position displacement alarms as the machine shell heats up.

During a turnaround at a gas processing plant, vibration channels on a 21000-16-10-15-092-03-02 housing exhibited baseline drift shortly after startup. Diagnostic checks showed that heat conduction from the compressor casing caused the 304 stainless steel sleeve to expand against a dry, unlubricated O-ring seal, binding the sleeve assembly. Applying high-temperature fluorosilicone grease to the O-ring seals and pre-adjusting the cold gap setting to offset calculated thermal growth stabilized the signal, maintaining consistent -9.00 VDC bias throughout continuous operation.

Logistics, Packaging & Warranty Policy

• Item Condition: Supplied as 100% genuine Bently Nevada hardware, new and original in factory packing.
• Warranty Terms: Covered by a full 12-month factory-grade replacement warranty starting from dispatch date.
• Worldwide Delivery: Expedited express shipping provided via FedEx, UPS, and DHL Express.
• Warehouse Processing: Standard inventory dispatch processed within 24 to 48 hours following order confirmation.

Engineering Selection FAQ

What is the purpose of the 1.5-inch standoff adapter on this housing model?

The standoff adapter moves the housing body and conduit connection points 1.5 inches outward from the machine casing, providing clearance around thermal insulation jackets and protecting cable terminations from direct casing heat.

How is the correct grommet selected from the included Option 03 cable seal grip kit?

Measure the outer diameter of your field extension cable with calipers and match it to one of the three included rubber grommets (1/8-3/16", 1/4-5/16", or 5/16-3/8") to ensure an airtight, IP66-rated cable seal.

Can the 1.0-meter internal probe cable be plugged directly into a 3500 monitor module?

No, the 1.0-meter coaxial cable must connect to a matching 3300 XL extension cable and Proximitor sensor inside a field junction box. The total system length (e.g., 5m or 9m) must match the Proximitor calibration.

How does an engineer adjust the baseline probe gap once the housing is mounted on the machine tap?

Unscrew the outer aluminum dome cover, loosen the internal sleeve lock nut, and rotate the sleeve assembly manually while checking the Proximitor output voltage until the standard -9.00 VDC baseline gap is achieved.

What maintenance check is required for the internal O-ring seals during annual outages?

Inspect all housing body and sleeve O-rings for cracking or compression set. Replace damaged seals and apply a light coat of silicone lubricant to preserve CSA Type 4 weatherproof integrity before re-securing the dome cover.
