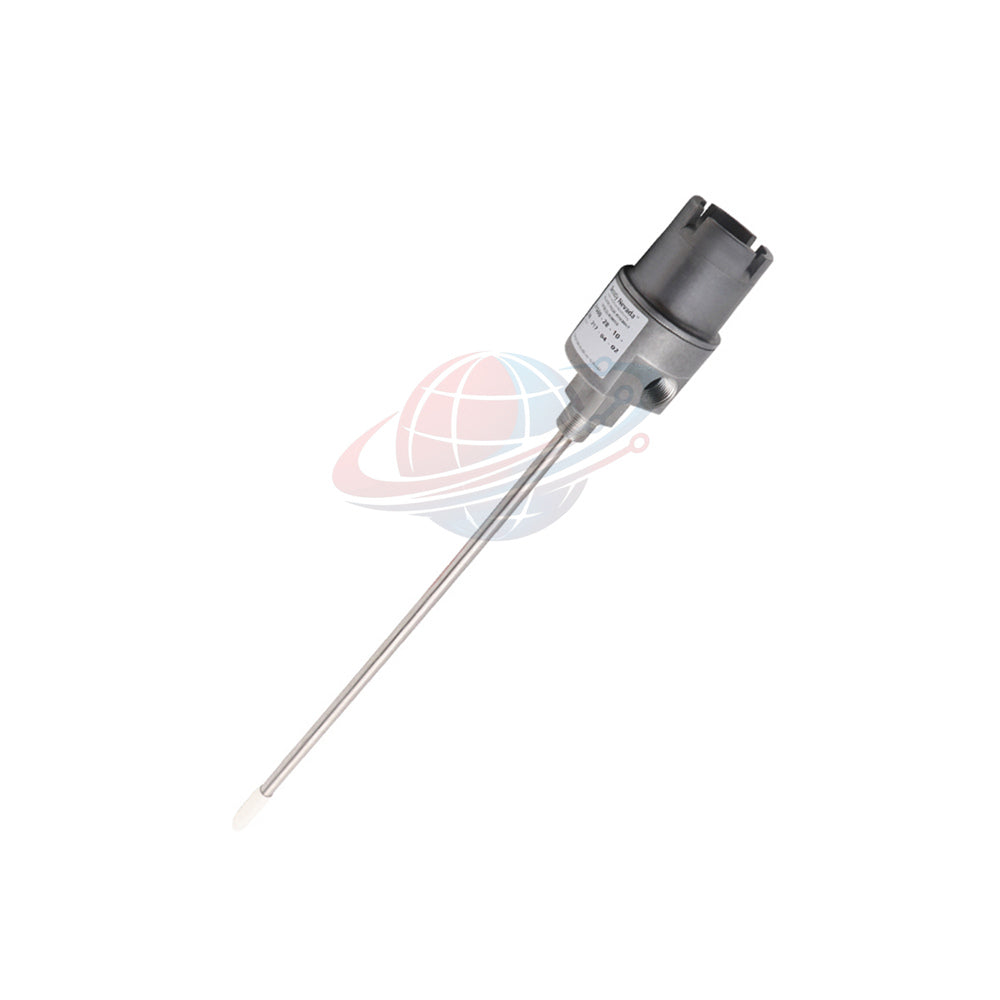

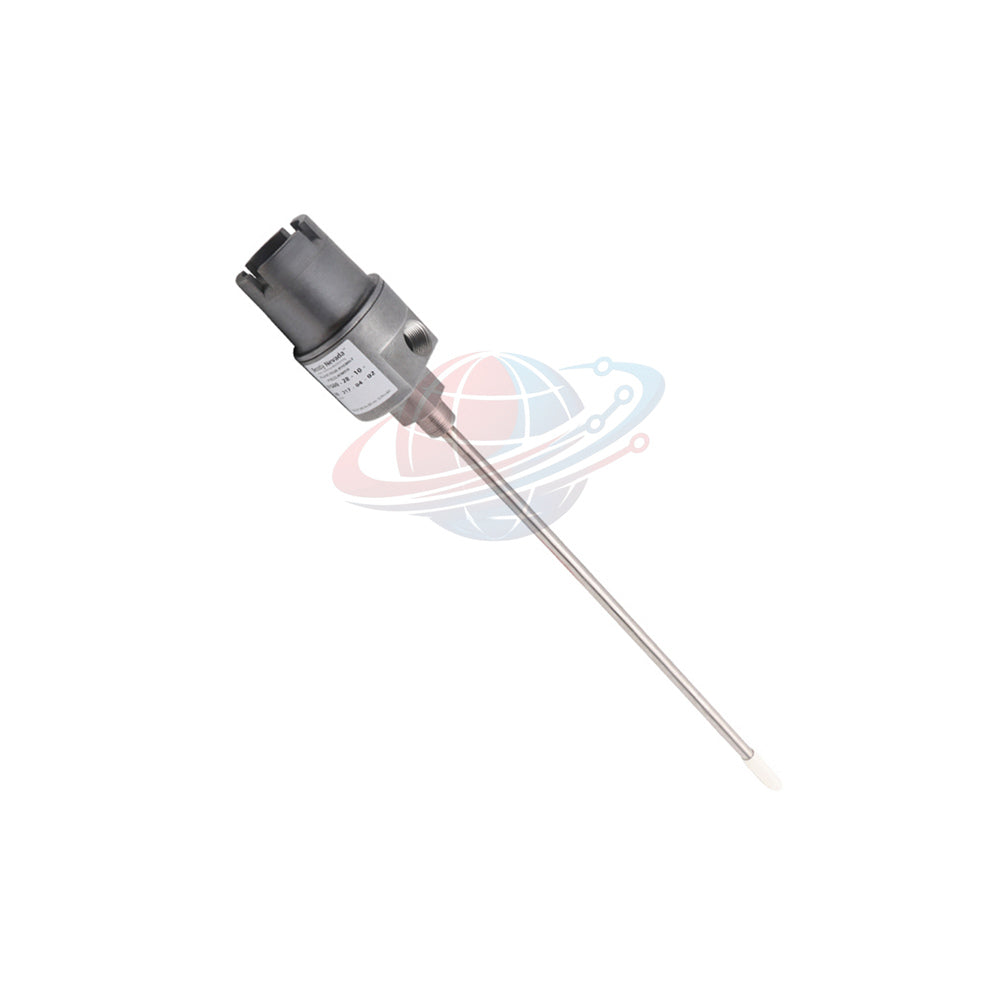

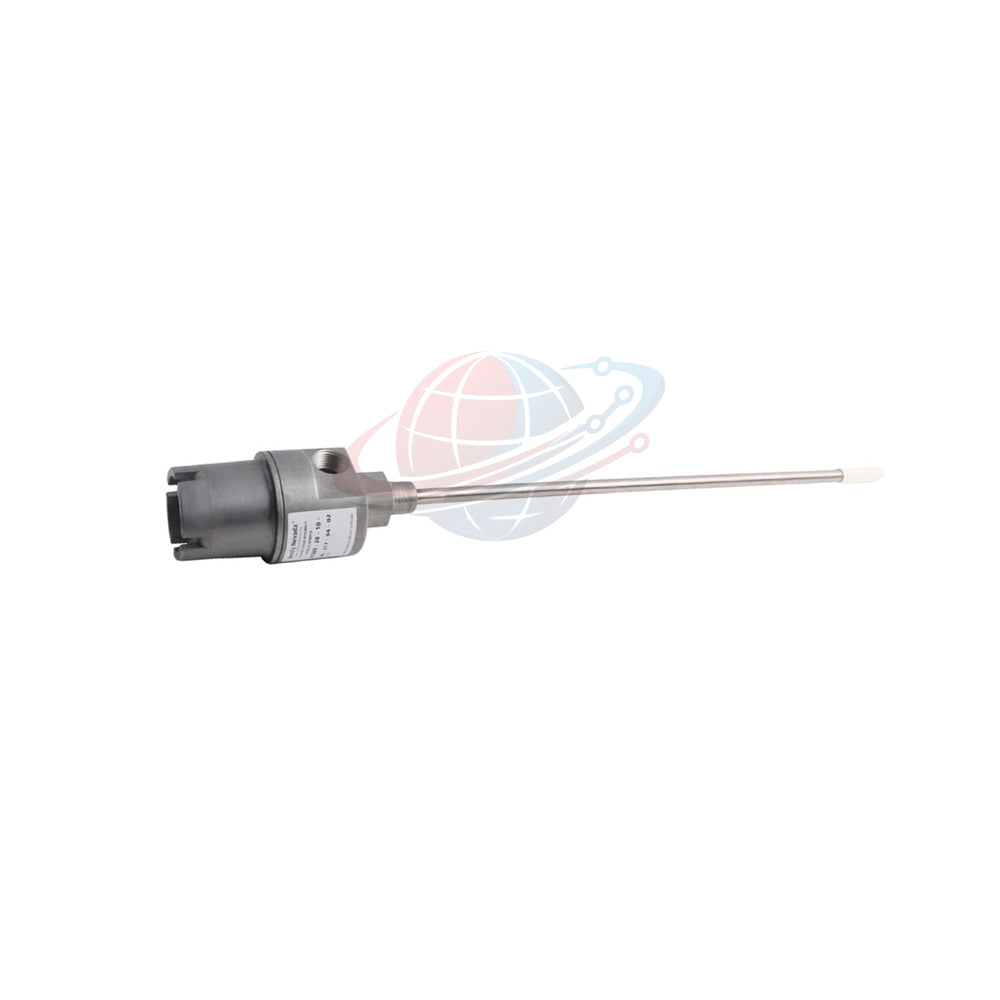

21000-16-05-15-037-01-02 Bently Nevada 21000 Series Assembly Proximity Housing

Product Introduction

Welcome to Global PLC Spare HUB's Insight. This engineering review analyzes the Bently Nevada 21000-16-05-15-037-01-02 Proximity Probe Housing Assembly, belonging to the rugged 21000 Series. Designed for rigorous industrial machine trains, this model provides robust mechanical encapsulation for reverse-mount proximity probes while strictly adhering to API 670 guidelines for external vibration monitoring systems. Field engineering practices show that utilizing a cast aluminum body paired with a 304 stainless steel sleeve ensures long-term structural integrity under severe thermal and mechanical loads.

Model Configuration Breakdown

Technical Specifications

• Brand: Bently Nevada
• Model Number: 21000-16-05-15-037-01-02
• Housing Material: Aluminum body with 304 stainless steel sleeve
• Assembly Weight: 1.1 kg (2.4 lb) typical without conduit fittings
• Maximum Dimension Envelope: 13.5 in (34.3 cm) combined length
• Operating Temperature Range: -50 °C to +80 °C (T4 class rating)

Installation & Mechanical Alignment Guidelines

• Mount the housing base directly to machinery casing using the standard 3/4-14 NPT thread interface.
• Account for the 1.5 in standoff adapter to achieve the specified 3.7 in total penetration depth inside the equipment cavity.
• For penetration lengths requiring counterboring, machine the mounting surface carefully to eliminate side-view or rear-view field distortions.
• Route the 0.5 m probe cable smoothly through internal chambers to prevent insulation pinching during cover installation.

Commissioning & Maintenance Best Practices

• Leverage the screw-in dome cover design to execute rapid internal inspections without decoupling the primary mounting threads.
• Verify that integrated O-rings and thread seals remain unblemished during routine turnarounds to prevent moisture ingress.
• Inspect flag labels closely for probe part and serial numbers during initial setup where cable visibility is constrained.

Compatibility & Certifications

• Fully compliant with American Petroleum Institute API 670 performance standards.
• Certified by the Canadian Standards Association CSA for hazardous environments.
• Certified for North American Class 1, Divisions 1 and 2, Groups C and D; Class 2, Divisions 1 and 2, Groups E, F, and G; and Class III locations.
• Enclosure Type 4 rating with non-incendive circuitry per drawing 140979.
• Fully compliant with European RoHS Directive 2011/65/EU and FCC Part 15 regulations.

Packaging, Warranty & Logistics

• Supplied strictly as New & Original in Factory Packing.
• Backed by a comprehensive 12-month factory warranty.
• Dispatched globally via premium carriers including FedEx, UPS, and DHL.
• Processed and shipped within 24-48 hours of order confirmation.

Target Equipment & Diagnostic Capabilities

• Deployed extensively across heavy rotating machinery, including multi-stage centrifugal compressors, steam turbines, boiler feed pumps, and large industrial gearboxes.
• Provides stable, vibration-isolated mechanical staging for gap-voltage sensors measuring radial shaft vibration, axial thrust position, and eccentric shaft rotation.
• Global PLC Spare HUB Review indicates that a properly sealed housing assembly drastically reduces electrical noise interference, delivering pristine waveform data to machinery protection monitors for early fault detection.

Frequently Asked Questions

Q: How does the 1.5 in standoff adapter influence the overall probe depth calculation?
A: The standoff adapter introduces a fixed mechanical offset that combines with the probe penetration setting to establish the exact physical displacement of the probe tip relative to the machine shaft.

Q: Why is counterboring sometimes necessary for specific penetration configurations?
A: For shorter probe depths, counterboring the machine case prevents structural housing walls from obstructing the probe tip's lateral electromagnetic field, eliminating erroneous gap voltage readings.

Q: What specific precautions should field engineers take regarding cable length limitations?
A: Because this model utilizes a 0.5 m internal cable length, technicians must ensure the system connects cleanly to an appropriate extension cable before exiting the hazardous area conduit boundary.

Q: How do environmental temperature extremes impact the CSA certification classes?
A: The assembly maintains a T5 rating in ambient conditions from -50 °C to +40 °C and shifts to a T4 rating when operating up to -50 °C to +80 °C.

Q: What buying guidance should procurement teams follow when ordering this assembly?
A: Verify that the end-user facility is located within North America if ordering the CSA-certified explosion-proof variant, and cross-reference your machinery casing tap size to match the 3/4-14 NPT thread standard.
