2094-BM01-S Allen-Bradley Kinetix 6000 Axis Module | Reliable Motion Control
Manufacturer: Allen-Bradley
Product No.: 2094-BM01-S
Condition: In stock
Product Type: Integrated Axis Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 2900g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout

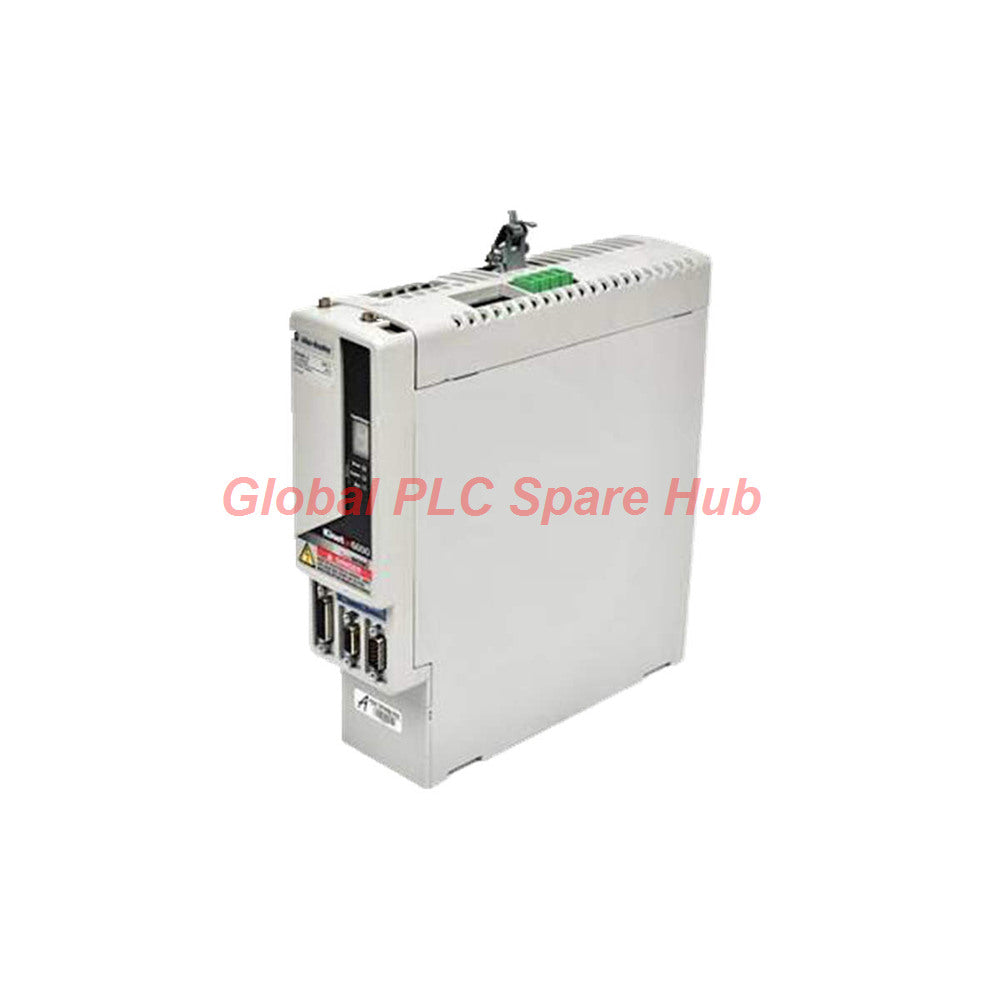

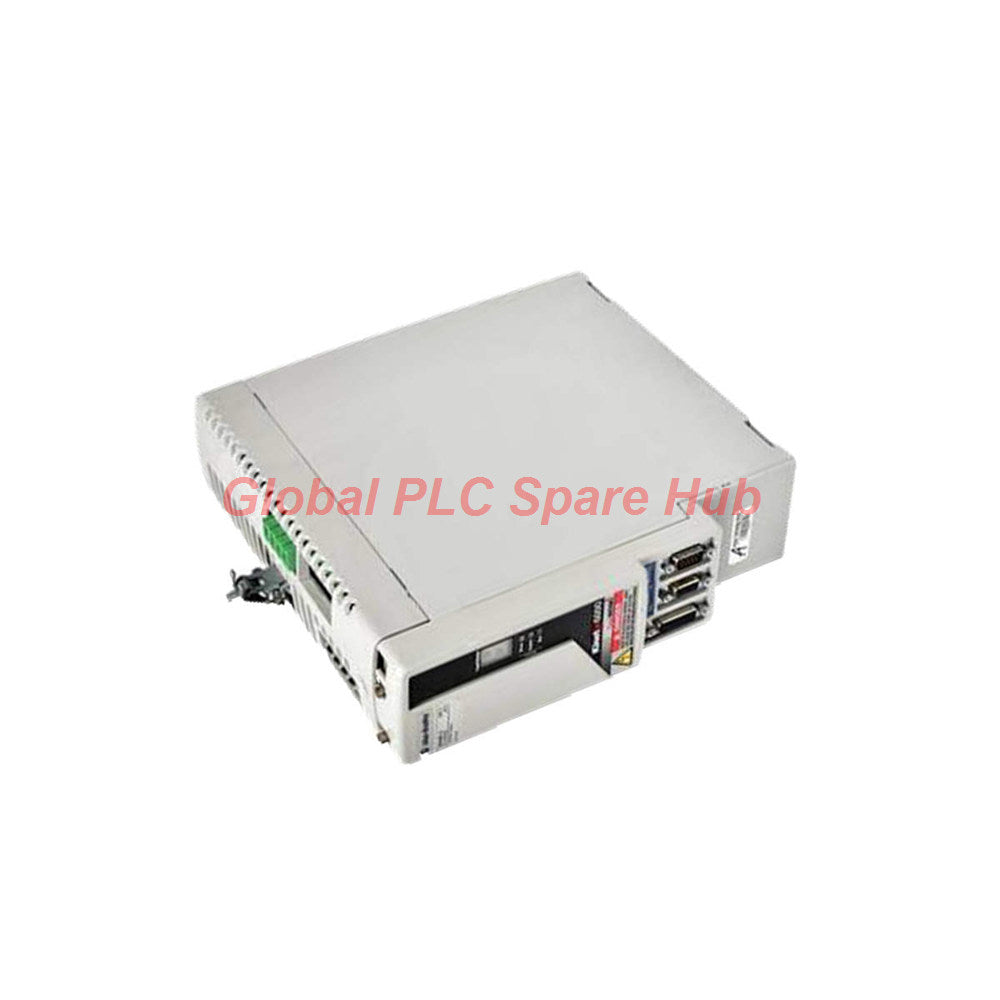

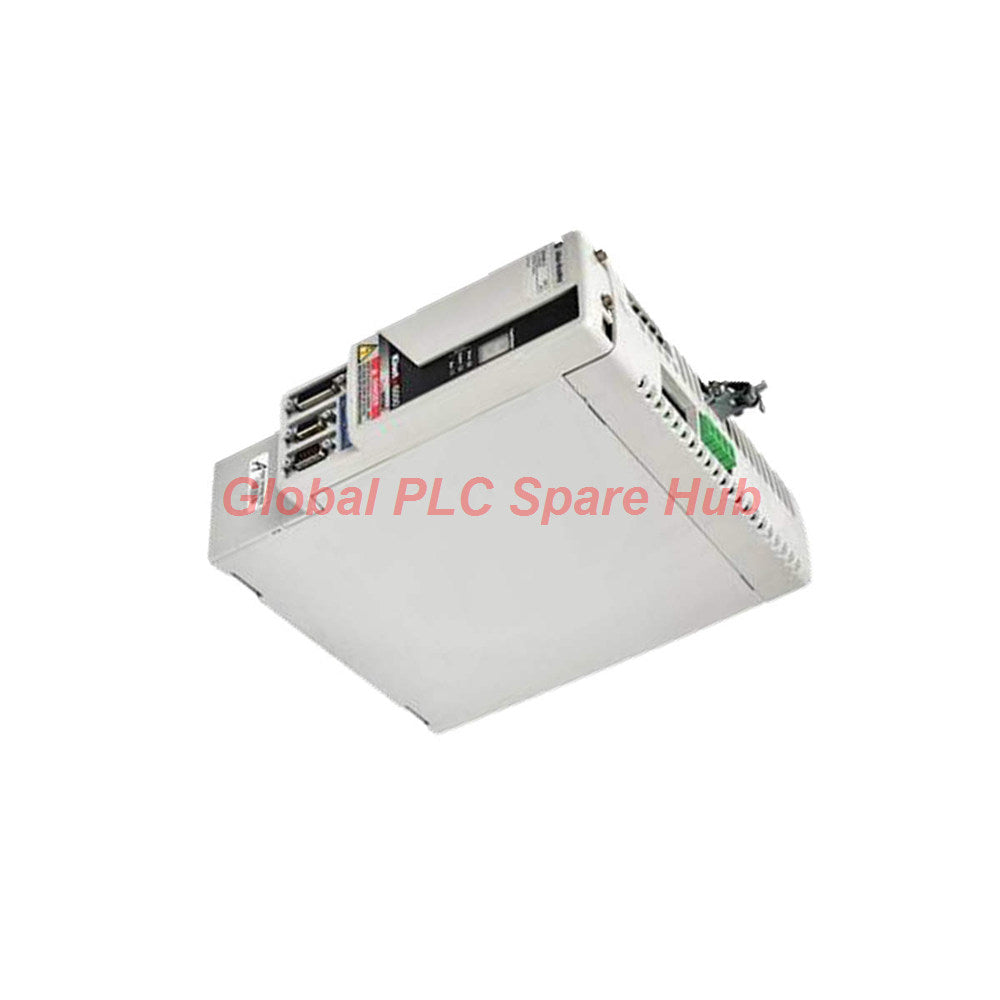

Allen-Bradley 2094-BM01-S | Kinetix 6000 Integrated Axis Module
The 2094-BM01-S is an Allen-Bradley Kinetix 6000 integrated axis module from Rockwell Automation. It controls a compatible servo motor axis as part of a multi-axis motion system, converting the DC bus supply into controlled three-phase motor output. Its 400 V class design supports synchronized motion applications that require coordinated acceleration, deceleration, and position control.
This module accepts a nominal 650 V DC input and provides a rated continuous output power of 3.9 kW. It mounts on a compatible Kinetix 6000 power rail and operates with the required system components, including the appropriate control module, feedback connections, motor cables, and power architecture.
The 2094-BM01-S also incorporates Safe Torque-Off functionality. This safety function helps prevent the drive from producing motor torque when the safety circuit commands the appropriate safe state. Correct implementation depends on the drive configuration, external safety devices, wiring, and machine risk assessment.
At a Glance | Electrical and Motion Ratings
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Catalog number | 2094-BM01-S |
| Product family | Kinetix 6000 |
| Product type | Integrated Axis Module (IAM) |
| Voltage class | 400 V class |
| Nominal DC input | 650 V DC |
| Nominal drive voltage | 360–480 V AC, three-phase system class as specified |
| Continuous output power | 3.9 kW nominal |
| Continuous output current | 6.1 A RMS |
| Continuous current, 0-peak | 8.6 A |
| Peak current | Verify the applicable drive series and rating documentation before sizing |
| Efficiency | 98% as specified |
| Weight | 7.0 lb (3.18 kg) |
| Safety function | Safe Torque-Off (STO) |
Rating note: The supplied information lists different peak-current values for different series and configurations. Confirm the exact 2094-BM01-S hardware series and its applicable technical manual before using a peak-current value for motor sizing or overload analysis.
Power Architecture and Internal Shunt
The axis module installs on a compatible Kinetix 6000 power rail. The rail connects the module to the system power and supporting components needed for multi-axis operation. Correct rail compatibility and system configuration are essential; the axis module should not be treated as a standalone servo drive.
| Internal shunt continuous power | 50 W |
| Internal shunt peak power | 5.6 kW |
| Internal shunt resistance | 115 Ω |
| Power dissipation | 57–126 W, depending on operating conditions |
| Short-circuit current rating | 200,000 A RMS symmetrical, as specified; verify system conditions and applicable installation requirements |
The internal shunt dissipates regenerative energy during suitable deceleration events. When a motor regenerates, energy returns to the DC bus. The shunt helps manage that energy within its rated limits, but it does not eliminate the need to evaluate the machine's duty cycle, deceleration profile, and overall regenerative energy balance.
Control Response and Motion Performance
| Velocity-loop bandwidth | 500 Hz |
| Current-loop bandwidth | 1,300 Hz |
| Motion system | Kinetix 6000 multi-axis servo architecture |
| Feedback interface | Use compatible motor feedback cables and supported feedback devices according to the system design |
Loop bandwidth contributes to the drive's response to motion commands, but it does not alone determine achievable positioning accuracy or settling time. Actual performance also depends on motor characteristics, feedback resolution, mechanical stiffness, load inertia, tuning, and the motion profile.
Safe Torque-Off | Safety Integration Considerations
The 2094-BM01-S includes Safe Torque-Off functionality. STO removes the drive's ability to generate motor torque through the specified safety function; it is not the same as electrical isolation or a guarantee that the motor has stopped moving.
- Safety circuit design: Integrate the STO function according to the applicable Rockwell Automation documentation and the machine's safety architecture.
- External safety devices: Use the safety relay or safety controller arrangement required by the validated design.
- Restart prevention: Verify reset logic and restart interlocks so that restoration of the safety circuit does not create an unexpected machine restart.
- Mechanical hazards: Consider gravity loads, stored energy, coast-down, and other hazards that STO alone does not control.
- Safety validation: Confirm the required performance level, SIL, category, wiring, and diagnostic coverage against the product documentation and machine risk assessment.
Do not assume that the drive's STO feature by itself makes an entire machine safety-compliant. The safety level depends on the complete circuit and its implementation.
Suitable Machines and Industrial Applications
- Packaging machinery: Coordinates servo-driven indexing, feeding, cutting, and sealing axes that require repeatable movement.
- Material handling systems: Supports controlled motion in transfer mechanisms, synchronized conveyors, and positioning equipment using compatible servo motors.
- Printing and converting equipment: Supports coordinated axis motion where registration, acceleration, and deceleration affect product quality.
- Assembly automation: Controls a servo axis within a multi-axis machine where repeatable position and synchronized movement are required.
- Industrial machine tools and special-purpose equipment: May suit applications that match the drive's current, voltage, motor, feedback, and control requirements.
Confirm the motor's rated voltage, continuous and peak current, feedback type, required motion performance, and mechanical load before selecting this module for a specific machine.
Environmental and Installation Limits
| Operating temperature | 0–50°C (32–122°F) |
| Relative humidity | 5–95%, non-condensing |
| Altitude without derating | Up to 1,000 m (3,281 ft) |
| Altitude with derated operation | Up to 3,000 m (9,843 ft), subject to the applicable derating guidance |
| Vibration, 5–55 Hz | 0.35 mm (0.014 in) double amplitude, continuous displacement |
| Vibration, 55–500 Hz | 2.0 g peak constant acceleration |
| Shock rating | 15 g, 11 ms half-sine pulse |
Maintain adequate cabinet ventilation and the clearances specified for the installed power rail. Check ambient temperature, altitude, contamination, and cabinet thermal load before commissioning. The listed power dissipation varies with operating conditions and should be considered during enclosure thermal design.
Commissioning and Troubleshooting Guide
| Observed condition | Engineering checks |
| Axis fails to enable | Check the drive status, control-module configuration, safety circuit state, power rail connections, and any active faults. |
| Motor does not produce torque | Verify STO status, command enable conditions, motor connections, feedback validity, and drive fault history. Follow the safety procedure before testing. |
| DC bus or shunt-related fault | Review deceleration settings, regenerative duty cycle, shunt limits, bus behavior, and the system's regenerative energy handling. |
| Motor current reaches a limit | Compare motor ratings with the drive's continuous and applicable peak-current ratings. Inspect mechanical binding, acceleration settings, and load inertia. |
| Positioning error or unstable motion | Inspect feedback wiring, motor and load coupling, mechanical backlash, tuning parameters, and the commanded motion profile. |
| Intermittent shutdown at elevated temperature | Check cabinet airflow, ambient temperature, rail spacing, fan operation where applicable, and total panel heat dissipation. |
Diagnostic principle: Use the fault code and drive status to guide troubleshooting instead of replacing the axis module immediately. Record the alarm history, axis conditions, DC bus status, motor feedback state, and safety input status before changing parameters.
Global PLC Spare HUB's Insight
When replacing a Kinetix 6000 axis module, matching the catalog number is only the first step. Engineers should also confirm the power rail, compatible control architecture, motor feedback interface, drive series, and safety wiring. These checks reduce the risk of a replacement that mounts correctly but cannot be commissioned in the existing system.
The internal shunt rating is another important selection factor. Applications with frequent rapid deceleration can return substantial energy to the DC bus. Compare the machine's motion profile and regenerative duty with the specified shunt limits rather than assuming that the module's nominal output power covers every dynamic condition.
Before returning the machine to service, validate STO operation using the approved safety test procedure, confirm the reset and restart behavior, and verify motion performance under controlled conditions. Document the final parameters and fault-free operating status for future maintenance.
Package Contents and Purchasing Support
- 1 × Allen-Bradley 2094-BM01-S Kinetix 6000 Integrated Axis Module, subject to order confirmation.
- Power rail, control module, motor cables, feedback cables, and external safety devices are not included unless explicitly listed in the quotation.
Warranty: 12-month warranty, subject to the supplier's written terms and conditions. Confirm the applicable coverage before ordering.
Shipping options: FedEx, UPS, and DHL are available subject to destination, carrier service, and order processing. Contact the sales team to confirm dispatch timing for urgent production or maintenance requirements.
Request a quote: Provide the complete catalog number, quantity, delivery destination, motor model, existing drive configuration, and any relevant fault details. This information helps the supplier review compatibility and replacement requirements.
Frequently Asked Questions
Q1: What information is needed to confirm that the 2094-BM01-S can drive my servo motor?
Provide the motor catalog number, rated voltage, continuous current, peak current, feedback type, and required motion duty. Compare these values with the applicable drive ratings and Kinetix 6000 compatibility documentation before installation.
Q2: Does Safe Torque-Off replace the main disconnect or lockout procedure?
No. STO is a functional safety feature that prevents the drive from producing torque when correctly activated. It does not provide electrical isolation or remove all stored energy. Follow the machine's lockout/tagout and electrical safety procedures before servicing equipment.
Q3: Why might an axis trip during repeated high-speed deceleration?
Frequent deceleration can return energy to the DC bus and increase regenerative demand. Review the motion profile, load inertia, deceleration settings, shunt power limits, and system configuration. Do not increase limits without checking the applicable engineering requirements.
Q4: Can I replace a different Kinetix 6000 axis module with this model because both use a 400 V class supply?
Not based on voltage class alone. Compare continuous and peak current ratings, motor requirements, hardware series, rail compatibility, control architecture, feedback interface, and safety configuration. Confirm the replacement against the original system design and the manufacturer's documentation.
Q5: What should be checked if the replacement powers up but the axis will not run?
Check active faults, axis enable conditions, feedback status, motor wiring, control-module configuration, and the STO circuit state. Confirm that safety reset logic is correct and that the controller recognizes the axis. Record the fault information before replacing additional components or changing parameters.
