190501-08-99-04 Bently Nevada Velomitor CT Velocity Transducer

Bently Nevada 190501-08-99-04 | Velomitor CT Velocity Transducer

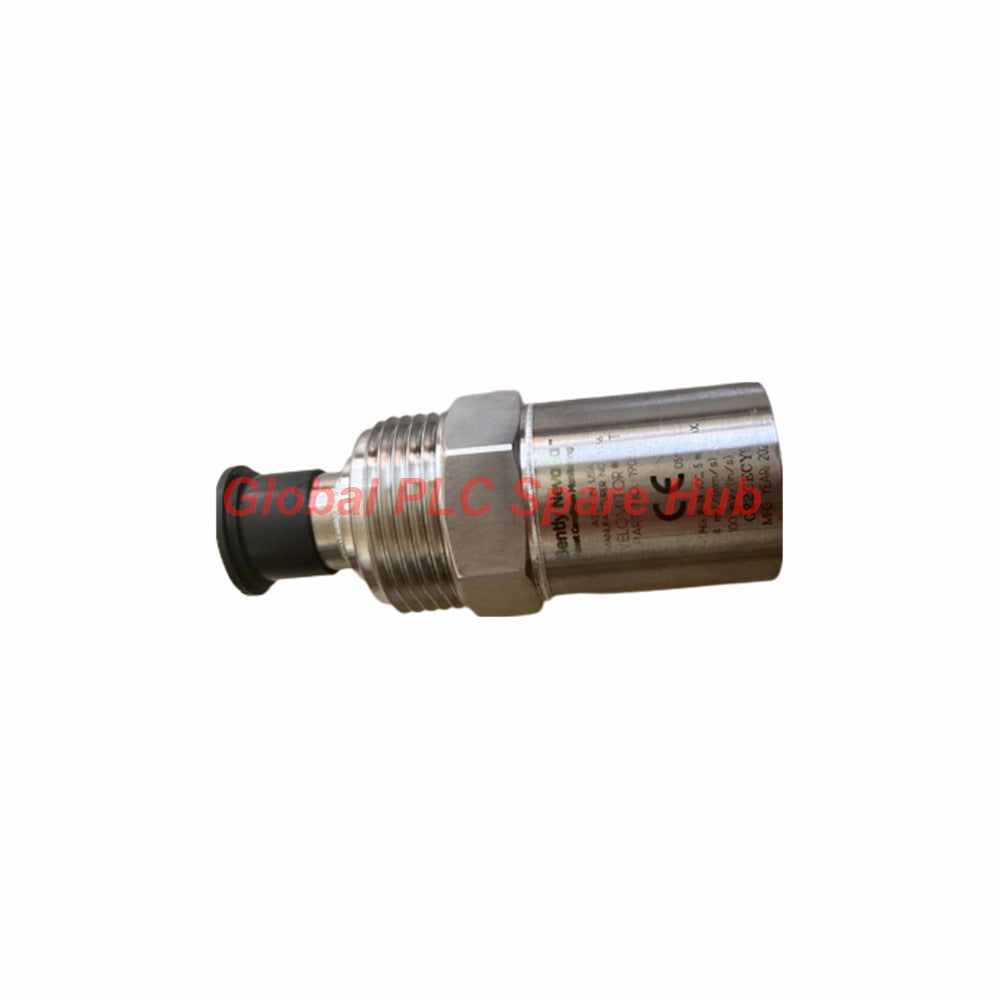

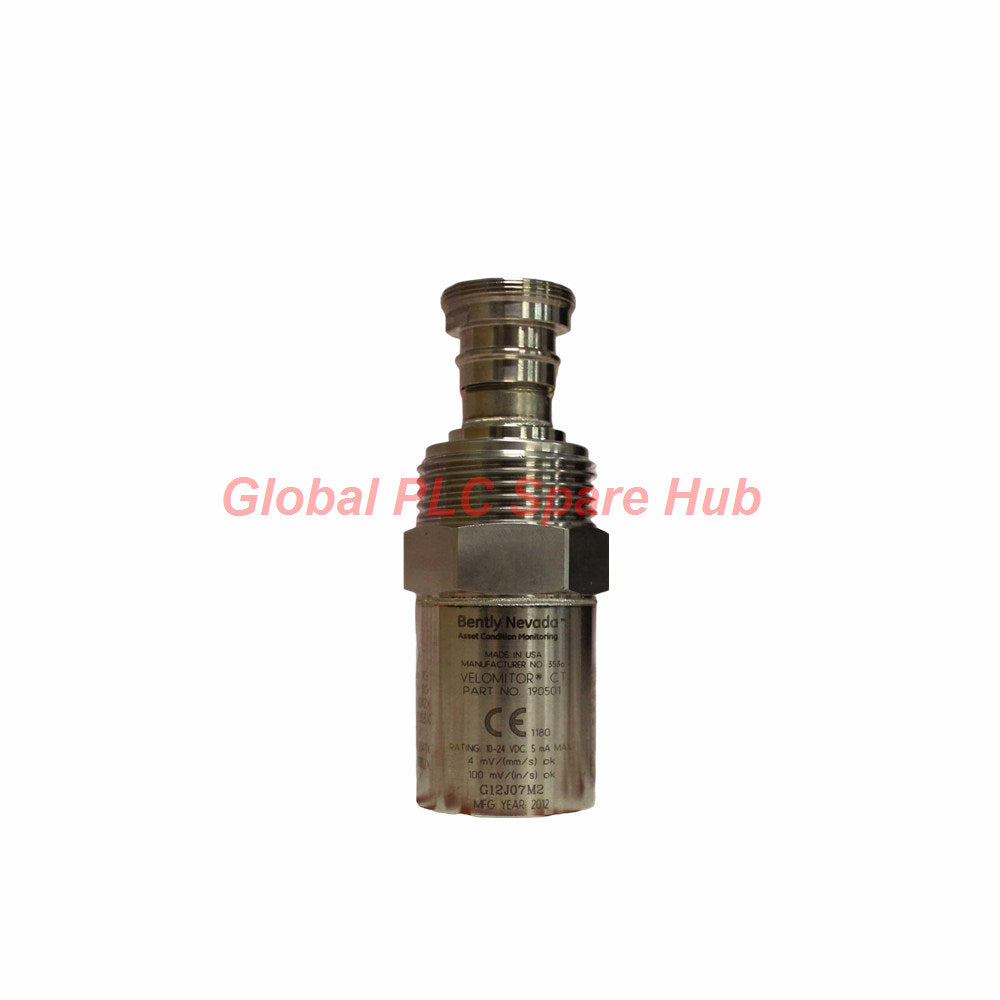

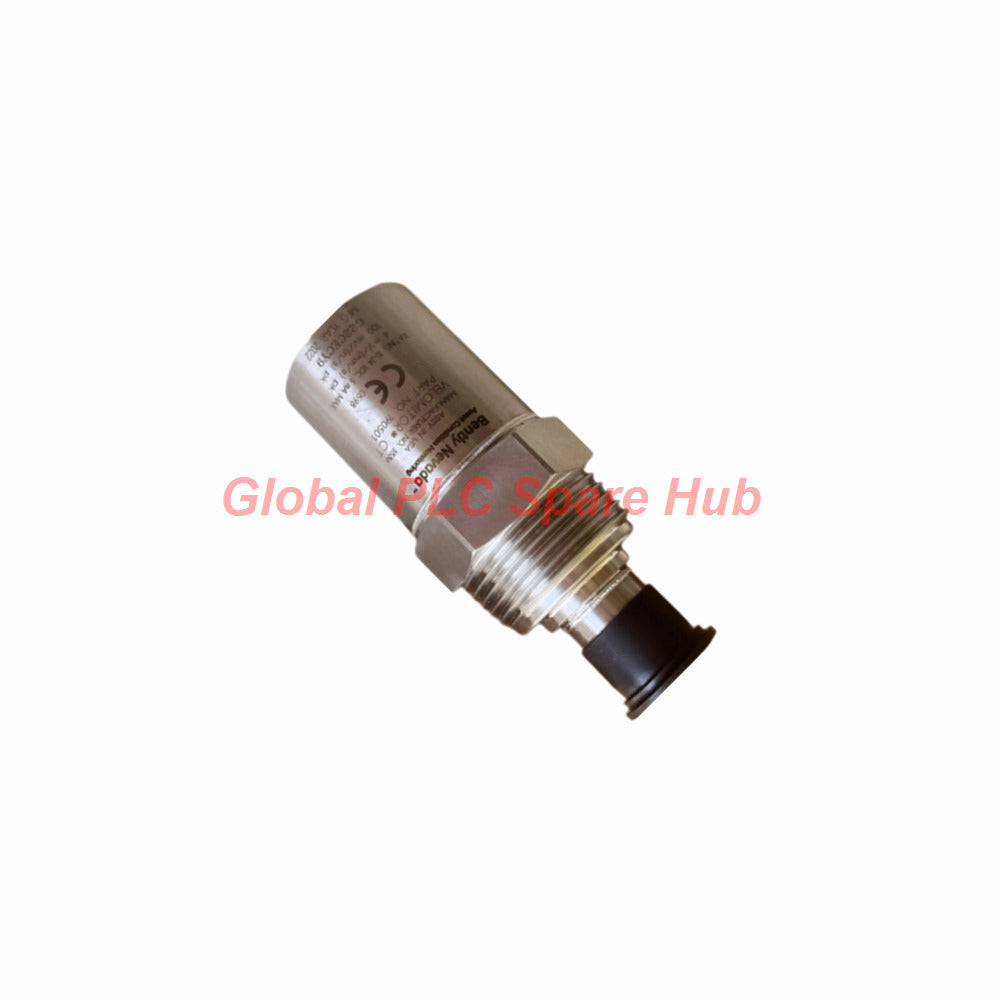

The 190501-08-99-04 is a Bently Nevada Velomitor CT velocity transducer designed to measure machinery vibration velocity. It converts mechanical vibration into an electrical output for use with compatible monitoring, data acquisition, and machinery protection systems.

With a stainless-steel housing, a top-mounted two-pin MIL-C5015 connector, a plate-stud mounting option, and an included 32-foot cable, this configuration is intended for industrial machinery vibration measurement. Its specified sensitivity is 3.94 mV/mm/s (100 mV/in/s), with a frequency response of 3.0 Hz to 900 Hz within ±1.0 dB.

For replacement projects, verify the mounting arrangement, cable and connector interface, input sensitivity requirements, operating environment, and hazardous-area approvals before installation. A similar product-family name alone does not establish electrical or mechanical interchangeability.

01 | Ordering Code Map — Configuration Breakdown

190501-08-99-04

• 190501 — Velomitor CT velocity transducer product family.
• 08 — Mounting hardware option: plate stud, 3/8-24 to 1/2-20.
• 99 — Connection option: unit supplied with an included 32-foot cable.
• 04 — Agency approval option specified for this configuration.

Ordering note: The suffixes identify important configuration differences. If replacing an installed transducer, compare the complete part number and approved installation documentation rather than selecting by the 190501 family number alone.

02 | Electrical Performance — Measurement and Signal Characteristics

03 | Mechanical Design and Installation Envelope

04 | Environmental Limits

05 | Agency Approvals and Hazardous-Area Installation

The supplied configuration specifies agency approval option 04. The product data provided identifies approvals associated with CSA/NRTL/C Class I, Division 1 and ATEX/IECEx/CSA Class I, Zone 0/1 applications. The supplied approval information also lists intrinsically safe and non-incendive classifications for 190501 agency approval options 01 through 04.

• Verify the actual certification and marking on the delivered unit and its supporting documentation.
• Confirm the hazardous-area zone or division, gas group, temperature class, ambient-temperature limits, and installation method.
• Follow the applicable manufacturer installation drawing, including drawing 167536 where required by the certification documentation.
• Do not infer that every approval or protection method applies to every installation simply because it appears in the broader product-family data.

Important: The installation must comply with the exact certificate, control drawing, and site hazardous-area procedures. Where approvals are mandatory, obtain confirmation for the exact ordering code before purchase or commissioning.

06 | Equipment and Application Scenarios

The Velomitor CT is intended for vibration velocity measurement on machinery with a suitable mounting location and compatible monitoring input. Typical engineering applications include:

• Industrial pumps: Monitoring vibration velocity on bearing housings or other approved measurement points.
• Fans and blowers: Tracking vibration trends associated with imbalance, looseness, or changing mechanical conditions.
• Motors: Monitoring bearing-housing vibration and supporting maintenance trend analysis.
• Compressors: Measuring casing or bearing-housing vibration where velocity measurement is appropriate to the machinery protection design.
• Gearboxes: Tracking vibration changes that may indicate evolving mechanical problems.
• Auxiliary rotating equipment: Monitoring vibration on equipment used in power generation, oil and gas, chemical processing, and general industrial plants.

These are example application categories, not a guarantee of compatibility with every machine or monitoring platform. Confirm the required vibration measurement type, mounting method, sensor input requirements, and operating environment for the specific equipment.

07 | Diagnostic Use — What the Transducer Can and Cannot Tell You

The transducer supplies a vibration-related electrical signal to compatible monitoring equipment. It does not independently identify a mechanical fault or generate a complete machinery diagnosis. Diagnostic conclusions depend on the signal-conditioning hardware, monitor configuration, measurement location, operating speed, and trend or waveform analysis.

Field note: A velocity transducer measures vibration velocity within its specified response range. It does not directly identify imbalance, misalignment, bearing damage, or looseness. Those conditions require interpretation of measurement trends and, where available, waveform, spectral, phase, and operating-condition data.

08 | Selection Comparison — 190501-08-99-04 vs. 190501-07-00-01

Use the following comparison when reviewing the requested alternative: 190501-07-00-01 Bently Nevada Velomitor CT Velocity Transducer.

Technical recommendation: The two models belong to the same product family, but the supplied information does not fully establish the detailed meaning of every suffix in 190501-07-00-01. Do not infer that the mounting hardware, cable arrangement, or approvals are identical. Obtain the manufacturer's ordering information or confirm the physical unit details before using the alternative as a direct replacement.

For either model, also check the monitoring system's sensitivity scaling and input requirements. Incorrect scaling can create a misleading vibration value even when the transducer itself is functioning normally.

09 | Global PLC Spare HUB's Insight

When selecting a velocity transducer, engineers should check more than sensitivity and product family. Mounting stiffness, connector integrity, cable routing, frequency response, signal scaling, and the monitor's input configuration all affect the measurement result.

For the 190501-08-99-04, the specified sensitivity of 3.94 mV/mm/s and the 3.0–900 Hz ±1.0 dB response range are useful reference points when reviewing a replacement or commissioning a measurement channel. If the trend changes after replacement, verify the channel scaling and installation conditions before concluding that the machine's vibration has changed.

Where hazardous-area certification is required, treat the approval suffix as a critical selection parameter. Confirm the delivered unit's markings and documentation against the site classification, and follow the applicable installation drawing. A mechanically compatible transducer is not automatically an approved replacement for a hazardous-area installation.

10 | Supply, Warranty, and Shipping

• Product: Bently Nevada Velomitor CT Velocity Transducer.
• Part number: 190501-08-99-04.
• Origin: Made in U.S.A., as specified in the supplied product information.
• Warranty: 12-month warranty, subject to the agreed sales terms.
• Pre-shipment checks: Part-number and product-condition verification, subject to the agreed inspection scope.
• Shipping methods: FedEx, UPS, and DHL, subject to destination and service availability.
• Quotation information: Provide the full part number, required approval, cable requirements, destination, and any special documentation needs.

11 | Frequently Asked Questions

Q1: Why does a velocity transducer show a different value from an accelerometer installed nearby?

The two sensors measure different physical quantities. A velocity transducer measures vibration velocity, while an accelerometer measures acceleration. Their outputs cannot be compared directly without considering frequency, signal processing, units, mounting location, and the method used to derive velocity from acceleration.

Q2: How can I tell whether a vibration increase is caused by the machine or the measurement channel?

Review the trend alongside machine speed and load, inspect the mounting and cable connection, and check channel scaling. If available, compare waveform or spectrum data and another independent measurement. A sudden step change immediately after maintenance may justify checking the installation before interpreting it as a new mechanical fault.

Q3: Does the 32-foot cable mean I can extend the cable by another 1,000 feet?

No. The stated maximum cable length of 305 m applies to the specified cable part number and stated signal-performance conditions. It should not be interpreted as permission to add that length on top of the supplied cable without checking the approved wiring arrangement, connector interfaces, signal requirements, and monitoring-system documentation.

Q4: What should I verify if the transducer is installed in a hazardous area?

Confirm the exact agency approval, equipment marking, zone or division, gas group, temperature class, ambient-temperature range, and applicable installation drawing. The complete installation must follow the certification conditions and site safety procedures. Do not rely solely on a product-family description or a similar-looking suffix.

Q5: Which details are most useful when choosing between two 190501 transducer configurations?

Compare the mounting hardware, physical dimensions, cable length, connector and termination, sensitivity, frequency response, monitor input requirements, and required approvals. If the suffix definitions for either model are uncertain, request the manufacturer's ordering documentation or verify the existing unit's label and installation records. This reduces the risk of ordering a transducer that fits mechanically but cannot be installed or scaled correctly.
