1794-OM8 Digital Output Module Allen-Bradley Flex I/O Series

Module Architecture Overview

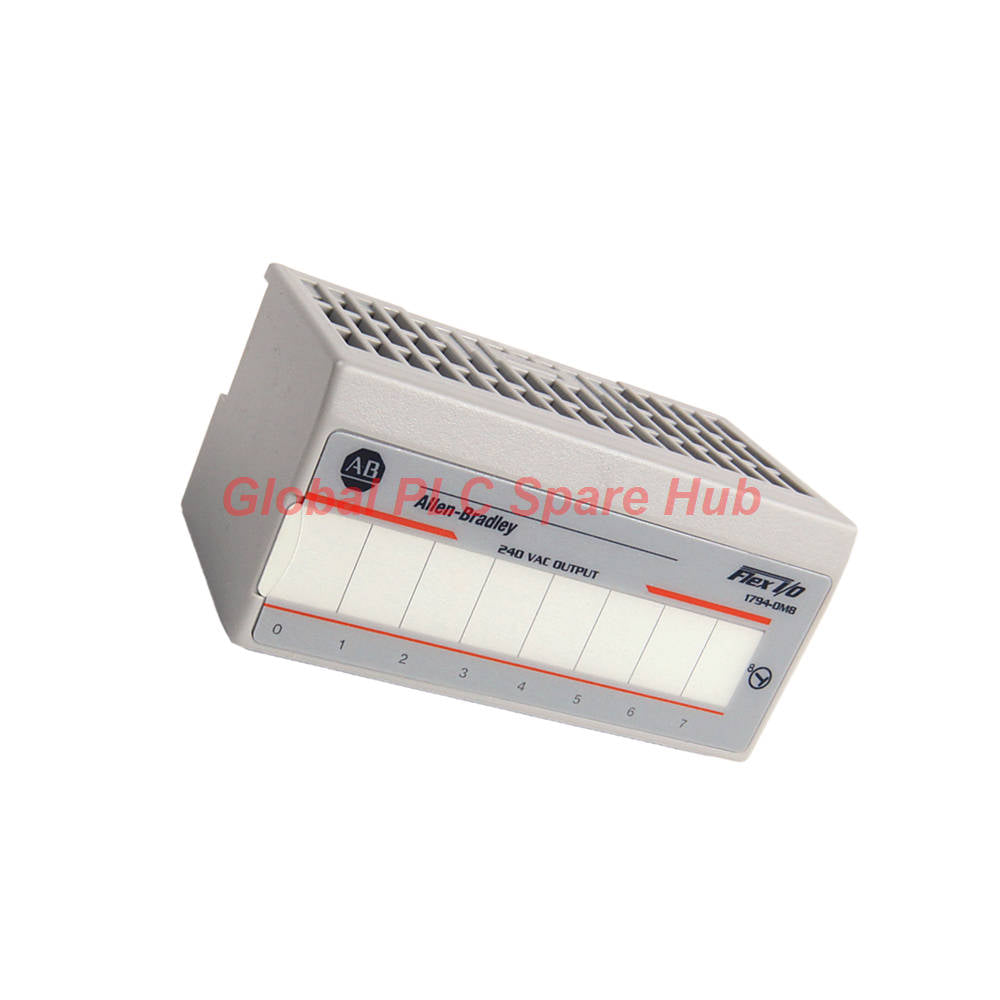

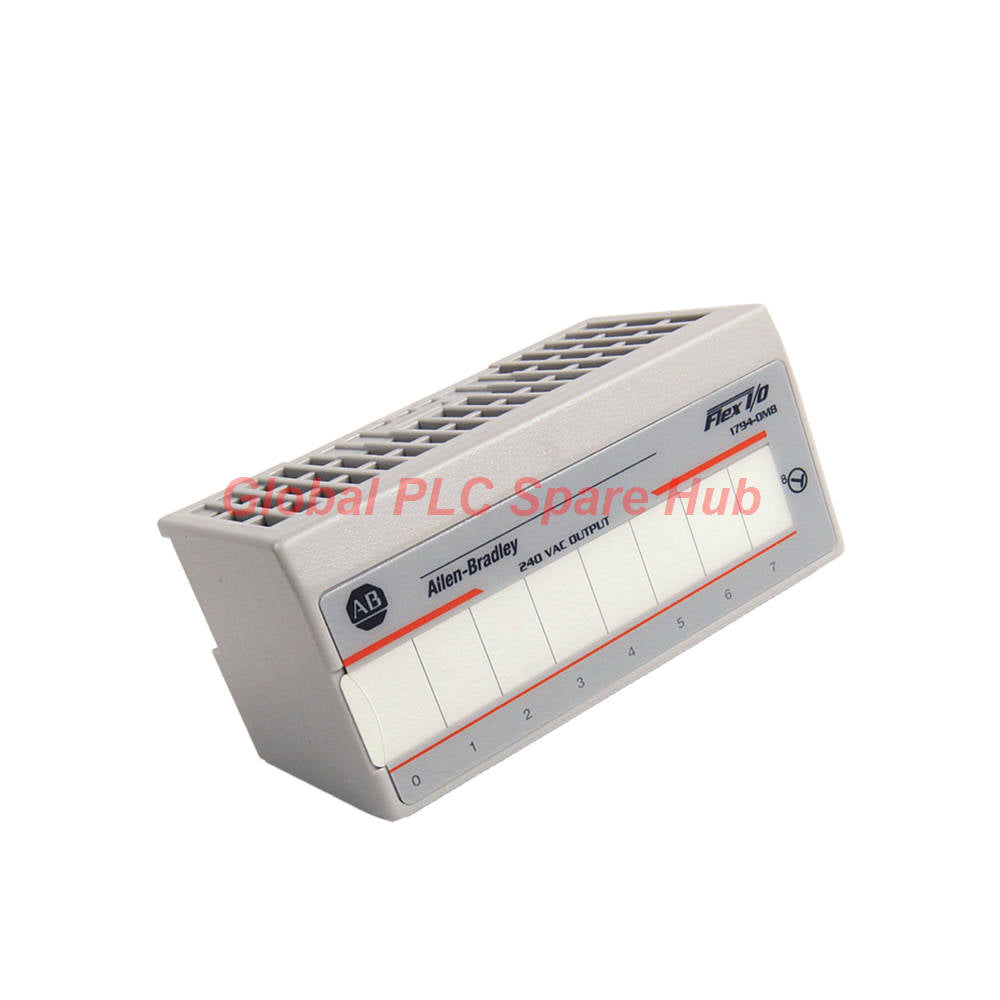

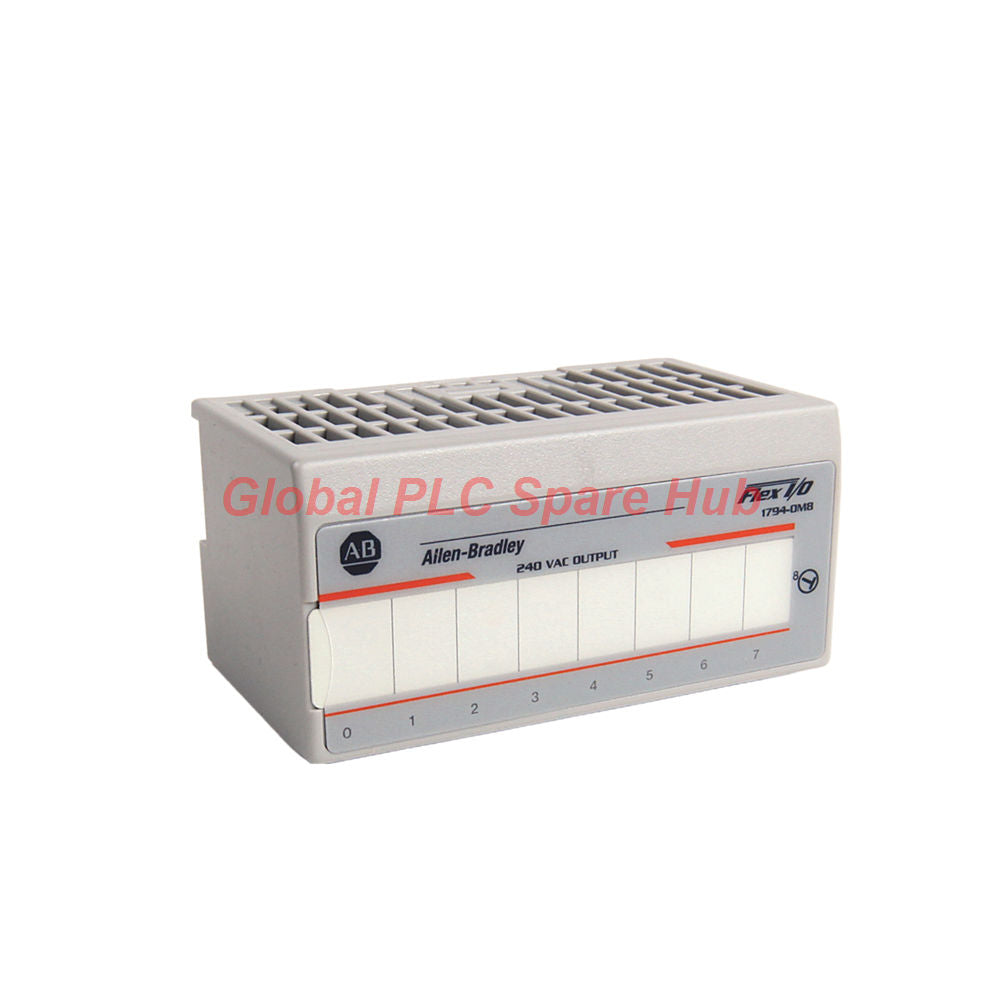

The 1794-OM8 functions as an 8-channel non-isolated AC digital output module built for the Flex I/O architecture by Allen-Bradley (Rockwell Automation). This 1794 Series unit mounts onto terminal bases like the 1794-TBN or 1794-TBNF, permitting live module insertion and removal under power (RIUP) to eliminate system downtime.

Technical Specification Matrix

Commercial Terms and Logistics

• Factory Warranty: Full 12-month structural and operational integrity coverage
• Fulfillment Schedule: 24 to 48 hour dispatch window from warehouse stock
• Global Courier Partners: Express delivery via FedEx, UPS, and DHL

Target Equipment and Application Scenarios

• Switches high-voltage AC loads including industrial solenoids, heavy contactors, and motor starters.
• Drives pilot lights and visual alarm beacons across distributed manufacturing skids.
• Integrates into ControlNet, DeviceNet, EtherNet/IP, and Universal Remote I/O network architectures.
• Deploys in XT variant panels designed to withstand extreme temperature and vibration environments.

System Diagnostic and Monitoring Capabilities

• Equipped with 16 yellow status LED indicators mapped to individual channels for real-time output signal verification.
• Hot-insertion detection flags hardware swaps instantly without triggering controller major faults.
• Flexbus continuous isolation monitoring protects internal backplane logic from high-voltage transients up to 250V.

Global PLC Spare HUB's Insight

Automation engineers transitioning legacy AC control architectures often overlook off-state leakage currents, which can inadvertently hold small inductive relays closed. Global PLC Spare HUB recommends verifying that connected load impedances match the 2.5mA max leakage threshold of the 1794-OM8. Pairing this module with 1794-TBNF terminal bases equipped with built-in fusing provides localized short-circuit isolation and prolongs field actuator life.

Frequently Asked Questions

Does this module support live replacement without shutting down the main chassis rack?

Yes, the module supports Removal and Insertion Under Power (RIUP), allowing technicians to swap units on the terminal base without powering down the network.

What is the minimum operating current requirement per channel at elevated temperatures?

The module requires a minimum load current of 5mA per output when operating at the maximum ambient temperature of 55 degrees Celsius.

Which terminal base units are mechanically compatible with this catalog number?

It mounts directly onto standard 1794-TBN and fused 1794-TBNF terminal base units via standard DIN rail mounting.

How does the module handle thermal management under full 4.0A load conditions?

It generates a maximum power dissipation of 5W and a thermal dissipation of 17.1 BTU/hr, which requires maintaining ambient cabinet temperatures between 0 and 55 degrees Celsius.

Are there specialized hardware versions available for harsh or corrosive plant sites?

Yes, Extended Temperature (XT) variants of this module are engineered to operate reliably in extreme environmental conditions, minimizing long-term panel maintenance costs.
