1794-IRT8 Allen-Bradley 8-Channel FLEX I/O Temperature Measurement Module

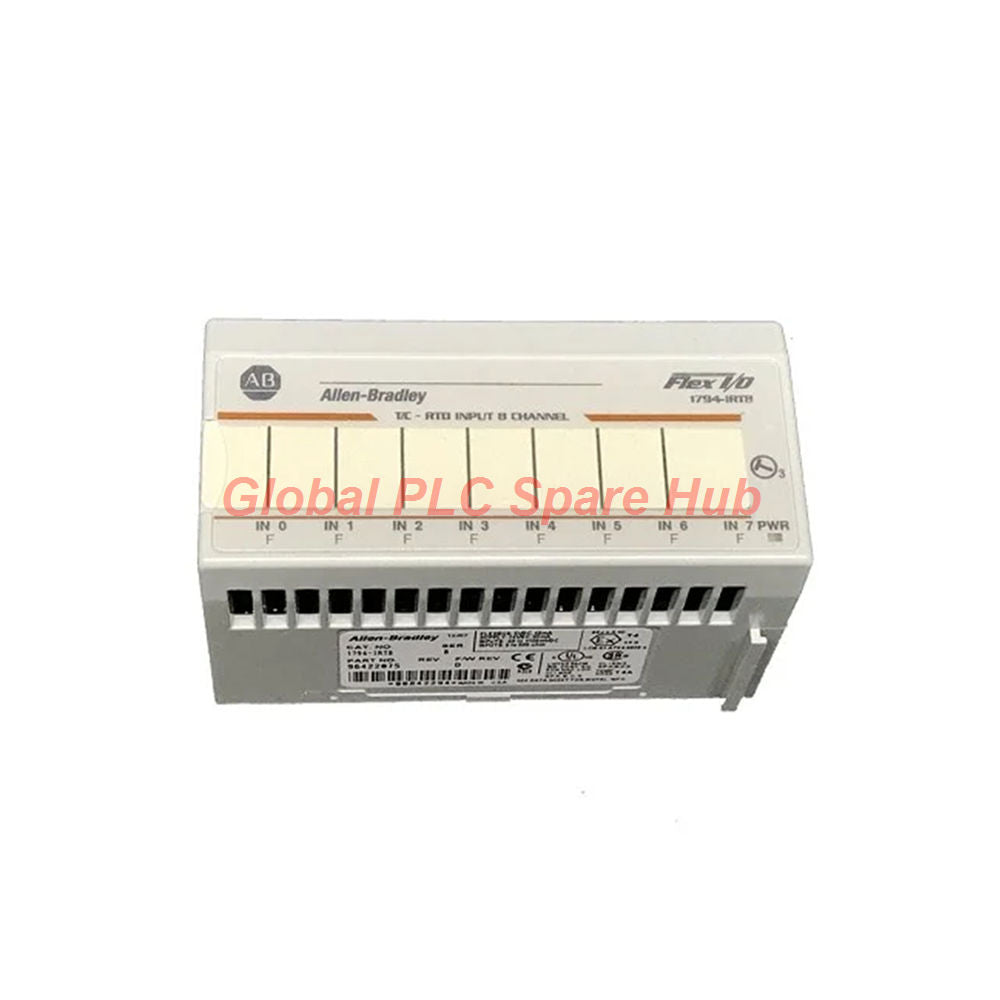

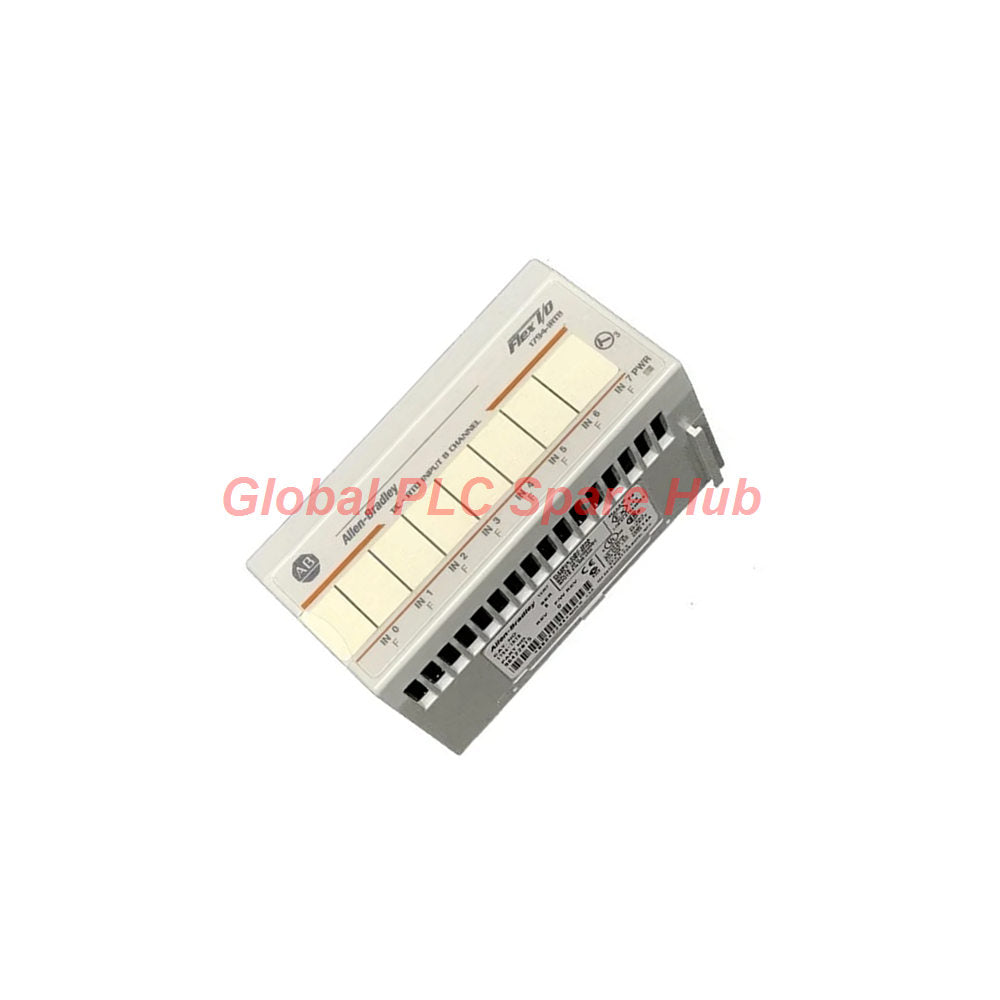

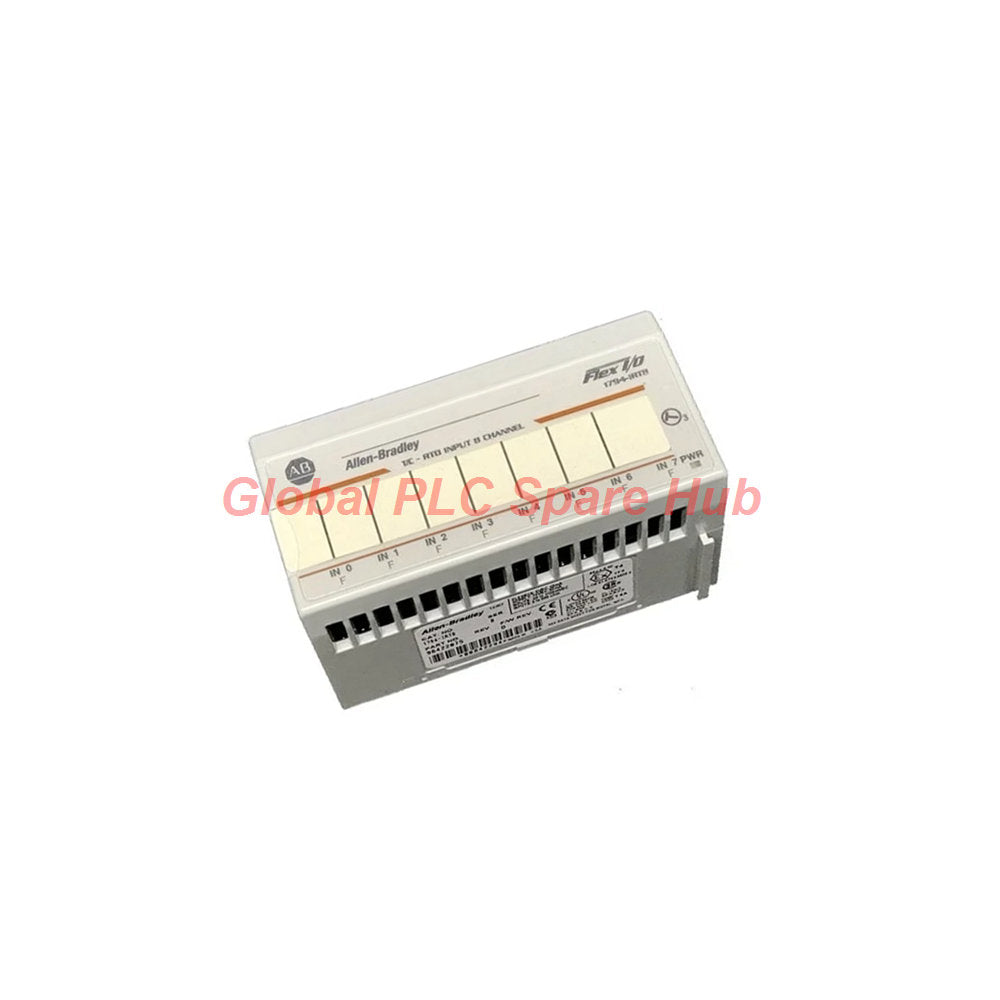

Allen-Bradley 1794-IRT8 FLEX I/O Temperature Input Module

The Allen-Bradley 1794-IRT8 is a FLEX I/O analog measurement module designed for temperature acquisition and low-level millivolt signals in industrial control systems. It accepts resistance temperature detector (RTD) inputs, thermocouple signals, and mV sources, allowing different temperature measurement devices to be integrated into a distributed I/O architecture.

For maintenance engineers, the main selection factors are sensor type, RTD wiring configuration, input range, channel scan time, and the required measurement accuracy. The module supports eight input channels arranged in two groups of four, making it suitable for applications that need several temperature points monitored through a compact I/O installation.

01 | Engineering Snapshot

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Series: FLEX I/O 1794
• Model: 1794-IRT8
• Module type: RTD, thermocouple and millivolt input module
• Input channels: 8 channels, arranged in two groups of four
• Supported RTD wiring: 2-wire, 3-wire and 4-wire
• Input resolution: 16-bit specification listed in the detailed data; verify against the applicable hardware manual because another supplied description states 14 bits
• Operating temperature: 0 to 55 °C (32 to 131 °F)

Selection note: Confirm the exact module revision, compatible terminal base, controller configuration and programming environment before ordering a replacement. A matching part number alone does not establish compatibility with every FLEX I/O installation.

02 | Measurement Capabilities at a Glance

Thermocouple and millivolt inputs

The supplied specifications list a nominal thermocouple input range of -40 to +100 mV DC. The module also accepts mV source inputs. Confirm the supported thermocouple types, configured engineering units, cold-junction compensation requirements and permitted signal range in the applicable Rockwell Automation documentation.

RTD inputs

The supplied material lists a nominal RTD input range of 0 to 325 mV and supports multiple resistance-temperature relationships. RTD selection must account for the sensor's nominal resistance, temperature coefficient and wiring method rather than temperature range alone.

• 100 Ω platinum, α = 0.00385, Euro standard: -200 to 870 °C
• 100 Ω platinum, α = 0.003916, U.S. standard: -200 to 630 °C
• 200 Ω platinum, α = 0.00385, Euro standard: -200 to 630 °C
• 500 Ω platinum, α = 0.00385, U.S. standard: -200 to 630 °C
• 100 Ω nickel, α = 0.00618: -60 to 250 °C
• 120 Ω nickel, α = 0.00672: -60 to 250 °C
• 200 Ω nickel, α = 0.00618: -60 to 250 °C
• 500 Ω nickel, α = 0.00618: -60 to 250 °C
• 10 Ω copper, α = 0.00427: -200 to 260 °C

These ranges are reproduced from the supplied specification and should be checked against the correct manufacturer manual before configuring a channel. Do not assume that every listed sensor type is supported by every hardware revision or configuration.

03 | Technical Specifications

• Input resolution: 16 bits across 435 Ω, as listed in the detailed specification; verify the conflicting 14-bit statement.
• Data format: 16-bit, two's complement, left-justified; offset binary is also listed. Confirm the selected format and controller interpretation before scaling data.
• Normal-mode accuracy: 0.05% of full scale, maximum, without calibration under low-humidity conditions.
• Enhanced-mode accuracy: 0.01% of full scale, typical, without calibration under low-humidity conditions.
• Normal-mode system throughput: Programmable from 28 to 325 ms per channel. The supplied data also lists 325 ms for one channel scanned and 2.6 s for eight channels scanned.
• Enhanced-mode system throughput: Programmable from 56 to 650 ms per channel. The supplied data lists 650 ms for one channel scanned and 2.925 s for eight channels scanned.
• Normal-mode rejection: 60 dB at 60 Hz with a 15 Hz A/D filter cutoff.
• Common-mode rejection: -120 dB at 60 Hz; -100 dB at 50 Hz with a 10 Hz A/D filter cutoff, as supplied.
• Common-mode voltage: 0 V between channels (common return), according to the supplied data.
• Channel bandwidth: DC to 2.62 Hz at -3 dB.
• RTD excitation current: 718.39 μA.
• Open RTD detection: Out-of-range upscale reading.
• Open-circuit detection: Available at the system throughput rate.
• Overvoltage capability: 35 V DC or 25 V AC continuous at 25 °C; 250 V peak transient, as listed in the supplied specification.
• RFI immunity: Error below 1% of range at 10 V/m from 27 to 1000 MHz.
• Gain drift: Normal mode, 20 ppm/°C maximum; enhanced mode, 10 ppm/°C maximum.
• Dimensions, approximate: 46 × 94 × 53 mm (1.8 × 3.7 × 2.1 in.).
• Installed dimensions, approximate: 94 × 94 × 69 mm (3.7 × 3.7 × 2.7 in.).

Engineering verification: The supplied throughput figures and input-resolution descriptions contain inconsistencies. Confirm the official specification for the exact 1794-IRT8 revision before using these values for scan-time calculations, accuracy budgets or control-loop design.

04 | What Matters During Installation and Commissioning?

RTD wiring and lead resistance

Two-wire RTDs include lead resistance in the measured resistance, which can introduce temperature error. Three-wire wiring compensates for lead resistance when the leads and wiring conditions meet the module's requirements. Four-wire measurement can provide better resistance accuracy when supported by the selected configuration. Match the actual sensor wiring to the channel setup.

Thermocouple polarity and reference compensation

Check positive and negative leads against the sensor manufacturer's identification. Verify the configured thermocouple type and cold-junction compensation arrangement. Incorrect polarity, an incorrect sensor type or a missing reference-compensation connection can produce readings that are offset, reversed or inconsistent with the process.

Grounding and electrical noise

Thermocouple and RTD signals are relatively low-level measurements. Route sensor wiring away from VFD output cables, motor leads and switching power circuits. Use appropriate shield termination and grounding practices for the plant's grounding design. Do not assume the module's common-mode rejection eliminates every grounding or induced-noise problem.

Channel timing and control response

Check the configured filter mode and the number of active channels when estimating update time. Temperature acquisition is generally slower than discrete-event detection. If the application requires rapid thermal protection or a fast interlock response, verify the complete sensor-to-controller response time and the requirements of the safety system rather than relying on module specifications alone.

05 | Diagnostic Capability and Fault Isolation

• Open RTD or sensor circuit: An open RTD is specified to produce an upscale out-of-range reading. Inspect sensor continuity, terminal connections and field cable condition before replacing the module.
• Over-range or under-range reading: Compare the measured value with the configured sensor type, temperature range and input scaling. A configuration mismatch can resemble a sensor failure.
• Unstable temperature values: Check shielding, grounding, terminal tightness, cable routing and nearby VFD or contactor switching. Compare affected channels with an independent reference instrument where practical.
• Incorrect but stable reading: Verify the RTD coefficient, nominal resistance, wiring configuration, thermocouple type and engineering-unit scaling. Check calibration requirements before concluding that the input electronics have failed.
• Slow response: Review filter settings, active channel count, controller update timing and the physical response of the sensor assembly. A slow process sensor and a slow acquisition cycle can produce similar symptoms.
• Intermittent signal loss: Inspect the sensor cable, terminal base contacts, field connectors and module seating. Review controller diagnostics and channel status to determine whether the fault follows the field circuit or the I/O hardware.
• Noise-related errors: Compare readings during motor or drive switching, inspect cable separation and check grounding. Confirm that the selected filter provides adequate noise rejection without making the measurement response too slow.

Diagnostic behavior depends on the configured input type and controller implementation. Use the controller's channel status and fault information, where available, alongside field measurements. An out-of-range value alone does not prove that the module has failed.

06 | Equipment Compatibility and Typical Applications

The 1794-IRT8 is intended for temperature and low-level analog measurement within a compatible Allen-Bradley FLEX I/O system. It can be considered for the following applications when the installed controller, terminal base and configuration support the module:

• Industrial process skids: Monitoring vessel, pipework and process-fluid temperatures.
• Manufacturing equipment: Measuring oven zones, heated tooling, machine surfaces and process temperatures.
• Water and wastewater systems: Acquiring temperatures from treatment equipment, tanks and utility systems.
• Chemical and pharmaceutical facilities: Monitoring process temperatures where the sensor type, measurement range and required accuracy are suitable.
• Power and utility equipment: Monitoring auxiliary temperatures in compatible control panels and equipment packages.
• Retrofit and maintenance projects: Replacing a failed input module or restoring temperature acquisition in an existing FLEX I/O installation.

Compatibility checks before purchase: Verify the installed FLEX I/O terminal base, controller or adapter compatibility, module revision, field wiring arrangement, software configuration and required sensor types. Do not assume the 1794-IRT8 can be substituted directly for the 1794-IR8 or 1794-IT8 without checking the system documentation and channel configuration.

07 | Global PLC Spare HUB's Insight

When replacing a temperature input module, the first task is to identify whether the fault is in the sensor, field wiring, terminal base, module configuration or input electronics. Replacing the module without checking these items can leave the original problem unresolved.

For a multi-channel installation, compare a suspect channel with a known-good channel using the same sensor type and a comparable process condition. If the reading is incorrect, verify the sensor coefficient and wiring before checking the module. If several channels become unstable at the same time, investigate shared wiring routes, grounding, power conditions and configuration changes before treating every channel as an independent failure.

Before ordering a 1794-IRT8, provide the complete part number, any available revision information, a photo of the installed module label, the terminal-base identification and the sensor type. These details help reduce replacement errors and allow compatibility checks to be performed before shipment.

08 | Supply, Warranty and Shipping

• Warranty: 12-month warranty, subject to the agreed supply terms.
• Inspection: Product identification and condition checks before shipment, as applicable to the supplied unit.
• Shipping options: FedEx, UPS and DHL, subject to destination and service availability.
• Quotation support: Contact Global PLC Spare HUB with the required quantity, destination country and compatibility details for a quotation.

For replacement planning, please specify whether the module is intended for an operating system retrofit, an emergency spare or a new installation. This helps establish the appropriate compatibility checks and delivery arrangement.

09 | Frequently Asked Questions

Q1: What information should I provide when requesting a replacement quotation?

Provide the full 1794-IRT8 model number, module revision if visible, installed terminal-base details, required quantity and delivery destination. If the module is replacing a failed unit, include the fault symptoms and a photo of the label. This information helps verify the requested item and identify compatibility questions before shipment.

Q2: Can I use this module for both RTD and thermocouple sensors in the same project?

The module is described as supporting both RTD and thermocouple inputs, but the allowed channel configurations and any restrictions on mixing sensor types must be confirmed in the applicable manual. Check the configuration software and wiring requirements for each channel before connecting different sensor types to one module.

Q3: How should I choose between normal and enhanced measurement modes?

Start with the process response time and the required measurement accuracy. The supplied data lists different accuracy and throughput figures for the two modes, but those figures should be verified against the exact manual. For slow temperature processes, a slower acquisition setting may be acceptable; for faster changes, evaluate the full measurement update time and filtering delay before selecting a mode.

Q4: If the module reports an abnormal temperature, should I replace it immediately?

No. First check the sensor, wiring continuity, polarity, sensor configuration, input scaling and channel status. If practical, compare the field measurement with a calibrated reference instrument. A fault that follows the sensor or cable points toward the field circuit; a fault that remains with the same channel after controlled checks may justify further investigation of the terminal base or module.

Q5: What should I verify when using this module in a legacy FLEX I/O system?

Confirm the terminal base, controller or communication adapter, firmware and configuration-software support, channel data format, sensor wiring and replacement-module revision. Also check the physical dimensions and cabinet clearance. Do not rely on a similar model number as proof of interchangeability; confirm the replacement against the installed system documentation before removing the existing module.
