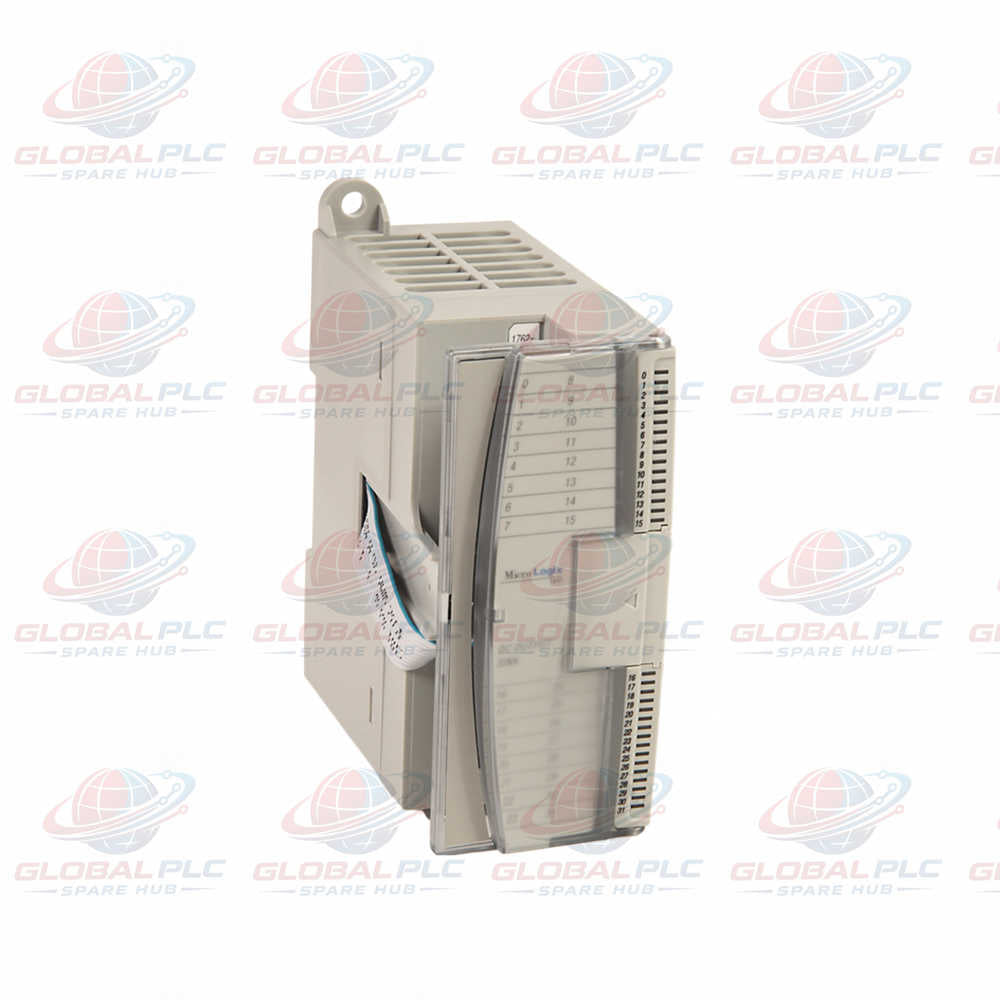

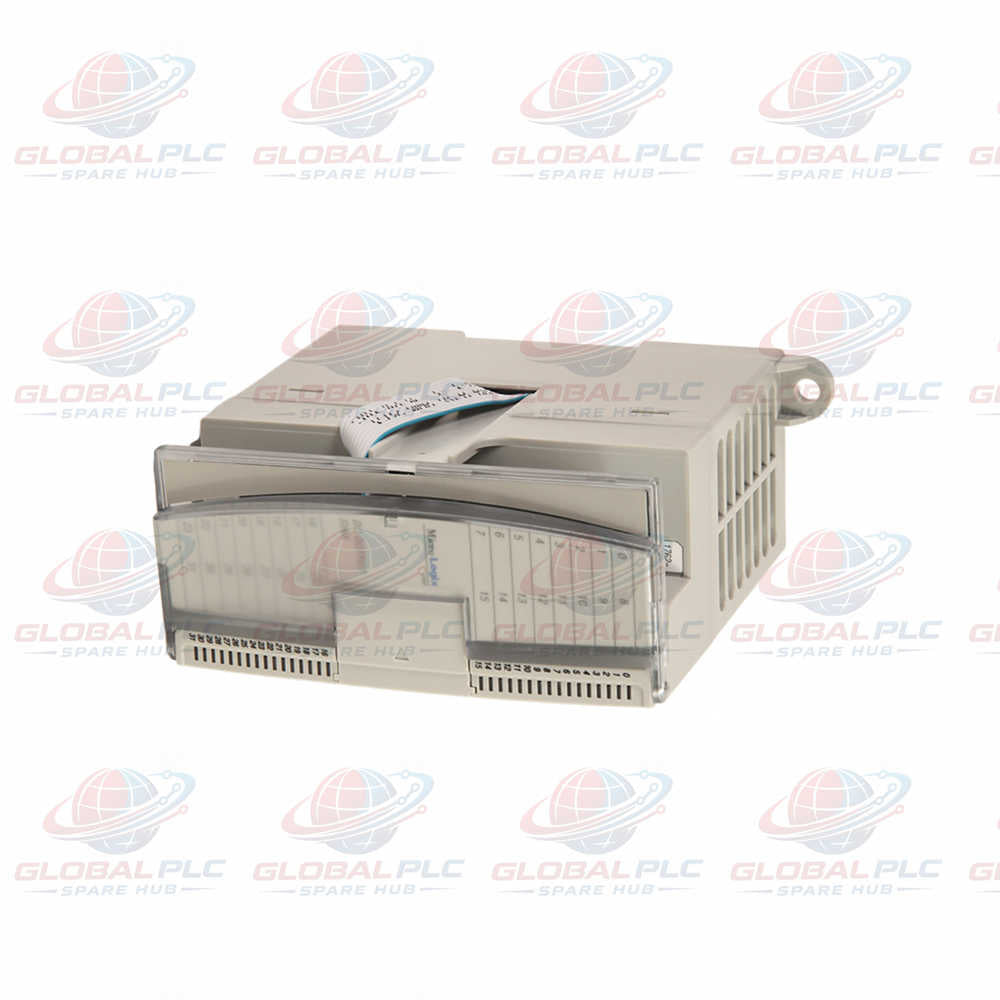

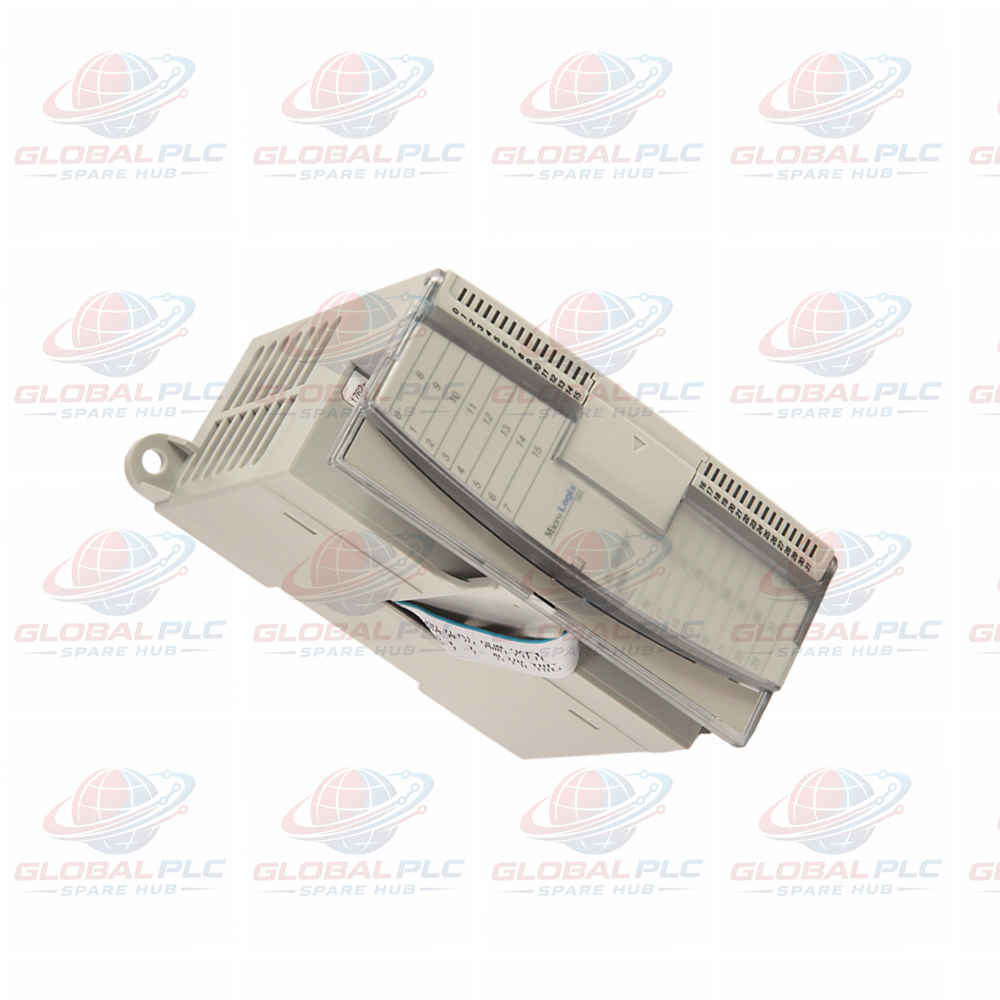

1762-OW16 Allen-Bradley MicroLogix Relay Module In Stock
Manufacturer: Allen-Bradley
Product No.: 1762-OW16
Condition： In stock
Product Type: Relay Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 540g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Overview
The 1762-OW16 is a high-density relay output expansion module.
It expands output switching capability for Allen-Bradley MicroLogix controllers.
The module integrates sixteen individually isolated relay contact outputs.
It operates reliably across flexible AC and DC voltage thresholds.
Engineers use the 1762-OW16 to drive external actuators, valves, and motor starters safely.
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Identity & Origin | Brand | Allen-Bradley / Rockwell Automation |
| Model Number | 1762-OW16 | |
| Product Series | MicroLogix Expansion Module | |
| Compatible Controllers | MicroLogix 1100, MicroLogix 1200, MicroLogix 1400 | |
| Output Channels | Output Type | 16 Normally Open AC/DC Relay Contacts |
| Isolation Architecture | 2 Isolated Groups (8 Channels per Group) | |
| Group 0 Channel Mapping | Outputs 0 to 7 | |
| Group 1 Channel Mapping | Outputs 8 to 15 | |
| Operating Voltages | AC Operating Voltage | 5 to 265 VAC (120-240 VAC nominal) |
| DC Operating Voltage | 5 to 125 VDC (24-125 VDC nominal) | |
| Minimum On-State Current | 10 mA | |
| Current Ratings | Continuous Current per Point | 2.5 A maximum |
| Continuous Current per Common | 8.0 A maximum | |
| Continuous Current per Module | 16.0 A maximum | |
| Bus Current Consumption | 140 mA @ 5VDC / 180 mA @ 24VDC | |
| Performance & Mechanical | Signal Switching Delay | 10 ms (ON to OFF / OFF to ON) |
| Maximum Heat Dissipation | 6.1 Watts | |
| Mounting Options | 35 mm DIN Rail or Panel Mounting |
Channel Isolation & Grouping Architecture
The 1762-OW16 module organizes outputs into two distinct galvanically isolated groups:
- Group 0 (Channels 0 to 7): Shared common terminal, handles up to 8 A total current.
- Group 1 (Channels 8 to 15): Independent common terminal, supports up to 8 A total current.
- Per-Point Capacity: Each output channel drives up to 2.5 A continuous load safely.
- Switching Dynamics: Signal transition delay takes exactly 10 ms for high stability.
Typical Applications & Diagnostic Capabilities
Automation engineers deploy the 1762-OW16 module in diverse industrial control systems.
It controls AC solenoids, magnetic contactors, alarm horns, and interlock circuits.
The relay contacts provide electrical isolation between field devices and logic controllers.
Technicians diagnose faults using system status indicators and voltage test points.
The module monitors switching state transitions to detect contact wear early.
Global PLC Spare HUB's Insight
During a plant upgrade on a packaging line, inductive surge spikes damaged competitor relay cards.
High coil back-EMF caused excessive contact arcing and welded relay contacts shut.
Our engineering team replaced the failed modules with genuine 1762-OW16 units.
We added external RC surge suppressors across all inductive solenoid valves.
This setup eliminated contact erosion and provided uninterrupted operation for over three years.
Packaging, Logistics & Warranty Terms
- Factory Condition: Supplied brand new in original factory sealed packaging.
- Warranty Terms: Covered by a comprehensive 12-month factory defect warranty.
- Fast Shipping: Orders process and ship within 24 to 48 hours.
- Express Carriers: Global delivery handled by FedEx, UPS, and DHL express services.
Frequently Asked Questions (FAQ)
Q: How many 1762-OW16 expansion modules can connect to a single MicroLogix controller?
A: MicroLogix 1100 supports 4 modules. MicroLogix 1200 allows 6 modules. MicroLogix 1400 supports up to 7 modules.
Q: Why should technicians install surge suppressors across connected inductive loads?
A: Surge suppressors absorb high voltage spikes from inductive switching. This prevents contact welding and extends relay life.
Q: What happens if total current on one common terminal exceeds 8 Amperes?
A: Overcurrent causes thermal stress on terminal blocks. Always balance channel loads to stay under 8 Amperes per common.
Q: Can Group 0 operate on 120VAC while Group 1 operates on 24VDC?
A: Yes. Complete galvanic isolation between groups allows mixing different voltage sources safely on one module.
Q: How do engineers select between relay output and solid-state output expansion modules?
A: Choose relay outputs for mixed AC/DC high-current loads. Select solid-state outputs for high-frequency switching tasks.
