1756-RMC3 Allen-Bradley ControlLogix Fiber Optic Redundancy Cable

Product Identity | 1756-RMC3 Redundancy Cable

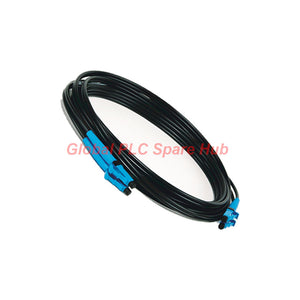

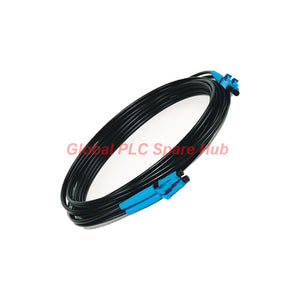

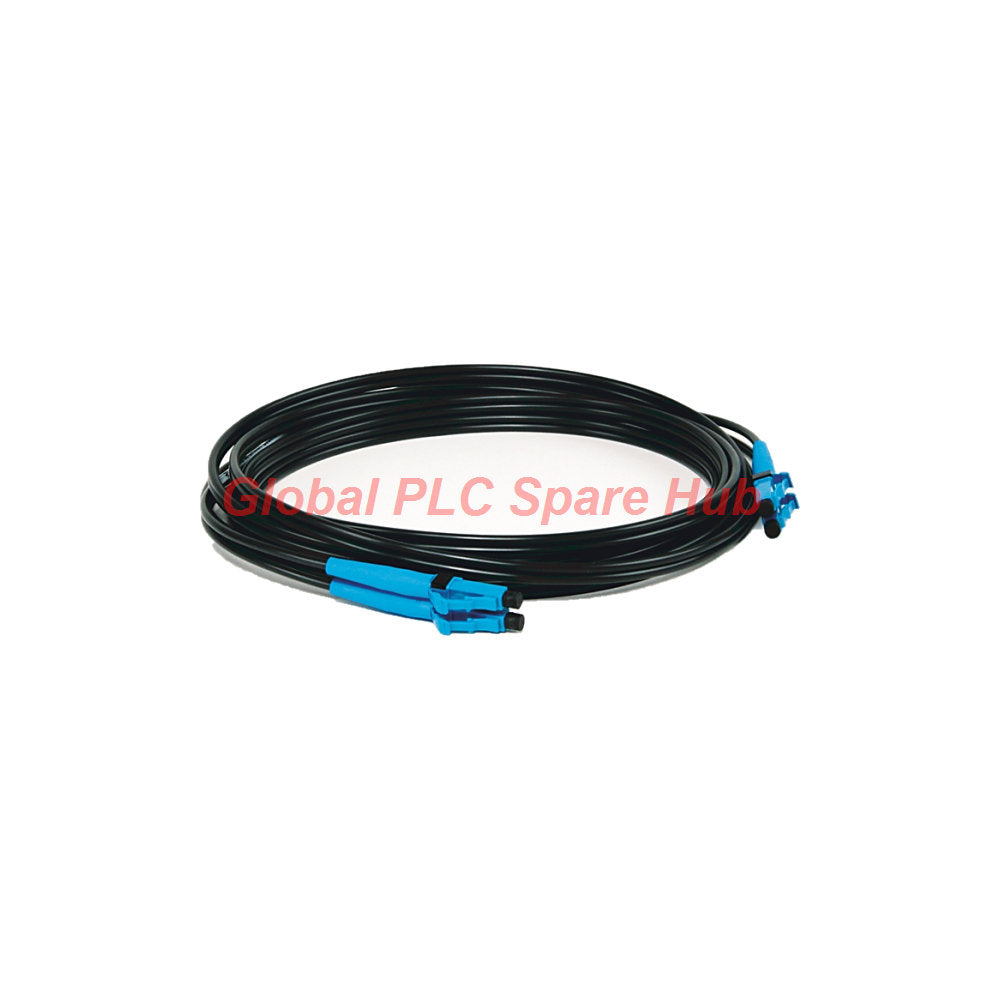

The Allen-Bradley 1756-RMC3 is a 3-meter fiber-optic connector cable for ControlLogix redundancy systems. It connects compatible redundancy modules and supports communication between redundant controller chassis.

As part of the ControlLogix 1756-RMCx cable family, this model provides a defined connection length for paired-chassis installations. Engineers should order the cable separately when the selected module package does not include it.

• Manufacturer: Allen-Bradley / Rockwell Automation
• Product family: ControlLogix
• Model: 1756-RMC3
• Component type: Fiber-optic redundancy connector cable
• Nominal length: 3 m (9.84 ft)
• Primary purpose: Interconnection of compatible redundancy modules

Engineering Specifications

Parameter	Specification
Brand	Allen-Bradley
Manufacturer	Rockwell Automation
Model number	1756-RMC3
Product series	ControlLogix 1756-RMCx
Component category	Redundancy module connector cable
Transmission medium	Fiber optic
Cable length	3 m (9.84 ft)
Wavelength	1300 nm, as stated in the supplied specifications; verify against the applicable technical manual
Transmission rate	Listed as less than 1000 MB/s in the supplied data; confirm the manufacturer's specified interface rate
Channels	1, according to the supplied specifications
Compatible modules	1756-RM2, 1756-RM2K, 1756-RM2XT, subject to the manufacturer's compatibility documentation
Operating temperature	0°C to 60°C (32°F to 140°F), according to the supplied technical data
Weight	Approximately 0.11 kg (0.25 lb)
Wire size	20 AWG, as listed in the supplied specifications; verify applicability to the fiber-optic assembly
Enclosure	No separate enclosure
UPC	612598560851

Specification control: The supplied source lists some electrical-style parameters that may not fully describe a fiber-optic cable. Confirm the optical interface, connector type, channel arrangement, and transmission specifications against the original manufacturer documentation before purchase.

Connection Architecture | Where This Cable Fits

The 1756-RMC3 belongs to the cable family used in ControlLogix redundancy configurations. It provides the physical optical connection required by supported redundancy modules.

1. Primary chassis: Houses the primary controller and its compatible redundancy module.
2. Secondary chassis: Houses the partner controller and corresponding redundancy module.
3. Redundancy link: Connects the supported modules through the specified fiber-optic interface.
4. System validation: Confirms cable seating, module status, and redundancy synchronization after installation.

This cable does not independently create a redundant controller system. The chassis, controllers, redundancy modules, firmware, and application configuration must also meet system requirements.

Compatibility Matrix | Select the Correct Assembly

Device or Component	Application	Selection Check
1756-RM2	ControlLogix redundancy module	Verify the required cable type and module revision.
1756-RM2K	ControlLogix redundancy configuration	Confirm the exact supported connection and installation requirements.
1756-RM2XT	ControlLogix extreme-environment redundancy configuration	Check the approved module and cable combination for the operating environment.
Paired ControlLogix chassis	Redundant controller architecture	Verify the complete redundancy design and cable routing.

Important: Physical connector fit alone does not establish system compatibility. Confirm the required cable part number for the exact module pair before ordering.

Installation Method | Protect the Optical Link

• Inspect first: Check the cable jacket, connectors, protective caps, and contact surfaces before installation.
• Confirm orientation: Follow the module manufacturer's instructions for connector placement and cable routing.
• Avoid sharp bends: Maintain the specified bend radius throughout the installation.
• Protect the route: Keep the cable away from sharp edges, moving machinery, crushing points, and abrasive surfaces.
• Manage contamination: Keep optical connector surfaces clean and capped when disconnected.
• Secure the run: Prevent tension or vibration from pulling on the connectors.
• Separate redundant paths: Where the design provides separate cable routes, reduce the risk of one physical event damaging both paths.
• Validate operation: Check redundancy module indicators and system status after reconnecting the cable.

Use the manufacturer's approved handling procedures. Never force a connector into position or use the cable to support the weight of other wiring.

Diagnostic Value | Fault Isolation in Redundant Systems

The cable is a passive interconnection component. It does not generate diagnostic reports or provide an independent alarm output.

However, its condition can affect redundancy communication and system availability. Engineers can use module diagnostics and physical inspection to isolate potential link faults.

• Link communication fault: Check connector seating, cable damage, and module status indicators.
• Intermittent redundancy status: Inspect routing for excessive bending, vibration, tension, or connector movement.
• Unexpected synchronization behavior: Review module diagnostics, firmware compatibility, and the complete redundancy configuration.
• Suspected optical damage: Follow approved testing procedures and replace the cable with a verified compatible assembly when necessary.
• Recurring faults: Review cable routing and environmental exposure rather than repeatedly reseating the same connection.

Field note: A redundancy warning does not prove that the cable has failed. Engineers should review module status and system logs before replacing components.

Applications | Typical Equipment and Industries

• Continuous process control: Redundant controller installations in chemical and petrochemical facilities.
• Power and utilities: Control systems that require supported controller redundancy.
• Oil and gas: Process automation cabinets with paired ControlLogix chassis.
• Manufacturing lines: Control architectures designed to reduce interruption after a supported controller-side fault.
• Infrastructure automation: Compatible supervisory and process control systems that use ControlLogix redundancy.
• Industrial maintenance: Planned replacement of a damaged or incorrectly sized redundancy connector cable.

Actual availability benefits depend on the complete system design. A cable alone cannot guarantee uninterrupted operation or eliminate every single-point failure.

Global PLC Spare HUB Review

For redundancy maintenance, cable selection should follow the installed module configuration rather than length alone. The 1756-RMC3 provides a 3-meter connection option for compatible ControlLogix redundancy modules.

Practical maintenance example: A plant technician finds a redundancy communication warning after maintenance work inside a control cabinet. The technician checks the connector seating, reviews the module indicators, and inspects the cable route for pinching or sharp bends. If the cable shows physical damage, the technician verifies the replacement part number before installing a new assembly.

For installations with limited cabinet space, measure the actual routing path before ordering. Include connector clearance and service access in the measurement. A cable that reaches the modules but remains under tension can create avoidable maintenance problems.

Our recommendation: Confirm the module models, cable length, installation environment, and required connector configuration before placing an order. This reduces the risk of selecting a physically suitable but unsupported assembly.

Selection and Maintenance FAQ

Q1: How should the required cable length be determined in a paired-chassis installation?

Measure the planned cable route rather than the straight-line distance between modules. Allow suitable routing clearance without creating loops that can snag or become compressed. Confirm the available cable lengths in the manufacturer's product documentation.

Q2: What should be checked if a new cable does not restore redundancy status?

Check both module indicators and the controller system diagnostics. Confirm the module pairing, firmware requirements, connector seating, and cable part number. If the fault remains, follow the system troubleshooting procedure before replacing additional hardware.

Q3: Can the cable be routed alongside moving machinery or through a high-traffic cable path?

Only use a route that protects the fiber assembly from crushing, abrasion, excessive bending, and repeated movement. Add suitable mechanical protection where the installation design requires it. Follow the manufacturer's cable-routing requirements.

Q4: What information should a purchasing team provide to avoid ordering the wrong redundancy cable?

Provide the complete module part numbers, required cable length, installation environment, and quantity. A photograph of the existing label can support identification, but verify the part number against the technical documentation before ordering.

Q5: Should a redundancy cable be replaced whenever a controller reports a communication warning?

No. First inspect the connectors and cable route, then review module diagnostics and system logs. Replace the cable when evidence indicates damage or a confirmed connection problem. This approach helps avoid unnecessary component changes and repeated commissioning work.

Packaging, Warranty and Shipping

• Product: Allen-Bradley 1756-RMC3 fiber-optic redundancy connector cable.
• Nominal cable length: 3 m.
• Packaging: Protective packaging for industrial electronic components; confirm the exact supplied accessories when ordering.
• Accessories: Protective caps are described in the supplied product information. Confirm their inclusion with the seller.
• Warranty: 12 months, subject to the seller's written warranty terms.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch time: 24–48 hours after order confirmation, subject to stock availability and order processing.

Request a Quote | Verify Compatibility Before Ordering

Contact Global PLC Spare HUB for pricing, stock availability, shipping arrangements, and compatibility checks for the 1756-RMC3 ControlLogix redundancy cable.

Include your required quantity, destination, and redundancy module part numbers. Our team can review the order details and help confirm the correct cable specification before shipment.
