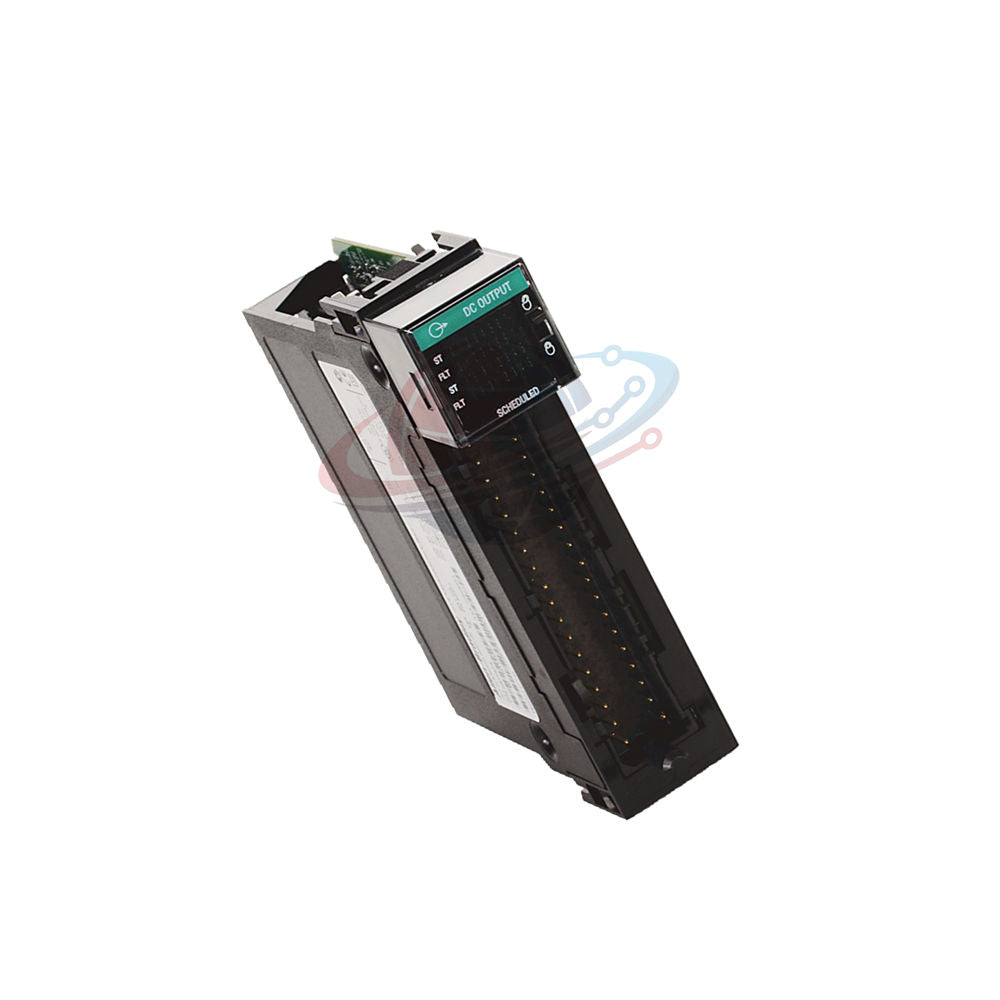

1756-OB16IEFS Allen-Bradley ControlLogix Fast Digital Output Module

Product Positioning

1756-OB16IEFS is a high-speed scheduled output module from Allen-Bradley. It is engineered for the ControlLogix platform. The module delivers deterministic output timing for motion-critical systems. It enables precise actuation based on synchronized events.

This module is optimized for position-based control using MAOC instructions. It supports high-resolution timing and fast switching behavior. The architecture suits applications demanding microsecond-level accuracy.

Technical Characteristics

• Brand: Allen-Bradley
• Model: 1756-OB16IEFS
• Series: ControlLogix
• Module Type: Fast digital DC output module
• Output Channels: 16 isolated outputs
• Voltage Range: 10 to 30 V DC
• Output Current: 2 A per point at 30°C
• Module Current: 8 A total at 30°C
• Backplane Current: 350 mA at 5 V
• Power Dissipation: 3.6 W maximum
• Isolation Rating: 250 V continuous
• Switching Speed: 14 µs typical response
• Timing Resolution: 5 µs scheduling interval
• PWM Capability: 200 µs minimum pulse width
• Leakage Current: <0.1 mA per channel
• Temperature Range: up to 60°C operation
• Protection: Electronic fuse per output

Functional Capabilities

• Supports Motion Axis Output Cam (MAOC) instruction.
• Delivers time-scheduled outputs using CIP Sync.
• Maintains deterministic control in distributed systems.
• Provides individual channel isolation for reliability.
• Handles high-speed switching with minimal latency.

Installation Notes

• Install in ControlLogix chassis with RTB support.
• Use compatible terminal blocks 1756-TBCH or 1756-TBS6H.
• Ensure stable DC supply within specified limits.
• Maintain proper grounding for noise immunity.
• Allow sufficient ventilation inside the enclosure.

Configuration and Maintenance

• Configure fault states and output behavior via controller.
• Set timing parameters for scheduled outputs.
• Monitor module status through system diagnostics.
• Check load conditions to prevent overcurrent stress.
• Replace modules without disturbing adjacent units.

Application Scope

• High-speed packaging machinery
• Precision motion control systems
• Cam-based synchronization applications
• Robotics and automated assembly lines
• High-frequency switching control systems

Diagnostics and Control Insight

• Real-time output state tracking through CIP Sync
• Fault mode configuration for safe operation
• Channel-level protection with electronic fusing
• Timestamp-based event execution monitoring
• Predictive fault detection via controller integration

Global PLC Spare HUB’s Insight

The 1756-OB16IEFS is designed for motion-centric automation. It excels in applications requiring synchronized outputs. Engineers deploy it where timing precision directly impacts performance.

It integrates effectively with ControlLogix processors and motion modules. Ideal for systems requiring coordinated multi-axis control.

Warranty and Delivery

• 12-month warranty ensures reliable operation
• Dispatch within 24 to 48 hours after confirmation
• Shipping via FedEx, UPS, or DHL
• Global logistics with secure packaging

FAQ

• What makes this module suitable for motion control?
• It provides microsecond-level scheduling and synchronized outputs.
• How does electronic fuse protection improve reliability?
• It isolates faults per channel without affecting the entire module.
• What should be considered when selecting this module?
• Evaluate timing precision, current requirements, and system compatibility.
• Can it operate in distributed architectures?
• Yes, it supports remote chassis operation with synchronized control.
• How to optimize performance in high-speed systems?
• Use proper grounding and minimize wiring delays.
