1756-N2 Allen-Bradley ControlLogix Slot Filler | Rack Protection

1756-N2 | ControlLogix Empty-Slot Protection Accessory

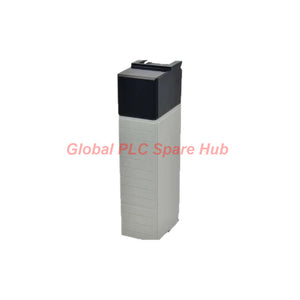

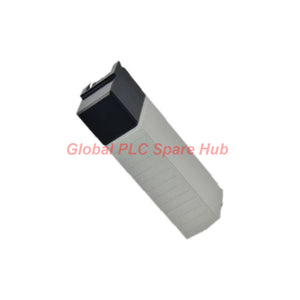

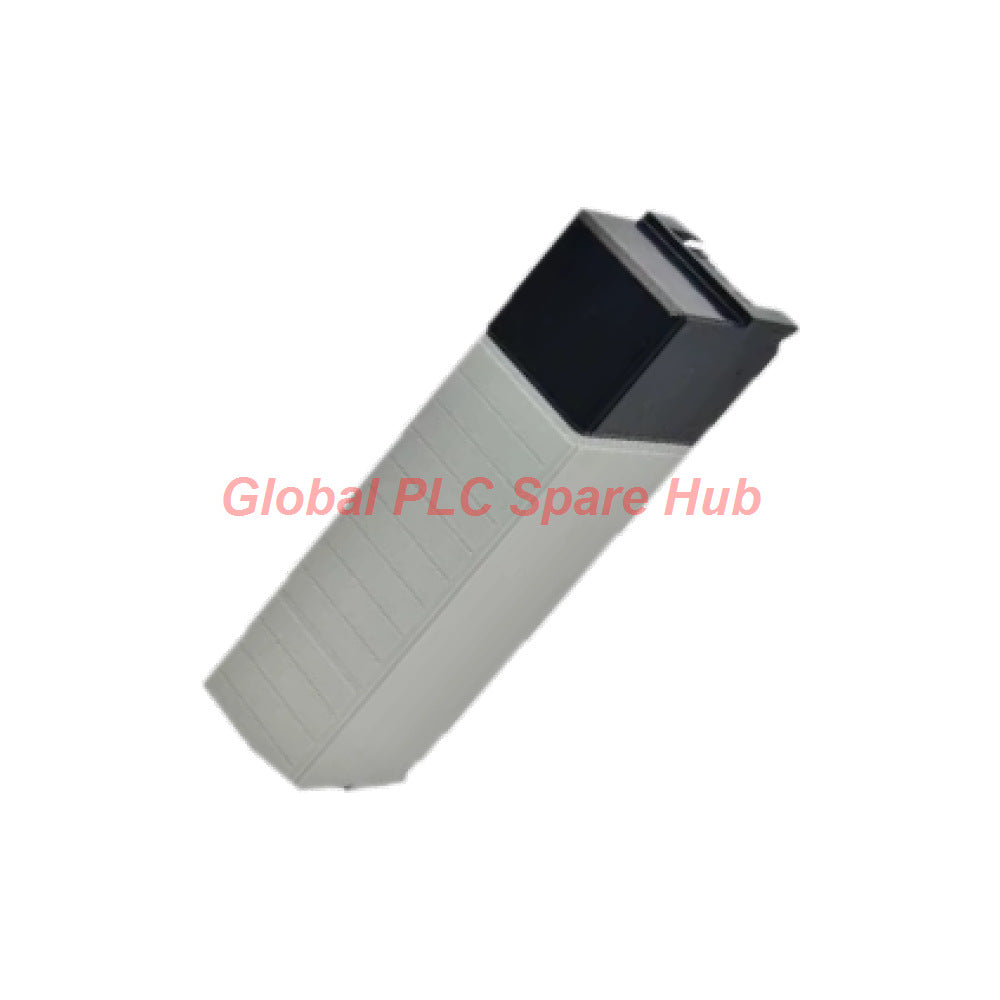

The Allen-Bradley 1756-N2 is a passive slot filler accessory for standard ControlLogix chassis. It covers an unoccupied module slot and helps protect exposed backplane areas from direct contact and environmental contamination.

This accessory supports practical rack management during commissioning, maintenance, and future system expansion. Each package contains two slot filler modules, according to the supplied product information.

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Catalog Number: 1756-N2
• Series: ControlLogix
• Component Type: Empty-Slot Filler Module
• Primary Function: Covers an unoccupied chassis slot
• Module Width: One chassis slot
• Package Quantity: Two pieces, according to the supplied product description

01 | Why Empty-Slot Protection Matters

An unused ControlLogix slot can leave part of the rack's internal interface exposed. The 1756-N2 provides a physical cover for that vacant position.

Important distinction: The filler is a passive accessory, not an electronic module. It does not execute logic, process field signals, or provide communication diagnostics.

02 | Technical Specification Card

Data integrity note: The supplied descriptions contain conflicting electrical ratings for this passive accessory. This page therefore omits unverified current consumption, power dissipation, communication rates, and isolation values.

03 | Compatibility and Selection Boundaries

The 1756-N2 is intended for unused positions in compatible standard ControlLogix chassis. Confirm the chassis type and installation requirements before ordering.

• Chassis Compatibility: Verify that the target rack accepts the specified filler accessory.
• Slot Width: Allow one chassis slot for each filler.
• Quantity Planning: Calculate the number of vacant slots that require covers.
• Future Expansion: Keep reserved slots available for the intended modules.
• XT Applications: Do not assume compatibility with every ControlLogix-XT chassis. Verify the approved accessory list for the exact rack.
• Replacement Check: Match the catalog number and confirm the package quantity before purchasing.

Selection example: A rack has three unused slots and requires a filler in each position. The engineer needs three individual fillers. If each package contains two pieces, the purchasing quantity must cover at least three pieces.

04 | Installation and Rack Maintenance

1. Identify Vacant Slots: Compare the physical rack with the approved slot configuration.
2. Verify the Accessory: Confirm the catalog number and chassis compatibility.
3. Check Site Safety: Follow the applicable installation manual and electrical safety procedures.
4. Fit the Filler: Install the accessory in the intended vacant slot according to manufacturer instructions.
5. Inspect the Fit: Confirm secure placement and check for visible damage.
6. Update Records: Document reserved slots and planned expansion positions.

The supplied description states that the passive filler can be installed or removed with or without power. However, follow the current manufacturer instructions and site procedures before working on an energized rack.

05 | Practical Applications Across ControlLogix Systems

• PLC Control Cabinets: Covers vacant slots in compatible ControlLogix racks.
• Manufacturing Lines: Supports organized rack layouts during equipment upgrades and maintenance.
• Process Automation Panels: Covers reserved positions in racks containing compatible controllers, communication modules, and I/O modules.
• Packaging Machinery: Supports planned expansion when new control or signal modules will be installed later.
• Spare Parts Management: Provides a small accessory for maintenance teams that regularly change rack configurations.
• Industrial Retrofit Projects: Helps maintain physical slot coverage while engineers prepare an approved module replacement.

The filler does not expand the controller's memory, add I/O channels, or increase communication capacity. Its value lies in physical slot coverage and rack maintenance.

06 | Inspection and Diagnostic Guidance

The 1756-N2 has no specified status LEDs or electronic diagnostic functions. Engineers should inspect its physical condition and use the controller and module diagnostics to investigate system faults.

Field example: A maintenance engineer prepares a reserved rack position for a new digital input module. Before installation, the engineer checks the slot assignment, verifies the replacement module, and inspects the vacant position. The engineer then installs the module and confirms its status through the controller's supported diagnostics.

This workflow illustrates practical rack maintenance. The filler itself does not identify electrical faults or report diagnostic codes.

07 | Global PLC Spare HUB's Insight

In industrial maintenance, small rack accessories can be overlooked during spare-parts planning. However, an uncovered slot can leave internal areas more exposed to dust and handling during maintenance.

Consider a ControlLogix rack with two positions reserved for future I/O expansion. Installing compatible fillers helps maintain physical coverage while preserving the planned rack layout. When expansion begins, technicians can remove the fillers and install the selected modules according to the approved procedure.

Engineering recommendation: Treat slot fillers as part of the rack's accessory inventory. Record the chassis model, reserved positions, filler quantity, and planned expansion modules. This simple practice helps technicians prepare the correct accessories before scheduled maintenance.

For purchasing, verify whether the order quantity refers to individual pieces or two-piece packages. This check helps avoid shortages during installation and planned system upgrades.

08 | Package Contents, Warranty, and Shipping

• Product: Allen-Bradley 1756-N2 slot filler accessory.
• Package Quantity: Two filler modules per package, according to the supplied description.
• Packaging: Protective shipping packaging appropriate to the confirmed order.
• Warranty: 12-month warranty under the seller's confirmed terms and conditions.
• Dispatch: Target dispatch within 24–48 hours after order confirmation, subject to stock availability and payment verification.
• Shipping Carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Order Confirmation: Confirm package quantity, delivery costs, lead time, and warranty coverage before purchase.

Packaging configuration and included items should match the final quotation. Request confirmation if your project requires a specific package format or quantity.

09 | Frequently Asked Questions

Q1: How do I calculate the number of 1756-N2 packages required for a rack?

Count the vacant slots that require fillers, then divide the total by two if each package contains two pieces. Round up to the next whole package when the required quantity is odd.

Q2: Can I use a slot filler as a permanent replacement for a failed I/O module?

A filler covers an unused position but does not replace the module's control or signal functions. Review the process impact and approved configuration before removing a failed module from service.

Q3: What should I do before removing a filler for a future module installation?

Verify the module catalog number, slot assignment, power requirements, and project configuration. Follow the installation manual and site safety procedures before changing the rack hardware.

Q4: Does the 1756-N2 prevent all dust or corrosive gases from entering the chassis?

No such complete protection should be assumed. The filler covers a vacant slot, but it does not turn an open chassis into a sealed enclosure. Evaluate cabinet protection and environmental controls separately.

Q5: What details help avoid ordering the wrong slot filler?

Provide the exact chassis catalog number, chassis series, number of vacant slots, and required package quantity. Confirm accessory compatibility with the manufacturer's documentation, especially when the rack belongs to an XT configuration.

10 | Request a Quote for 1756-N2

Need the 1756-N2 Allen-Bradley ControlLogix slot filler for maintenance, rack protection, or future expansion? Contact Global PLC Spare HUB for pricing and compatibility assistance.

• Model: 1756-N2
• Brand: Allen-Bradley
• Series: ControlLogix
• Product Type: Empty-slot filler accessory
• Quotation Details: Required quantity, package configuration, availability, warranty, and shipping destination

Provide your chassis model and required quantity to help our team confirm the appropriate accessory and order configuration.
