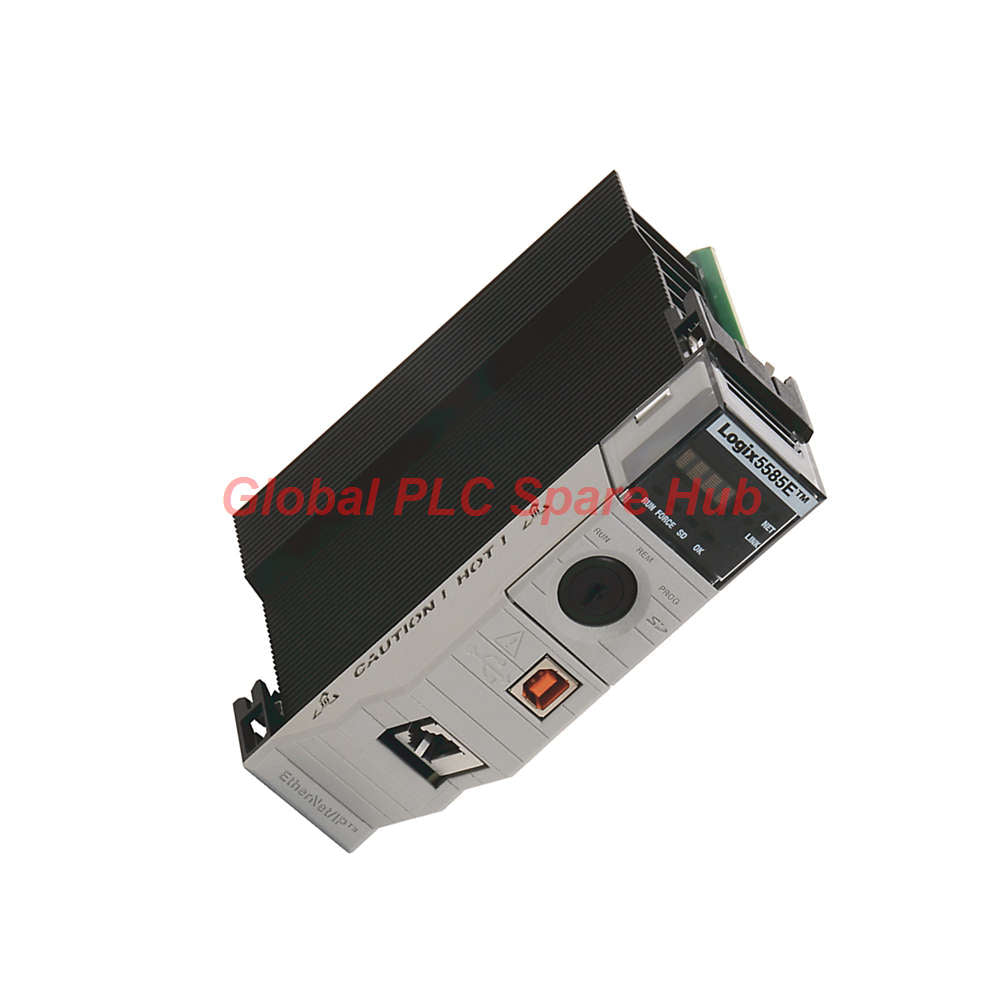

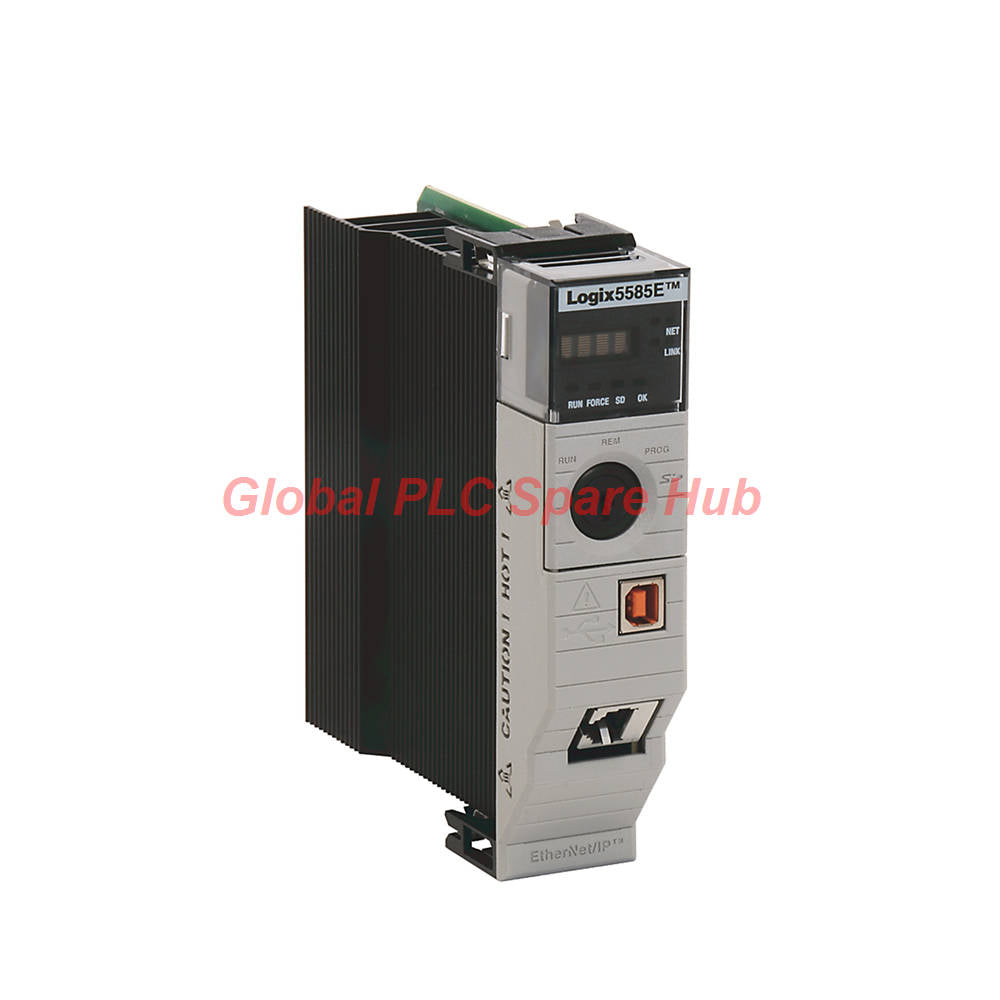

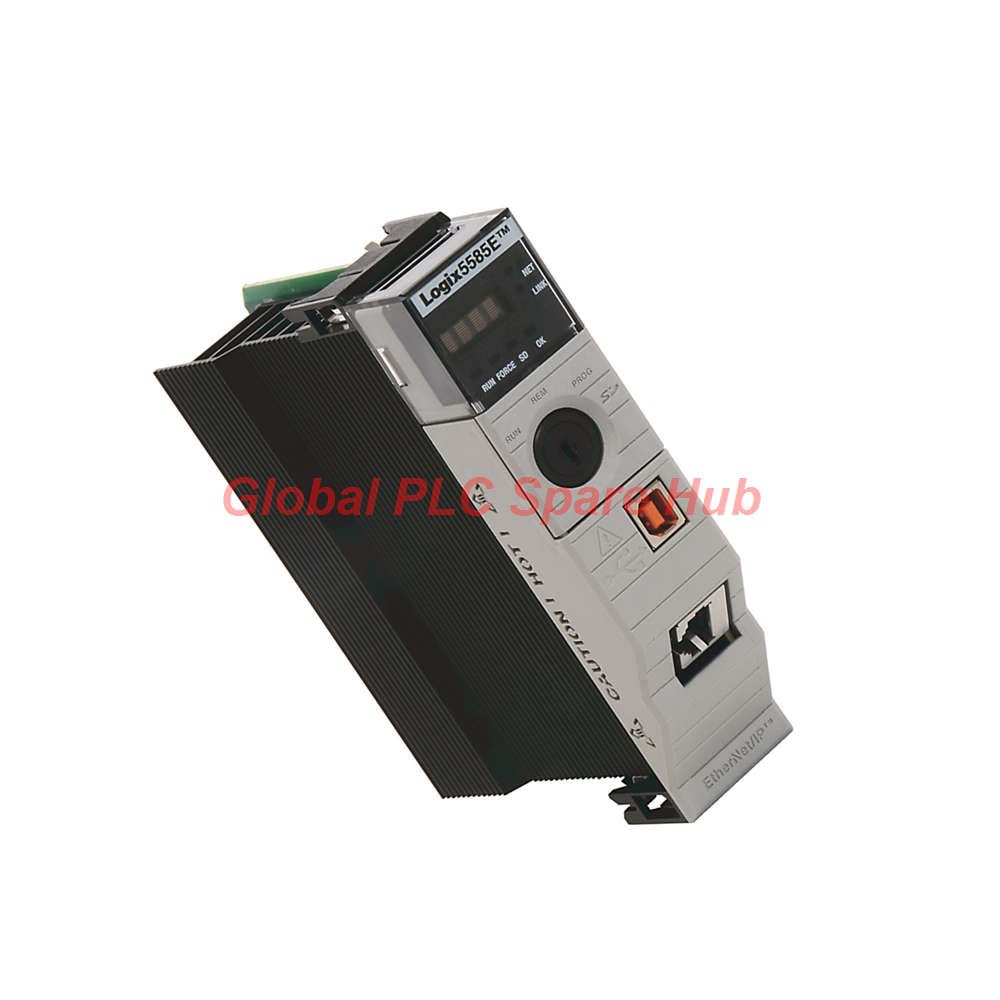

1756-L82EP Allen-Bradley ControlLogix 5580 Controller Module

Product Overview & Core Architecture

Manufacturer: Allen-Bradley / Rockwell Automation

Model: 1756-L82EP

Series: ControlLogix 5580

Product Type: High-Performance Controller Module

Condition: Factory New & Original Factory Packaging

Fulfillment: 24-48 Hour Global Express Dispatch via FedEx, UPS, and DHL

Warranty: Comprehensive 12-Month Factory Warranty

Global PLC Spare HUB's Insight: High-speed motion applications and massive plant-wide automation networks demand deterministic processing power. The 1756-L82EP controller delivers 5 megabytes of user memory and gigabit Ethernet support, eliminating scan-time bottlenecks in complex synchronous multi-axis motion architectures.

Advanced Technical Specifications Matrix

• User Memory Capacity: 5 MB standard storage allocation for application code and data logging
• Task Execution Limits: Supports up to 32 independent tasks with 1,000 programs per task
• Digital I/O Capacity: Maximum handling of up to 128,000 discrete inputs and outputs
• Analog I/O Capacity: Maximum handling of up to 4,000 process control analog points
• Embedded Communication: 10/100/1000 Mbps Ethernet port and Type B USB 2.0 full-speed port
• Legacy Network Bridges: Compatible with ControlNet, DeviceNet, Data Highway Plus, and SynchLink
• Electrical Load Requirements: 5.0 mA at 1.2 Vdc and 1.20 Amps at 5.1 Vdc chassis current draw
• Thermal & Power Dissipation: 6.2 Watts operational power draw emitting 21.2 BTU per hour
• Physical Form Factor: Single-slot width allocation weighing approximately 0.868 lbs (0.394 kg)

Engineering Selection and Operational Guidance

When upgrading legacy ControlLogix racks to the 5580 platform, engineers must calculate total backplane power budget and firmware revision parity across distributed communication modules. The 1756-L82EP requires precise slot placement and utilizes structured text, sequential function charts, function block diagrams, and ladder logic programming environments within Studio 5000.

Industrial Application Scenarios & Diagnostic Capabilities

• Target Machinery: High-speed packaging lines, automotive multi-axis assembly robotics, continuous chemical processing skids, and power generation turbine controls.
• Diagnostic Function: Real-time scan time monitoring, motion tracking error logging, and integrated event task triggers for fault capture.
• Failure Detection: Rapid isolation of communication timeouts, backplane power drops, and task overrun conditions via Logix Designer status flags.

Frequently Asked Questions

Q: What causes a task overrun fault on the 1756-L82EP controller?

A: Task overruns occur when a periodic task is configured with a scan interval shorter than the time required to execute all assigned program logic, requiring code optimization or scan period adjustment.

Q: Can the onboard gigabit Ethernet port handle device-level ring (DLR) topologies?

A: Yes, the embedded network interface supports DLR configurations to provide media redundancy for critical plant floor automation architectures.

Q: How does the controller handle backup power requirements for volatile memory?

A: The module utilizes an internal energy storage mechanism (ESM) rather than traditional lithium batteries, eliminating routine battery replacement maintenance.

Q: What precautions should be taken when inserting the module into a live ControlLogix chassis?

A: While ControlLogix systems support RTB (Removable Terminal Block) and module replacement under power (RIUP), ensure proper electrostatic discharge (ESD) grounding before handling.

Q: How do event tasks differ from continuous tasks on this platform?

A: Event tasks trigger immediately upon an assigned condition (such as a hardware interrupt or axis status change), interrupting lower-priority continuous tasks for high-speed response.
