Allen-Bradley 1756-A13 | ControlLogix Chassis Engineering Overview

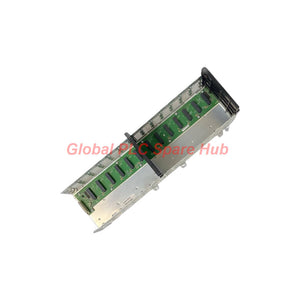

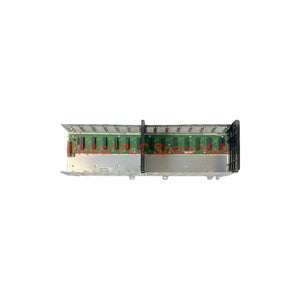

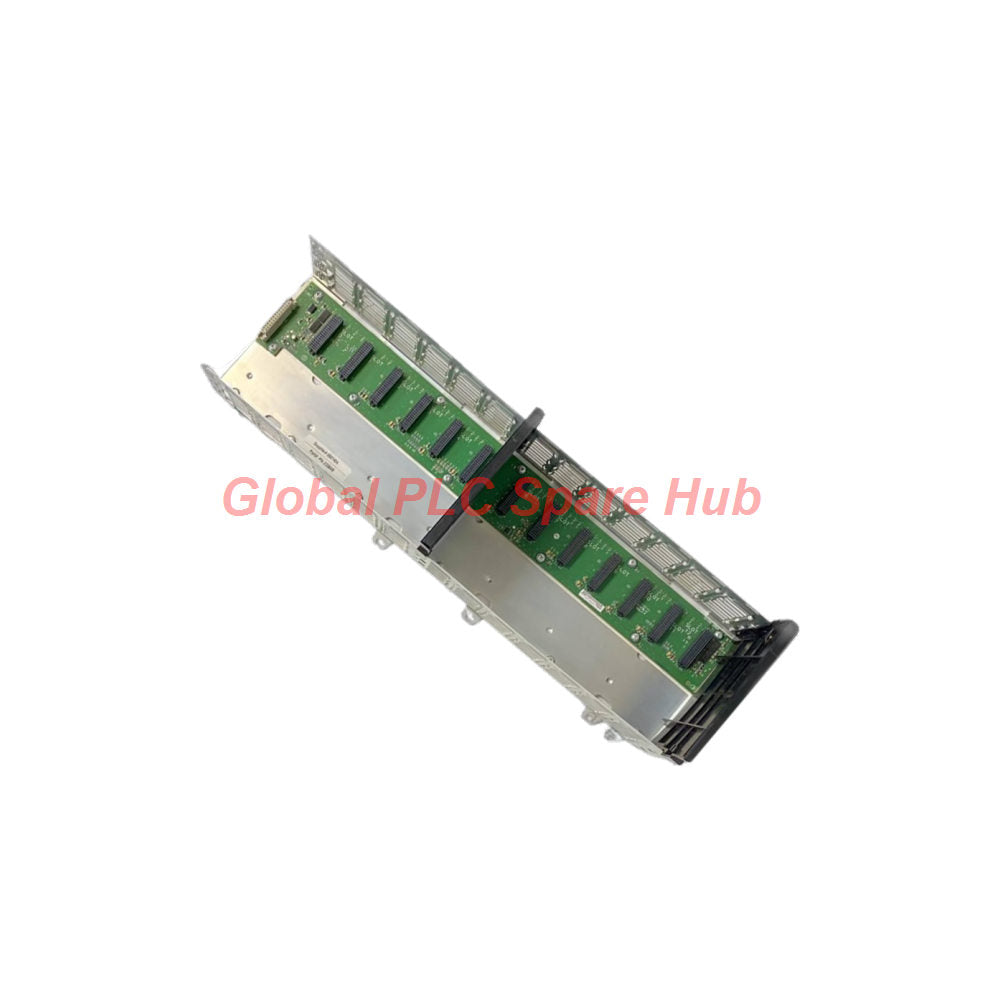

The 1756-A13 is a 13-slot ControlLogix chassis manufactured by Rockwell Automation under the Allen-Bradley brand. It provides a shared backplane for module communication and distributes power from the installed chassis power supply to compatible modules.

Unlike a controller or I/O module, this chassis provides the physical mounting structure and electrical interconnection for the automation system. Engineers can install compatible ControlLogix controllers, communication modules, and I/O modules in available slots.

  • Primary Function: Module mounting, backplane communication, and power distribution.
  • Slot Capacity: 13 module slots.
  • Installation Orientation: Horizontal mounting only.
  • Mounting Method: Panel mounting through chassis mounting tabs.
  • Enclosure Type: Open-type chassis; install inside a suitable industrial cabinet.
  • Maintenance Feature: Removal and Insertion Under Power (RIUP) support, subject to module-specific requirements.

01 | Mechanical and Electrical Reference

Specification Details
Manufacturer Rockwell Automation
Brand Allen-Bradley
Catalog Number 1756-A13
Product Family ControlLogix
Component Type 13-slot chassis with backplane
Number of Slots 13
Mounting Orientation Horizontal only
Mounting Tabs 8
Dimensions (W × H × D) 588 × 169 × 145 mm (23.15 × 6.65 × 5.71 in.)
Minimum Cabinet Size (W × H × D) 762 × 609 × 203 mm (30 × 24 × 8 in.)
Approximate Weight 1.90 kg (4.2 lb)
Backplane Current at 1.2 VDC 1.5 A chassis maximum / 1.5 A per-slot maximum, as supplied
Backplane Current at 3.3 VDC 4 A chassis maximum / 4 A per-slot maximum, as supplied
Backplane Current at 5.1 VDC Supplied data lists 15 A chassis maximum and 6 A per-slot maximum; verify against the applicable manual
Backplane Current at 24 VDC 2.8 A chassis maximum / 2.8 A per-slot maximum, as supplied
Power Dissipation Supplied sources list 5.4 W and 6.1 BTU/hour; verify the applicable rating
Operating Temperature, Series A/B 0°C to +60°C, according to the supplied descriptions
Operating Temperature, Series C -25°C to +60°C
Storage Temperature -40°C to +85°C
Relative Humidity 5% to 95%, non-condensing
Operating Vibration 2 g at 10–500 Hz, as supplied
Operating Shock 30 g, as supplied
Enclosure Rating Open type
UPC 10612598129284, as supplied
UNSPSC 32151704, as supplied

Engineering clarification: Backplane current ratings describe available distribution capacity, not the chassis power supply's actual consumption. Select the power supply using the individual module loads and the manufacturer's chassis power budget.

02 | Backplane Architecture and Slot Planning

The backplane forms the electrical communication path between compatible modules. It also distributes the required DC power rails throughout the chassis.

  • Controller Position: Reserve a suitable slot for the selected ControlLogix controller.
  • Communication Position: Allocate slots for required network and communication modules.
  • I/O Allocation: Assign remaining slots according to digital, analog, specialty, and application requirements.
  • Expansion Planning: Reserve capacity for future modules when the process design requires expansion.
  • Unused Slots: Use the specified 1756-N2 slot filler where required by the installation instructions.

Example: A machine-control rack may use one slot for a controller, two slots for communication modules, and several slots for digital and analog I/O. Engineers must confirm the final slot allocation against the actual bill of materials.

The 13-slot capacity does not guarantee that every combination of modules will fit the electrical power budget. Check the required current on each backplane voltage rail before approving the layout.

03 | Cabinet Installation and Grounding

  1. Confirm Cabinet Clearance: Provide sufficient internal space for the chassis, wiring, ventilation, and maintenance access.
  2. Verify Orientation: Install the chassis horizontally as required by the supplied product information.
  3. Prepare the Subpanel: Check mounting dimensions, panel rigidity, and access to the mounting tabs.
  4. Secure the Chassis: Fasten all required mounting points according to the installation manual.
  5. Connect Protective Grounding: Follow the manufacturer's grounding instructions and applicable electrical codes.
  6. Install Compatible Modules: Verify catalog numbers, slot assignments, and installation requirements before insertion.
  7. Check the Power Budget: Confirm that the selected power supply supports the complete module configuration.
  8. Commission the Rack: Verify module recognition, communication status, and expected controller operation.

The supplied grounding information specifies 8 AWG copper wire for functional earth and 14 AWG copper wire for protective earth, with a minimum 90°C temperature rating. Confirm conductor requirements and terminal specifications against the applicable installation manual.

Safety note: RIUP support does not mean every module can be removed under every operating condition. Follow the specific module instructions and site electrical safety procedures.

04 | Compatibility and System Selection

Selection Item Engineering Check
Controller Family Confirm the selected controller supports the chassis and intended ControlLogix system architecture.
Supported Controller Generations The supplied description identifies Logix 5560, 5570, and 5580 families. Verify the exact controller catalog number and compatibility documentation.
Power Supply Check chassis compatibility and calculate the load across every required backplane voltage rail.
I/O Modules Verify module compatibility, slot requirements, and power consumption.
Communication Modules Confirm supported networks, firmware, and communication architecture.
Replacement Chassis Compare catalog number, series, dimensions, mounting orientation, and environmental requirements.
Slot Fillers Check the installation manual for the correct treatment of unused slots and required 1756-N2 fillers.

Replacement advice: Do not select a chassis solely by its 13-slot capacity. Compare the existing rack's series, controller family, power requirements, cabinet layout, and installed module list before ordering.

05 | Suitable Equipment and Industrial Applications

  • Manufacturing Lines: Provides a central mounting and backplane platform for controller and distributed I/O modules.
  • Packaging Equipment: Supports control architectures for conveyors, filling machines, labeling systems, and automated packaging cells.
  • Material Handling: Accommodates compatible controller and communication modules used in conveyor and transfer systems.
  • Process Equipment: Houses compatible ControlLogix modules for process sequencing, interlocks, and field signal processing.
  • Utilities and Infrastructure: Supports compatible automation racks used for equipment monitoring and control.
  • Machine Retrofit Projects: Provides a chassis replacement option when the existing system requires a verified compatible rack.

Application suitability depends on the installed controller, I/O modules, network design, power supply, and environmental conditions. The chassis itself does not execute control logic or independently monitor field devices.

06 | Fault Isolation and Maintenance Workflow

The 1756-A13 provides the physical backplane and mounting structure for the installed automation modules. Engineers diagnose rack-related problems by examining module status, power conditions, controller faults, and backplane communication behavior.

Observed Symptom Recommended Investigation
Several modules fail to start Check the chassis power supply, module seating, backplane connections, and system fault records.
One module remains unavailable Inspect the affected slot, module status, compatibility, and module-specific diagnostic information.
Intermittent communication faults Review controller logs, communication module status, power stability, and installation conditions.
Rack expansion causes startup problems Recalculate backplane loading and confirm the power supply supports the revised module configuration.
Repeated faults after replacement Compare the chassis series, module catalog numbers, slot assignments, and system configuration.

Field example: An engineer adds several I/O modules to an existing rack. The system then reports module faults during startup. The engineer reviews the power budget for each backplane voltage rail and checks the power supply's capacity. This process helps distinguish power-loading problems from module configuration or communication faults.

Maintenance recommendation: Record the chassis catalog number, series, slot map, module list, and power budget in the maintenance documentation. These records improve fault isolation and reduce unnecessary module replacement.

07 | Global PLC Spare HUB's Insight

In field replacement projects, engineers often focus on slot count and overlook electrical loading. A 13-slot chassis may accommodate the planned modules physically, yet the power supply may not support their combined demand on every voltage rail.

For example, a retrofit may add analog input modules and communication hardware to an existing ControlLogix rack. The correct approach is to document each module's current requirements, calculate the load per voltage rail, and compare the totals with the approved chassis and power supply limits.

Engineers should also confirm the chassis series before installing equipment in low-temperature environments. The supplied specifications list different lower operating limits for Series A/B and Series C. Verify the actual nameplate and applicable manual before approving the installation.

Our practical recommendation: Use the complete rack configuration—not slot count alone—to evaluate a replacement. This approach helps reduce commissioning delays, power-related faults, and compatibility risks.

08 | Packaging, Warranty, and Worldwide Shipping

  • Product: Allen-Bradley 1756-A13 ControlLogix 13-slot chassis.
  • Packaging: Protective shipping packaging appropriate to the confirmed order.
  • Accessories: Power supplies, controllers, modules, slot fillers, and other accessories are included only when specified in the quotation.
  • Warranty: 12-month warranty under the seller's confirmed terms and conditions.
  • Dispatch Target: 24–48 hours after order confirmation, subject to stock availability and payment verification.
  • Shipping Options: FedEx, UPS, or DHL, subject to destination and service availability.
  • International Orders: Delivery times depend on destination, customs clearance, and carrier operations.

Contact Global PLC Spare HUB to confirm stock status, exact package contents, dispatch timing, shipping costs, and warranty coverage before placing an order.

09 | Frequently Asked Questions

Q1: How do I determine whether the 1756-A13 provides enough electrical capacity for a fully populated rack?

List every planned module and its current requirements for each backplane voltage rail. Add the loads separately, then compare the totals with the chassis limits and power supply ratings. Do not calculate capacity from the slot count alone.

Q2: What should I inspect if a chassis replacement fits mechanically but the system configuration still fails?

Check the chassis series, controller compatibility, module catalog numbers, power supply configuration, and slot assignments. Review controller and module fault information before changing the project or replacing additional components.

Q3: How should I choose between different 1756-A13 chassis series?

Check the nameplate, operating temperature requirements, mechanical dimensions, and applicable manufacturer documentation. Series differences can affect environmental suitability, so confirm the exact catalog number before ordering a replacement.

Q4: Is the 1756-A13 suitable for an installation with frequent module maintenance?

The supplied product information identifies RIUP support. However, engineers must check the specific module's removal requirements, electrical safety procedures, and process consequences before performing maintenance under power.

Q5: What information should I provide when requesting a replacement chassis quotation?

Provide the full catalog number, chassis series, installed controller model, power supply model, module list, operating temperature, and delivery destination. These details help the supplier review compatibility and provide more accurate pricing and shipping information.
