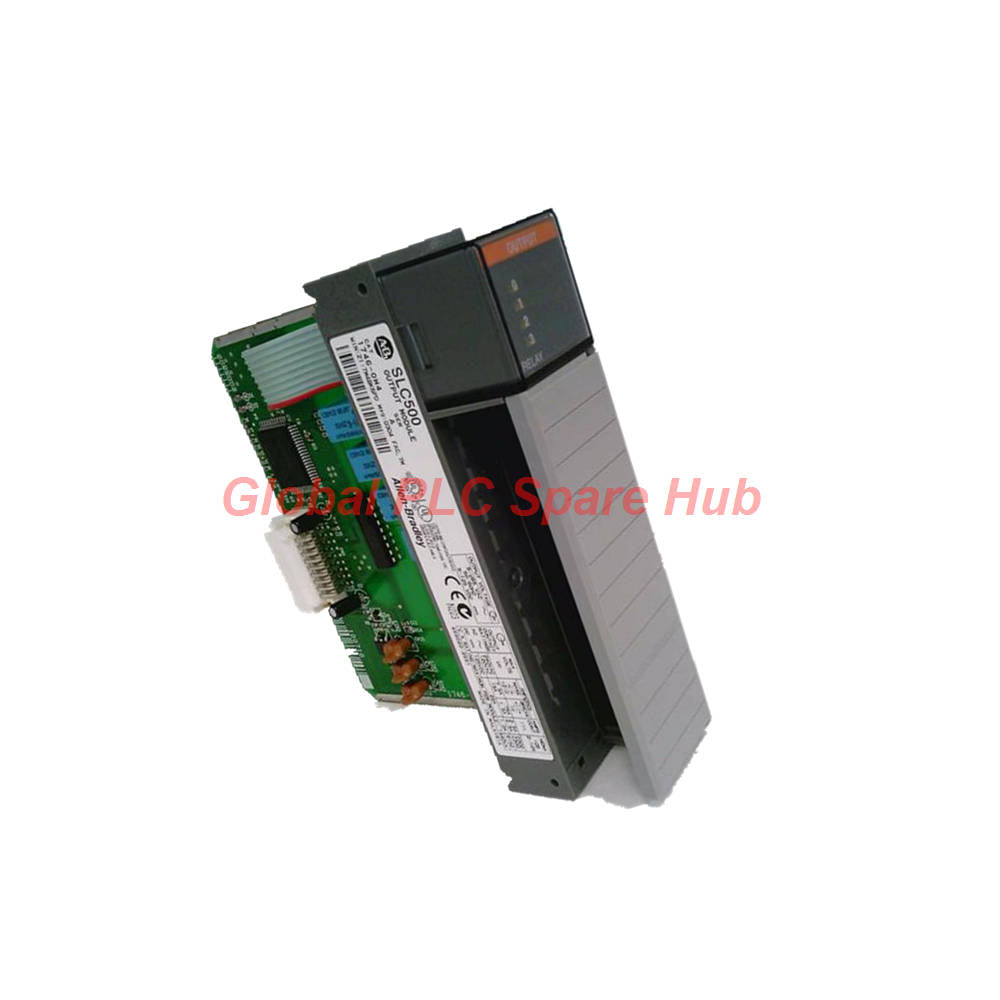

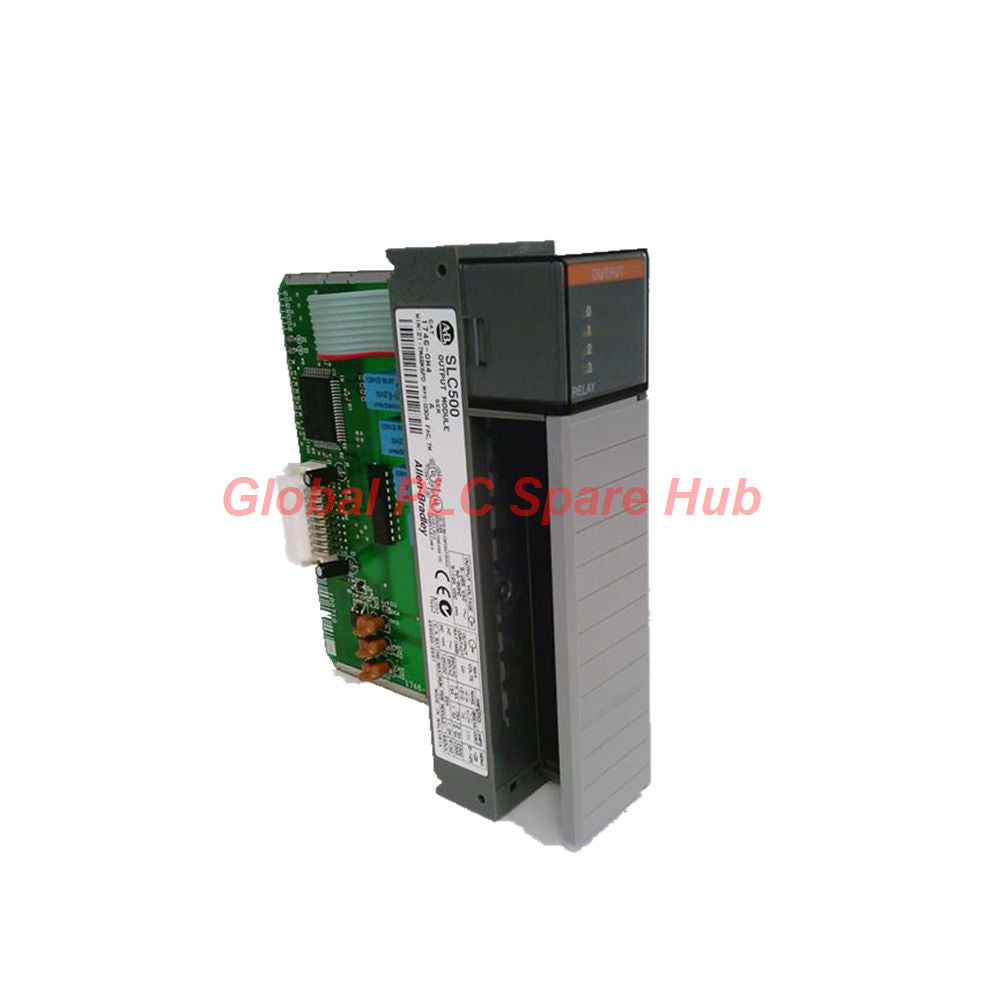

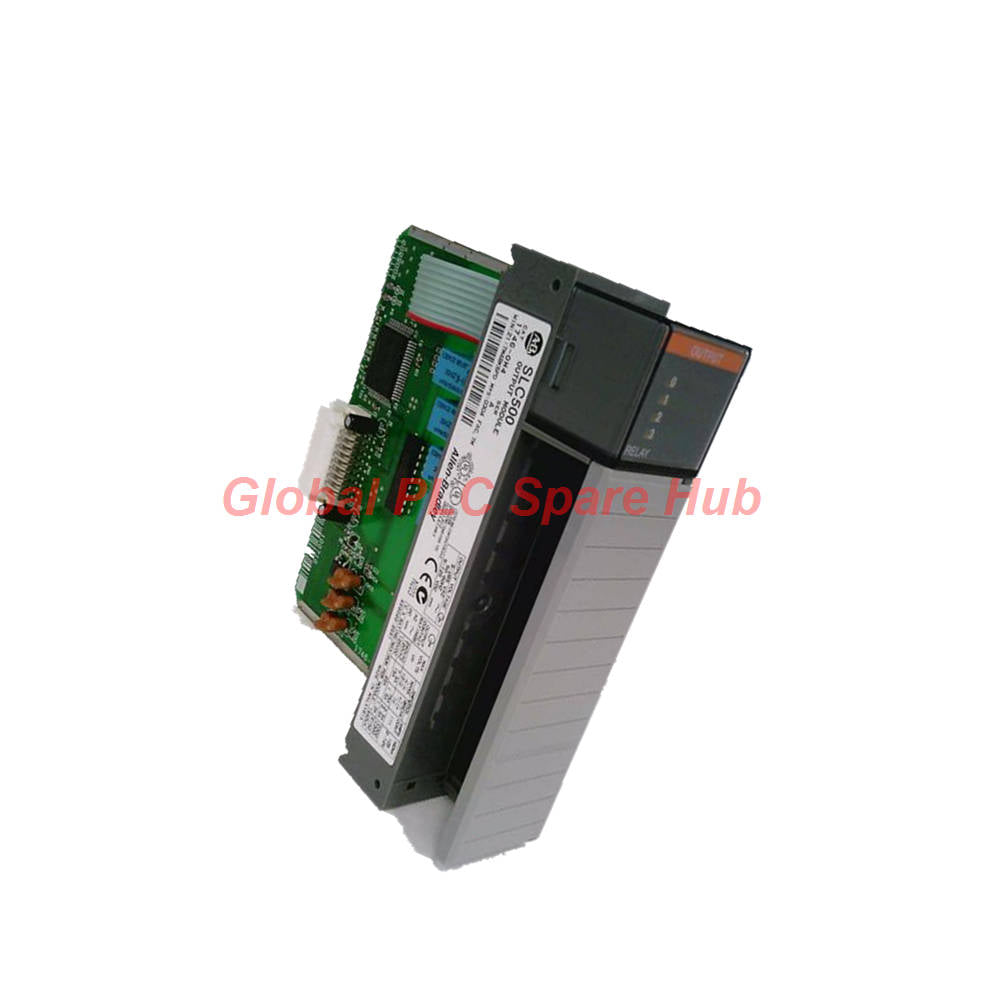

1746-OW4 Allen-Bradley 4-Point N.O. Relay Output Module for SLC 500

1746-OW4 | Four-Point Relay Output for SLC 500

The Allen-Bradley 1746-OW4 is a four-point, normally open relay contact output module for the SLC 500 programmable controller platform. Its electromechanical contacts switch compatible AC or DC field circuits, making it useful where a dry-contact switching interface is required.

Unlike a solid-state output, a relay contact can switch either AC or DC within its specified ratings. Selection must account for load voltage, current, switching frequency, and the electrical characteristics of the connected device.

Relay Contact Layout

• 4 normally open (N.O.) contacts: each output closes when its relay is energized and opens when de-energized.
• AC/DC switching: stated operating ranges are 5–265V AC and 5–125V DC. These are voltage ranges, not a guarantee that every load can be switched at every voltage.
• Four common points: confirm the terminal arrangement and circuit grouping from the module’s wiring diagram before connecting field loads.
• Electromechanical switching: contact operation involves mechanical movement and is subject to relay life, load type, and switching frequency.

Technical Specifications

Specification check: The supplied information contains differing response-time figures and describes backplane current at both 5V and 24V in one passage. Confirm these values against the applicable Allen-Bradley 1746-OW4 technical documentation before using them for timing, power-budget, or design calculations. Also verify contact ratings for the actual load type, including inductive loads.

Where This Module Fits

• SLC 500 control panels: adds relay-based discrete output points to a compatible SLC 500 rack.
• AC control circuits: switches suitable pilot devices, interface relays, and other AC loads within the documented contact ratings.
• DC control circuits: switches compatible DC loads where the voltage, current, and load characteristics meet the relay’s ratings.
• Machine sequencing: supports PLC-controlled enable, run, status, and interlock-related signals when the application does not require a safety-rated output.
• Legacy equipment maintenance: serves as a replacement or additional relay-output module after checking the installed rack, wiring, and configuration.

Application boundary: The 1746-OW4 is a standard control output module, not a safety-rated switching device. Do not use it as the sole means of emergency stopping, personnel protection, or isolation. Use an appropriately engineered safety circuit where required.

Panel Design and Installation Notes

1. Check the rack and slot: confirm that the SLC 500 chassis and controller configuration support the module and that the replacement matches the original catalog number.
2. Review contact ratings: identify whether each load is resistive, inductive, or capacitive. Motor starters, solenoid coils, and contactor coils may require suitable suppression or an interface relay.
3. Separate circuits correctly: observe the module’s common-terminal arrangement and applicable AC/DC wiring practices. Do not assume the contacts provide isolation beyond the manufacturer’s stated ratings.
4. Estimate switching duty: frequent cycling can shorten relay contact life. Consider switching frequency and expected service life when selecting the output architecture.
5. De-energize before wiring: disconnect and verify all relevant field and control power before installation or terminal work. Follow the applicable manual and site lockout/tagout procedure.

Field Diagnostics: Trace the Signal from Logic to Load

When a commanded output fails to switch, isolate the fault systematically rather than immediately replacing the module.

• Confirm the PLC command: check the controller mode, program logic, output address, and online status.
• Inspect the output indication: where available, compare the module’s status indication with the commanded state. An indicator does not by itself prove that the field contact is conducting.
• Measure the field circuit: use an appropriately rated meter to verify the supply and check voltage across the contact and load under the commanded condition.
• Check contact and wiring condition: inspect for loose terminals, damaged conductors, contact wear, or a load-side open circuit. A relay can actuate mechanically while its contacts fail electrically.
• Check load compatibility: confirm that current demand, inrush, and inductive transients are within the documented limits. Review suppression components and the load’s actual operating voltage.
• Look for environmental deterioration: the supplied description warns that chemical exposure may affect sealing materials. Inspect the installation environment and module condition periodically; replace a degraded unit according to maintenance procedures.

For continuity testing, isolate the module and field circuit from all power sources first. Do not use an ohmmeter on an energized circuit.

Global PLC Spare HUB Review

The 1746-OW4 is most relevant when a legacy SLC 500 application needs relay contacts rather than transistor-based DC switching. The practical selection issue is not simply “AC or DC”: contact life and switching reliability depend strongly on the load. A small resistive pilot load and an inductive coil can impose very different demands on the same relay contact.

For a replacement purchase, compare the installed catalog number, rack position, terminal wiring, field voltage, and load current. If the existing module switches inductive devices or cycles frequently, review suppression and relay-duty requirements before commissioning the spare.

Warranty and Shipping

• Warranty: 12 months.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and shipment arrangements.
• Quote information: include catalog number 1746-OW4, quantity, destination, and any required condition or packaging details.

Frequently Asked Questions

1. How can I tell whether a relay output is failing or the field device is faulty?

Check the PLC command first, then measure the circuit at the relay output and load. If the relay is commanded but the contact does not pass the expected voltage, investigate the contact, terminal, and wiring. If the correct voltage reaches the load, test the field device and its return path.

2. What should I consider when switching a solenoid or contactor coil?

Confirm the coil’s voltage and steady-state current, then check its inrush and inductive characteristics against the module’s contact ratings. Use suitable suppression where specified by the coil or control-system manufacturer. Do not select solely by the nominal current printed on the load.

3. Is a relay output preferable to a transistor output for every AC/DC application?

No. Relay contacts can support compatible AC and DC circuits, but they have mechanical wear and switching-life limits. Transistor outputs may be better for frequent, fast DC switching. Select the output type based on voltage, load, switching rate, isolation needs, and maintenance strategy.

4. What information should I provide when requesting a replacement quotation?

Provide the full catalog number, SLC 500 chassis and controller details, the number of points required, field voltage, load current, and the nature of the loads. A clear photo of the existing module label and terminal wiring can help verify the replacement match.

5. Why might a relay module work during a test but fail after returning to production?

The production load may have higher inrush, inductive transients, or a greater switching frequency than the test setup. Review the actual load duty, contact rating, suppression, and environmental exposure. A low-current bench test may not reveal contact degradation under the machine’s normal operating conditions.
