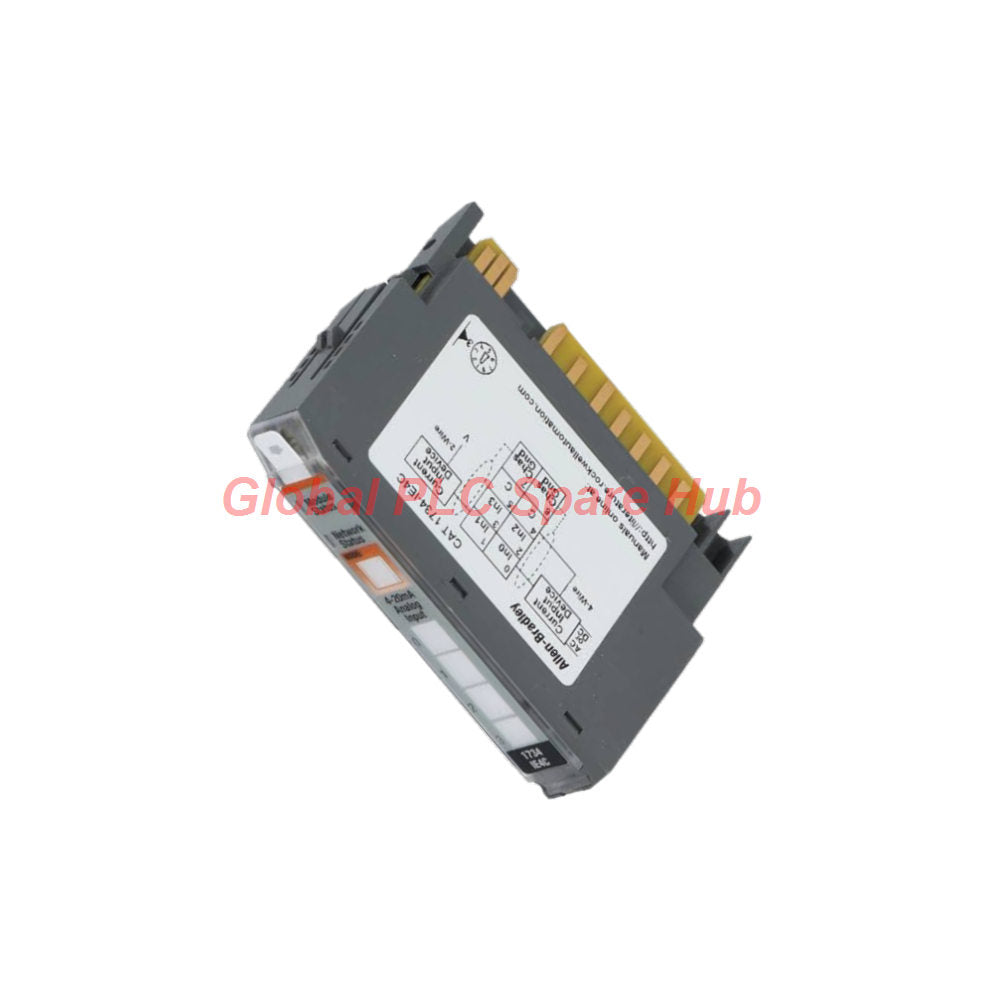

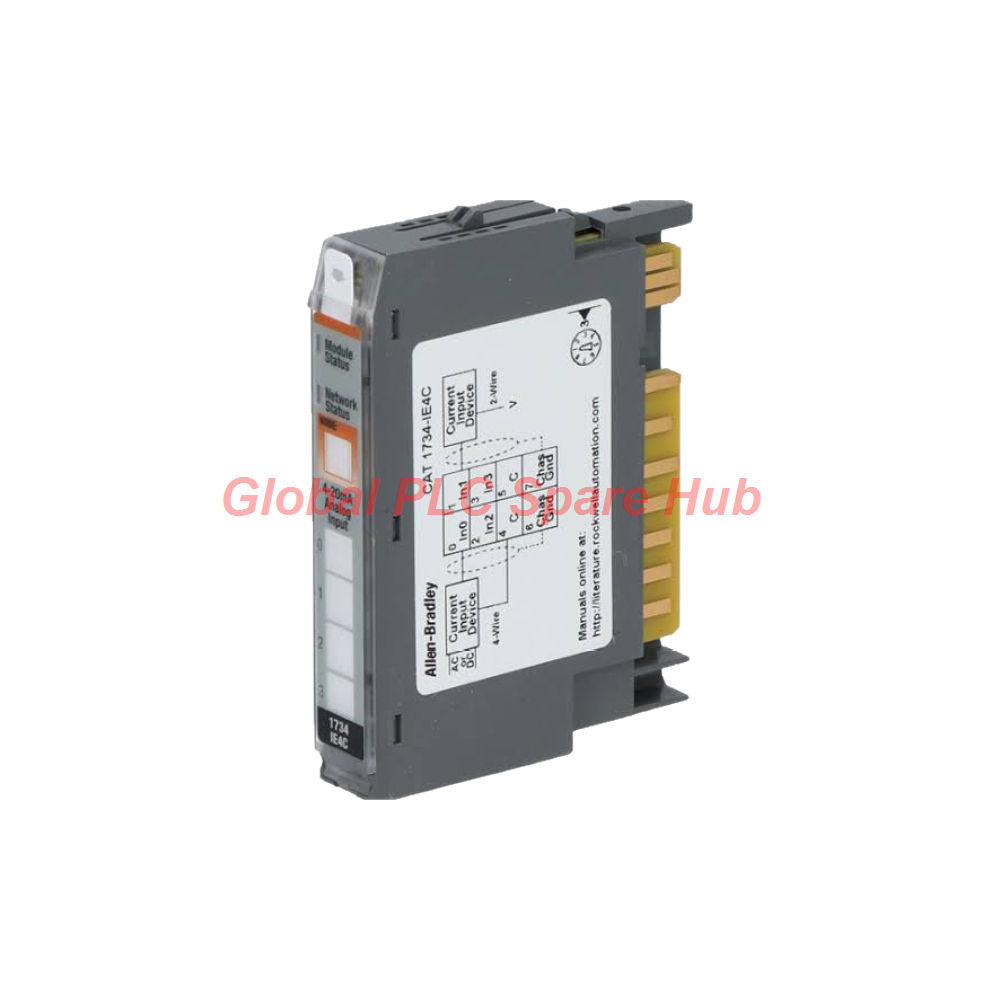

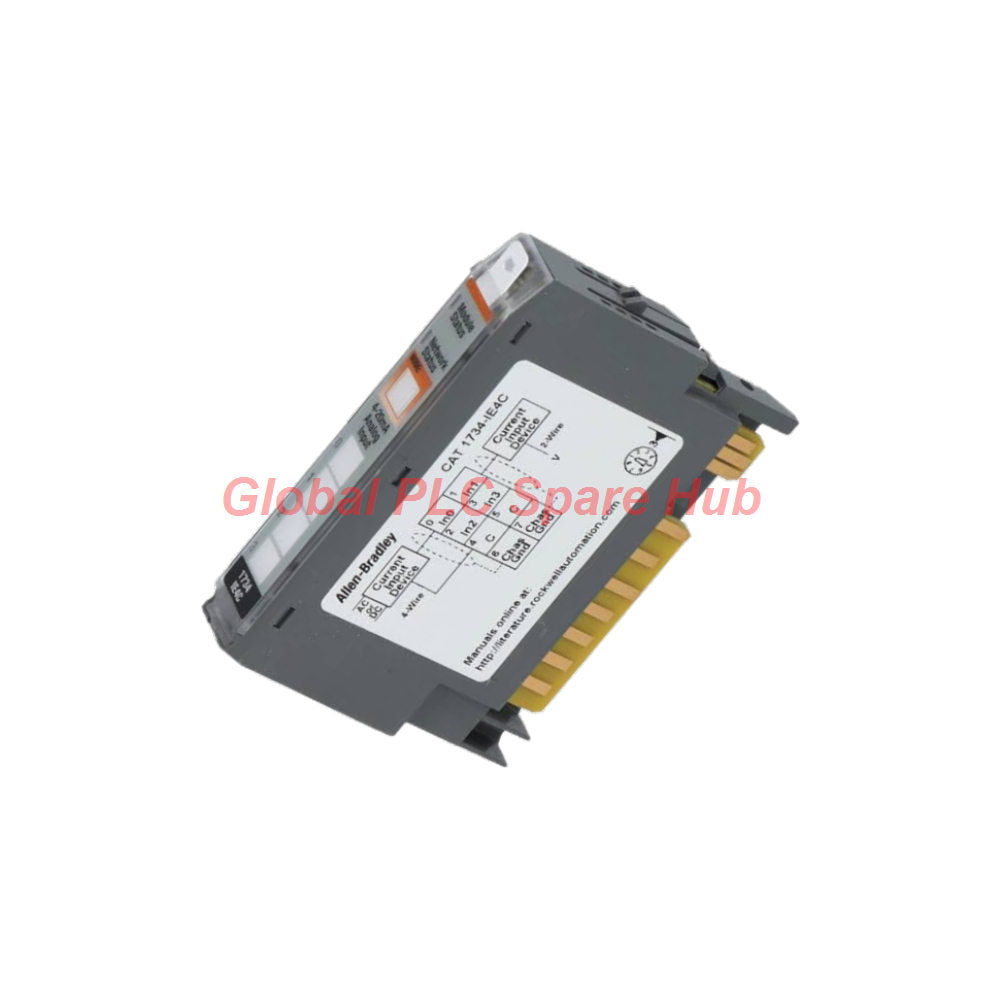

1734-IE4C Allen-Bradley POINT I/O 4-Channel Analog Current Input Module

1734-IE4C | Allen-Bradley POINT I/O 4-Channel Analog Current Input Module

The Allen-Bradley 1734-IE4C is a four-channel analog current input module in the Rockwell Automation POINT I/O family. It converts industrial current signals into digital values for compatible controller applications.

The module accepts 0–20 mA and 4–20 mA signals. Its 16-bit resolution and Delta-Sigma conversion support process monitoring in distributed automation systems. Engineers can configure channel scaling and use available channel-level status and alarming functions.

Its compact design supports modular I/O installations through a compatible POINT I/O communication adapter and terminal base. The module suits control systems that require multiple current measurements within a limited installation space.

01 | Product Identity and Configuration Map

Manufacturer	Rockwell Automation
Brand	Allen-Bradley
Catalog Number	1734-IE4C
Product Series	POINT I/O
Module Category	Analog current input module
Input Channels	4
Input Configuration	Single-ended, non-isolated
Signal Type	Analog current
Conversion Method	Delta-Sigma
Data Format	Signed integer
Keyswitch Position	Position 3
Enclosure Type	Open-style
UPC	10612598345417

Catalog selection note: Confirm the full catalog number before ordering. Do not confuse the 1734-IE4C with other POINT I/O analog input models that have different channel counts or signal types.

02 | Analog Input Performance

Parameter	Specification
Supported Input Ranges	0–20 mA and 4–20 mA
Number of Inputs	4
Resolution	16 bits over 0–21 mA
Resolution per Count	0.32 µA/count, as supplied
Absolute Accuracy	0.1% of full scale at 25°C
Conversion Type	Delta-Sigma
Digital Data Format	Signed integer
Power Dissipation	Reported as 0.55–0.75 W at 28.8V DC; verify the exact rating in the applicable manual
Thermal Dissipation	2.0 BTU/hour at 28.8V DC, as supplied

Engineering interpretation: The 4–20 mA range commonly represents a process variable with a live zero. The 0–20 mA range supports applications that use zero current as the lower endpoint.

The stated 16-bit resolution describes digital conversion granularity. It does not guarantee equivalent real-world measurement accuracy. Sensor accuracy, electrical noise, calibration, and system scaling also affect the final reading.

03 | Raw Data, Scaling, and Process Integration

The module converts input current into digital data for the controller. The PLC application then interprets that value using the configured range and engineering scale.

• Raw data: The module provides signed-integer data. Confirm the exact raw-count mapping in the applicable user manual.
• Engineering scaling: Convert the configured input range into units such as bar, °C, liters per minute, or percentage.
• Channel alarming: The supplied description identifies four alarm setpoints per channel. Verify supported alarm types and configuration methods.
• Signal selection: Match the module's current input range to the transmitter's output configuration.
• Controller integration: Confirm the communication adapter, controller configuration, and input data mapping.

Example: A pressure transmitter may use 4 mA for 0 bar and 20 mA for 100 bar. Correct scaling converts the measured current into the corresponding pressure value.

This example illustrates a common application. The actual scale, alarm thresholds, and engineering limits depend on the transmitter and process design.

04 | Terminal Base and Wiring Requirements

Installation Item	Requirement
Reported Terminal Bases	1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S, 1734-TOP, or 1734-TOPS, subject to official compatibility confirmation
Keyswitch Position	3
Mounting Method	Compatible POINT I/O base mounted on a DIN rail
Grounding	Follow the approved DIN rail and chassis-grounding requirements
Field Wiring	Use conductor sizes and insulation ratings approved by the installation manual
Isolation	Inputs are described as single-ended and non-isolated

The supplied information lists several terminal bases, but it does not establish that every listed base suits every module revision. Verify the base catalog number against the official compatibility documentation before installation.

Wiring guidance:

• Confirm transmitter polarity and current-loop wiring before energizing the system.
• Separate low-level analog signal wiring from high-power conductors where practical.
• Apply the required grounding and shielding practices for the installation.
• Check terminal assignments against the official wiring diagram.
• Switch off backplane power before inserting or removing the module, as instructed in the supplied installation information.

05 | Status Monitoring and Diagnostic Capability

Diagnostic Area	Purpose	Recommended Check
Module Status	Indicates module operating or fault conditions	Check the status indicator and controller diagnostics.
Network Status	Indicates network connection state where provided by the system	Inspect the adapter connection and network status.
Channel Status	Provides channel-related status information	Compare channel indications with configured signal conditions.
Input Range	Helps identify out-of-range current signals	Measure loop current and verify transmitter configuration.
Channel Alarms	Supports configured data alarm thresholds	Review alarm setpoints, scaling, and controller logic.

Field troubleshooting sequence:

1. Confirm that the transmitter has the correct power supply.
2. Measure the loop current using an appropriate meter.
3. Check the input wiring and terminal-base connections.
4. Verify the selected current range and channel configuration.
5. Compare raw input data with the expected signal level.
6. Inspect scaling, alarm thresholds, and controller diagnostics.

The module supports diagnostic indications and channel-level monitoring as described in the supplied information. Exact fault codes and diagnostic details depend on the applicable hardware documentation and controller configuration.

06 | Dimensions, Power, and Installation Environment

Parameter	Value or Status
Dimensions	56.0 × 12.0 × 75.5 mm, as supplied
Weight	Approximately 36 g, as supplied
Power Dissipation	0.55–0.75 W reported at 28.8V DC; confirm the official value
Thermal Dissipation	2.0 BTU/hour at 28.8V DC
Enclosure Rating	Open-style
Operating Temperature	Not established by the supplied specifications
Humidity and Vibration Ratings	Verify in the applicable hardware manual
EMC and Certification Details	Verify against official manufacturer documentation

Install the module in a suitable industrial enclosure. Protect the assembly from conductive dust, moisture, corrosive substances, and other environmental hazards.

07 | Equipment and Application Scenarios

• Pressure monitoring: Read current-output pressure transmitters on hydraulic and pneumatic systems.
• Flow measurement: Acquire 4–20 mA signals from compatible flow transmitters.
• Level monitoring: Process current signals from tank-level transmitters.
• Temperature measurement: Read transmitter outputs from temperature sensors with current-loop interfaces.
• Water treatment: Collect analog signals from compatible process instruments and analyzers.
• Machine automation: Monitor current-output sensors across distributed I/O stations.
• Process skids: Integrate multiple instrument loops into a compatible PLC control system.

The 1734-IE4C accepts current signals rather than raw thermocouple or RTD signals. Use a compatible transmitter when a sensor requires signal conversion.

08 | Global PLC Spare HUB's Insight

For current-input modules, the first diagnostic step should be a measurement of the actual loop current. This separates transmitter and wiring faults from configuration or controller problems.

• Field example — reading remains at zero: Check transmitter power, loop continuity, polarity, and the selected input range. Then compare the measured current with the module's raw data.
• Field example — reading fluctuates: Inspect shielding, grounding, loop connections, and transmitter stability. Check whether the fluctuation also appears in a direct current measurement.
• Field example — value is consistently incorrect: Verify the 4–20 mA scaling endpoints, raw-data mapping, and engineering-unit conversion. A correct current signal can still produce an incorrect displayed value when scaling is wrong.
• Field example — one channel reports an alarm: Compare its transmitter, wiring, configured thresholds, and neighboring channels. Check the actual alarm definition before replacing the module.

These examples describe practical troubleshooting approaches. They do not represent verified test results from a specific installation.

09 | Selection Guide and Compatibility Checks

Selection Factor	What to Verify
Input Type	Four single-ended current inputs meet the application requirement.
Signal Range	The transmitter provides 0–20 mA or 4–20 mA output.
Resolution and Accuracy	The module's specifications meet the measurement requirements of the process.
Terminal Base	The installed base is approved for the exact module revision.
Communication Adapter	The adapter supports the module and the selected controller architecture.
Controller Configuration	The software supports the module profile and required data mapping.
Environmental Conditions	The enclosure and operating environment meet the manufacturer's requirements.

For replacement orders, provide the full catalog number, module revision, terminal-base model, communication adapter, and controller type. This information helps reduce selection errors.

10 | Frequently Asked Questions

Q1: Can this module connect directly to a two-wire loop-powered transmitter?

It can be suitable when the transmitter's output and wiring match the module's approved current-input circuit. Confirm loop power requirements, polarity, terminal assignments, and the manufacturer's wiring diagram before connecting the transmitter.

Q2: Why can a 16-bit module still show unstable or inaccurate process values?

Resolution describes digital conversion granularity, not total system accuracy. Transmitter drift, loop resistance, electrical interference, grounding, calibration, and scaling can affect the displayed result. Check the signal at the input before investigating software calculations.

Q3: How should a 4–20 mA signal be scaled in the PLC?

Use the module's documented raw-count mapping and the transmitter's configured engineering range. Establish the lower and upper endpoints, then validate the conversion with known current values. Do not assume that the signed-integer limits directly correspond to 4 mA and 20 mA.

Q4: What should buyers check when the existing terminal base has a different catalog number?

Check the module compatibility table, terminal assignments, key switch requirements, wiring design, and hardware revision. Similar POINT I/O bases may differ in terminal arrangement or supported functions. Confirm compatibility before reusing the installed base.

Q5: How can I determine whether this is the right analog input module for my application?

Confirm that the process instruments provide current outputs and that four channels meet the I/O requirement. Compare the signal range, accuracy, resolution, controller support, and terminal-base compatibility. For voltage inputs, RTDs, thermocouples, or isolated measurement circuits, select a module designed for the required signal type.

11 | Packaging, Shipping, and Warranty

• Product: Allen-Bradley 1734-IE4C POINT I/O analog current input module.
• Packaging: Protective packaging suitable for transport. Confirm the actual packaging configuration before ordering.
• Accessories: Confirm terminal-base inclusion and any additional accessories with the sales team.
• Warranty: 12 months, subject to the seller's written warranty terms.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch target: 24–48 hours after order confirmation, subject to stock availability and payment clearance.

12 | Request a Quote for 1734-IE4C

Contact Global PLC Spare HUB for pricing, availability, and compatibility assistance for the 1734-IE4C. Provide the required quantity, controller model, communication adapter, terminal base, and delivery destination.

Our team can review your supplied system details and help identify the information needed for a suitable replacement or new installation.
