1734-FPDK Allen Bradley Point I/O Distributor Module Buy Online

Product Summary & Power Architecture

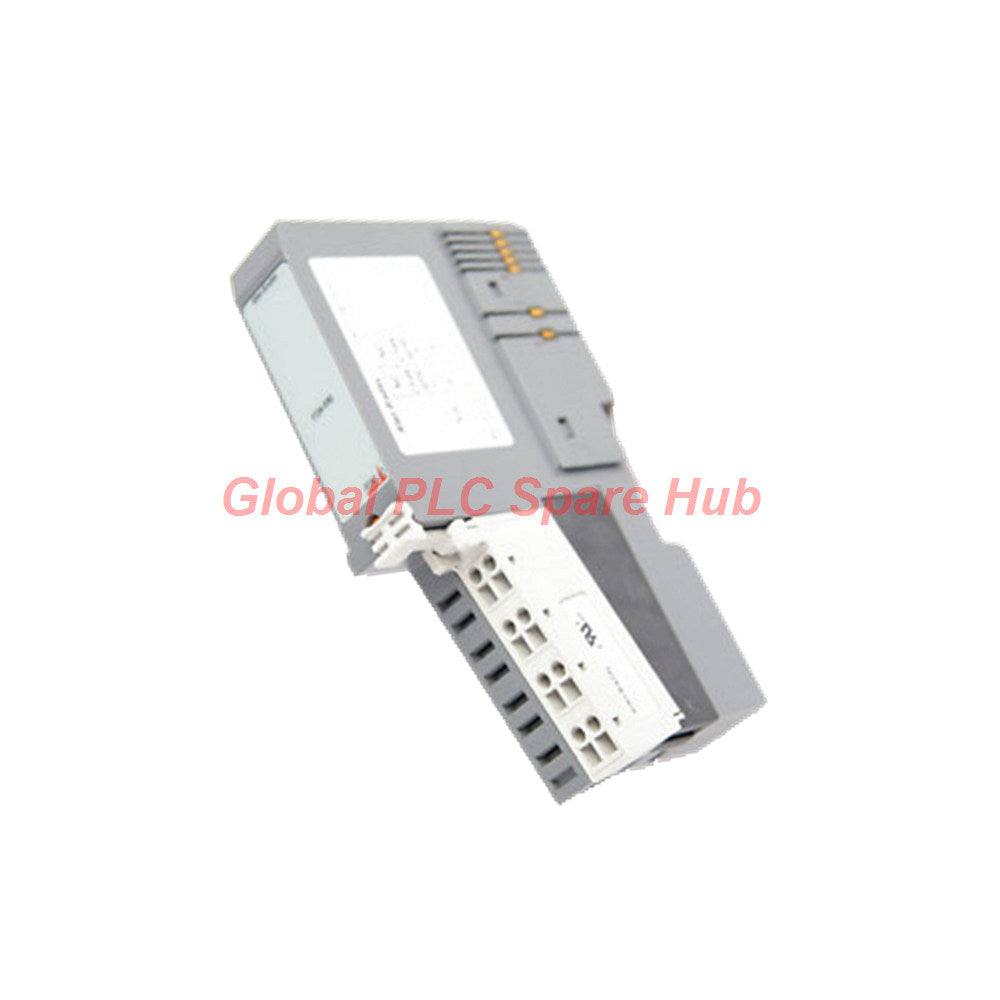

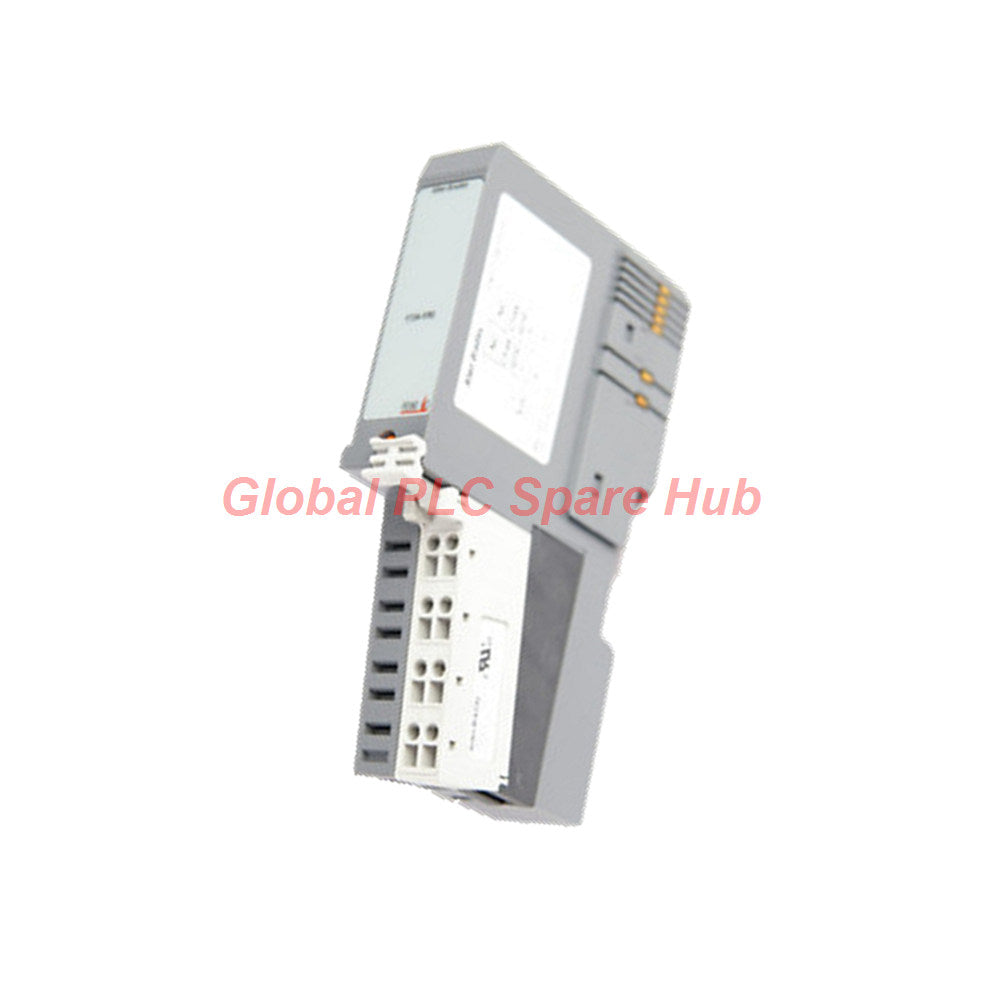

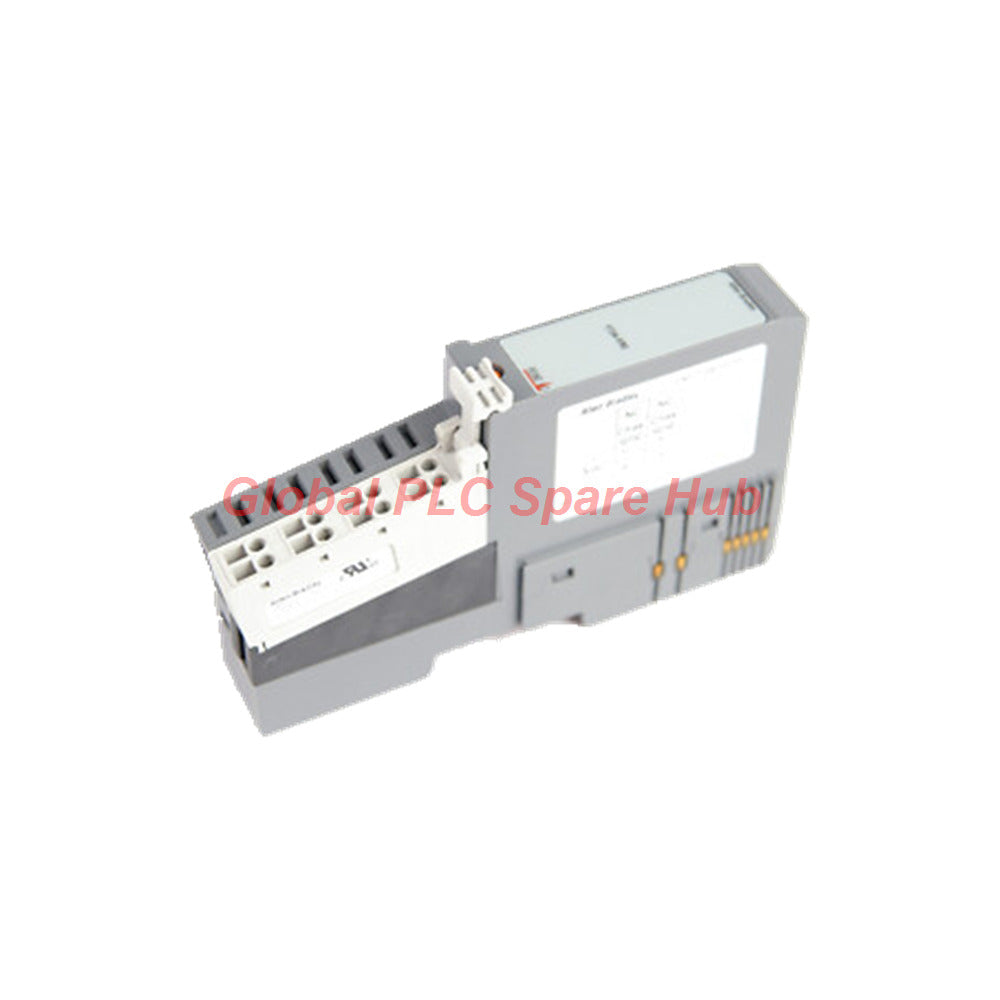

The 1734-FPDK acts as a field potential distributor within the Allen Bradley Point I/O 1734 distributed architecture.

This Distributor Module breaks up field power buses, allowing separate AC and DC power supplies across adjacent I/O modules.

It supports both dual 120/240V AC and wide-range 12/24V DC field potential supply circuits up to a 10A total load limit.

Equipped with factory conformal coating, the circuit board resists harsh atmospheric chemicals, airborne dust, and industrial moisture.

Global PLC Spare HUB's Insight

In high-density packaging machines, mixing sensitive 24V DC analog inputs with noisy 120V AC solenoid valve loads often leads to signal ripple.

Inserting the Allen Bradley 1734-FPDK breaks the field power bus, isolating high-noise actuators from precision sensor cards without requiring extra communication adapters.

Technical Specifications Matrix

System Integration & Installation Mechanics

• DIN Rail Attachment & Backplane Continuity:
  • Snaps directly onto standard 35mm DIN rails adjacent to Point I/O terminal bases.
  • Passes logical communication backplane signals straight through while isolating field power distribution buses.
  • Terminal base block connections require a precise 0.6 Nm screw torque to guarantee vibration-proof wire clamping.
• Conformal Coating Advantage:
  • Protects sensitive internal copper traces against corrosive atmospheric hydrogen sulfide and high-humidity environments.

Target Equipment & Application Scenarios

• Automated Packaging & Bottling Lines:
  • Isolates 24V DC photoelectric sensor power loops from high-current inductive motor brake circuits.
• Water & Wastewater Treatment Skids:
  • Provides local voltage step-down separation across long-distance outdoor valve control panels.
• Automotive Assembly Welding Cells:
  • Prevents electrical ground loops when mixing third-party field instruments on a single Point I/O rack.

Diagnostic Capabilities

• Module status indicators verify proper seating and backplane pass-through connectivity.
• Allows field voltage monitoring via direct multimeter test points across the removable terminal block.
• System controller software detects bus over-current trips and alerts maintenance operators via network alarms.

Warranty Clause & Dispatch Logistics

• 12-Month Comprehensive Warranty: Covers operational defects and hardware performance guarantees.
• Rapid Shipping: Orders packed and dispatched globally within 24 to 48 hours.
• Carrier Services: Worldwide express shipping via FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

Q: Does the 1734-FPDK consume an I/O node address in RSLogix or Studio 5000?

A: No. It passes communication bus signals transparently without using an Ethernet IP node or rack slot address.

Q: What happens if I torque the terminal base screws beyond the recommended 0.6 Nm rating?

A: Over-tightening damages terminal block threads, whereas under-tightening causes high-resistance heating under 10A current loads.

Q: Can I use the 1734-FPDK to transition a Point I/O bus from 24V DC to 120V AC field voltage?

A: Yes. It isolates the field power bus to the left while feeding a new AC or DC supply voltage to modules on the right.

Q: Is an external fuse required on the supply line feeding the field potential distributor?

A: Yes. Installing an inline fast-acting 10A fuse protects field wiring and module traces against catastrophic short circuits.

Q: How do I determine if a Point I/O rack layout requires a field potential distributor?

A: Add this module when total field current exceeds 10A or when adjacent modules require different operating voltage levels.
