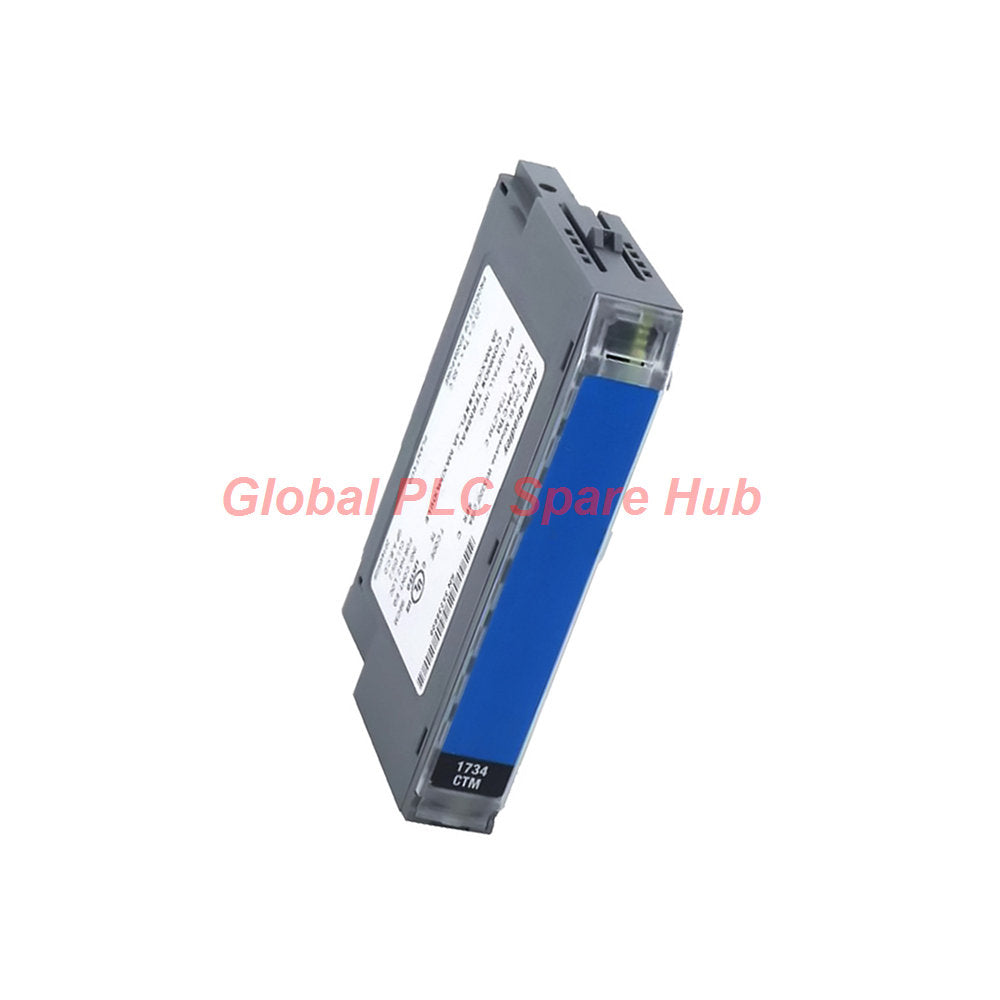

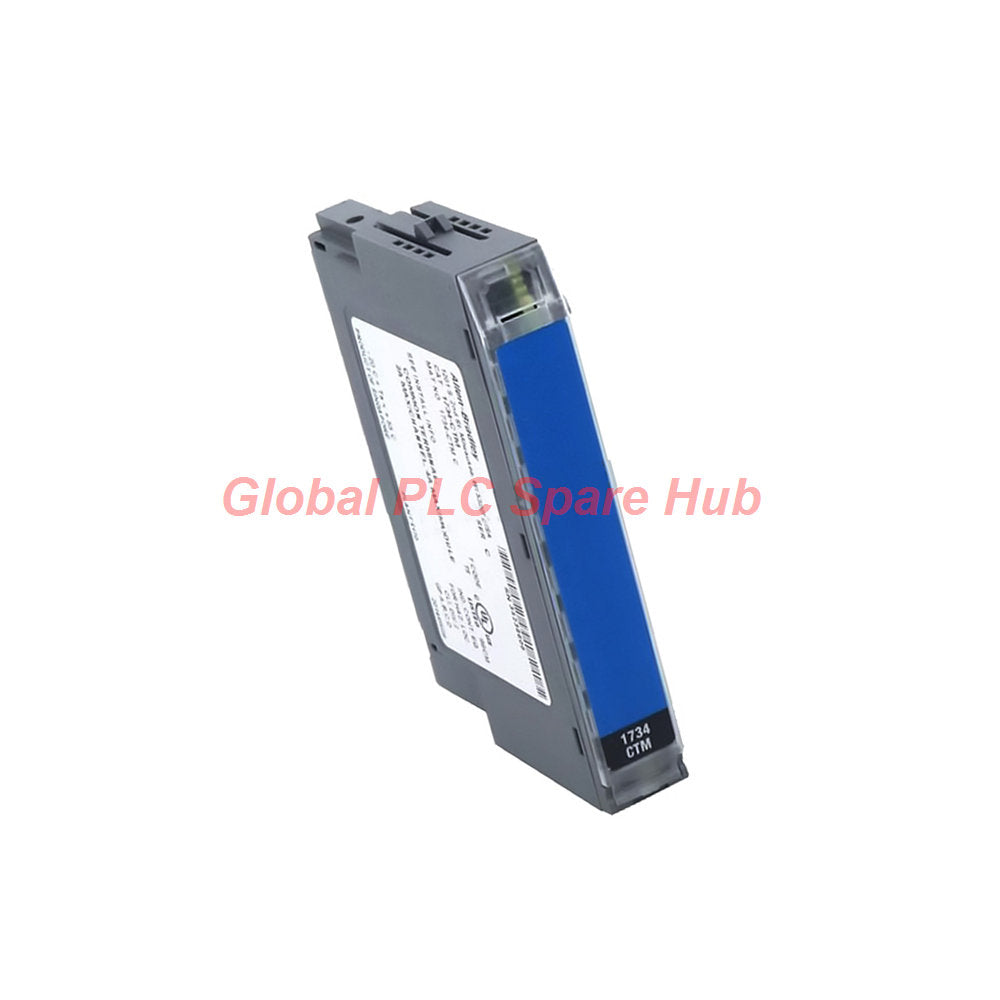

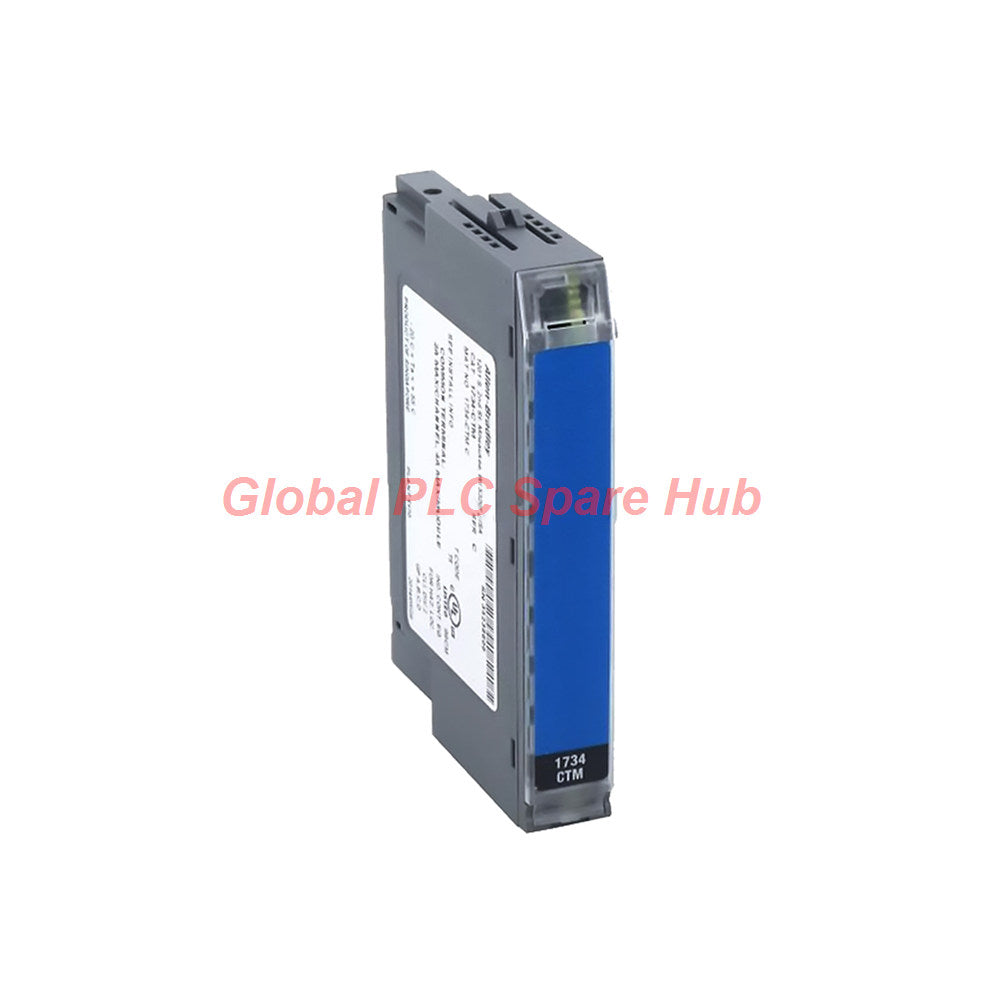

1734-CTM Allen-Bradley POINT I/O Common Terminal Module

Product Overview

The 1734-CTM Allen-Bradley POINT I/O Common Terminal Module expands field wiring termination capacity across compact distributed I/O architectures.

Engineers utilize this common bus module to simplify ground, return, or power connections for 3-wire field sensors and high-density 8-channel I/O cards.

Mounting directly onto 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS terminal base assemblies, it reduces enclosure clutter and eliminates external terminal strip blocks.

Integrated physical mechanical keying prevents incorrect module insertion into mismatched base slots, ensuring operational safety during field replacement.

Technical Specifications Table

Target Equipment & Application Scenarios

• High-Density Control Cabinets: Provides centralized common power returns for 3-wire PNP/NPN proximity sensors wired to 8-channel input cards.
• Automated Packaging Conveyor Lines: Manages field power distribution across distributed POINT I/O drops along long conveyor runs.
• Chemical Processing Hazardous Skids: Delivers certified Class I, Div 2 field termination for solenoids and switches operating in explosive environments.

Advanced Diagnostic Capabilities

Integrity monitoring relies on direct electrical continuity across common internal bus bars, maintaining stable voltage distribution across adjacent I/O modules.

Preventative physical inspection requires verifying that the base mechanical keyswitch aligns with Position 5 before locking the module down.

Field technicians utilize multi-meter voltage testing across termination points to detect loose field wiring contacts or blown upstream supply fuses under high current loads.

Global PLC Spare HUB's Insight & Field Experience

During an upgrade project at a pharmaceutical packaging facility, control cabinets suffered severe wire clutter due to external DIN-rail common blocks.

High wiring density led to accidental disconnects during routine maintenance, causing sporadic sensor signal loss across 8-channel input cards.

Our automation engineering team specified integrating the 1734-CTM module directly onto adjacent 1734-TB bases.

Eliminating external wiring terminal strips reduced cabinet footprint requirements by 30% while securing common sensor return paths.

The facility achieved faster troubleshooting response times and zero unexpected wiring disconnections during subsequent maintenance cycles.

Packaging, Delivery & Warranty Terms

We test and inspect every 1734-CTM unit before packaging in ESD-safe protective wraps for global dispatch.

Orders ship within 24 to 48 hours via leading international express carriers including FedEx, UPS, and DHL.

All items include full 12-month comprehensive warranty coverage against manufacturing defects.

Frequently Asked Questions (FAQ)

Q1: Which terminal base assemblies accept the 1734-CTM common terminal module?

A1: Mount this module onto 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS bases with the keyswitch rotated strictly to Position 5.

Q2: What is the maximum continuous current rating supported across the 1734-CTM power bus?

A2: The module supports a maximum field power supply current pass-through rating of 4.0 Amperes total.

Q3: Can the 1734-CTM handle both AC and DC field supply voltages in the same I/O rack?

A3: Yes, it accommodates 1-28.8V DC or 12/240V AC ranges, provided voltage grouping isolation guidelines are maintained.

Q4: Why is setting the correct keyswitch position critical during module mounting?

A4: Positioning the mechanical keying wheel to slot 5 prevents accidental insertion of incorrect module types, protecting internal backplane logic.

Q5: How do engineers verify genuine module condition when sourcing spares for critical machinery?

A5: Inspect backplane pins for wear, verify UL certification markings on the casing, and ensure suppliers include a 12-month warranty.
