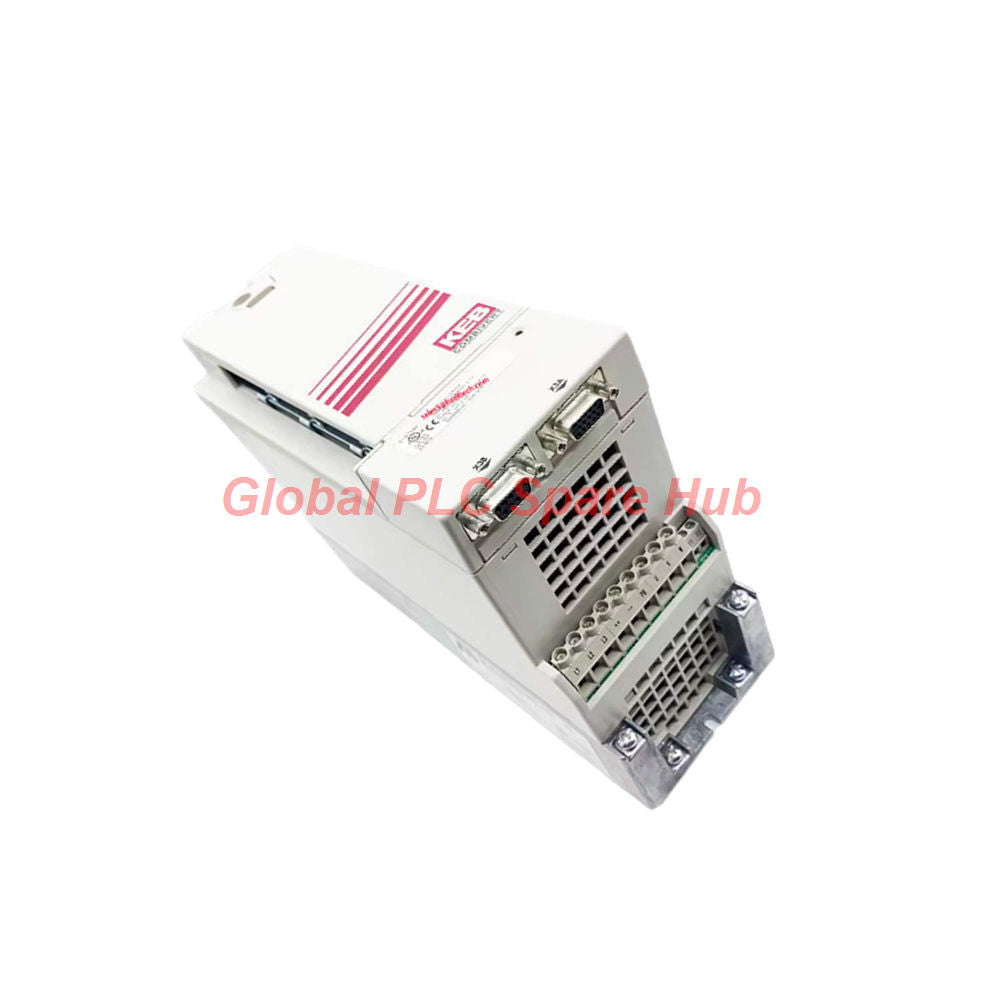

15F5A1E-35GA KEB Combivert F5 Frequency Inverter | 11kW 400V AC Drive

Global PLC Spare HUB's Insight:

Demanding industrial motor control applications require precise torque regulation and advanced thermal dissipation to maintain continuous high-speed operation. The 15F5A1E-35GA KEB Combivert F5 Frequency Inverter delivers robust multi-frequency conversion for heavy industrial machinery. Equipped with an integrated GTR7 brake transistor and dual TTL-in encoder interfaces, this Combivert F5 Series AC drive ensures exact speed tracking and dynamic braking response for high-inertia loads.

Core Engineering Specifications

Architecture and Hardware Highlights

• Brake Transistor Integration: Features an onboard GTR7 brake transistor designed to handle regenerative energy dissipation during rapid deceleration cycles.
• Dual Encoder Feedback: Incorporates dual TTL-IN encoder input channels to achieve closed-loop feedback precision for demanding servo-like applications.
• Thermal Management: Utilizes an efficient integrated air cooler heat sink architecture to maintain safe junction temperatures under continuous heavy loads.

Diagnostics and Error Management

• Fault Annunciation: Real-time microprocessor tracking reports overcurrent, undervoltage, and heatsink overtemperature conditions directly through the keypad display.
• Overload Protection: Manages transient torque spikes up to 36 Amps safely without tripping prematurely during normal machine acceleration phases.
• Diagnostic Logging: Retains fault history buffers to assist maintenance engineers in troubleshooting intermittent drive faults quickly.

Logistics, Packaging, and Warranty

• Fulfillment Speed: Guaranteed order processing and dispatch within 24 to 48 hours.
• Global Shipping Carriers: Secure international transit handled via FedEx, UPS, and DHL.
• Quality Assurance: Protected by a comprehensive 12-month warranty covering structural and operational defects.

Target Applications and Equipment

• Industrial CNC Machining Centers: Controls spindle motors requiring high frequency limits up to 599Hz and precise speed regulation.
• Automated Material Handling Systems: Drives high-speed conveyor lines and automated storage retrieval cranes requiring dynamic braking.
• Industrial Extrusion Machinery: Manages heavy screw rotation torque requirements across continuous manufacturing shifts.

Professional Frequently Asked Questions

What causes an overvoltage fault on the 15F5A1E-35GA inverter during deceleration?
Field experience reveals that rapid motor deceleration dumps regenerative energy back into the DC bus faster than the internal GTR7 brake transistor can bleed it off through the braking resistor. Adjusting the deceleration ramp time or adding an external braking resistor resolves this issue.

How do I verify proper encoder feedback wiring on dual TTL-IN channels?
Technicians should check the encoder supply voltage and use an oscilloscope to verify that quadrature A and B pulse trains maintain proper phase shift and signal amplitude before clearing drive configuration faults.

Why is the switching frequency fixed at 4 kHz for this specific unit?
A 4 kHz switching frequency provides an optimal balance between motor thermal performance, harmonic distortion reduction, and IGBT thermal dissipation within the IP20 enclosure limits.

What are the best practices for storing spare KEB frequency inverters?
Store units in a climate-controlled warehouse environment with relative humidity below 95 percent and temperatures between -25 °C and +70 °C, keeping the drive inside its original anti-static packaging.

How should I select an external braking resistor for heavy-duty stopping cycles?
Calculate the required wattage based on the peak braking torque and duty cycle of the application, ensuring the resistance value matches the minimum rating supported by the GTR7 brake transistor circuit.
