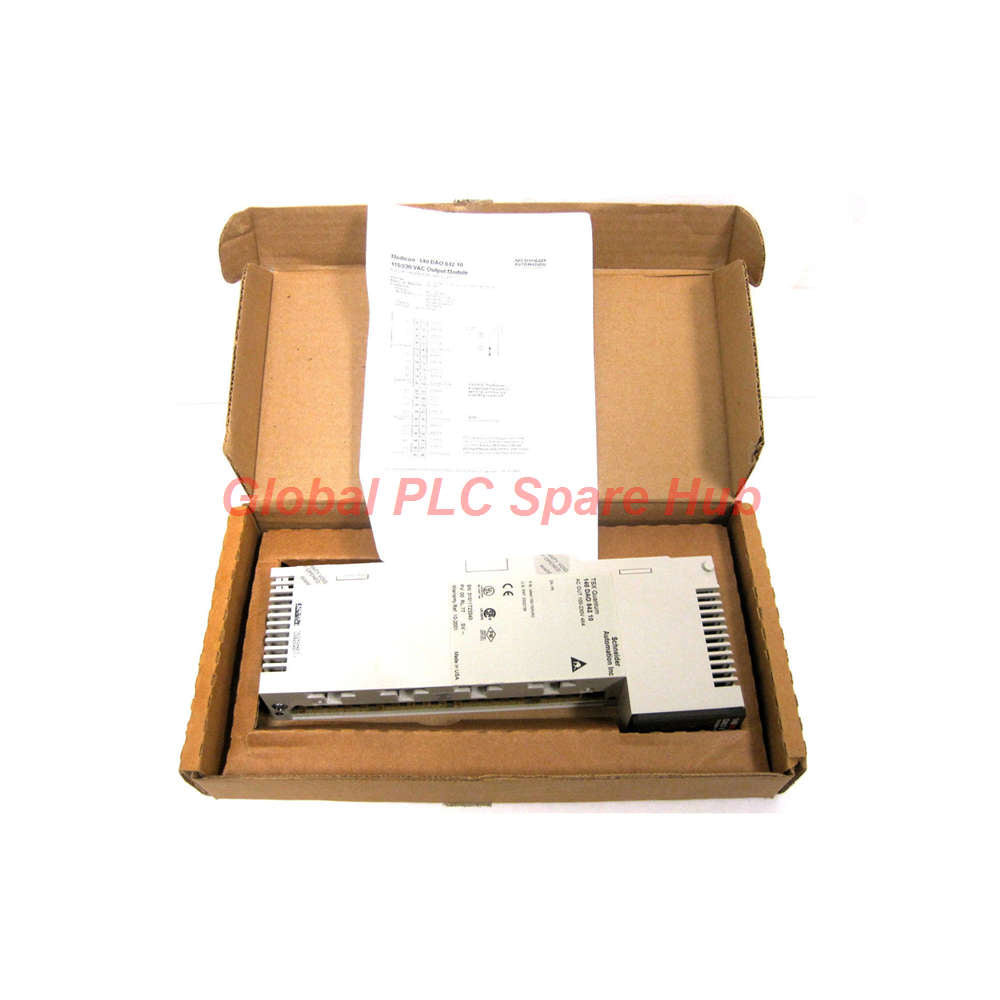

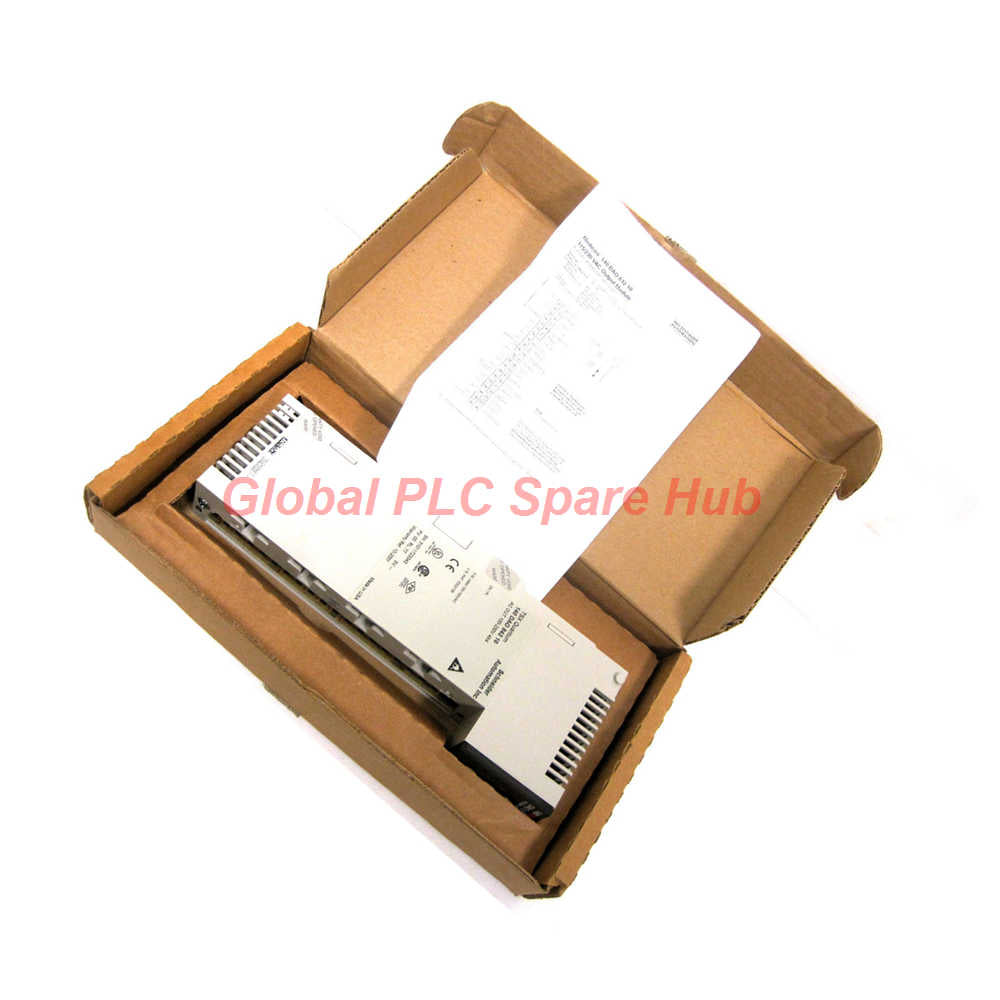

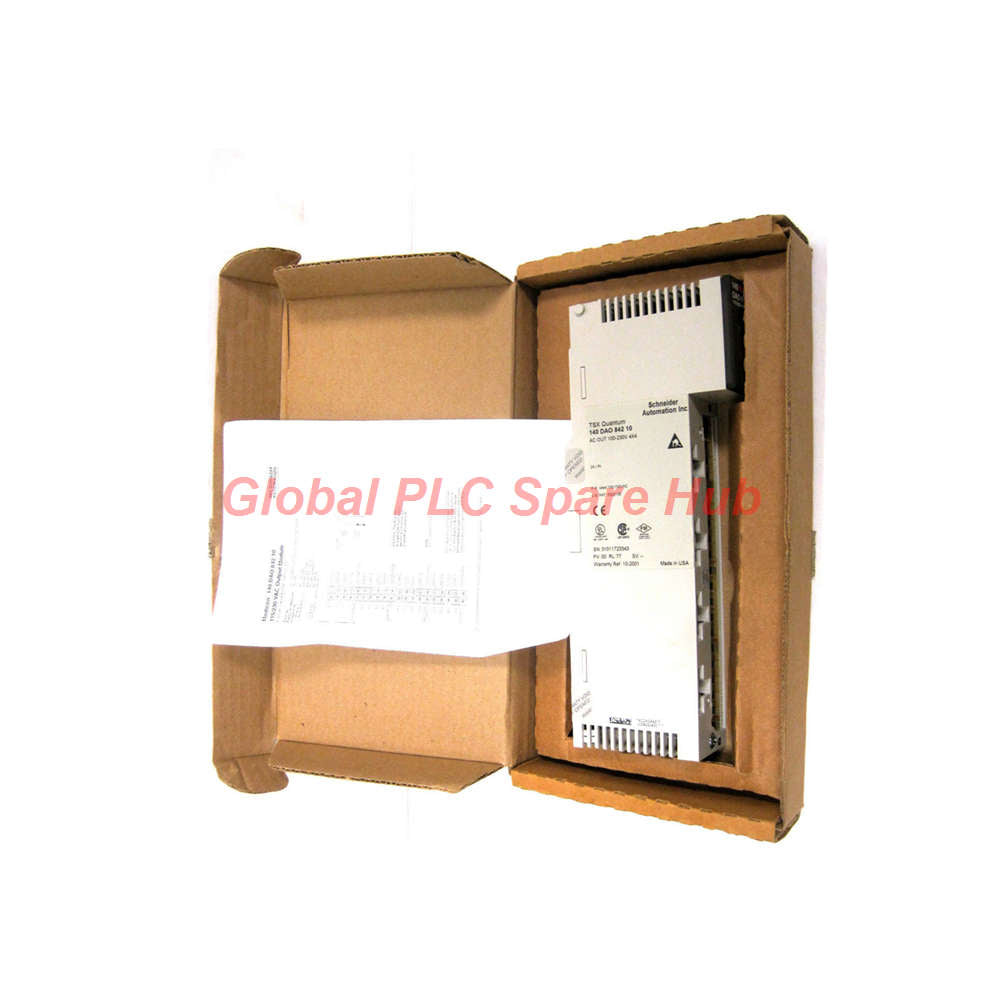

140DAO84210 Modicon Quantum 16-Point AC Discrete Output Card Schneider

Executive Engineering Overview

Designed for heavy industrial AC control loads, the Schneider Electric Modicon Quantum 140DAO84210 is an advanced 16-channel AC discrete output module. Operating across a voltage range of 83 to 253 V AC, this unit manages complex switching duties across 4 isolated groups of 4 channels. It integrates internal RC filtering, robust 5 A fuse protection per output, and fast 0.5 ms response characteristics. Engineered for maximum durability, the 140DAO84210 provides precise signal distribution and comprehensive fault monitoring for demanding plant architectures.

Core Technical Architecture & Metrics

• Manufacturer & Series: Schneider Electric Modicon Quantum
• Model Identification: 140DAO84210
• Output Configuration: 16 AC discrete outputs (4 groups of 4 channels)
• Voltage Parameters: 83...253 V AC operating range; Max transient up to 400 Vrms
• Supply Frequency: 47...63 Hz operational frequency band
• Load Current Limits: Up to 4 A rms (85...132 V), 3 A rms (170...253 V), 16 A rms per module
• Surge Handling: Up to 45 A peak surge current for 1 cycle per group
• Addressing Allocation: Requires exactly 1 output word in PLC configuration
• Switching Dynamics: ≤ 0.5 ms response time from state 0 to 1 and 1 to 0
• Power Dissipation: 1.85 W + (1.1 V × total module load current)
• Physical Profile: Standard module format; Net weight 0.99 lb (0.45 kg)

Installation & Mechanical Deployment Protocol

• Insert the 140DAO84210 into any available standard slot on your Modicon Quantum backplane rack.
• Ensure firm mechanical engagement with backplane pins before securing upper and lower retaining clips.
• Connect AC load lines to the heavy-duty removable terminal block, verifying proper wire gauge sizing for high-amperage circuits.
• Check that external line frequencies remain strictly within the 47 to 63 Hz window prior to system energization.
• Inspect terminal screw torques regularly to prevent loose connections under continuous thermal expansion and plant vibration.

Commissioning, Diagnostics & Protection Mechanics

• Power up the rack and verify that the green Active LED lights up solidly to confirm healthy bus communication.
• Monitor the 16 green channel status LEDs during software execution to ensure proper point-to-point output switching.
• Observe the red external fault LED (F) instantly if a blown fuse or field power loss event occurs.
• Rely on internal 5 A fusing and RC snubber circuits to suppress voltage transients generated by inductive load disconnection.
• Utilize software diagnostic tools to poll module status registers and pinpoint tripped fuses or open-circuit loads immediately.

Platform Compatibility & Industrial Application Segments

• System Compatibility: Fully compatible with legacy and modern Modicon Quantum central processors and backplane architectures.
• Target Equipment: Ideal for driving AC solenoid valves, heavy-duty contactors, motor starters, and pilot indicator lights.
• Application Environments: Extensively deployed in chemical processing plants, power generation stations, municipal HVAC systems, and heavy manufacturing lines.

Global Certifications & Regulatory Compliance

• Industrial Standards: Built to UL 508 and CSA C22.2 No 142 safety mandates.
• Hazardous Locations: Certified with FM Class 1 Division 2 and cUL ratings.
• Conformity Marks: Features official CE marking for European union compliance.
• Electromagnetic Immunity: Tested against IEC 801-2 (4 kV contact, 8 kV air ESD) and IEC 801-3 (10 V/m electromagnetic field immunity).

Logistics, Fulfillment & Warranty Terms

• Dispatch Window: Rapid global order processing and dispatch within 24-48 hours.
• Global Carriers: Secure, expedited international delivery through FedEx, UPS, and DHL.
• Warranty Assurance: Fully protected by a comprehensive 12-month warranty.
• Package Details: PCE package measuring 6.42 in × 1.77 in × 12.28 in (16.3 cm × 4.5 cm × 31.2 cm) with a gross weight of 22.4 oz (634.0 g). Country of origin: CN.

Global PLC Spare HUB's Insight

When driving heavy inductive AC loads like large motor contactors, back-EMF spikes can occasionally stress solid-state switching thresholds. At Global PLC Spare HUB, our engineering team recommends installing external RC snubbers directly across inductive coil terminals when operating near maximum current limits. This preventive measure drastically reduces contact wear, protects the internal 5 A fuses, and maximizes the operational lifespan of the 140DAO84210 module in harsh electrical environments.

Professional Frequently Asked Questions

What specific action triggers the red external fault LED on the 140DAO84210 module?

The indicator activates primarily when an internal output protection fuse blows due to an overcurrent condition, or when the external AC field supply experiences a complete drop in voltage.

How many output words must be reserved in the Quantum configuration software for this card?

The module occupies exactly 1 output word in the PLC hardware configuration map to manage its 16 discrete channels.

Why is managing dv/dt ratings important when selecting loads for the 140DAO84210?

The module features a dv/dt rating of 400 V/ms. Exceeding this rate of voltage change with highly reactive loads can cause premature triac firing unless adequate snubber networks are employed.

What guidelines should I follow when replacing a blown fuse on this module?

Always power down the rack before servicing. Replace blown protection elements strictly with identical 5 A rated fuses specified by the manufacturer to maintain safety compliance.

What key parameters should I check when upgrading an older AC output card to the 140DAO84210?

Verify that your load voltage falls within the 83 to 253 V AC range, confirm that line frequency is between 47 and 63 Hz, and ensure your rack power supply can deliver the required 350 mA bus current.
