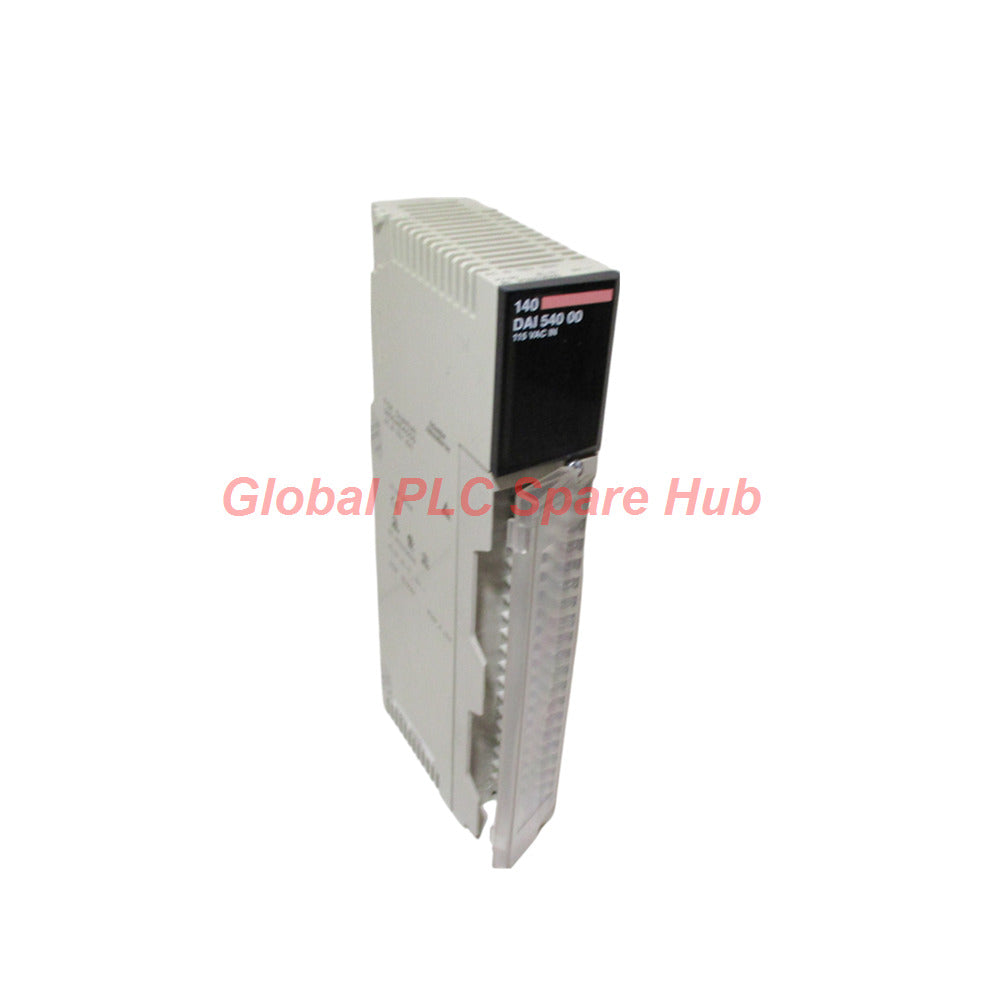

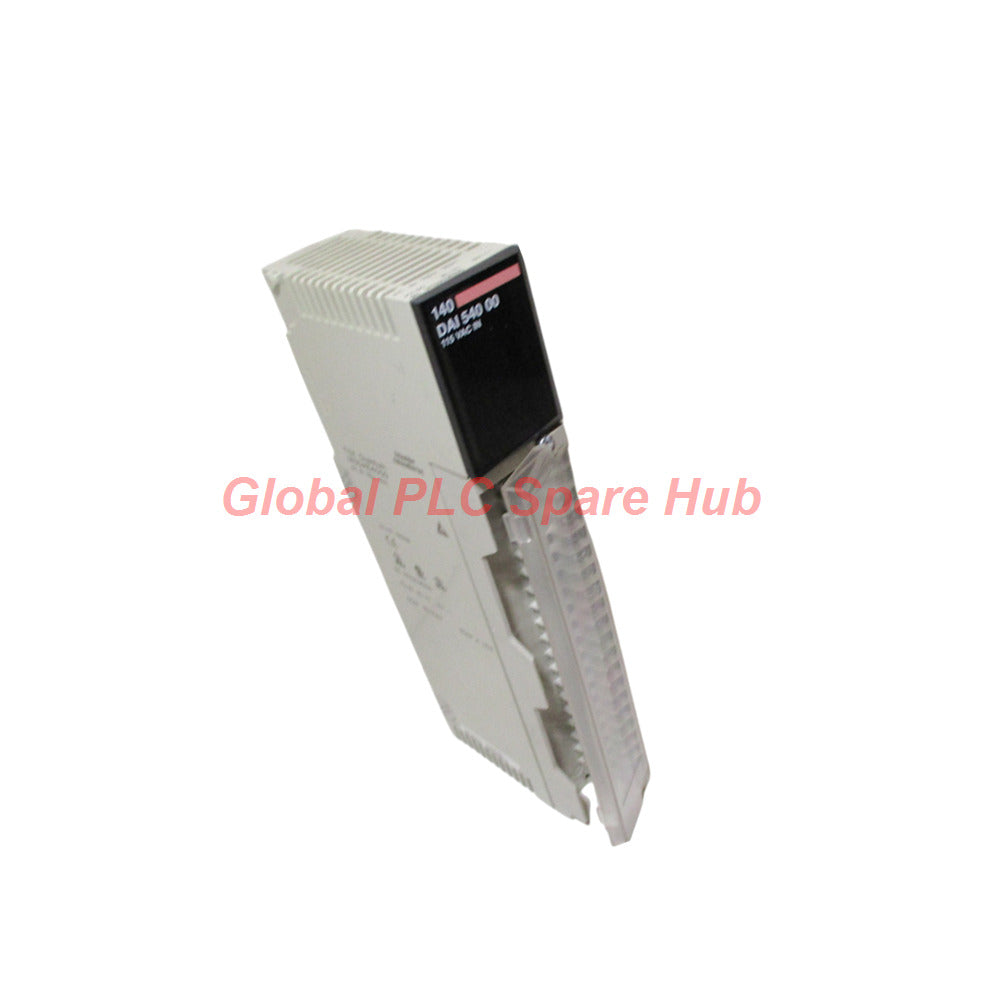

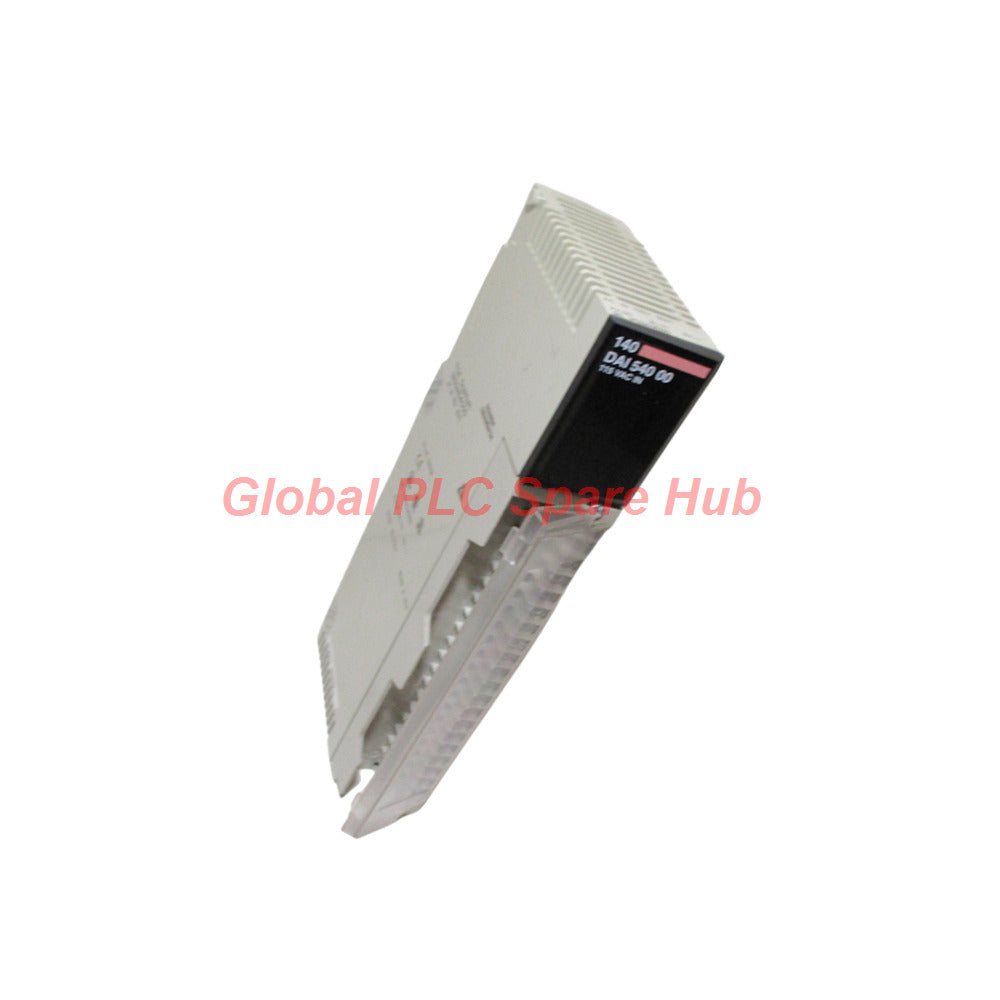

140DAI54000 Schneider Electric Modicon Quantum 16-Channel 115V AC Input Module

AC Switching Architecture & Structural Overview

The 140DAI54000 Schneider Electric Modicon Quantum AC discrete input module processes 16 high-voltage 115 V AC input signals with advanced noise suppression. Built for heavy industrial environments, this module bridges alternating current field instrumentation directly to central automation backplanes while maintaining strict galvanic isolation.

Engineering Specifications & Performance Matrix

• Brand: Schneider Electric
• Series: Modicon Quantum
• Model: 140DAI54000
• Module Type: AC discrete input module
• Total Input Channels: 16 channels, organized in a single common group
• Nominal Input Voltage: 115 V AC across 47...63 Hz network frequencies
• Guaranteed State Thresholds: State 1 (79...132 V AC at 57-63 Hz; 85...132 V AC at 47-53 Hz); State 0 (0...20 V AC)
• Input Impedance: 12000 Ohms capacitive (57...63 Hz), 14400 Ohms capacitive (47...53 Hz)
• Transient Surge Tolerance: 132 V continuous, 156 V for 10 s, 200 V for 1 cycle
• Signal Response Speed: 4.9...0.75 ms × line cycle (Off-To-On), 7.3...12.3 ms (On-To-Off)
• Maximum Power Dissipation: 5.5 W
• Backplane Current Draw: 180 mA
• Thermal Operating Range: 32...140 °F (0...60 °C), up to 16404.2 ft (5000 m) altitude
• Unit Net Weight: 0.68 lb (0.31 kg)

Mechanical Mounting & Hardware Integration

1. Isolate main rack power completely prior to sliding the 140DAI54000 card into the control chassis.
2. Align the circuit board edges with the designated standard slot guides on the Quantum backplane.
3. Push the module firmly backward until the multi-pin edge connector engages the bus securely.
4. Tighten the upper and lower mounting screws to guarantee mechanical rigidity and low-impedance ground bonding.
5. Connect AC field signal cables to the corresponding terminal strip points, checking insulation integrity carefully.

Real-Time Diagnostics & Hardware Monitoring

• Active Bus LED (Green): Provides continuous confirmation of healthy backplane CPU communication.
• External Fault LED (Red): Flashes or stays lit when field power supply anomalies or grounding faults occur.
• Channel Status LED Array (16 Green LEDs): Displays real-time ON/OFF state activity for every individual AC input line.
• Diagnostic Utility: Allows maintenance staff to trace line-voltage status immediately without exposing internal wiring.

Target Industrial Equipment & Operational Applications

• Heavy manufacturing motor control centers monitoring 115V AC limit switches and pushbuttons.
• Power generation turbine auxiliary skids interfacing with legacy AC relay logic systems.
• Oil and gas pipeline booster stations managing remote valve position feedback signals.
• Industrial HVAC distribution panels tracking high-voltage compressor interlock states.

Regulatory Compliance, Logistics, & Warranty Terms

• Electrical & Safety Standards: UL 508, CSA C22.2 No 142, CE compliant
• Hazardous Location Ratings: FM Class 1 Division 2 certified, cUL approved
• Environmental Immunity: Complies with IEC 801-2 (electrostatic discharge) and IEC 801-3 (electromagnetic fields)
• Packaging Metrics: PCE package unit, dimensions 6.42 in × 1.77 in × 12.28 in (16.3 cm × 4.5 cm × 31.2 cm), weight 15.4 oz (438.0 g)
• Global Shipping Network: Rapid 24-48 hour fulfillment shipped via FedEx, UPS, and DHL
• Warranty Protection: Backed by a full 12-month repair and replacement warranty

Global PLC Spare HUB's Insight & Field Experience

Interfacing 115V AC signals in heavy industrial environments often exposes control cards to high induced voltages from nearby high-current motor cables. When deploying the 140DAI54000 module, our field engineering team emphasizes running AC field wiring in dedicated metallic conduits separated entirely from low-voltage DC communication lines. Furthermore, because AC inputs feature capacitive input impedance, technicians must account for residual leakage currents from solid-state output devices to prevent false state-1 triggering. Ensuring proper RC snubber networks across large inductive loads driven nearby will significantly enhance signal clarity and extend operational longevity.

Professional Frequently Asked Questions

Q: How many addressing words does the 140DAI54000 occupy in Unity Pro or Concept software?
A: This 16-channel AC module consumes exactly 1 input word in the Quantum hardware configuration map.

Q: Can this input card operate on both 50 Hz and 60 Hz industrial power networks?
A: Yes, it supports network frequencies ranging from 47 Hz to 63 Hz, with specific voltage threshold curves mapped for each frequency band.

Q: What causes the module to register a high leakage current state from connected field devices?
A: Residual leakage current can stem from triac-based sensors or long cable capacitances; the module accommodates up to 2.1 mA maximum leakage without misinterpreting state zero.

Q: What key factors should buyers review when selecting a replacement AC input module?
A: Verify that your backplane power supply can supply the 180 mA bus current requirement and confirm your application voltage matches the 115 V AC operational window.

Q: How does the module handle temporary voltage spikes or sags on the AC line?
A: It features built-in transient tolerance capable of absorbing up to 200 V for a single cycle and 156 V for 10 seconds without internal component damage.
