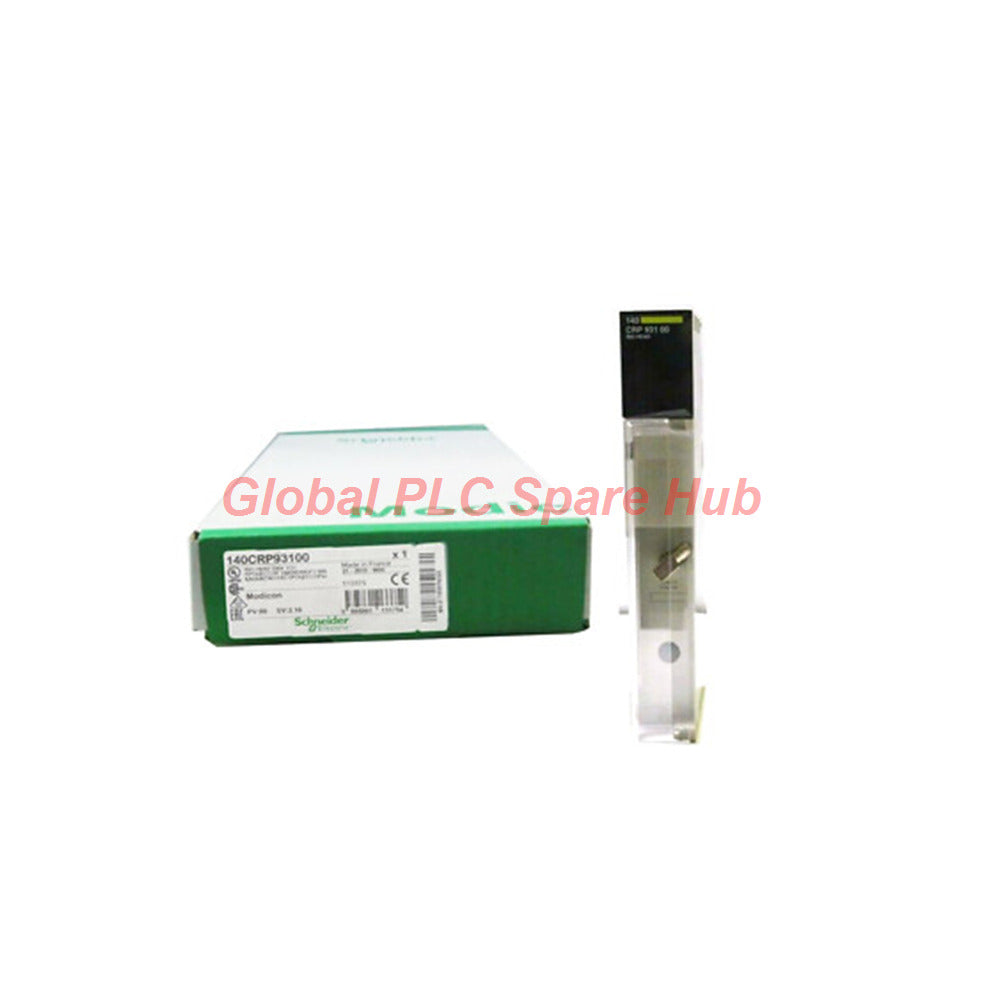

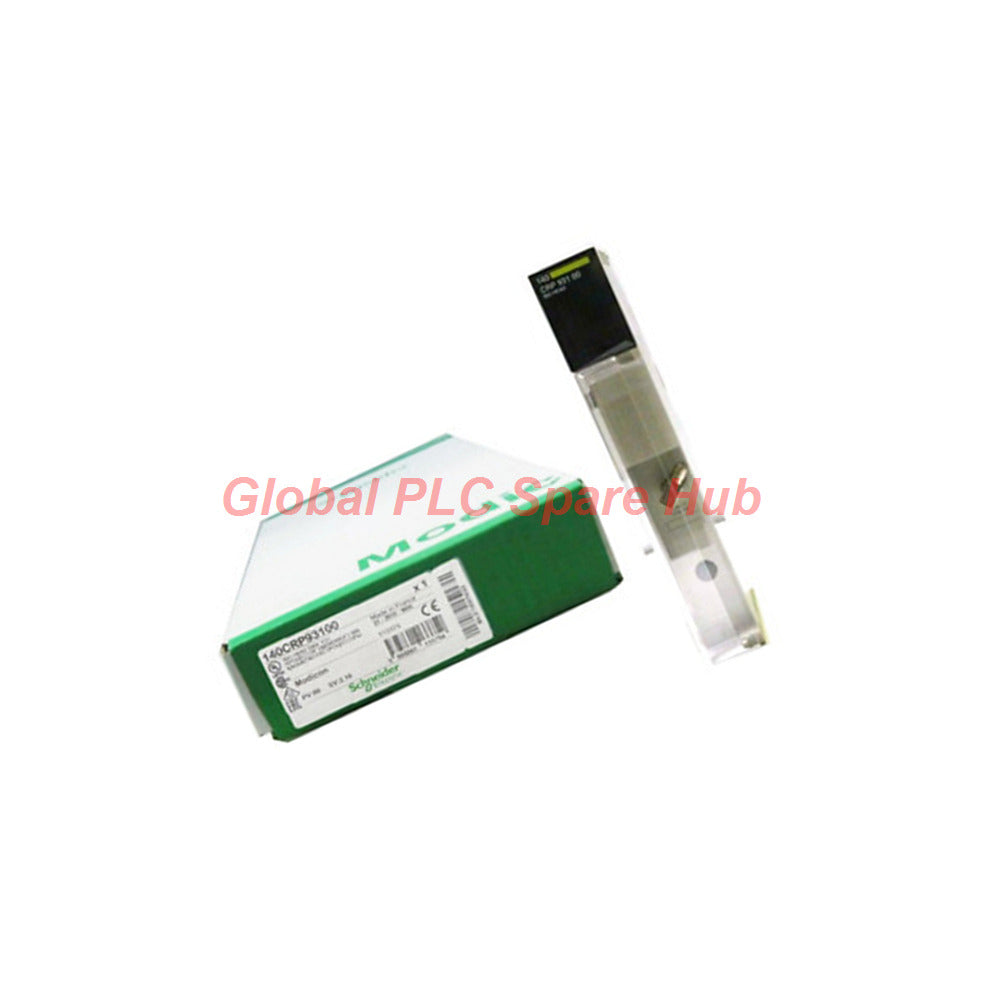

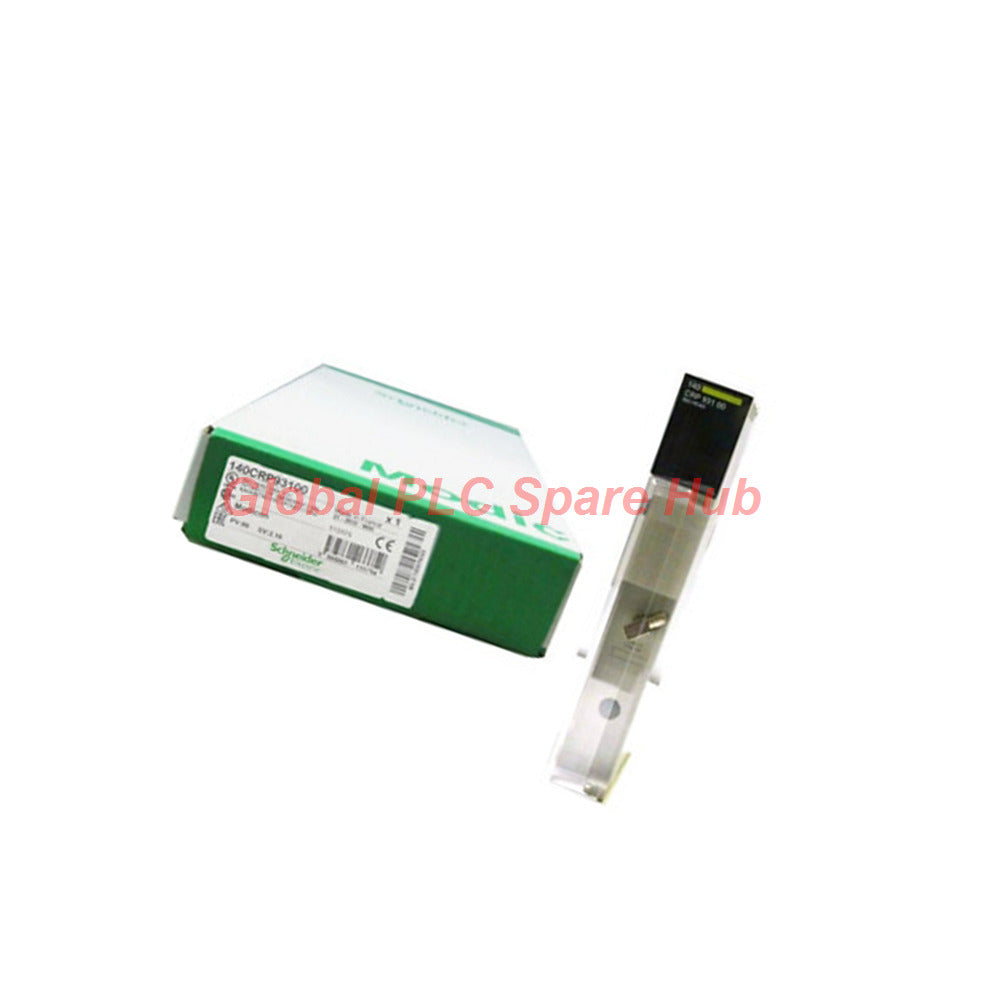

140CRP93100 Schneider Modicon Quantum RIO Head-End Adapter Module
Manufacturer: Schneider Electric
Product No.: 140CRP93100
Condition： In stock
Product Type: Adapter Module
Product Origin: DE
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
High-Speed Remote I/O Communication Interface for Modicon Quantum Systems
The 140CRP93100 is a Schneider Electric Modicon Quantum RIO Head-End Adapter Module designed for high-performance remote I/O communication.
It provides a reliable connection between Quantum automation controllers and distributed field I/O networks.
The module supports 1544Mbit/s transmission through 75 Ohm coaxial cable infrastructure.
Its architecture enables large-scale remote I/O deployment with up to 31 network drops.
The compact standard format simplifies integration into existing Quantum control cabinets.
Built-in diagnostics help engineers verify startup conditions and communication health.
Product Positioning Overview
| Category | Specification |
|---|---|
| Brand | Schneider Electric |
| Automation Platform | Modicon Quantum |
| Model | 140CRP93100 |
| Module Type | RIO Head-End Adapter Module |
| Network Function | Remote I/O Communication Interface |
Technical Specification Matrix
| Parameter | Technical Data |
|---|---|
| Product Range | Modicon Quantum Automation Platform |
| Compatible Systems | Quantum 200 / 500 / 800 Series |
| Compatibility | Symax Mixed Systems |
| Maximum Network Drops | 31 |
| I/O Capacity per Drop | 64 Input Words / 64 Output Words |
| Cable Type | 75 Ohm Coaxial Cable |
| Transmission Speed | 1544 Mbit/s |
| Dynamic Range | 35dB |
| Isolation Voltage | 500VDC Coaxial Center to Ground |
| Electrical Connection | 1 Female F Connector, Elbow Type |
| Power Dissipation | 3W |
| Bus Current Requirement | 600mA |
| Module Format | Standard |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 95% Without Condensation |
| Maximum Operating Altitude | 5000m |
Communication Capability
- High-speed 1544Mbit/s transmission supports efficient remote I/O communication.
- 75 Ohm coaxial network design provides stable industrial connectivity.
- 31 remote drops support large automation installations.
- Quantum platform compatibility simplifies system expansion.
- Distributed I/O architecture reduces field wiring complexity.
Compatible Equipment and Systems
The 140CRP93100 is suitable for industrial systems requiring reliable remote communication.
- Modicon Quantum PLC systems
- Remote I/O cabinets
- Large manufacturing lines
- Process automation networks
- Power distribution control systems
- Water treatment automation
- Material handling systems
- Factory-wide control networks
Typical Industrial Applications
| Industry | Application |
|---|---|
| Manufacturing | Distributed machine I/O communication |
| Energy | Remote equipment monitoring |
| Water Treatment | Centralized control with remote stations |
| Transportation | Large infrastructure automation |
| Process Industry | Field instrument communication |
Global PLC Spare HUB Review
The 140CRP93100 remains a practical solution for engineers maintaining Quantum remote I/O networks.
Field applications often use this module in large facilities where long-distance I/O communication is required.
For example, a production plant can place remote I/O stations near equipment areas while maintaining centralized PLC control.
The coaxial communication structure reduces complex field cabling requirements.
Engineers typically verify connector quality and cable condition during preventive maintenance.
Global PLC Spare HUB's Insight
Reliable remote communication depends on proper network installation and signal quality.
The 35dB dynamic range provides additional communication margin in industrial environments.
During retrofit projects, engineers often retain existing Quantum infrastructure to reduce migration costs.
The module's diagnostic startup sequence provides useful information during commissioning.
Diagnostic Functions
- Power-up self-check.
- Memory verification.
- LAN controller inspection.
- Network communication status monitoring.
- Startup fault identification.
- Remote I/O communication verification.
Installation Recommendations
- Confirm Quantum rack compatibility before installation.
- Check coaxial cable impedance specification.
- Verify F connector installation quality.
- Inspect network termination requirements.
- Perform startup diagnostics after power-up.
- Confirm all remote drops communicate correctly.
Standards and Certifications
| Certification | Status |
|---|---|
| CE Marking | Supported |
| UL 508 | Compliant |
| CSA C22.2 No 142 | Compliant |
| FM Class 1 Division 2 | Certified |
| ESD Resistance | 4kV Contact / 8kV Air IEC 801-2 |
| EM Field Resistance | 9.1V/m IEC 801-3 |
Package Contents
- 140CRP93100 RIO Head-End Adapter Module
- Protective industrial packaging
- Product identification label
- Quality inspection report
Shipping & Warranty
| Service | Details |
|---|---|
| Express Delivery | FedEx / UPS / DHL |
| Processing Time | 24-48 Hours |
| Package Protection | Industrial Anti-static Packaging |
| Warranty | 12 Months |
| Technical Assistance | Engineering Support Available |
Professional FAQ
Q1. Why does the 140CRP93100 use coaxial communication technology?
Coaxial networks provide stable signal transmission for distributed I/O systems.
They are suitable for installations requiring reliable remote communication distances.
Q2. What should engineers inspect when communication errors occur?
Check cable impedance, connector quality, and network termination first.
Physical network conditions often affect remote I/O stability.
Q3. How should users select this module for replacement projects?
Confirm Quantum platform compatibility, network structure, and remote drop requirements.
Matching the original architecture reduces engineering changes.
Q4. Can this module support large industrial plants?
Yes, the module supports up to 31 network drops with distributed I/O expansion.
It fits large manufacturing and process control installations.
Q5. What maintenance practice improves network reliability?
Regular inspection of coaxial connections helps prevent signal degradation.
Engineers should also review diagnostic information during scheduled maintenance.
Engineering Selection Guide
- Select the 140CRP93100 for Modicon Quantum RIO networks.
- Choose this module for high-speed remote I/O communication.
- Recommended for installations using 75 Ohm coaxial infrastructure.
- Suitable for large distributed automation systems.
- Ideal for Quantum system expansion and modernization projects.
The Schneider Electric 140CRP93100 Modicon Quantum RIO Head-End Adapter Module delivers reliable remote I/O communication, strong diagnostics, and scalable industrial network performance.
