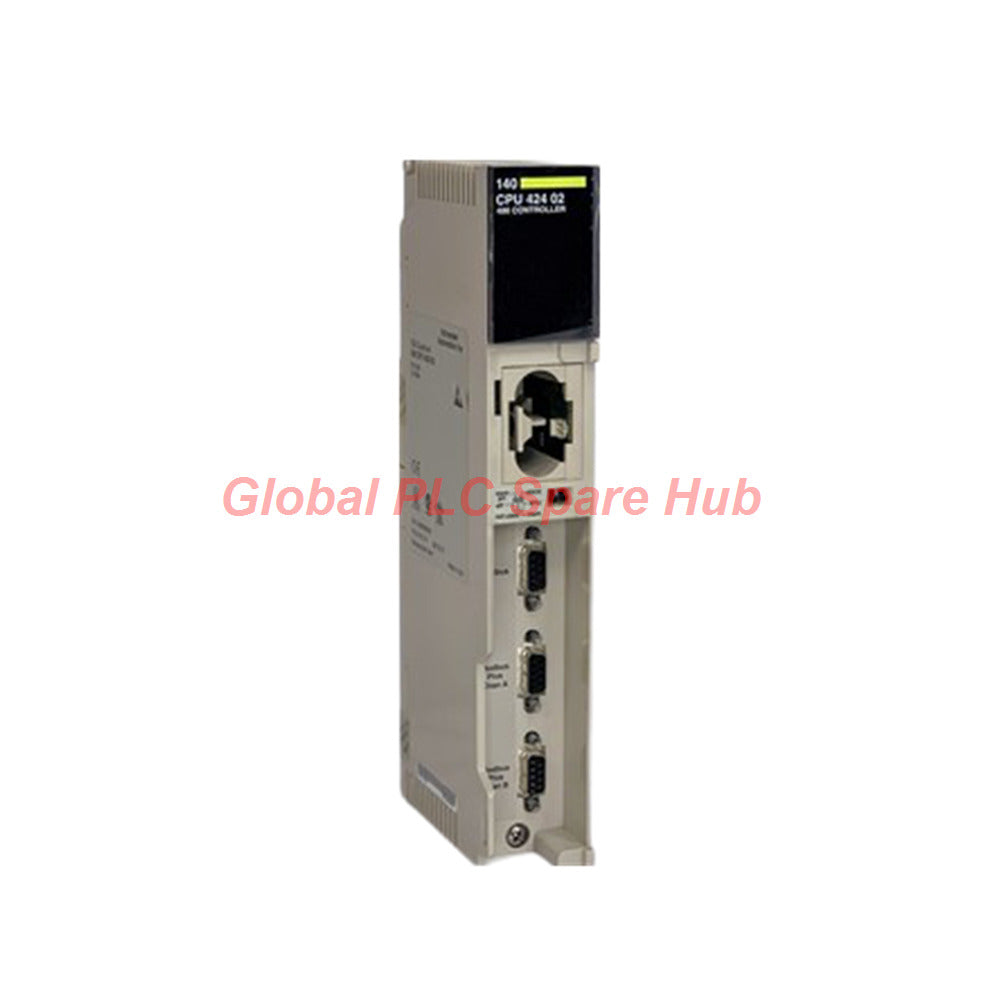

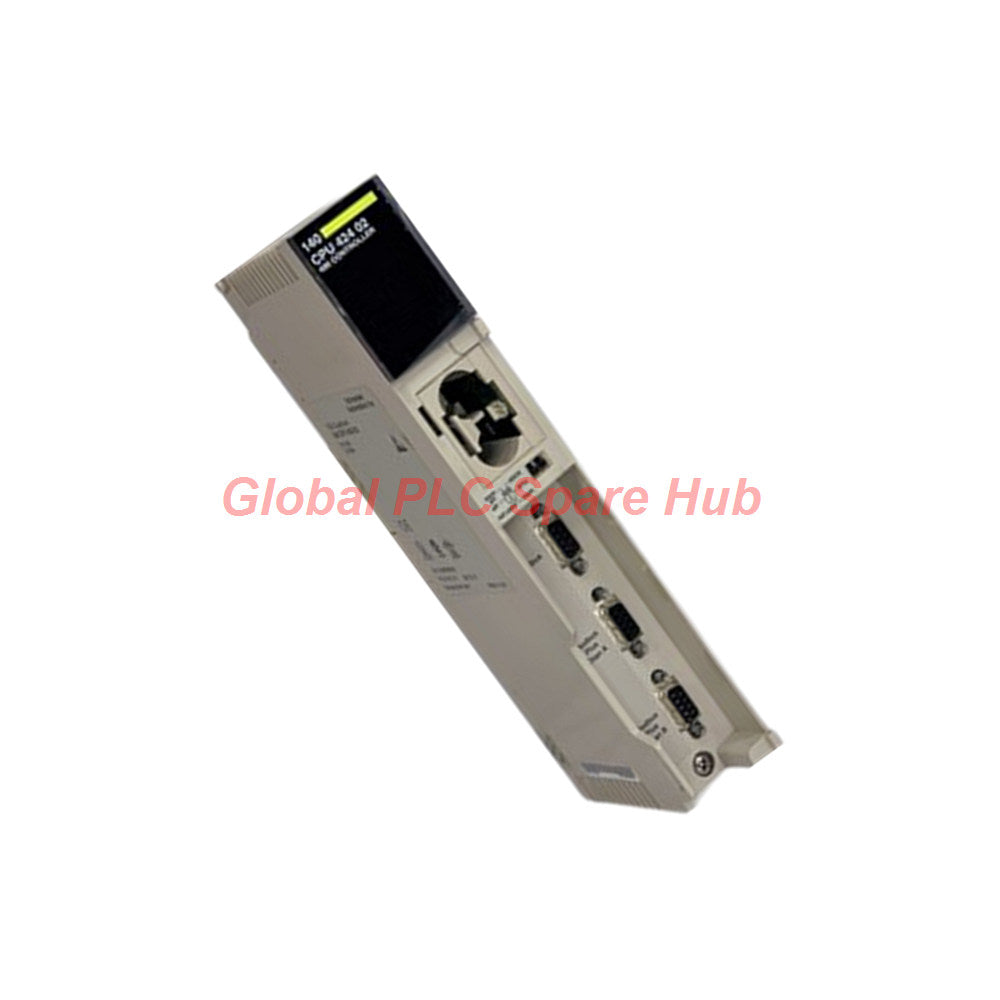

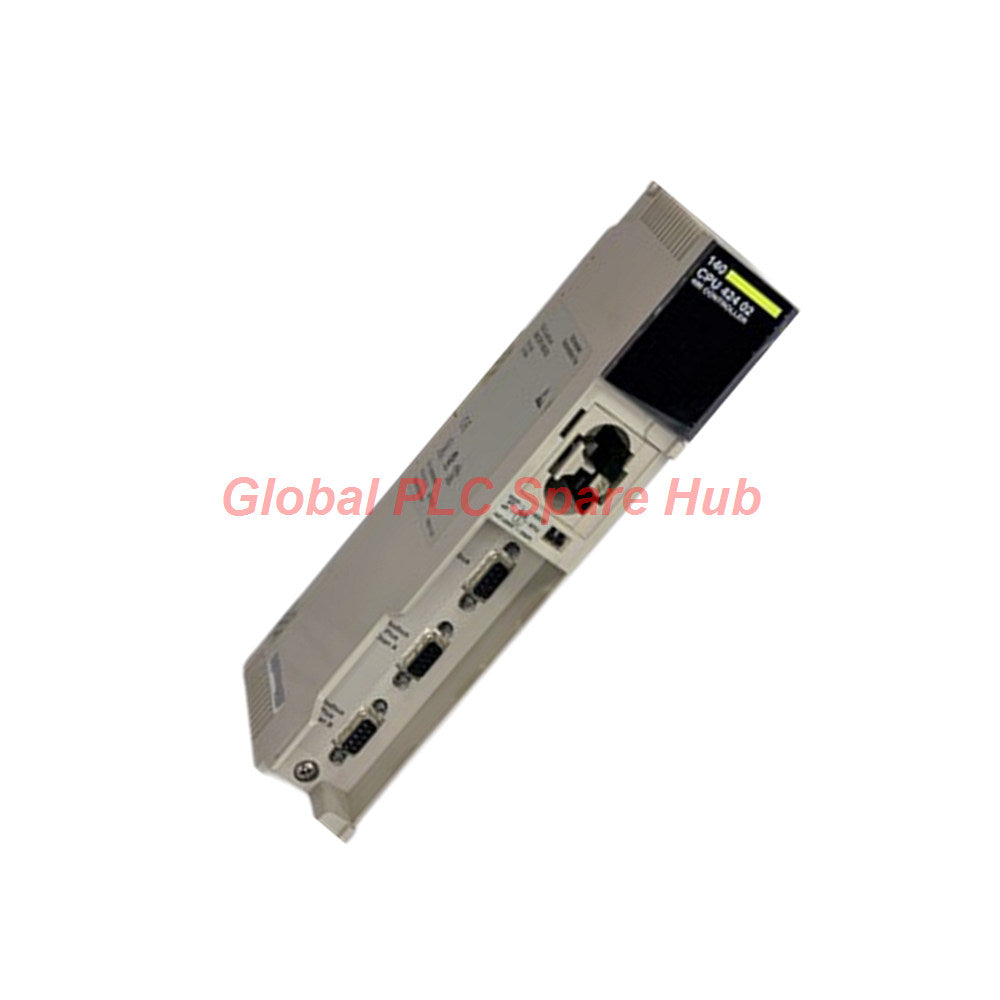

140CPU42402 Schneider Electric Modicon Quantum CPU Module

140CPU42402 Product Overview

The Schneider Electric 140CPU42402 functions as a high-performance central processing unit within industrial automation systems.

This hardware unit belongs to the advanced Modicon Quantum automation platform control series.

It utilizes a 2M CPU processor architecture to execute complex control algorithms rapidly.

The 140CPU42402 provides dual Modbus Plus (MB+) communication ports directly on its front faceplate.

It features an internal memory capacity of 64K words to store user applications and process configuration data.

Global PLC Spare HUB's Insight

The 140CPU42402 controller remains a rugged choice for deterministic industrial automation networking.

The onboard dual Modbus Plus ports allow engineers to establish redundant peer-to-peer communication paths seamlessly.

Our engineering evaluation confirms its 64K word storage efficiently runs large logic applications without performance drops.

The 140CPU42402 demands only 400 mA of backplane bus current while executing high-speed routines.

This thermal efficiency protects adjacent I/O modules from heat stress in tightly sealed control enclosures.

Technical Specifications

• Brand: Schneider Electric
• Model Number: 140CPU42402
• Product Series: Modicon Quantum
• Component Type: Central Processing Unit (CPU) Module
• Processor Type: 2M CPU hardware architecture
• Memory Capacity: 64K words program and data storage
• Communication Interfaces: 2 x Modbus Plus (MB+) network connections
• Backplane Bus Current: 400 mA maximum current draw
• Power Dissipation: 5 W maximum heat output
• Module Format: Standard single-slot Quantum housing
• Operating Temperature Limits: 32°F to 140°F (0°C to 60°C) continuous operation
• Storage Temperature Range: -40°F to 185°F (-40°C to 85°C) maximum limits
• Physical Unit Weight: 2.00 lbs (0.91 kg) packaged weight / 0.63 kg net weight

Target Equipment Compatibility

This processing unit integrates directly into the following hardware control configurations:

• Standard Modicon Quantum local, remote, or distributed I/O backplane racks
• Modbus Plus network nodes utilizing standard tap connectors and drop cables
• Industrial legacy systems running Concept, ProWORX, or Unity Pro engineering software

Installation Guide

• Turn off the main rack power supply before placing the module into the backplane.
• Align the 140CPU42402 with the designated slot guides and insert it firmly.
• Tighten the upper and lower captive ground screws to ensure mechanical safety.
• Attach the Modbus Plus network connectors to the front ports securely.
• Verify battery presence behind the front door panel before initiating the cold startup sequence.

Diagnostic Capabilities

• Front-panel LED diagnostic lights show continuous hardware run, stop, and error indications.
• The Ready indicator status confirms the successful passing of all boot-up hardware tests.
• Modbus Plus network traffic lights display real-time transmission and node token statistics.
• Internal error logs capture precise software execution faults for rapid maintenance analysis.

Typical Application Scenarios

• Main system processing for large water treatment and distributed pumping station infrastructure.
• Real-time material handling control systems requiring high-speed peer-to-peer networking over Modbus Plus.
• Boiler and turbine auxiliary control systems inside heavy power generation environments.
• Process regulation tasks in chemical manufacturing plants demanding consistent logic execution timing.

Commercial and Logistics Terms

• Shipping Guarantee: Verified customer orders depart our warehouse within 24 to 48 hours.
• Express Logistics: We provide reliable international express freight services via FedEx, UPS, and DHL.
• Warranty Coverage: This hardware includes our comprehensive 12-month replacement warranty protection plan.

Packaging Checklist

• One brand-new Schneider Electric 140CPU42402 controller module
• Heavy-duty anti-static protective product wrap
• Factory-grade structural outer retail shipping box

Purchasing Guide

• Confirm your application software compatibility with the Quantum 2M CPU architecture.
• Check that your network infrastructure supports the 1 Mbps Modbus Plus token rotation protocol.
• Ensure your current firmware revisions match existing local and remote drop module requirements.
• Purchase a replacement backup battery pack if your application requires memory retention during power outages.

Frequently Asked Questions (FAQ)

Question: Do the two onboard Modbus Plus connections possess independent network node addresses?

Answer: No, the dual ports share the same node address to enable easy cable routing layouts.

Question: What action should I take if the internal error log indicates a memory checksum fault?

Answer: Reload the application program logic completely using your original programming software environment.

Question: Can this processor module operate reliably without an external cooling fan assembly?

Answer: Yes, the low 5W power draw enables natural convection cooling up to 60°C environments.

Question: How does the controller protect the volatile user program if the main backplane power drops?

Answer: The hardware utilizes an internal battery system to maintain the 64K words memory contents intact.

Question: Can I hot-swap the 140CPU42402 processor while the backplane rack power is turned active?

Answer: No, you must always remove all rack power before removing or inserting the main CPU module.
