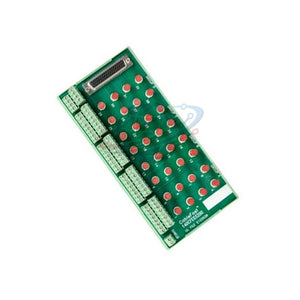

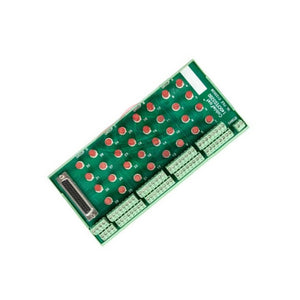

140CFE03200 Schneider Electric Modicon Quantum CableFast Terminal Block

Product Functional Overview

140CFE03200 is a CableFast terminal block designed for high-density digital output interfacing. It belongs to the Modicon Quantum platform. The unit provides structured and fused field wiring for discrete outputs.

This accessory enhances wiring efficiency and circuit protection. It simplifies connection between I/O modules and field devices. The design supports reliable signal distribution in industrial environments.

Configuration Architecture

• Model: 140CFE03200
• • Core Function
    • 32-point fused terminal interface
  • Channel Structure
    • 32 contacts arranged in 4 groups
    • Each group contains 8 output points
  • Connection Layout
    • Each point uses two dedicated terminals
  • Interface Type
    • SUB-D 50-pin female connector
    • Captive screw terminal outputs

Technical Characteristics

• Brand: Schneider Electric
• Series: Modicon Quantum
• Module Type: CableFast terminal block with fuse protection
• Number of Channels: 32 outputs
• Fuse Rating: 0.8 A per channel
• Connection Type: SUB-D 50 and screw terminals
• Mounting Method: DIN rail installation
• Compatibility: 140DDO35300, 140DDO35301 modules

Engineering Advantages

• Provides individual fuse protection per output channel.
• Organized terminal layout improves wiring clarity.
• Reduces risk of short circuit propagation.
• Supports quick replacement and maintenance.
• Enhances system reliability in control panels.

Installation Considerations

• Mount securely on standard DIN rail.
• Ensure correct alignment with I/O module connector.
• Use appropriate wire gauge for terminal connections.
• Verify fuse ratings match load requirements.
• Maintain labeling for easy channel identification.

Application Scope

• PLC-based control panels
• Industrial automation systems
• Manufacturing process lines
• Power distribution control cabinets
• Machine-level discrete output wiring

Diagnostics and Maintenance Capability

• Quick identification of blown fuses per channel
• Simplified troubleshooting through grouped layout
• Supports rapid replacement of faulty connections
• Reduces downtime during maintenance cycles
• Improves overall system fault isolation

Global PLC Spare HUB’s Insight

The 140CFE03200 terminal block is optimized for structured wiring systems. It enhances safety by isolating faults at the channel level. Engineers prefer it for organized and maintainable panel designs.

It is ideal for integration with Quantum output modules in industrial automation environments.

Warranty and Logistics

• 12-month warranty ensures dependable operation
• Dispatch within 24 to 48 hours
• Shipping via FedEx, UPS, or DHL
• Secure packaging for international delivery

FAQ

• Why use a fused terminal block in output systems?
• It protects each channel from overload and short circuits.
• How to select the correct fuse rating?
• Match fuse rating with the load current of each channel.
• What is the benefit of grouped channel design?
• It simplifies wiring and improves fault isolation.
• Can it reduce maintenance time?
• Yes, faults can be quickly identified and corrected.
• What should be checked before installation?
• Verify compatibility with the target I/O module and wiring layout.
