140CFB03200 Modicon Quantum Schneider Electric I/O Protection Accessory

Schneider Electric 140CFB03200 | Fused I/O Connection and Protection

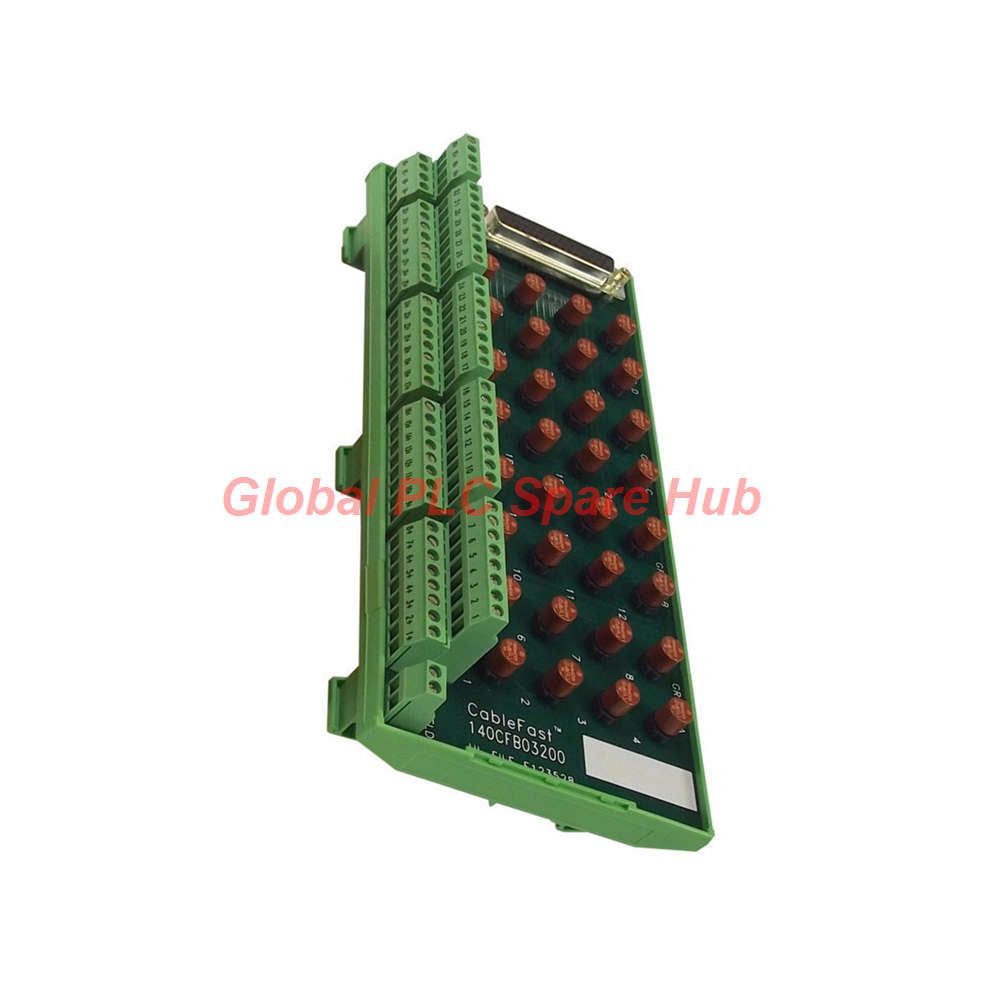

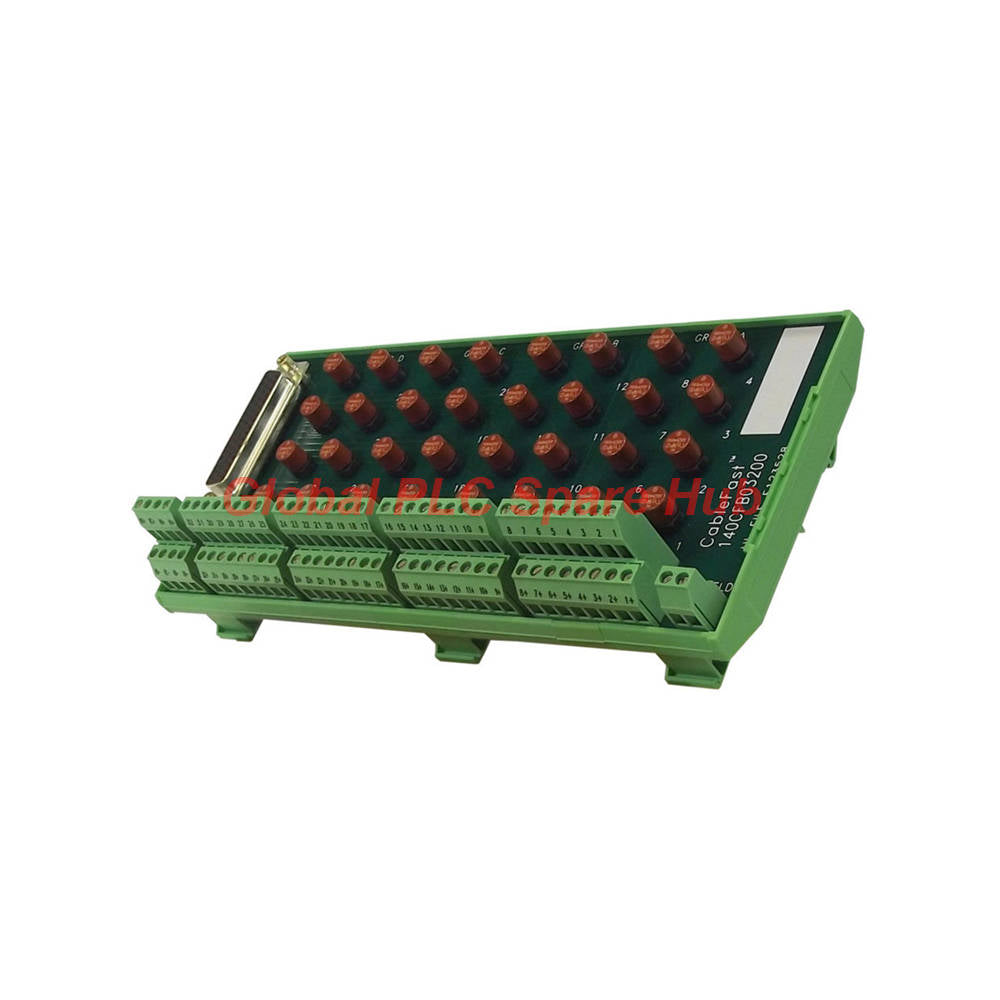

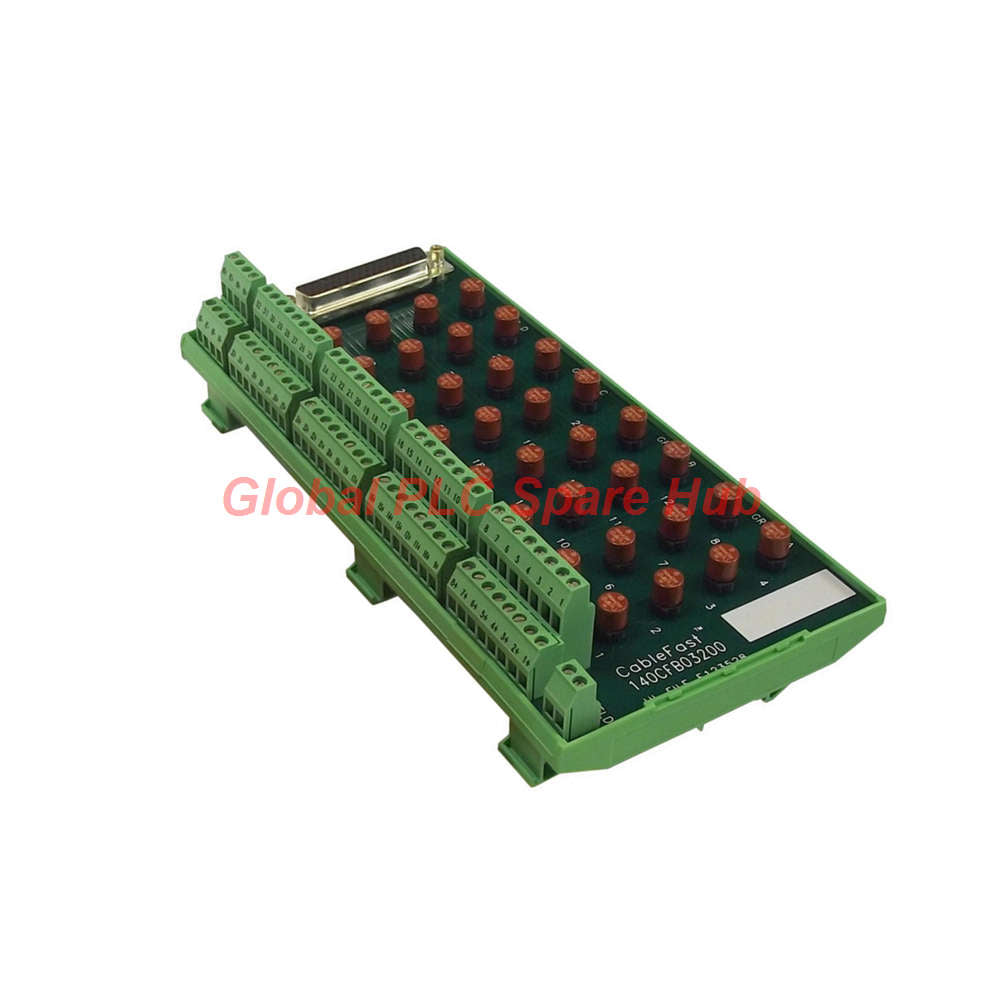

The 140CFB03200 is a CableFast fused terminal block accessory for the Schneider Electric Modicon Quantum automation platform.

It provides grouped fused connections for compatible Quantum I/O modules. Its design helps prevent a single input-circuit fault from affecting other input circuits within the connected system.

The terminal block organizes 32 I/O connection points into four groups of eight. Each point provides two terminals, supporting structured field wiring and easier circuit identification.

01 | Product Identity at a Glance

02 | Internal Connection Architecture

The connection layout groups field I/O points into four sections. This arrangement supports orderly wiring and limits the impact of certain circuit faults when the wiring and fuse configuration follow the manufacturer's instructions.

Design consideration: Group fusing does not automatically isolate every possible fault. Confirm the fuse topology, load current, conductor ratings, and module wiring diagram before commissioning.

03 | Compatible Modicon Quantum I/O Modules

The supplied product information lists the following compatible module models. Verify the current hardware documentation and connection requirements before ordering.

• 140DDO15310 — listed compatible digital output module.
• 140DAI55300 — listed compatible analog input module.
• 140DDI35300 — listed compatible digital input module.
• 140DAI45300 — listed compatible analog input module.
• 140DDI85300 — listed compatible digital input module.
• 140DAI35300 — listed compatible analog input module.

Do not select a terminal block based only on the Quantum platform name. Match the module catalog number, connector arrangement, signal type, and approved wiring configuration.

04 | Where This Accessory Adds Engineering Value

Important distinction: The 140CFB03200 is a terminal block accessory, not a standalone PLC processor or signal-conversion module. Its suitability depends on the connected I/O module and circuit design.

05 | Installation Sequence and Wiring Checks

1. Confirm the part number: Match the accessory label with the approved panel drawing and bill of materials.
2. Check module compatibility: Verify the I/O module model and the required 50-pin cable interface.
3. Isolate electrical power: Apply site lockout procedures before removing covers or changing field wiring.
4. Inspect the mounting location: Confirm DIN-rail security, available space, and cable routing.
5. Identify each group: Label the four connection groups and map each point to its corresponding I/O channel.
6. Verify fuse selection: Check the specified 0.8 A group-fusing arrangement against the approved circuit design.
7. Secure field conductors: Follow the manufacturer's terminal torque and conductor requirements.
8. Test before startup: Check wiring continuity, polarity where applicable, and unintended shorts before energizing.

Never assume that the 0.8 A rating represents a universal replacement fuse specification. Confirm the correct fuse type, rating, and protection arrangement in the applicable documentation.

06 | Field Diagnostics and Fault Isolation

When an I/O circuit fails, engineers should identify the affected group before replacing hardware. The grouped connection architecture can help narrow the investigation when technicians maintain accurate channel records.

Field example: Eight signals become unavailable after a maintenance intervention. If those points share one fused group, inspect that group's fuse and wiring first. Confirm the cause of the fault before restoring power.

Safety note: A fuse that opens repeatedly indicates an unresolved electrical problem. Never bypass the protective element to restore operation.

07 | Global PLC Spare HUB's Insight

For legacy Modicon Quantum installations, terminal accessories deserve the same verification as the I/O modules they connect to. A matching platform name alone does not establish electrical or mechanical compatibility.

During panel maintenance, technicians should maintain a channel-to-terminal schedule. Record the field device, connection group, fuse arrangement, module channel, and associated controller address. This record reduces troubleshooting time when several signals fail together.

For example, a maintenance team may discover that multiple field inputs stopped working after a panel wiring change. Checking the group assignment and shared connections can reveal a common wiring or protection issue faster than replacing individual devices.

Our recommendation is to confirm the complete accessory number, compatible module, connector interface, and protection requirements before purchasing a replacement. This process helps avoid installation delays and incorrect substitutions.

08 | Product and Shipping Information

• Brand: Schneider Electric
• Catalog Number: 140CFB03200
• Product Family: Modicon Quantum
• Package Quantity: 1 piece per listed package
• Package Dimensions: Approximately 11 × 18 × 27 cm
• Listed Package Weight: Approximately 645 g
• Returnability: The supplied ordering data lists this item as non-returnable. Confirm the applicable sales terms before ordering.
• Shipping Carriers: FedEx, UPS, or DHL, subject to destination and service availability.
• Dispatch Target: 24–48 hours after order acceptance and stock confirmation, where available.

Shipping times depend on stock status, destination, customs clearance, and carrier schedules. Request confirmation before placing an urgent maintenance order.

09 | Warranty and Technical Support

• Warranty Period: 12 months under the agreed sales terms.
• Compatibility Assistance: Support for checking the accessory number and listed I/O module compatibility.
• Order Verification: Assistance with reviewing the required quantity and destination.
• Technical Review: Provide the module number, wiring diagram, and fault description when requesting application guidance.
• Warranty Assessment: Supply the order reference and relevant fault evidence for review.

Warranty coverage follows the agreed sales terms. Incorrect installation, unauthorized modifications, and electrical damage may affect eligibility.

10 | Frequently Asked Questions

Q1: Why does the terminal block use four groups instead of one common connection area?

Four groups of eight provide a structured way to organize field wiring and associated protection. This arrangement helps technicians identify shared circuits and investigate group-level faults without treating every connection as one undifferentiated set.

Q2: What should engineers record before disconnecting an existing unit?

Record the connected I/O module, terminal assignments, field-device identifiers, fuse arrangement, and cable orientation. Photographs and an updated channel schedule help prevent cross-wiring during replacement.

Q3: Can a technician replace an opened fuse with a higher-rated fuse to avoid repeated failures?

No. A higher-rated fuse can undermine the intended protection and expose wiring or connected equipment to excessive current. Identify the underlying fault and follow the manufacturer's specified fuse requirements.

Q4: What information helps determine whether this accessory fits an existing control cabinet?

Provide the complete terminal-block catalog number, connected I/O module model, connector type, panel drawing, and mounting arrangement. These details help verify both the electrical interface and physical installation requirements.

Q5: How should buyers plan a replacement when the installed hardware documentation is incomplete?

Photograph the accessory label and connected module label, then document the connector, wiring layout, and terminal markings. Ask the supplier to verify the exact catalog number against available manufacturer documentation before ordering.

Request a Quote | Schneider Electric 140CFB03200

Contact Global PLC Spare HUB for a quotation, availability check, and compatibility review for the 140CFB03200 fused terminal block.

Please provide your required quantity, connected Quantum I/O module number, and delivery destination. Our team can review the requested configuration and discuss available shipping options.
