125065-99 Bently Nevada High Temp Case Expansion Transducer Cable Assembly

Bently Nevada 125065-99 Technical Introduction

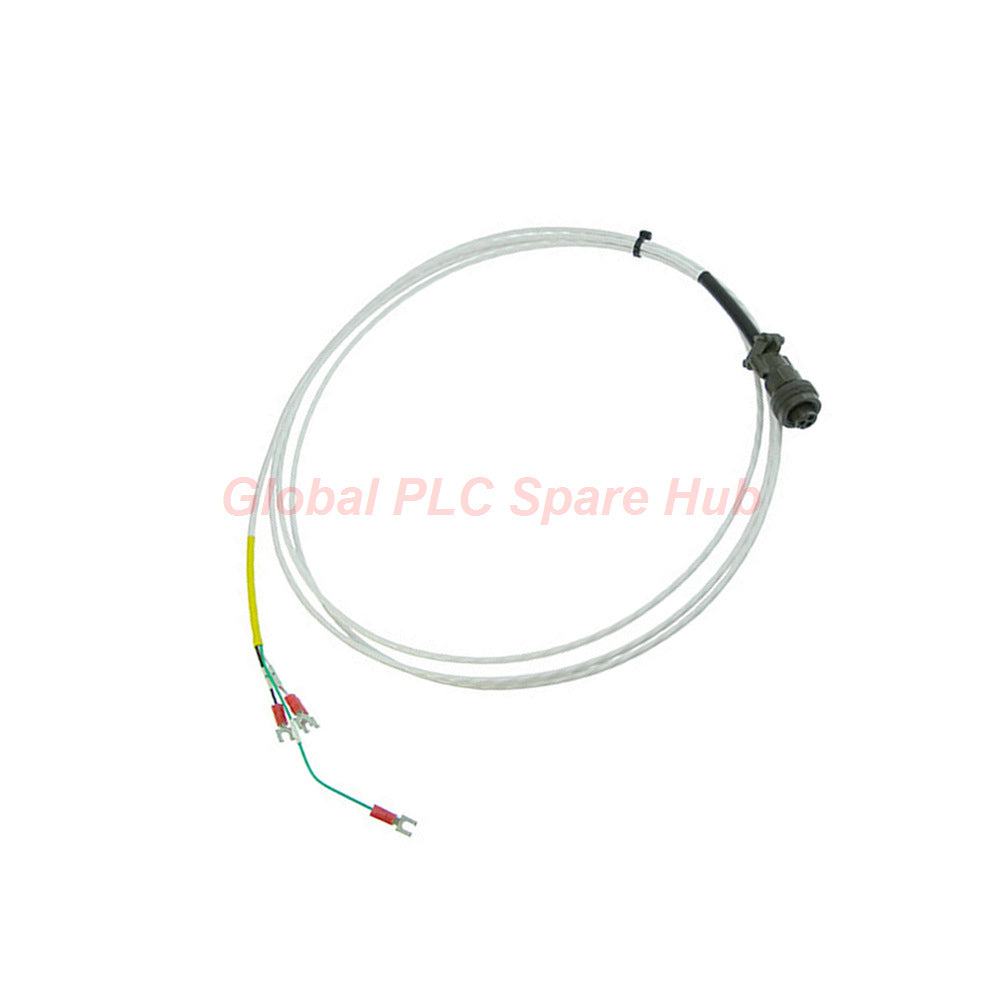

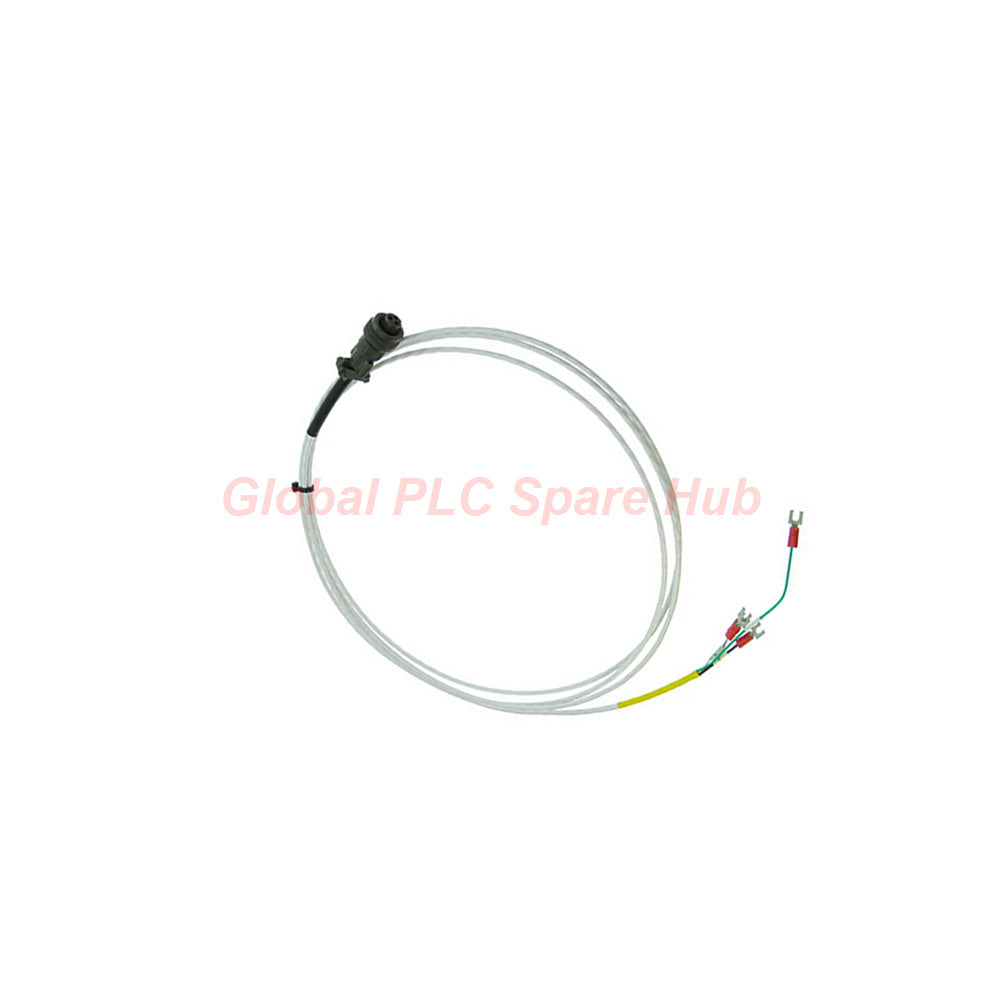

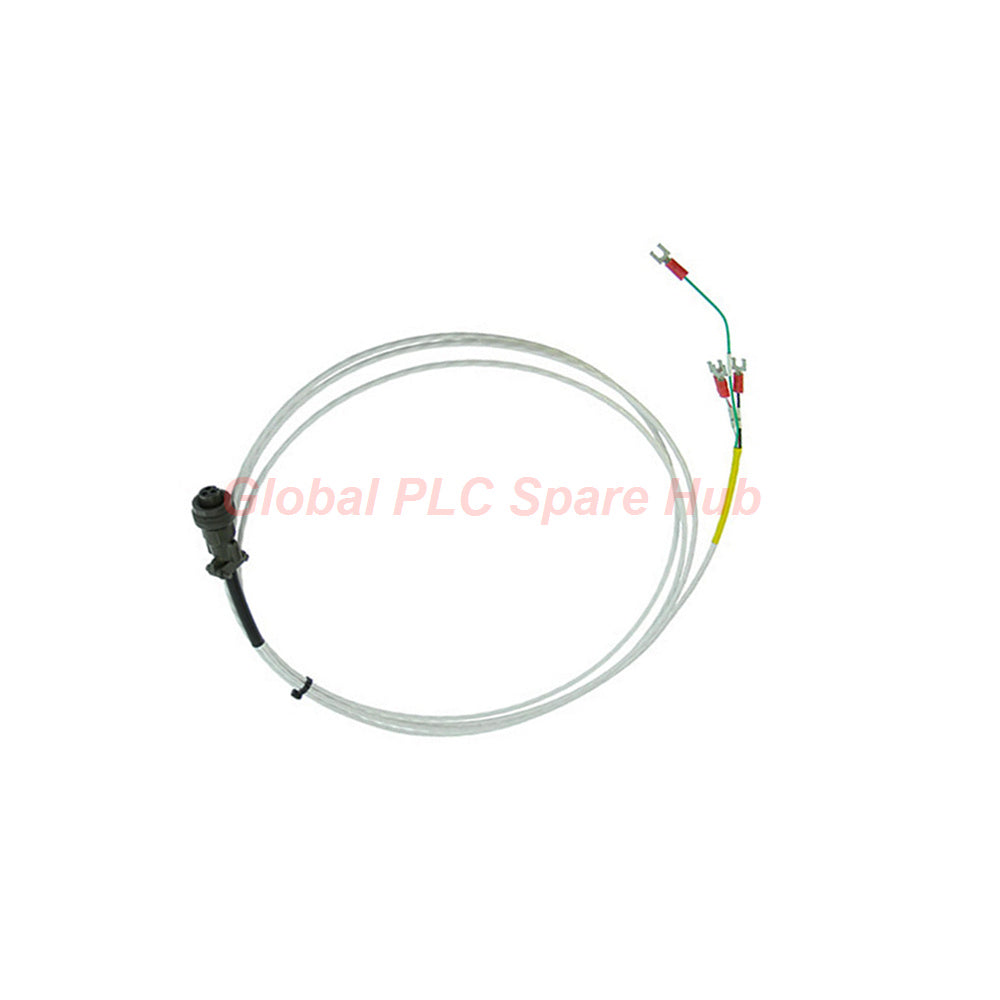

The Bently Nevada 125065-99 is a heavy-duty, high-temperature dual-conductor cable assembly. It interfaces directly with Case Expansion Transducer systems designed for heavy rotating machinery.

Engineered with an 18 AWG twisted, shielded core, the Bently Nevada 125065-99 minimizes electromagnetic interference in harsh plant environments. The rugged sensor end features a molded fluorosilicone elastomer boot and a secure two-socket plug for superior thermal resistance.

The termination end features raw terminal lugs for fast integration into local junction boxes or monitoring systems. This exact model offers a 99-foot physical length parameter to span wide turbine decks.

Global PLC Spare HUB's Insight

Our engineering team recognizes the Bently Nevada 125065-99 as a vital link in large steam turbine supervisory instrumentation (TSI) networks.

Case expansion is a critical thermodynamic variable during turbine startup. Incomplete or noisy signals can mask dangerous thermal growth constraints, risking catastrophic rotor-to-stator contact.

This cable is built to survive high radiant heat near the machine casing. The robust fluorosilicone boot seals out high-pressure steam leaks and oil mist. Mechanical engineers rely on this specific assembly to ensure uninterrupted DC voltage loop signals back to 3500 series monitoring racks.

Configuration Breakdown (Part Number Structural Tree)

• 125065 — High-Temperature Case Expansion Transducer Cable Assembly (DC Loop Type)
  • -02 — Minimum standard length option: 2.0 feet (0.6 meters)
  • -XX — Custom intermediate lengths (incremental standard increments)
  • -99 [This Model] — Maximum extended run option: 99 feet (30 meters) continuous length
• Material Specifications & End Connections:
  • Sensor Side Interface: Two-socket keyway plug with an overmolded fluorosilicone elastomer protective boot
  • Monitor Side Interface: Stripped conductors terminated with industrial-grade terminal ring lugs
  • Cable Construction: Two-conductor 18 AWG twisted, shielded drain-wire configuration

Target Equipment & Typical Applications

• Steam Turbine Generators: Connecting case expansion LVDT sensors on high-pressure (HP) and intermediate-pressure (IP) turbine casings.
• Gas Turbines: Monitoring thermal growth on heavy-duty industrial gas turbine frames.
• Turbine Supervisory Instrumentation (TSI): Routing signals directly into Bently Nevada 3500/45 Position Monitor modules.
• Large Centrifugal Compressors: Tracking casing expansion relative to the machine foundation during thermal cycling.

Diagnostic Capabilities & System Integration

• Thermal Growth Tracking: Feeds continuous, linear DC signals to monitors to verify normal machine structural expansion.
• Ground Loop Protection: Integrated overall shield drain wire prevents induced electromagnetic noise from distorting DC displacement loops.
• High-Temperature Survival: Fluorosilicone boot prevents moisture migration, eliminating insulation resistance degradation and ground faults.

Technical Specifications Table

Global Logistics, Delivery & Warranty Terms

• Shipment Methods: Worldwide express delivery available via DHL, FedEx, and UPS.
• Dispatch Lead Time: Ships within 24 to 48 hours from order placement.
• Commercial Warranty: Includes a comprehensive 12-month quality guarantee covering industrial operations.

Strategic Procurement & Selection Guide

• Verify Sensor Interface: Confirm your case expansion transducer uses a two-pin connector designed for DC loop monitoring.
• Assess Cable Route: Ensure the 99-foot (30-meter) run avoids high-voltage power cable trays to prevent signal interference.
• Physical Limitations: Do not attempt to use this assembly with the 21128 Velocity Transducer Housing. It is physically incompatible with the internal sensor cavities.

Industrial Frequently Asked Questions (FAQ)

Q: Why is the Bently Nevada 125065-99 cable incompatible with the 21128 velocity housing?

A: The cable’s fluorosilicone boot profile and internal connector keyway do not fit the dimensions of 21128 velocity housings. It is designed for external case expansion sensors.

Q: How does the 18 AWG thickness affect performance over a 99-foot run?

A: The heavy 18 AWG conductor minimizes loop resistance over 99 feet. This ensures high-accuracy DC signal transmission back to the monitor without voltage drop issues.

Q: What is the benefit of the fluorosilicone overmolded boot?

A: Fluorosilicone resists higher temperatures, synthetic lubricants, and chemical exposure compared to standard neoprene or polyurethane jackets.

Q: Can I shorten the Bently Nevada 125065-99 cable in the field if it is too long?

A: Yes, you can cut the terminal lug end to your required length. Make sure to strip and crimp new terminal lugs properly, and ground the shielding correctly.

Q: How should I terminate the shield drain wire at the monitor side?

A: Land the shield drain wire only at the instrument ground in the system cabinet. Do not ground it at the sensor side to avoid signal ground loops.
