106765-25 Bently Nevada Interconnect Cable In Stock Fast Ship

Product Overview

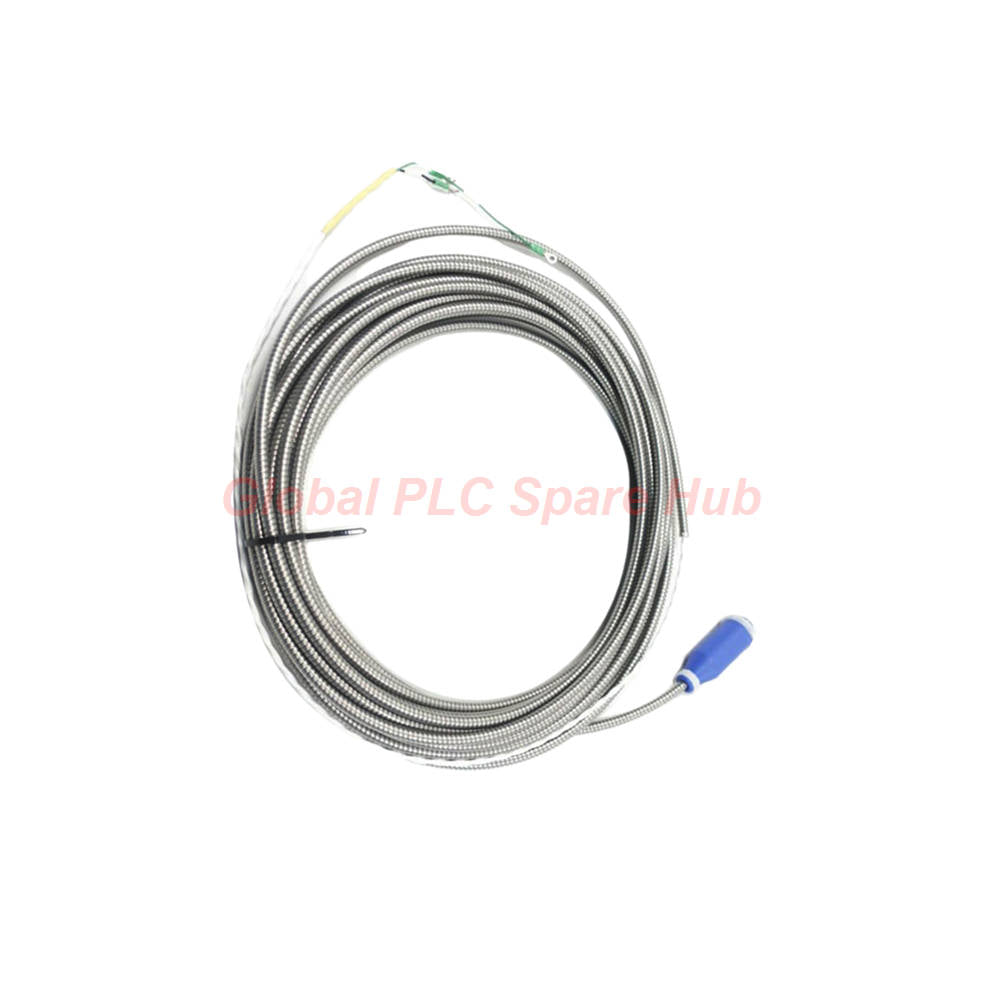

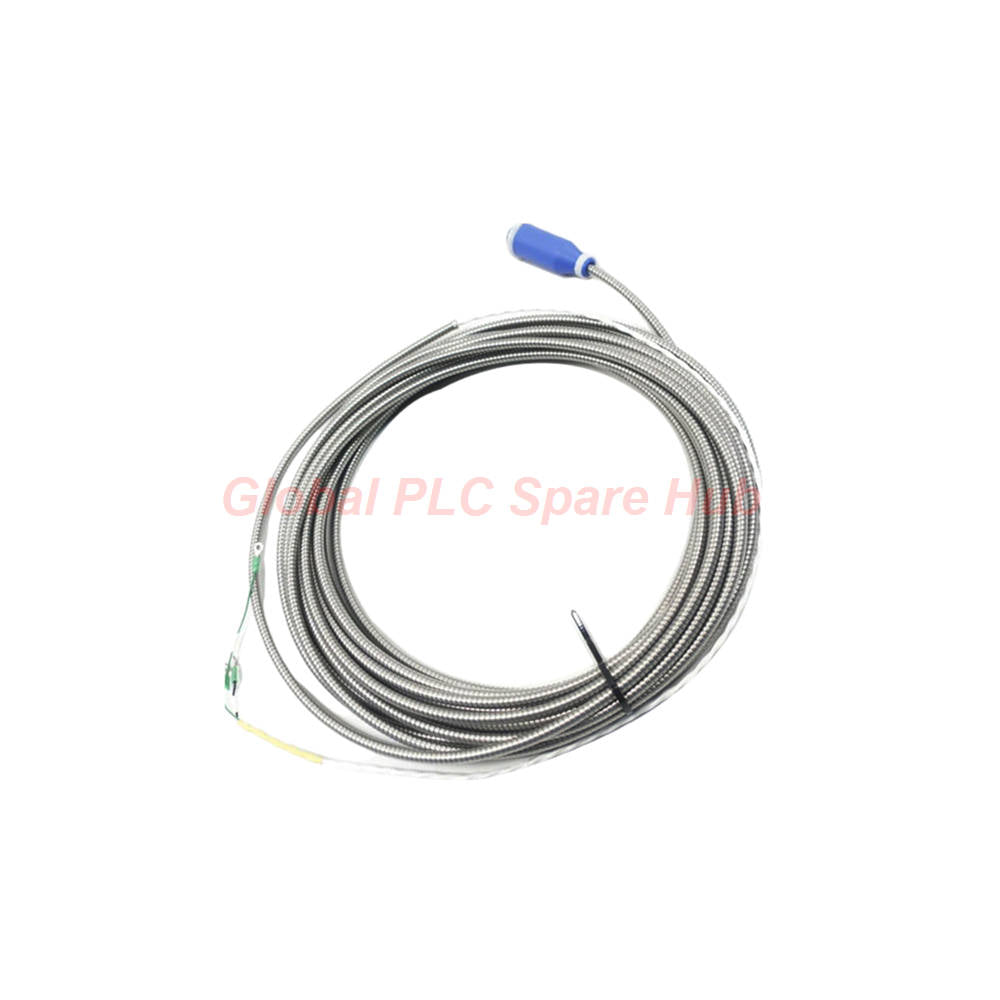

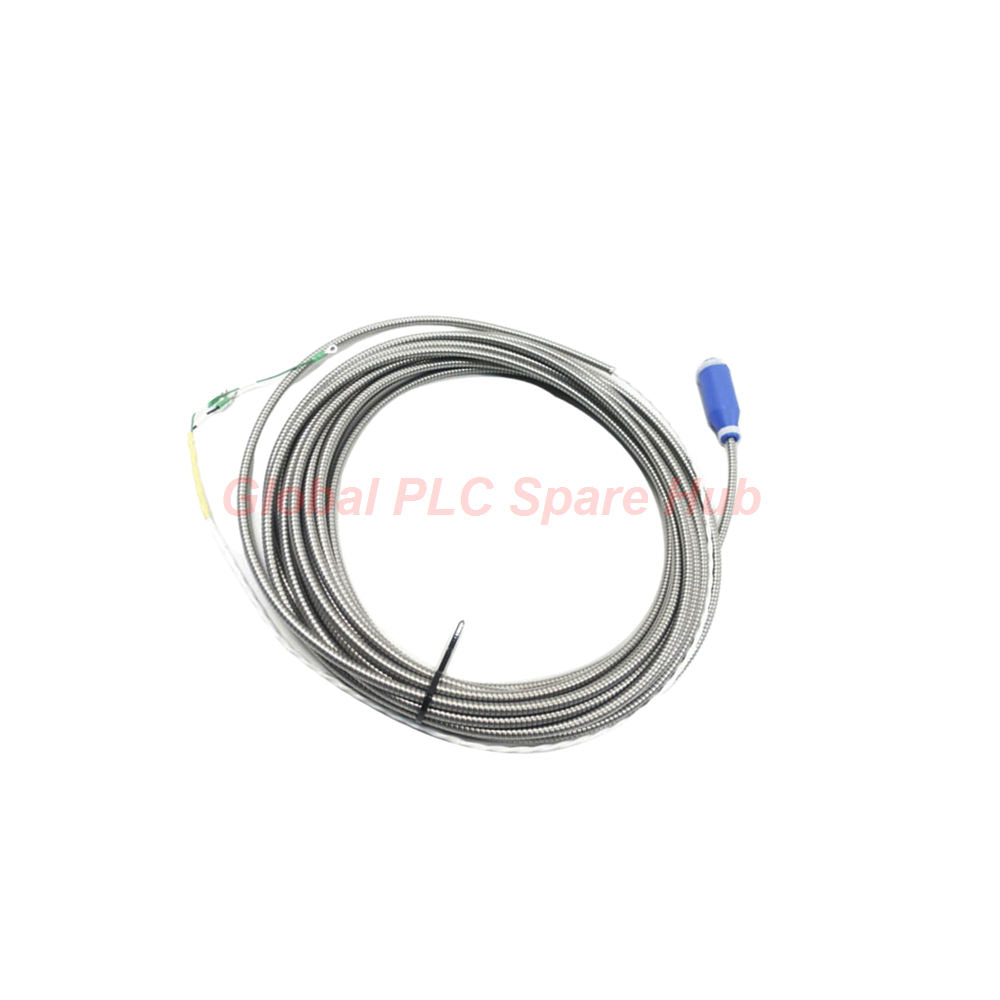

The 106765-25 is a high-integrity 25-meter interconnect cable engineered by Bently Nevada for rugged industrial environments.

This heavy-duty cable transfers critical sensor signals between field transducers, proximity probes, and machinery protection systems without data attenuation.

Constructed with dual-layer shielding, it isolates raw high-frequency dynamic signals from electromagnetic and radio-frequency interference in harsh plant environments.

The specialized outer jacket resists prolonged exposure to industrial lubricants, harsh chemicals, water ingress, and extreme operational temperature swings.

Engineers utilize the 106765-25 assembly to bridge long physical distances between machinery skid sensors and control room monitoring racks.

Configuration Breakdown

• 106765 — Base Model: Dual-Shielded Heavy-Duty Interconnect Cable
  • Signal Impedance: 50 Ω nominal characteristic impedance
  • Voltage Rating: 300 V RMS maximum insulation rating
  • Shielding Construction: Double-layer braid and foil screen for maximum EMI attenuation
• -25 — Length & Option Suffix: 25-Meter Armor / Harsh Environment Variant
  • Physical Length: Exact 25.0 meters (82.0 feet) end-to-end
  • Jacket Specification: Chemical, oil, and UV-resistant outer polyurethane sheath
  • Thermal Rating: Certified operational range from -40°C to +85°C

Technical Specifications

• Brand: Bently Nevada
• Part Number: 106765-25
• Model Name: 106765 Interconnect Cable Assembly
• Series: 3300 / 3500 Machinery Protection System Accessories
• Cable Length: 25 meters (82.0 feet)
• Outer Diameter: 8.0 mm nominal outer jacket thickness
• Conductor Material: High-purity multi-strand tinned copper conductors
• Shielding: Double-layer (aluminum foil plus tinned copper braid)
• Characteristic Impedance: 50 Ω ± 2 Ω
• Maximum Voltage Rating: 300 V RMS
• Minimum Bend Radius: 100 mm (4.0 inches) dynamic installation bend radius
• Jacket Color: Industrial black with high-visibility white numerical markings
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Environmental Tolerance: Full resistance to oils, hydraulic fluids, water splash, and direct UV rays
• Connector Type: Precision-keyed quick-connect industrial connectors with locking mechanism

Application Scenarios & Diagnostic Capabilities

The 106765-25 cable routes dynamic vibration, phase reference, and shaft position signals directly to monitoring hardware.

Target Industrial Equipment:

• Heavy centrifugal gas compressors and steam turbine generators
• High-pressure boiler feed pumps and multi-stage pipeline blowers
• Cooling tower induced-draft fans and large motor drives
• Extruder gearboxes and balance-of-plant auxiliary rotating skids

Signal Protection & Diagnostic Integrity:

• Maintains phase-accurate 1X and 2X vector transmission over long 25-meter cabling routes
• Prevents ground loop hum and high-frequency drive noise from corrupting low-amplitude shaft displacement measurements
• Preserves raw gap voltage readings to ensure accurate Proximitor probe bias voltage diagnostic tracking
• Eliminates signal clipping across high-speed dynamic transient events during machine startup curves

Installation Guidelines & Handling Procedures

• Inspect cable connectors for clean pin contact surfaces prior to final coupling.
• Maintain a minimum bend radius of 100 mm along the entire 25-meter path to prevent conductor degradation.
• Route cabling through dedicated cable trays away from high-voltage AC motor power leads.
• Align connector keyways firmly and rotate until the positive tactile locking click engages fully.
• Perform a loop continuity test and DC resistance verification before putting the machine online.

Ordering, Packaging & Express Shipping

• In the Box: 1x Bently Nevada 106765-25 25-meter interconnect cable assembly with protective end caps.
• Packaging Standard: Sealed protective polybag inside reinforced industrial corrugated shipping box.
• Dispatch Lead Time: In-stock items ship within 24 to 48 hours following order clearance.
• Logistics Carriers: Direct worldwide express delivery managed via FedEx, UPS, or DHL.
• Warranty Terms: Backed by a full 12-month factory quality defect replacement warranty.

Global PLC Spare HUB's Insight

In our field experience, unexpected vibration spikes on 3500 monitoring racks frequently trace back to damaged interconnect cabling rather than failing eddy current probes.

During a recent site evaluation at a petrochemical plant, field engineers observed rapid signal jitter on a critical compressor channel connected via an older 25-meter cable.

Upon physical inspection, the outer jacket of the old cable showed severe micro-cracking caused by constant oil exposure, allowing moisture to breach the outer shield and alter loop impedance.

Replacing the worn line with a genuine 106765-25 heavy-duty double-shielded cable immediately restored the nominal 50 Ω loop impedance and stabilized the 100 mV/mil vibration signal.

We always recommend inspecting long-run cable routes during planned outages and replacing line assemblies showing chemical degradation to ensure uncompromised plant safety protection.

Purchasing Guide & Selection Factors

Verify your physical length requirement carefully; 25 meters provides ample slack for standard skid-to-junction-box runs without excess cable coiling.

Ensure your monitoring system requires a 50 Ω characteristic impedance signal path to match your installed proximity probe transducers.

Check environmental hazards along the routing path; if cable lines cross hot piping zones above 85°C, select armored flexible conduit options.

Frequently Asked Questions

Question: Does coiling the extra length of a 106765-25 cable affect signal calibration on vibration channels?

Answer: Excess cable should be coiled in neat loops larger than 300 mm in diameter to prevent localized inductance buildup that could slightly alter high-frequency signal attenuation.

Question: How does double shielding on this cable protect against high-frequency VFD noise in field conduits?

Answer: The inner foil layer redirects high-frequency capacitive noise while the outer braided tinned copper shield grounds low-frequency electromagnetic interference, keeping the inner copper cores clean.

Question: What insulation resistance reading indicates that a installed cable remains healthy after exposure to water?

Answer: A healthy cable isolated from connected electronics should read greater than 500 MΩ when tested with a 500 Vdc megohmmeter between signal conductors and the outer ground shield.

Question: Can I cut and splice the 106765-25 assembly if 25 meters is too long for my skid installation?

Answer: Field cutting and soldering is strongly discouraged because manual splices break the 50 Ω characteristic impedance, introduce reflections, and compromise oil-resistant sealing.

Question: How do I verify that the quick-connect plug is fully mated in high-vibration compressor housings?

Answer: Push the connector home until you feel the tactile locking snap, then perform a light pull-back check to confirm the internal locking ring holds secure against mechanical vibration.
