03839420 Female Connector Protector | Bently Nevada Transducer Shield

Product Overview

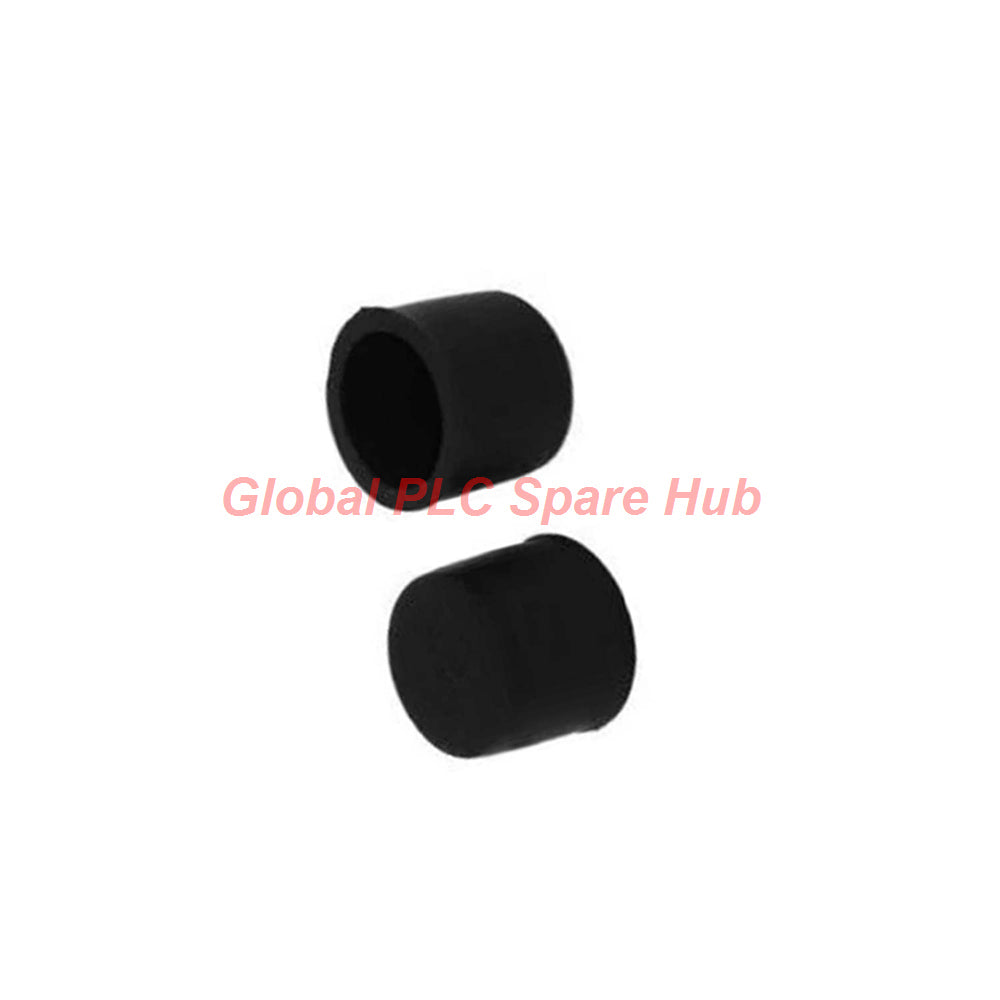

The U.S. manufactured 03839420 is a high-reliability Female Connector Protector designed by Bently Nevada. This passive industrial safety component prevents signal contamination inside critical coaxial connection points. Engineered for seamless field operations, it slips over proximity transducer probe leads and extension cables to seal vital connections from outside air, moisture, and chemical exposure.

This protection element serves a dual purpose in machinery monitoring loops. First, it joins with the male companion sleeve to shield the central probe-to-extension cable junction. Second, it slips onto the extension cable's end to cover the primary connection at the Proximitor Sensor housing. By maintaining dry, contamination-free connection points, it preserves system impedance stability across long-term runs.

Technical Specifications

The engineering properties of the 03839420 are categorized using the MECE principle to ensure thorough details:

I. Core Identity & Application

• Brand: Bently Nevada
• Model Number: 03839420
• Protector Classification: Female Connector Interface Protective Boot
• Country of Origin: United States of America (U.S.A.)
• Supported System: Compatible with 3300 XL and equivalent proximity transducer setups

II. Environmental Limits & Performance

• Thermal Limit Range: Rated continuously from -51 °C to +177 °C (-60 °F to +350 °F)
• Moisture Resilience: Helps establish watertight IP66-grade barriers when deployed correctly
• Process Oil Tolerance: Resistant to synthetic turbine oils, machinery lubricants, and light hydrocarbons
• Electrical Attenuation: 0 dB loss (retains original high-frequency instrumentation signals)

III. Mechanical Characteristics

• Structural Material: Premium-grade chemical-resistant fluoroelastomer compound
• Installation Style: Slide-on friction fit requiring dedicated insertion guides
• Target Diameter: Formed to match standard 54-ohm and 75-ohm miniature coaxial connections

Target Machinery & Industrial Use Cases

The 03839420 is designed to protect critical machinery assets, including:

• Steam & Gas Turbines: Shields critical radial vibration and axial thrust probes located near high-temperature steam seals.
• Centrifugal Compressors: Guards sensor junctions against lube oil mist, washdown moisture, and process gases.
• Gearboxes & Pumps: Protects key transducers from continuous splashing and aggressive industrial solvents.

Diagnostic Benefits & Preventive Value

Using the 03839420 protects your monitoring loop from signal anomalies:

• Impedance Balancing: Maintains the exact factory calibration impedance of the coaxial line.
• Fault Elimination: Stops phantom vibration spikes and false machine trips caused by water intrusion.
• Ground Loop Prevention: Isolates the coaxial shield from touching surrounding metal conduits or machine frames.

Global PLC Spare HUB's Insight

Our field telemetry audits show that over 70% of proximity sensor drift problems are caused by moisture or oil seeping into unprotected coaxial junctions. The 03839420 provides a cost-effective, military-grade barrier that keeps oil out of your signal lines. Investing in high-quality protectors saves plants from the massive costs of troubleshooting a false vibration trip under heavy load conditions.

Logistics, Shipping & Warranty

Get your plants back up to speed quickly with our reliable supply chain services:

• Shipping Handling: Dispatched securely from our logistics center within 24 to 48 hours.
• Express Delivery: Shipped worldwide via leading couriers: FedEx, UPS, and DHL.
• Product Warranty: Covered by a comprehensive 12-month replacement guarantee.

Frequently Asked Questions (FAQ)

What is the difference between the female and male connector protectors?

The 03839420 female protector features a wider opening. This allows it to slide over the outer barrel of the male protector, creating an overlapping environmental seal.

Can this protective boot be installed without the factory metal installation tool?

We do not recommend installing this without the tool. Trying to stretch the rubber sleeve by hand or with sharp pliers can tear the elastomer and ruin the environmental seal.

Does this sleeve protect the Proximitor Sensor end of the extension cable?

Yes. You can slide this sleeve over the extension cable's terminal end. It covers the connection where the cable screws into the Proximitor Sensor housing.

How do I know if oil has bypassed the sleeve and reached my connectors?

If you see your gap voltage readings drifting without any physical changes to your machine, shut down the system and inspect the connectors for moisture or oil.

Can these sleeves withstand high-pressure washdowns?

Yes. Once properly seated over the coaxial connector junction, the tight fit provides an IP66 barrier that easily blocks washdown water and steam.

Buying & Selection Guide

Use this list to confirm your order details:

• Verify that your probe leads or extension cables require a female-style sleeve interface.
• Confirm that your operating temperatures do not exceed the +177 °C limit.
• Order extra spares to have on hand during routine sensor replacements or calibration sweeps.
