Why High-Torque Power Tools Risk Damaging Your IS200WROBH1A Control Systems
The Vital Function of Relay Output Boards in Turbine Control
The GE IS200WROBH1A Relay Output Board manages critical command signals within EX2100, Mark VI, and Mark VIe turbine control systems. This highly specialized component transmits vital outputs from the core controller directly to essential field hardware. Key target devices include interposing relays, heavy-duty solenoids, complex alarm circuits, and critical auxiliary control equipment. Industrial facilities depend heavily on these boards to ensure continuous plant availability and prevent unexpected, costly trips. Consequently, a small error during field installation can compromise the reliability of your entire facility automation infrastructure.
The Hidden Danger of Mechanical Stress on Multilayer PCBs

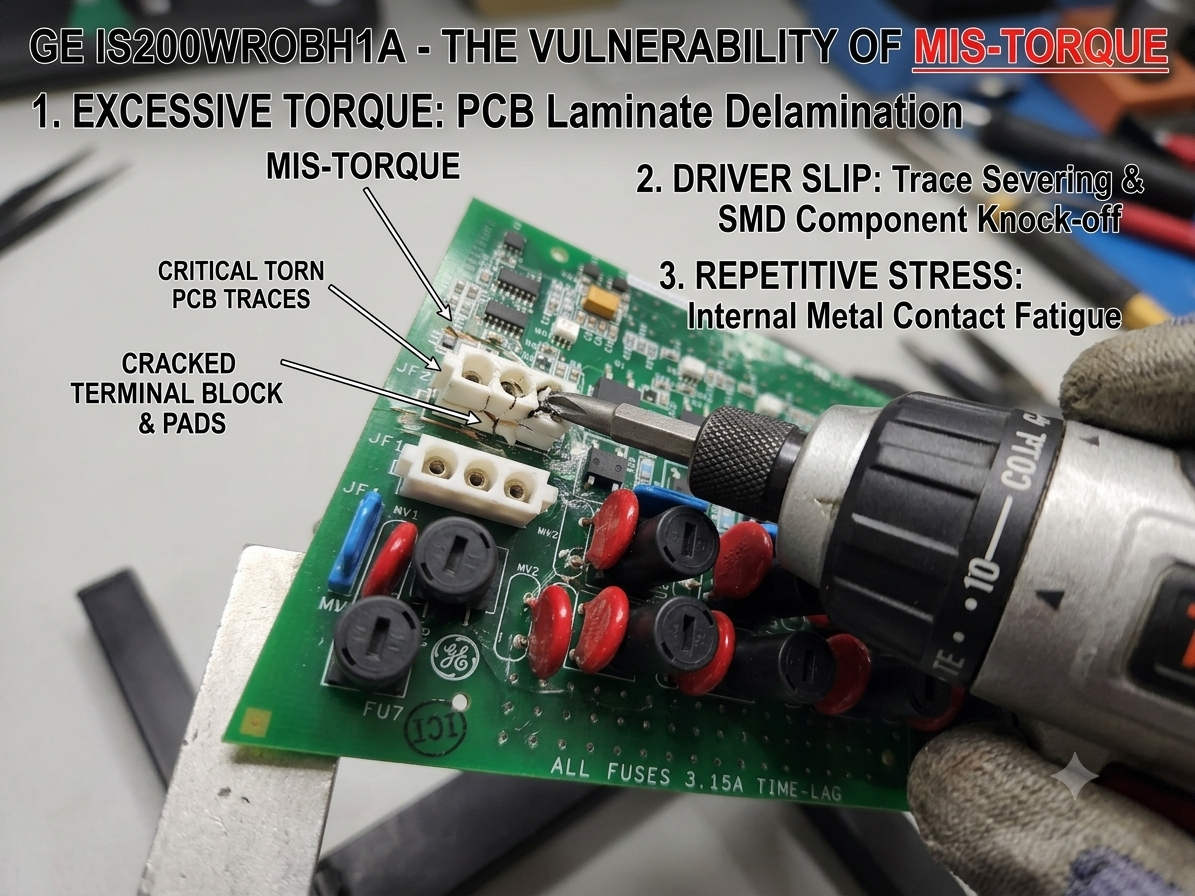

The IS200WROBH1A features a sophisticated multilayer printed circuit board (PCB) design to support high-density industrial automation circuits. Multiple internal copper signal traces and power layers sit tightly between alternating fiberglass laminate sheets. Technicians generate intense mechanical forces when they use high-torque power screwdrivers on terminal connection screws. This excessive torque concentrates severe compressive stress directly around the fragile plated-through holes (PTHs). As a result, micro-cracking and copper layer separation often develop deep within the internal board laminate structure.
How Mechanical Force Translates into Intermittent Field Faults
Mechanical damage from over-tightening rarely causes immediate electrical failure during initial loop testing or commissioning checks. Instead, subtle micro-fractures gradually expand over time due to persistent field vibration and normal thermal cycles. This progressive degradation eventually triggers random, highly frustrating intermittent faults during active plant operations. Operators might experience unexpected relay output loss or sudden activation failures on critical field devices. Furthermore, these faults leave no external visual evidence, making them exceptionally difficult for maintenance teams to diagnose.
Balancing Vibration Resistance with Proper Torque Specifications
Many field technicians mistakenly believe that tighter terminal connections always provide superior resistance against industrial vibration. However, turbine control cabinets face continuous mechanical energy from heavy gas turbines and large steam turbines. Proper vibration resistance relies entirely on adhering to precise torque values calculated by the terminal manufacturer. Over-tightening terminal screws deforms individual conductor strands and permanently damages the internal clamping mechanism. Consequently, an over-stressed connection loses its natural elasticity and fails much faster under continuous vibration.
Thermal Cycling Effects on Damaged Circuit Board Traces
Industrial control enclosures often operate in harsh environments with internal temperatures regularly hovering between 40°C and 60°C. These elevated temperatures cause copper field conductors and composite PCB laminates to expand and contract repeatedly. If an aggressive power tool has already weakened the internal copper structures, thermal expansion further separates the microscopic cracks. Typical symptoms include normal board operation during cold startup but frequent output faults after the cabinet warms up. Technicians frequently misdiagnose this specific thermal phenomenon as a failed relay component or an internal software glitch.
Best Practices for Terminal Wiring and Tool Selection
Maintaining high system reliability requires strict installation protocols and the complete ban of high-speed impact tools.
- Utilize calibrated manual torque screwdrivers for all terminal connection work.
- Verify exact torque specifications provided by GE documentation before starting.
- Record every confirmed torque value on the formal plant commissioning sheet.
- Avoid using high-speed electric drivers that cause transient torque spikes.
- Implement scheduled preventive maintenance inspections to check terminal tightness.
Protecting Terminal Blocks from Heavy Field Wiring Strain
Heavy, unassisted field wiring bundles can exert continuous, destructive leverage directly onto the terminal blocks. Therefore, installation teams must implement robust mechanical support structures near the control system enclosure. Secure all heavy cables to dedicated tie-down points situated just outside the board footprint. Utilize structured wire duct systems to organize field routing and prevent physical weight transfer. In addition, always include generous service loops to absorb normal mechanical movement and thermal expansion forces safely.
Engineering Recommendations for Component Procurement
Procurement teams must exercise extreme caution when sourcing replacement components for critical DCS and PLC systems. Visual inspections cannot detect hidden internal circuit layer fractures caused by previous over-torque damage. Therefore, buyers should only purchase parts from suppliers providing comprehensive functional testing under realistic load conditions. Always verify full hardware and firmware compatibility with your existing system architecture before authorizing an installation. Relying solely on identical physical appearance can result in major commissioning delays or unexpected device behavior.
Real-World Solution Scenario
A petrochemical processing plant experienced erratic solenoid trip alarms on a critical Mark VIe controlled compressor skid. The local maintenance crew initially replaced the interposing relay, but the intermittent failure persisted during hot afternoons. A specialized control systems engineer subsequently inspected the IS200WROBH1A board using a digital microscope. The inspection revealed tiny micro-cracks around the terminal block solder joints caused by an electric screwdriver. The team installed a new board using manual torque tools and added a rigid cable support bracket. This corrective action completely eliminated the nuisance trips and restored long-term operational stability to the facility.
Frequently Asked Questions
What are the key indicators of previous over-torque damage on an IS200WROBH1A board?
Look closely for distorted plastic terminal housings, hairline cracks in the solder mask, or bent terminal pins. Discoloration on the PCB around the connector base also indicates severe mechanical stress or localized high resistance.
Why are manual torque tools preferred over advanced electric screwdrivers for terminal blocks?
Manual torque screwdrivers provide precise physical control and eliminate the hazardous rotational inertia found in power tools. Electric drivers often generate short-duration torque spikes that fracture internal PCB traces before the clutch can disengage.
How do you determine the correct replacement revision for a legacy relay board?
Review the complete alpha-numeric revision suffix printed directly on the board barcode label. Cross-reference this exact code with the approved GE system drawings and check for configuration dependencies within ToolboxST.
