Can You Directly Drive High-Power Contactors with the GE IS220PDIOH1A Module?
Understanding the Core Value of the PDIO Pack in DCS Networks

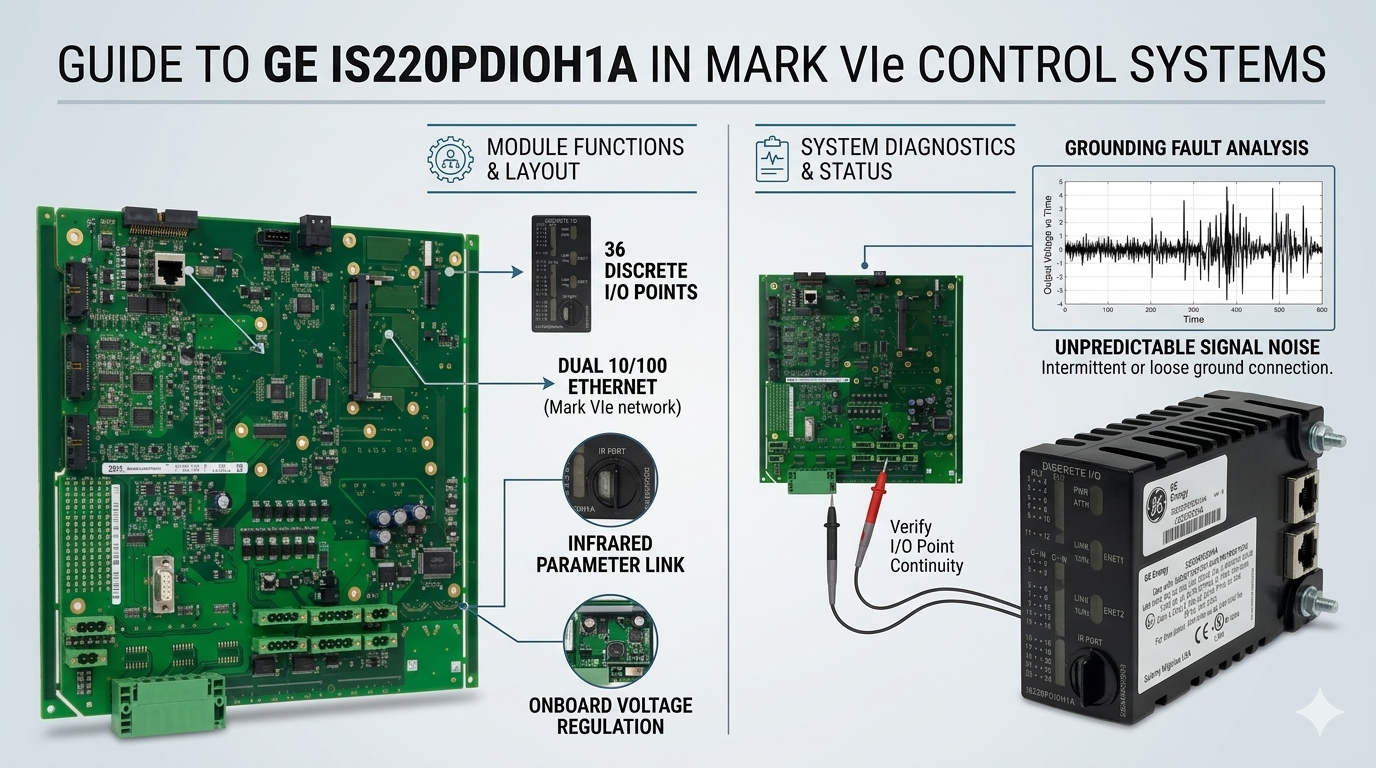

The GE IS220PDIOH1A serves as a critical discrete input/output hybrid I/O pack within the Mark VIe and EX2100 control systems. Engineers heavily rely on this module for status acquisition and control outputs across diverse heavy-duty industrial applications. Many field technicians frequently ask whether the digital output channels can directly drive heavy-duty contactors. From my professional experience in plant commissioning, directly driving heavy contactor coils will severely compromise your control system.
Why Inrush Current Risks Control System Reliability
The true problem extends far beyond simple steady-state current limitations. Inductive loads generate massive reverse voltage surges and electromagnetic interference that degrade the internal circuitry over time. Continuous process plants, such as oil refineries and power stations, rarely experience immediate card failures. Instead, inductive stress creates intermittent digital output failures after six to twelve months of operation. Therefore, keeping industrial control systems stable requires intermediate isolation.
Evaluating Digital Output Limitations Against High Inductive Loads
The IS220PDIOH1A digital output channels effectively drive interposing relays, small 24VDC coils, and standard PLC input circuits. However, large contactors running on high voltage create heavy inrush currents during the initial pull-in phase. These transients occur regularly in gas turbine auxiliary skids, lubrication pumps, and sealing oil systems. Many field engineers fail to calculate the transient peak, which often reaches three to eight times the nominal rating. This oversight remains a leading cause of card damage.
Analyzing Long-Term Component Degradation from Counter Electromotive Force
When a contactor coil de-energizes, the collapsing magnetic field releases a severe voltage spike back toward the module. In long-term Mark VIe projects, this counter electromotive force leads to random channel failures and delayed output execution. The diagnostic software often shows a healthy status while the field device remains completely unresponsive. This subtle degradation stems from repetitive surge stress on the solid-state output components. As a result, standard factory automation designs must include proper relay decoupling.
Mitigating Electromagnetic Interference in Complex Plant Environments
Control cabinets usually stand close to high-frequency variable speed drives, motor control centers, and high-current busbars. Directly connecting the PDIO pack to a heavy contactor risks injecting severe electromagnetic interference into the Mark VIe control layer. This interference elevates the probability of ghost trips and disrupts sensitive control loops. Unshielded long-distance cabling further exacerbates signal corruption. Consequently, isolating your control logic from high-power field equipment protects system-wide communication.
Best Maintenance Practices for Heavy-Duty Cabinet Installation
Implementing an interposing relay architecture represents the best practice for any alternating current contactor. You should always drive a clean 24VDC relay with the PDIO pack and use the relay contacts to switch the main contactor coil. Furthermore, you must install flyback diodes or RC snubber circuits directly across the inductive load. This configuration reduces thermal stress and dramatically drops card replacement frequencies during scheduled plant turnarounds.
Essential Field Engineering Guidelines:
- ✅ Install fast-recovery flyback diodes near the direct current coil terminals.
- ✅ Route low-voltage control lines away from high-voltage motor cables.
- ✅ Utilize spring-clamp terminals to survive severe industrial vibration environments.
- ✅ Verify terminal screw torque during every annual thermal shutdown period.
- ✅ Add dedicated 24VDC power conditioners for critical protection circuits.
Application Scenario: Gas Turbine Lubrication Oil Pump Integration
In an international power plant migration project, the maintenance team integrated a Mark VIe system with an existing motor control center. The team wired the IS220PDIOH1A outputs directly to the auxiliary lube oil pump contactors. Within nine months, two critical digital output channels failed during a routine test sequence. We resolved the problem by retrofitting slim 6mm interposing relays inside the marshaling cabinet. The plant has operated without a single digital output dropout since the modification.
Expert Technical FAQ
What parameters dictate whether a field load requires an interposing relay?
Do not focus solely on nominal current ratings. You must evaluate the coil inrush current, inductive spike potential, cycling frequency, and total cable distance. If the field device is an external solenoid valve, a heavy contactor, or lacks internal suppression, you must install an external relay.
Can the IS220PDIOH1A drop directly into an older legacy control rack?
No, this pack targets the Ethernet-based Mark VIe architecture. Legacy systems run on different backplane communication protocols and terminal board standards. Upgrading requires you to verify your ToolboxST software version, terminal board compatibility, and controller firmware alignment before hot-swapping any hardware.
How can I identify a digital output channel that is suffering from latent electrical fatigue?
Fatigued solid-state switches often exhibit abnormal leakage currents when turned off, or increased internal resistance when turned on. If a channel requires several seconds to drop its load, or exhibits random state changes under vibration, replace the pack immediately.
