IS215UCVEM06A vs IS215UCVGM06A: Architectural Differences in GE Control Systems
Decoding the Core Communication Split in UCV Controllers

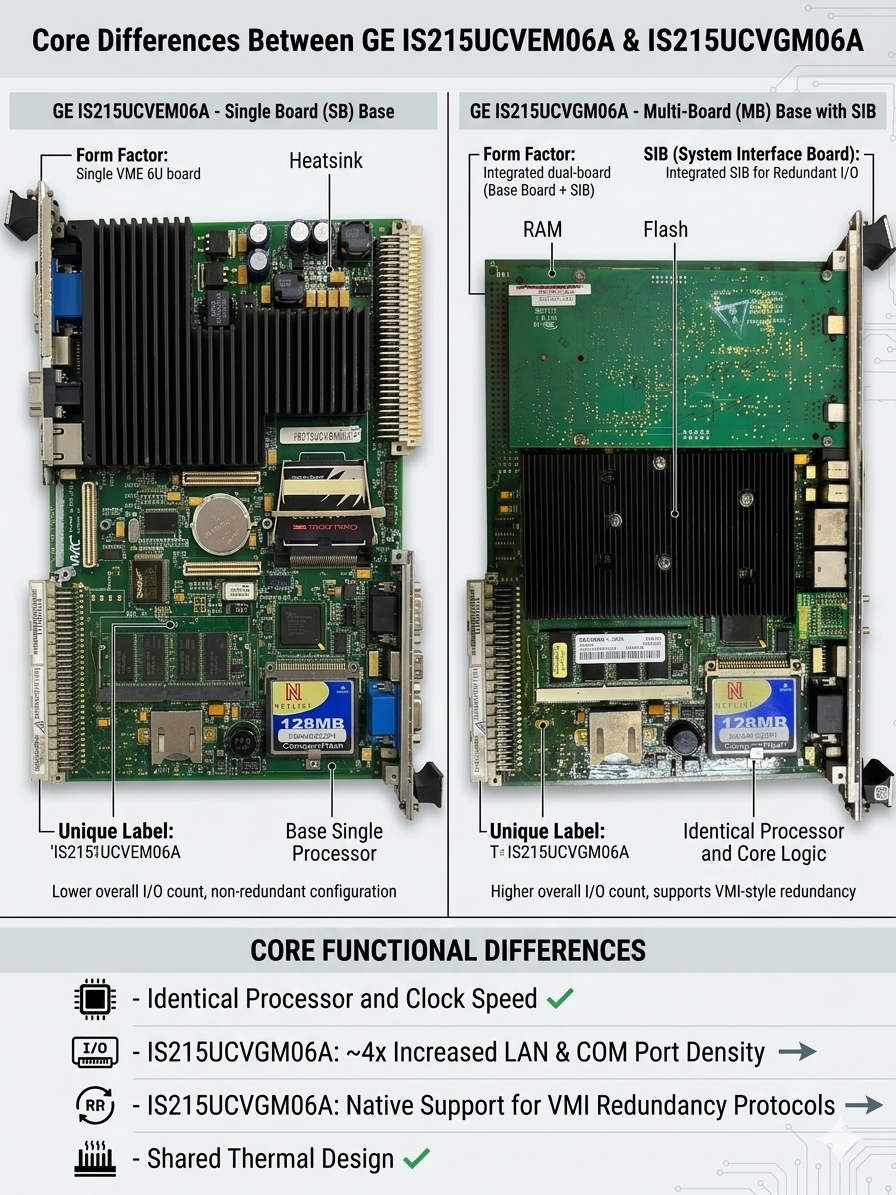

GE Mark VI and EX2100 systems rely heavily on the UCV controller series for critical turbine operations. Although the IS215UCVEM06A and IS215UCVGM06A share similar physical dimensions, their internal architectures differ completely. The primary distinction lies in how they process system-level data. The UCVEM card utilizes modern Ethernet-based networking protocols. Conversely, the UCVGM variant depends on traditional backplane communication pathways. Consequently, this engineering variance dictates your entire upgrade roadmap and hardware compatibility matrix.
The Technical Value of Ethernet Integration in Modern DCS
The IS215UCVEM06A controller excels in modern industrial automation setups that require high-speed data delivery. It integrates seamlessly with plant-wide control systems via standard Ethernet infrastructure. Therefore, field engineers can easily connect HMIs, remote historians, and data loggers. This design simplifies centralized asset management in heavy industrial facilities. In my observation, transitioning to an Ethernet-centric architecture reduces total engineering hours during lifecycle extensions.
Preserving Legacy Stability with VME Bus Infrastructure
The IS215UCVGM06A card offers robust, deterministic performance within traditional VMEbus-based Mark VI racks. This design handles real-time processor-to-I/O coordination directly across the backplane. Many power generation plants prefer this configuration to avoid altering functional cabinet wiring. It preserves communication with legacy Genius I/O subnets perfectly. Thus, it remains a reliable choice for maintaining older gas and steam turbine protection loops.
Network Layer Comparison: Ethernet vs VME Backplane
| Controller Model | Primary Communication Interface | Optimal System Environment |
|---|---|---|
| IS215UCVEM06A | Ethernet / IONet Protocol | Distributed Modernized Networks |
| IS215UCVGM06A | VME Bus + Genius I/O Link | Legacy Rack-Based Systems |
Critical Pitfalls in System Upgrade Compatibility
Plant operators often mistakenly treat these two processors as interchangeable spare parts. However, a blind swap can cause severe boot faults and synchronization failures. The UCVEM requires explicit IONet addressing structures within ControlST or ToolboxST. Meanwhile, the UCVGM relies on rigid VME bus timings. Experienced field specialists always cross-reference the original EEPROM parameters before upgrading. Furthermore, mismatching firmware baselines during a migration will block healthy I/O status initialization.
Maximizing Diagnostic Efficiency and Troubleshooting Speed
Ethernet control architectures provide superior diagnostic depth compared to legacy parallel buses. Technicians can use packet-level analysis to trace intermittent communication drops quickly. This capability dramatically reduces the mean time to repair (MTTR) during forced outages. Nevertheless, high-speed network components demand strict adherence to shielding standards. In contrast, the hardware-level isolation of the VME architecture withstands poor electrical grounding much better.
Best Practices for Installation and Preventive Maintenance
Upgrading to an Ethernet-centric controller requires meticulous attention to network health. For example, unmanaged network switches often misnegotiate duplex speeds with older interfaces. This issue can cause intermittent heartbeat loss under heavy processor loads. For VME boards, physical wear presents a different challenge altogether. Oxidation on the backplane pins frequently creates ghost faults that mimic total processor failure.
Maintenance Action Plan:
- ⚙️ Verify cabinet grounding paths before starting an Ethernet migration.
- ⚙️ Configure fixed speed and duplex settings on all managed switches.
- ⚙️ Inspect VME backplane connectors for pin oxidation and seating pressure.
- ⚙️ Isolate critical turbine control traffic from general plant networks.
- ⚙️ Check software tool compatibility matrices before ordering replacement hardware.
Solution Scenario: Combined-Cycle Power Plant Overhaul
A combined-cycle power facility planned to improve its remote data collection capabilities. The plant originally ran an older Mark VI rack utilizing the UCVGM processor. Instead of executing a full factory automation overhaul, engineers replaced the core processor with the UCVEM model. They installed industrial managed switches and rerouted the I/O signals through Ethernet ports. As a result, the plant achieved full SCADA integration while avoiding the massive costs of replacing the existing field wiring.
Expert FAQ: Engineering Procurement Guidance
Can I install a UCVEM card directly into a slot previously occupied by a UCVGM card?
No. Even though they fit the same physical rack dimensions, their backplane pin assignments and communication paths differ. You must alter the software hardware configuration and verify the carrier board compatibility beforehand.
What is the most effective way to eliminate intermittent communication drops on the Ethernet model?
Ensure your control cables do not share trays with high-voltage excitation lines. Additionally, use high-quality shielded twisted-pair cabling and verify that shield grounding occurs at exactly one single point.
How do I determine which version matches my current emergency shutdown parameters?
Inspect the application code inside your software suite. Check the hardware definition files to see if your system expects a standard VME bus layout or an independent network configuration.
